High-Speed Backbone for Scalable Yokogawa Distributed Control Systems

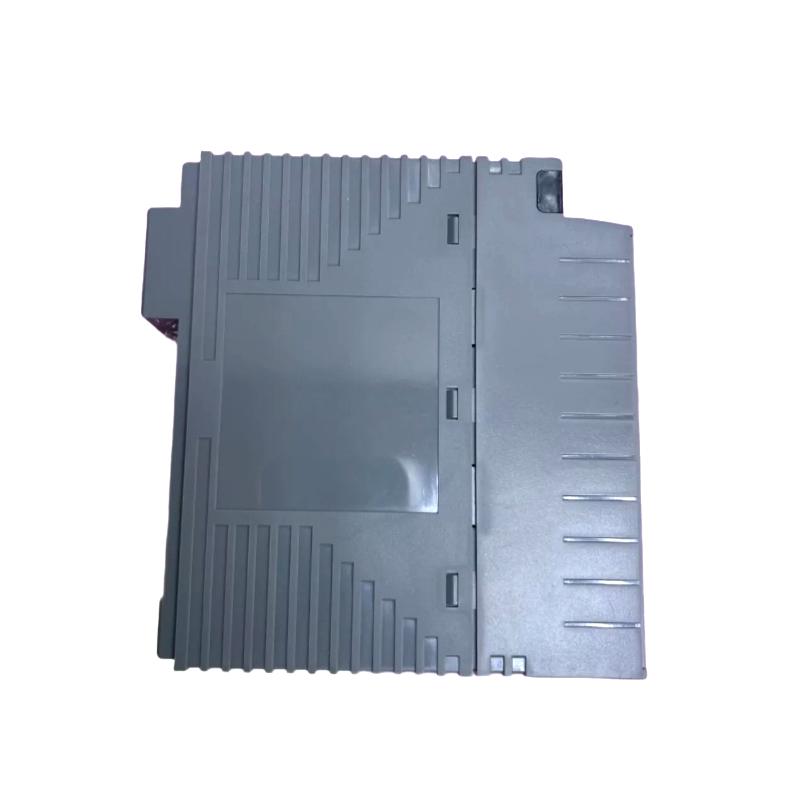

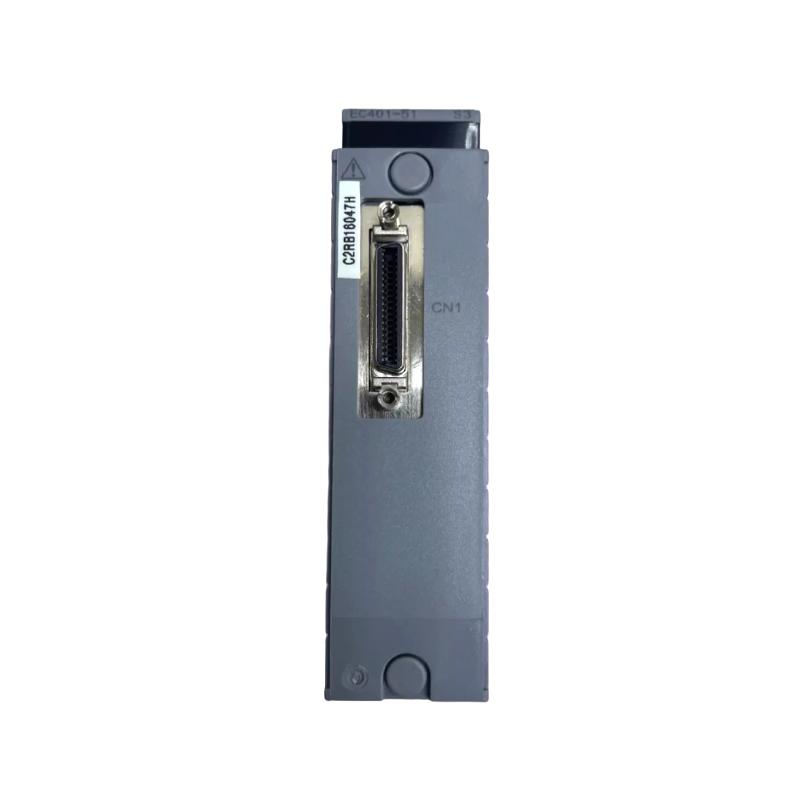

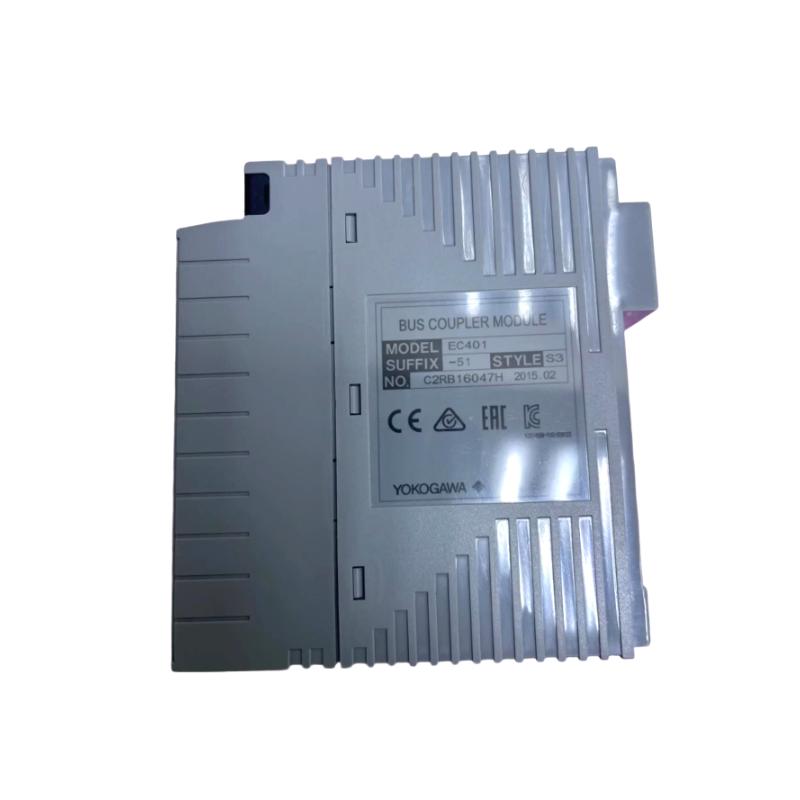

The Yokogawa EC401-51 S2 ESB Bus Coupler Module is a next-generation communication interface designed for CENTUM VP and FIO-based distributed control architectures. It acts as the essential bridge between the Field Control Unit (FCU) and multiple Node Units, enabling high-speed, deterministic data exchange across the ESB (Extended System Bus) network.
Engineered for modern industrial automation, the S2 version enhances system stability and redundancy readiness, supporting efficient expansion of remote I/O while maintaining precise real-time control performance.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | ESB Bus Coupler Module |
| Model | EC401-51 S2 |
| System Compatibility | Yokogawa CENTUM VP / CS 3000 / FIO systems |
| Function | FCU-to-Node ESB communication interface |
| Bus Type | ESB (Extended System Bus) |
| Transmission Speed | 128 Mbps |
| Maximum Connectable Nodes | Up to 9 units |
| Transmission Distance | Up to 10 m |
| Power Consumption | Approx. 0.5 A |
| Module Weight | Approx. 0.24 kg |
| Mounting Location | FCU rack slot (FIO system) |
| Redundancy Support | Yes (dual-module configuration supported) |
| Operating Temperature | Industrial-grade (-10°C to +55°C typical) |
| Storage Temperature | -40°C to +70°C |
| Humidity Range | 5% to 95% non-condensing |
Industrial Applications
The EC401-51 S2 is widely deployed in mission-critical industrial environments where reliable distributed control is essential:
- Oil & gas upstream and downstream operations
- Petrochemical and refining facilities
- Power generation and turbine control systems
- Large-scale chemical processing plants
- Continuous manufacturing and process industries
Its architecture is particularly valuable in plants requiring long-distance I/O distribution with minimal signal degradation.
Engineering Advantages
The EC401-51 S2 is designed to deliver high performance while simplifying system expansion and maintenance. Its modular structure allows engineers to build scalable control networks with predictable communication behavior.
Key advantages include:
-
High-speed deterministic communication (128 Mbps) for stable process control
-
Supports up to 9 node units per module for flexible system expansion
-
Dual-redundant capability for higher system reliability
-
Compact rack-mounted design optimized for FCU integration
-
Reduced field wiring requirements through distributed architecture
-
Stable long-term operation in industrial environments
This combination makes it a preferred solution for large-scale Yokogawa DCS installations.
Engineering Advantages
Technical FAQs
1. What is the main function of the EC401-51 S2 module?
It connects the Field Control Unit with Node Units via the ESB bus network.
2. What systems is it compatible with?
It is used in Yokogawa CENTUM VP, CS 3000, and FIO systems.
3. How many nodes can it support?
Up to 9 ESB node units per module.
4. What is the communication speed?
128 Mbps for I/O data transmission.
5. What is the maximum transmission distance?
Approximately 10 meters.
6. Does it support redundancy?
Yes, dual-module redundancy is supported in FCU configurations.
7. Where is it installed?
Inside the Field Control Unit rack (specific FCU slots).
8. What is its key advantage in system design?
It enables distributed I/O architecture with reduced wiring complexity.
9. Is it suitable for harsh environments?
Yes, it is designed for industrial-grade operation.
10. Why is it called a bus coupler?
Because it couples FCU control systems with ESB network node units.
