High-Speed ESB Bus Interface for Reliable DCS Expansion

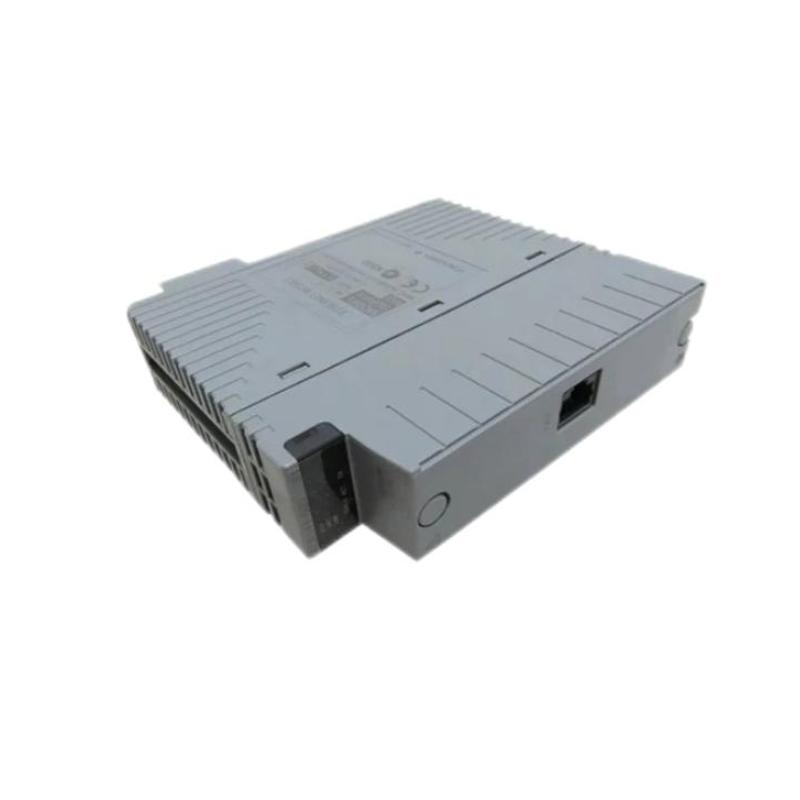

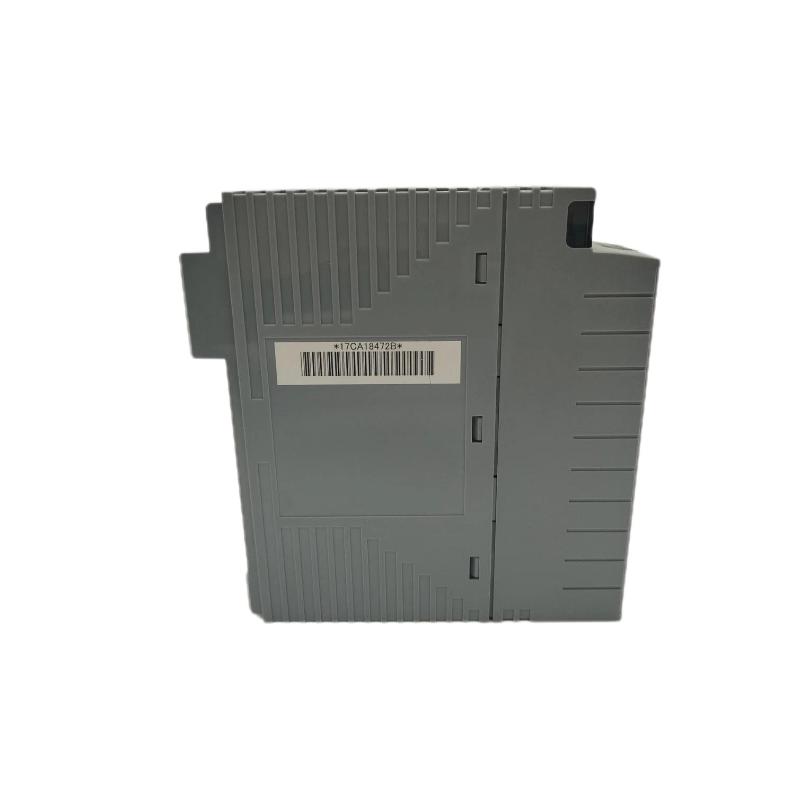

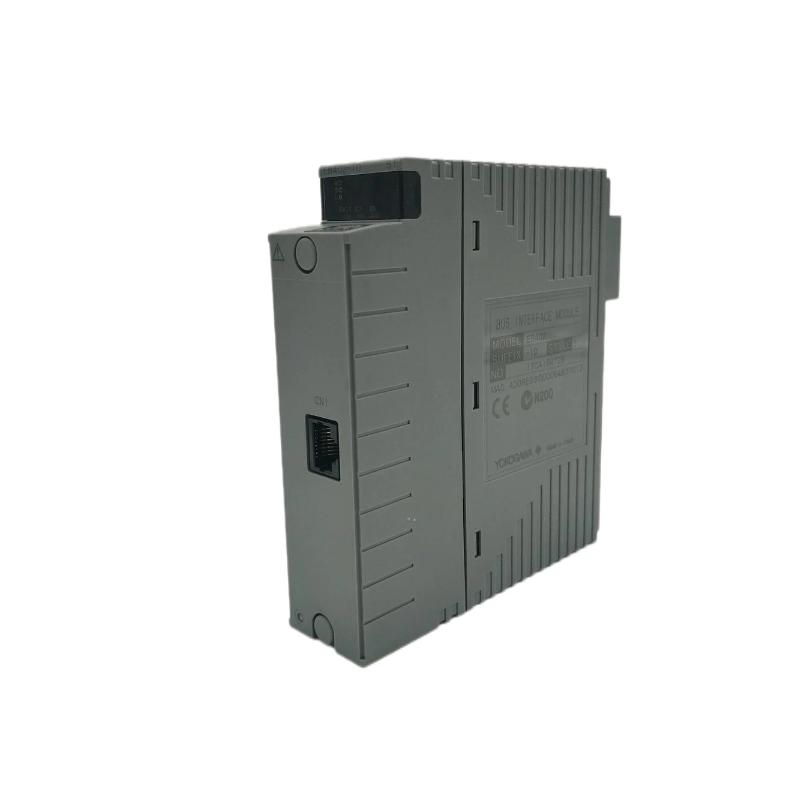

The Yokogawa EB402-10 ESB Bus Coupler Module is a high-performance communication interface designed to connect Field Control Units (FCUs) with ESB bus-based I/O and node systems in Yokogawa CENTUM distributed control architectures. It functions as a master interface, enabling fast, stable, and redundant data transmission between controllers and field devices.
Engineered for mission-critical automation, this module supports scalable system expansion while maintaining deterministic communication and high system availability.
Technical Specifications
| Parameter | Details |
|---|
| Model | EB402-10 |
| Product Type | ESB Bus Coupler Module |
| Function | ESB bus master interface |
| System Compatibility | Yokogawa CENTUM / FCS / Field Control Units |
| Communication Bus | ESB Bus (I/O communication backbone) |
| Bus Ports | 2 × ESB bus connector ports |
| Transmission Speed | Up to 128 Mbps |
| Connectable Devices | Supports multiple ESB-connected nodes (system dependent) |
| Network Topology | Redundant / dual ESB bus configuration supported |
| Transmission Distance | Up to ~10 m per segment (system dependent) |
| Installation Slot | FCU dedicated slots (7 & 8 configuration typical) |
| Power Consumption | Approx. 0.5 A @ 5 V DC |
| Weight | Approx. 0.24 kg |
| Mounting Type | Rack-mounted FCU module |
Application Areas
The EB402-10 is widely used in industrial automation systems requiring fast and reliable field communication:
-
Oil & gas production and refining control systems
-
Petrochemical and chemical processing plants
-
Power generation and turbine control systems
-
Water and wastewater treatment facilities
-
Large-scale distributed control systems (DCS)
-
Process automation and plant-wide control networks
It is especially suitable for architectures requiring modular expansion and redundant communication paths.
Key Advantages
The EB402-10 delivers high-speed ESB communication, strong system scalability, and stable redundant architecture support. With dual ESB bus ports, it enables efficient data exchange between field controllers and I/O modules, ensuring consistent system synchronization.
Its master interface design allows centralized control of multiple connected nodes, improving system organization and reducing communication complexity. The module is also designed for industrial-grade reliability, ensuring stable operation under continuous load conditions.
Its compact rack-mounted structure simplifies integration into FCU systems while maintaining high-density control capability for large-scale automation environments.
Technical FAQs
1. What is the main function of this module?
It acts as an ESB bus master interface connecting FCUs with I/O and node systems.
2. How many ports does it have?
It includes two ESB bus connector ports.
3. What systems is it compatible with?
Yokogawa CENTUM and FCU-based control systems.
4. What is ESB bus used for?
It is the internal communication backbone for I/O modules in DCS systems.
5. Does it support redundancy?
Yes, dual ESB bus configuration is supported.
6. What is its communication speed?
Up to 128 Mbps depending on system configuration.
7. Where is it installed?
In FCU rack slots (typically slots 7 and 8).
8. What industries use it most?
Oil & gas, chemical, power generation, and utilities.
9. What is its key advantage?
Stable high-speed communication with scalable system expansion.
10. What makes it different from standard I/O modules?
It is a communication backbone module, not a signal processing module.
