Precision Analog Output for Demanding Control Systems

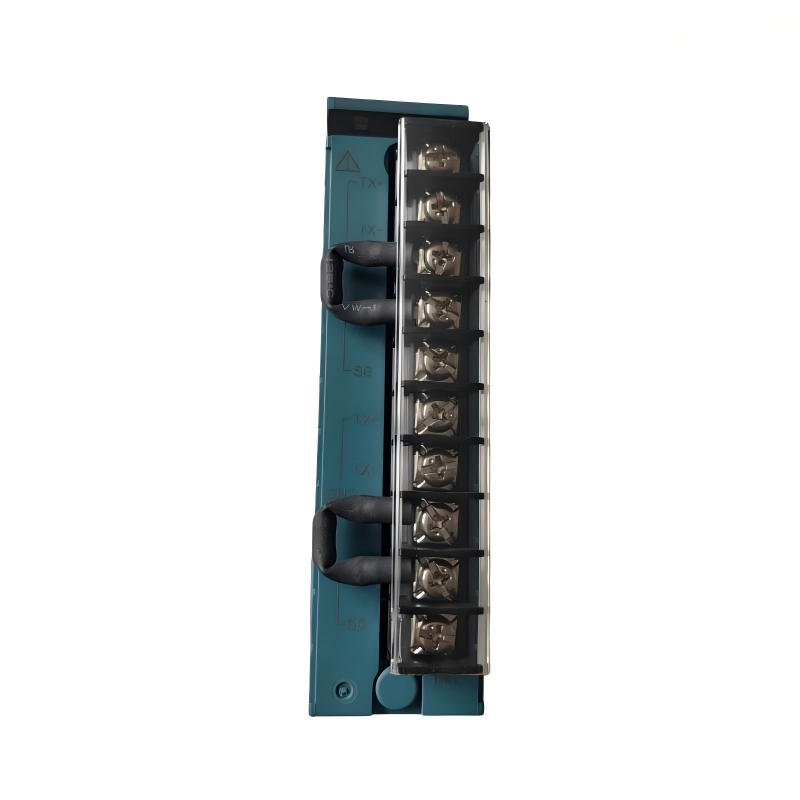

The Yokogawa NFAI543-S00 S1 Analog Output Module is a high-accuracy industrial I/O component engineered for reliable signal transmission in advanced automation systems. Designed to meet the stringent requirements of process industries, this module delivers stable and precise current outputs, ensuring consistent performance in critical control loops.
With its isolated multi-channel design and support for industry-standard communication, it is widely used in distributed control systems (DCS) where accuracy and signal integrity are essential.
Technical Specifications
| Parameter | Details |
|---|
| Model | NFAI543-S00 S1 |
| Module Type | Analog Output Module |
| Output Channels | 16 isolated current outputs |
| Output Signal Range | 4–20 mA |
| Load Resistance | 0–750 Ω |
| Accuracy | ±0.3% of full scale |
| Data Refresh Cycle | 10 ms |
| Response Time | 100 ms step response |
| Isolation Voltage | 1500 V AC (1 min) |
| Communication Support | HART compatible |
| Circuit Detection | Open-circuit detection ≤ 0.65 mA |
| Dimensions (H × W × D) | Approx. 107.5 × 32.8 × 130 mm* |
| Weight | Approx. 0.2–0.3 kg |
| Installation | Rack / system integration module |
Application Scenarios
This analog output module is widely applied in industries where precise signal control is critical:
-
Distributed Control Systems (DCS) in oil & gas and petrochemical plants
-
Power generation and energy management systems
-
Chemical processing and pharmaceutical manufacturing
-
Water treatment and environmental control systems
-
Factory automation requiring high-precision actuator control
Its ability to deliver stable 4–20 mA signals makes it ideal for controlling valves, drives, and other field devices.
Key Advantages
The NFAI543-S00 S1 stands out for its high signal accuracy and channel isolation, ensuring reliable operation even in electrically noisy industrial environments. Its multi-channel design reduces system complexity while maintaining excellent performance across all outputs.
The integration of HART communication enhances diagnostic capabilities, allowing for better device management and predictive maintenance. Additionally, its fast data refresh and response time contribute to improved system responsiveness and control precision.
Engineered for long-term reliability, this module supports stable operation in continuous industrial processes, helping reduce downtime and maintenance costs.
Technical FAQs
1. What type of signal does this module output?
It provides a standard 4–20 mA analog current output.
2. How many output channels are available?
It features 16 isolated output channels.
3. Is channel isolation included?
Yes, each channel is electrically isolated for improved reliability.
4. What is the typical accuracy level?
Approximately ±0.3% of full scale.
5. Does it support HART communication?
Yes, enabling advanced diagnostics and device communication.
6. What is the response time of the module?
About 100 ms for step response.
7. Can it detect wiring faults?
Yes, it includes open-circuit detection functionality.
8. What systems is it compatible with?
It is commonly used in Yokogawa DCS platforms and industrial automation systems.
9. Is it suitable for critical process control?
Yes, it is designed for high-reliability control environments.
10. What is the main advantage of using isolated outputs?
It reduces signal interference and enhances system stability.
