Intelligent Protection for Modern Distribution Networks

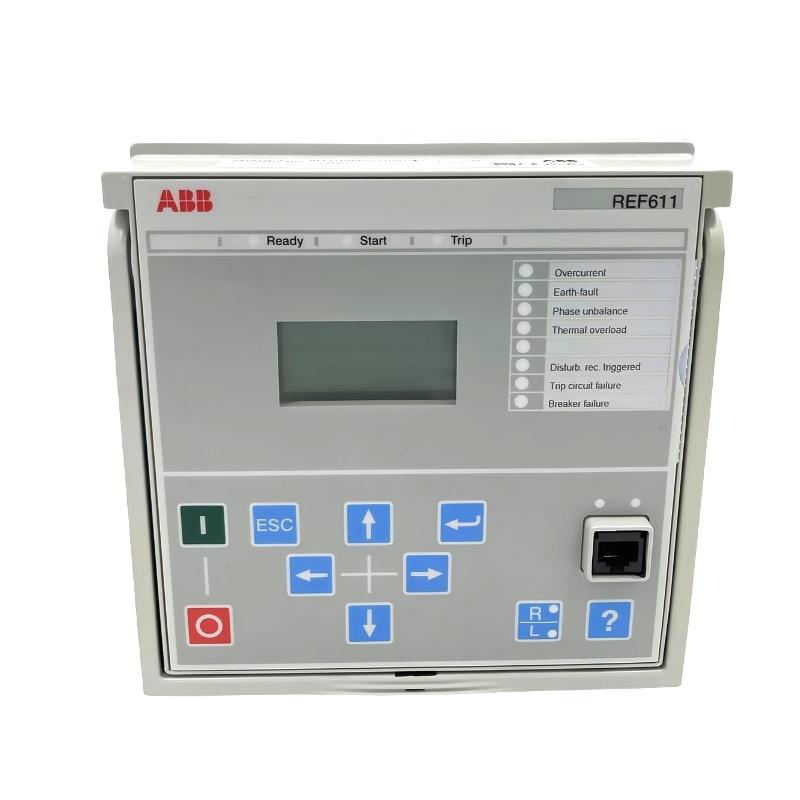

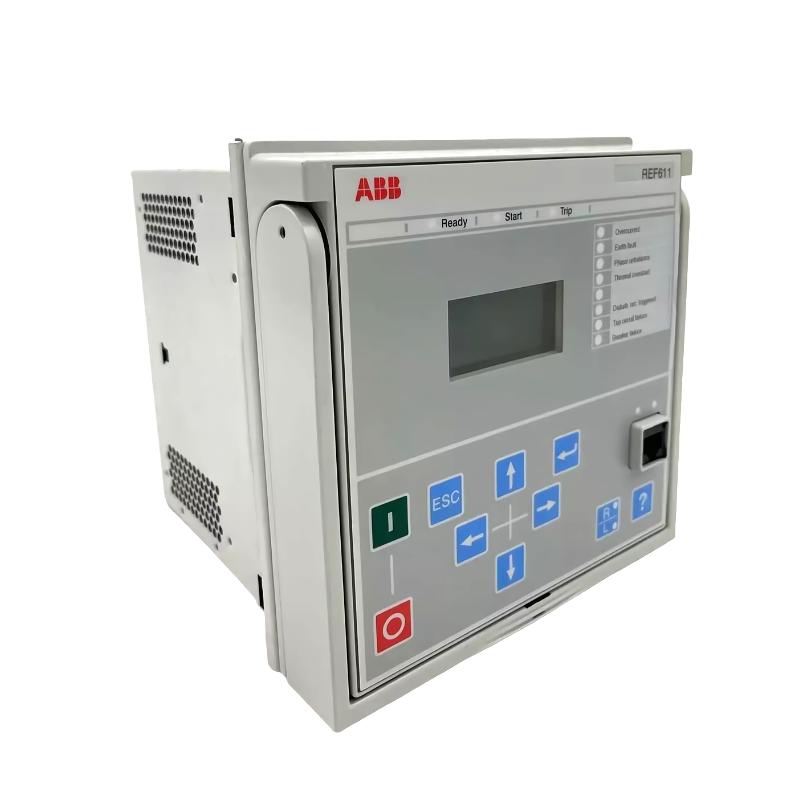

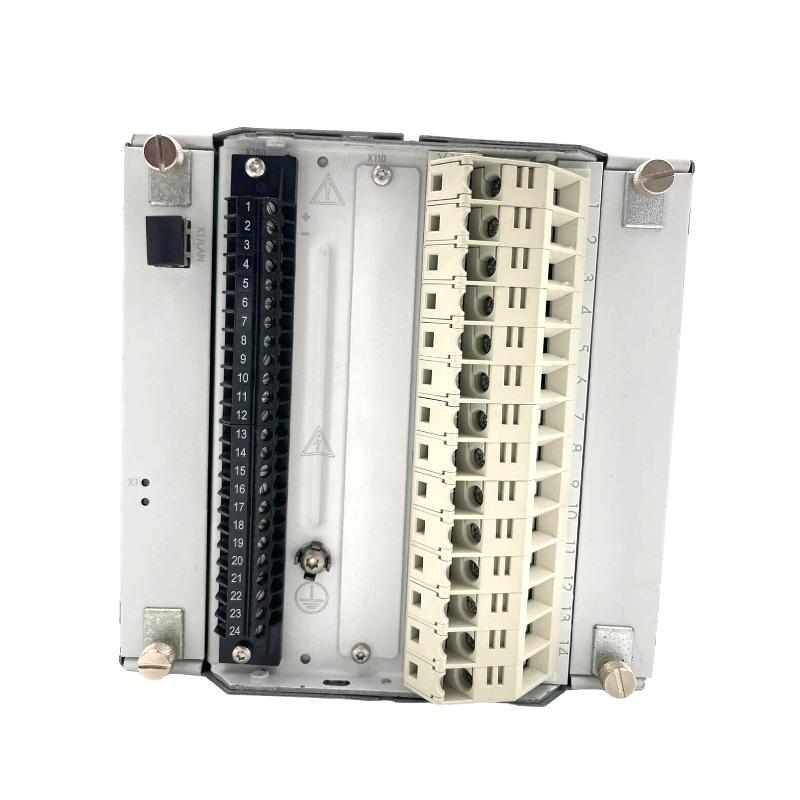

The ABB REF611 Feeder Protection Relay is a compact and highly capable protection and control solution tailored for medium-voltage distribution systems. As part of ABB’s Relion® 611 series, it combines protection, control, measurement, and monitoring into a single streamlined device.
Designed for flexibility, the REF611 supports radial, looped, and meshed network configurations, making it a strong fit for evolving power infrastructures. Its withdrawable-unit design simplifies installation and maintenance, ensuring minimal downtime and long-term operational efficiency.
Technical Specifications
| Parameter | Specification |
|---|
| Model | REF611 |
| Module Type | Feeder Protection Relay |
| Rated Voltage | 24–250 V AC/DC (varies by version) |
| Power Consumption | Approx. 4–5 VA/W |
| Protection Functions | Overcurrent, Earth Fault, Thermal Overload, Phase Discontinuity |
| Communication Protocols | IEC 61850, Modbus, DNP3, Profibus |
| Frequency | 50 / 60 Hz |
| Mounting Type | Panel / Switchgear |
| Operating Temperature | -25°C to +60°C |
| Dimensions (H × W × D) | Approx. 265 × 190 × 160 mm |
| Weight | Approx. 6.0 kg |

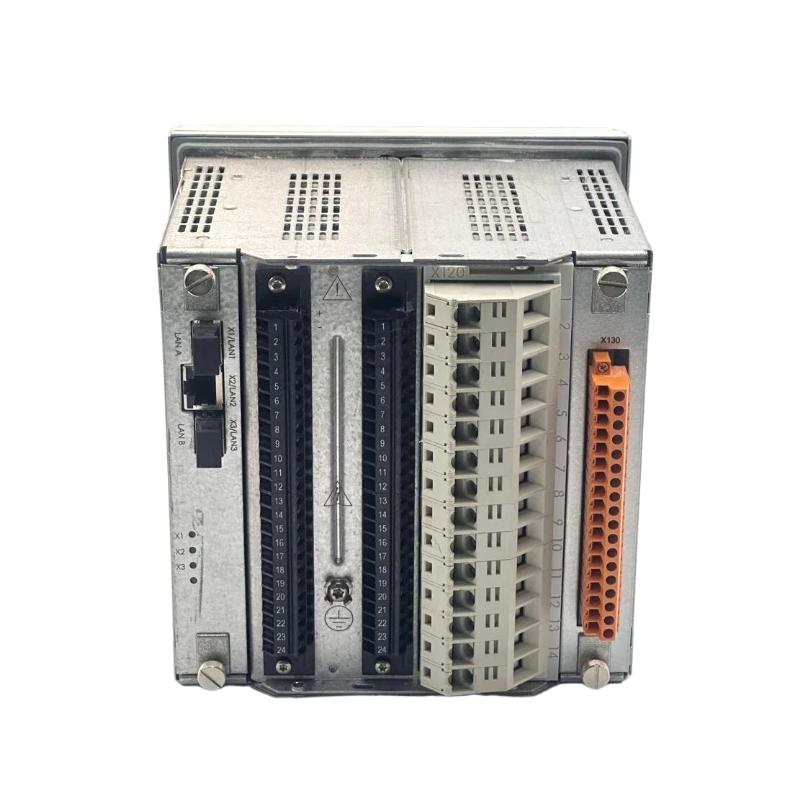

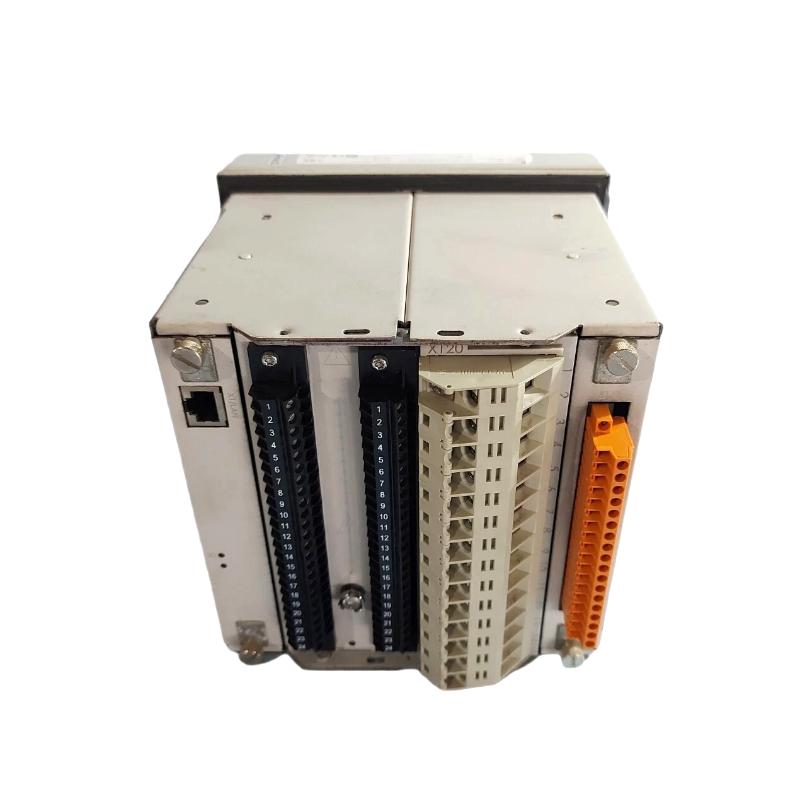

| Design Structure | Withdrawable Plug-in Unit |
Application Environments
REF611 is engineered for comprehensive feeder protection across a wide range of electrical distribution scenarios. It is commonly deployed in:
-
Utility substations with complex feeder configurations
-
Industrial plants with distributed generation systems
-
Renewable energy integration projects
-
Power grids requiring high reliability and fault tolerance
-
Marine and offshore electrical systems
Its ability to operate in radial, looped, and meshed networks makes it particularly valuable in modern smart grid applications.
Performance Highlights and Benefits
The REF611 delivers a strong balance between advanced protection capabilities and operational simplicity. Its integrated design reduces the need for multiple devices, helping lower installation costs and panel space requirements.
With precise fault detection and rapid response times, it enhances system stability and minimizes equipment damage. The support for multiple communication protocols ensures seamless integration into SCADA and digital substation environments.
Additionally, the withdrawable construction allows fast replacement and maintenance, significantly improving service efficiency and reducing operational interruptions.
Technical FAQs
-
What systems is REF611 best suited for?
It is ideal for medium-voltage feeder protection in both utility and industrial networks.
-
Can it handle distributed generation systems?
Yes, it supports networks with integrated distributed energy sources.
-
Does it support remote communication?
Yes, via IEC 61850, Modbus, DNP3, and other protocols.
-
Is it suitable for smart grid applications?
Absolutely, its flexibility supports modern grid architectures.
-
What protection functions are included?
Overcurrent, earth fault, thermal overload, and phase discontinuity protection.
-
Can it be used in harsh environments?
Yes, including offshore and industrial environments.
-
How is maintenance handled?
The withdrawable design allows quick replacement without rewiring.
-
Does it include monitoring features?
Yes, it provides measurement and system supervision functions.
-
Is configuration complex?
No, it is designed for user-friendly configuration via software tools.
-
What makes it different from REF610?
REF611 offers enhanced control features and better adaptability for complex network topologies.
