Product Insight & Functional Overview

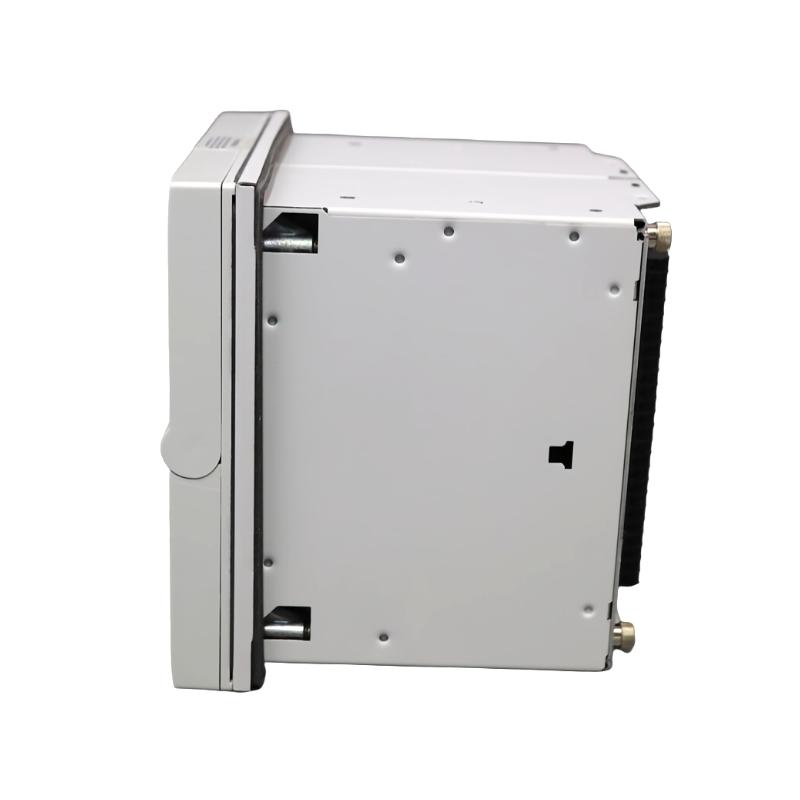

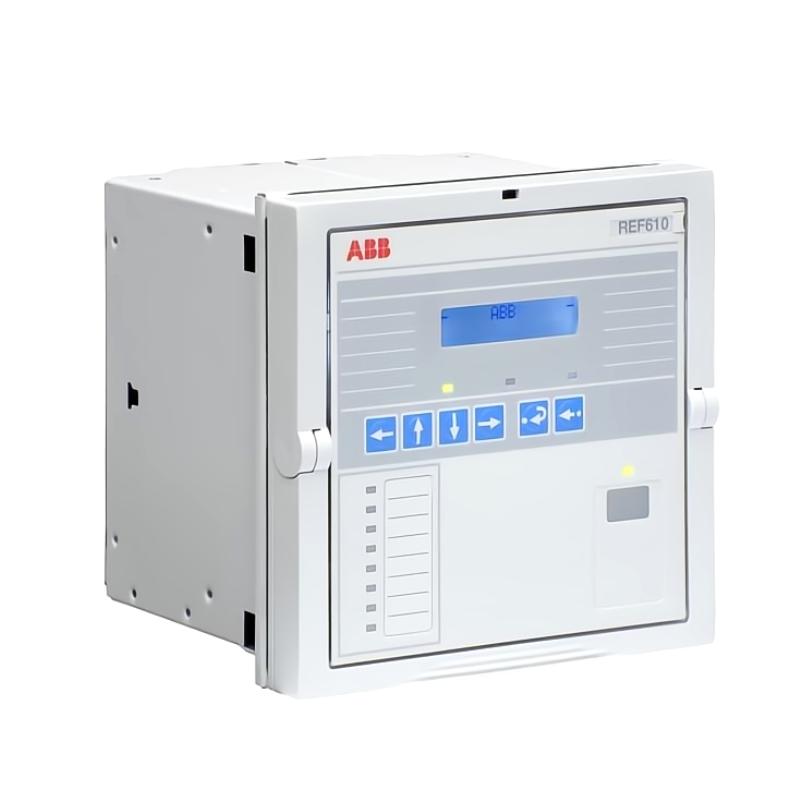

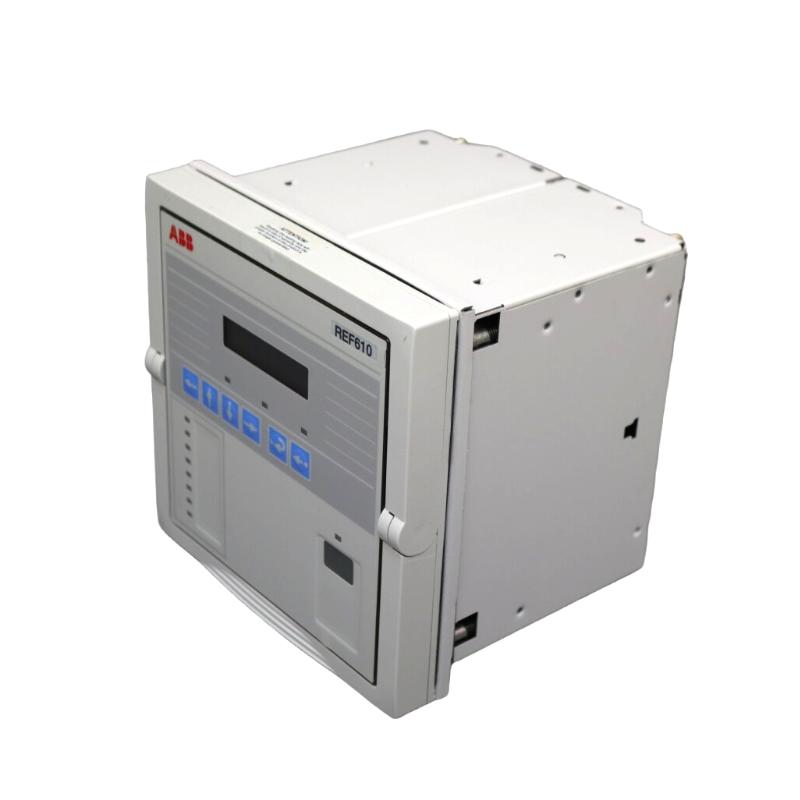

The ABB REF610 Feeder Protection Relay is a compact, microprocessor-based protection device designed to safeguard electrical distribution systems with precision and reliability. As part of ABB’s Relion® product family, it integrates protection, measurement, and monitoring functions into a single intelligent unit.
Built for both utility and industrial environments, this relay ensures fast fault detection and system stability, helping minimize downtime and protect critical assets. Its modular plug-in design enhances operational efficiency, allowing quick installation and maintenance without disrupting system continuity.
Technical Specifications
| Parameter | Specification |
|---|
| Model | REF610 |
| Module Type | Feeder Protection Relay |
| Rated Current Range | 0.01 – 600 A |
| Operating Voltage | 30 VDC – 400 VAC |
| Power Supply | 24 V DC |
| Protection Functions | Overcurrent, Earth Fault, Thermal Overload, Phase Loss |
| Communication Protocols | IEC 61850, Modbus, DNP3, Profibus |
| Output Contacts | Multiple configurable relay outputs |
| Operating Temperature | -25°C to +60°C |
| Mounting Type | Panel / Switchgear installation |
| Dimensions (H × W × D) | Approx. 177 × 140 × 125 mm |
| Weight | Approx. 1.2 kg |
Application Scenarios
REF610 is widely used in medium-voltage distribution systems where dependable feeder protection is essential. It is particularly suitable for:
-
Utility substations managing incoming and outgoing feeders
-
Industrial plants requiring continuous power reliability
-
Backup protection for transformers, motors, and generators
-
Marine and offshore electrical systems
-
Retrofitting legacy switchgear with modern protection technology
Its adaptability makes it a preferred choice for both new installations and system upgrades.
Core Advantages and Value Proposition
The REF610 stands out for its balanced combination of protection accuracy, system flexibility, and long-term reliability. Its advanced fault detection algorithms ensure rapid response to abnormal conditions, reducing equipment stress and preventing cascading failures.
The support for multiple communication protocols enables seamless integration into modern SCADA and automation systems, making it future-ready. Additionally, the removable plug-in design significantly reduces maintenance time, while its solid-state construction minimizes wear and operational costs over time.
Technical FAQs
-
What type of systems is REF610 designed for?
It is designed for medium-voltage feeder protection in utility and industrial distribution systems.
-
Does it support remote monitoring?
Yes, via protocols like IEC 61850, Modbus, and DNP3.
-
Can it be used as backup protection?
Yes, for motors, transformers, and generators.
-
Is arc fault protection available?
Optional arc detection modules can be integrated.
-
What protection functions are included?
Overcurrent, earth fault, thermal overload, and phase discontinuity protection.
-
Is it suitable for harsh environments?
Yes, including marine and offshore applications.
-
How is configuration performed?
Via front interface or PC-based software tools.
-
Does it support auto-reclosing?
Yes, multi-shot auto-reclose for overhead lines.
-
What type of maintenance does it require?
Minimal, thanks to its solid-state and modular design.
-
Is the product still in production?
It is considered a legacy model but remains widely used in existing systems.
