Product Introduction

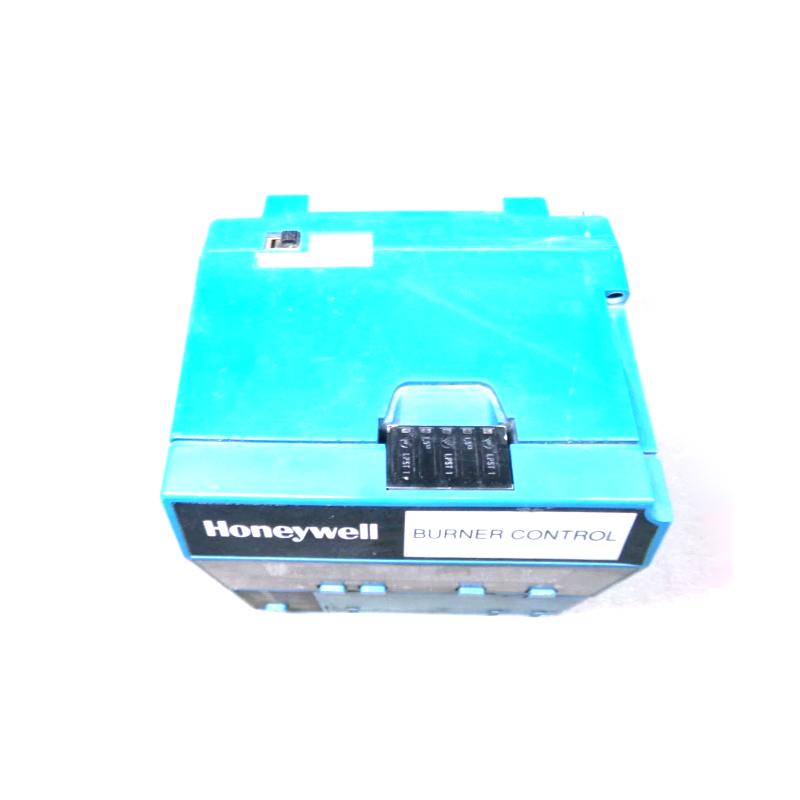

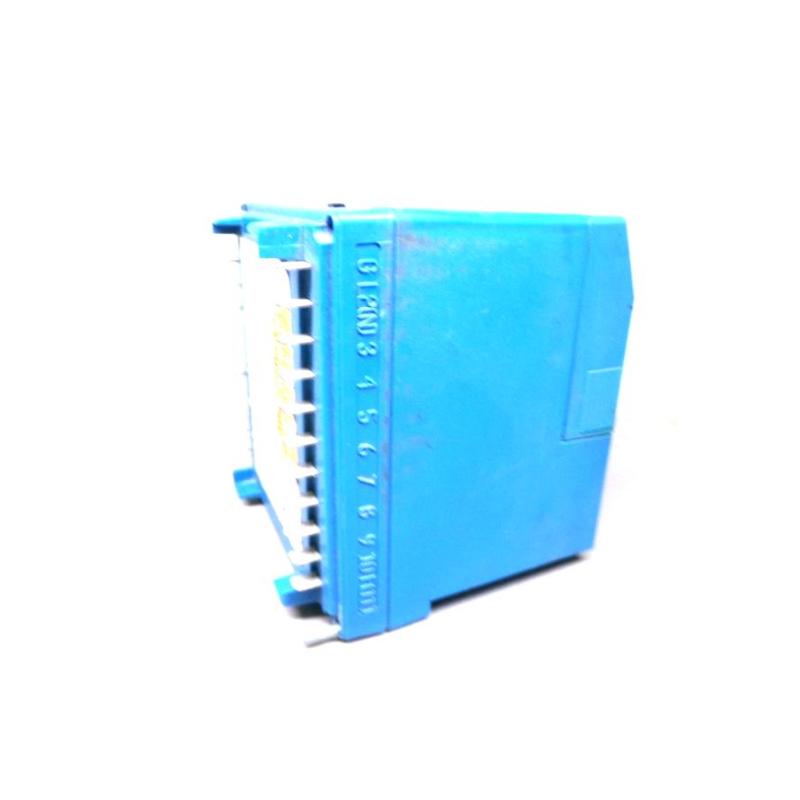

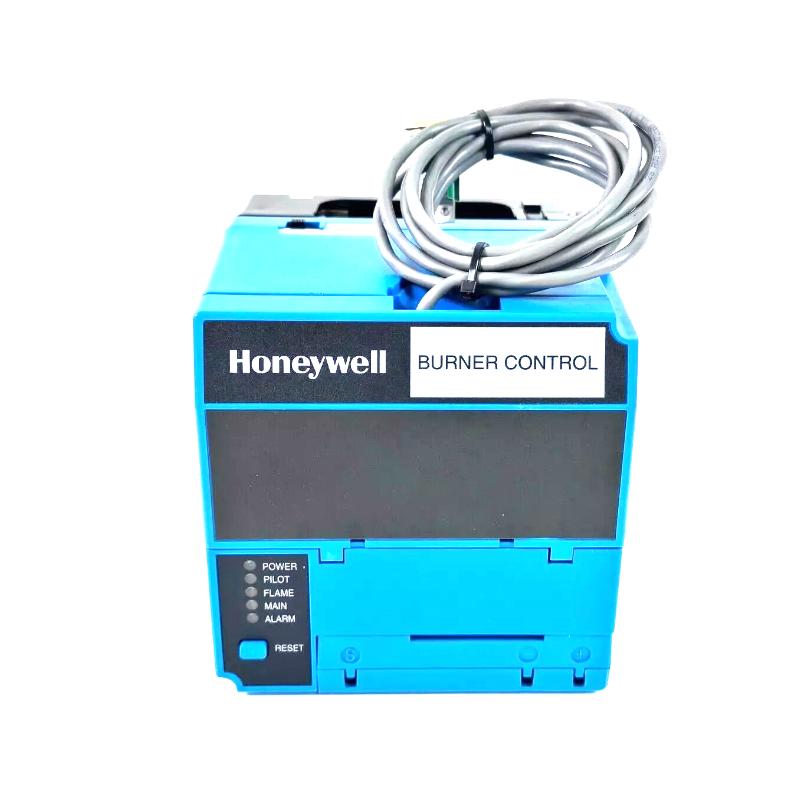

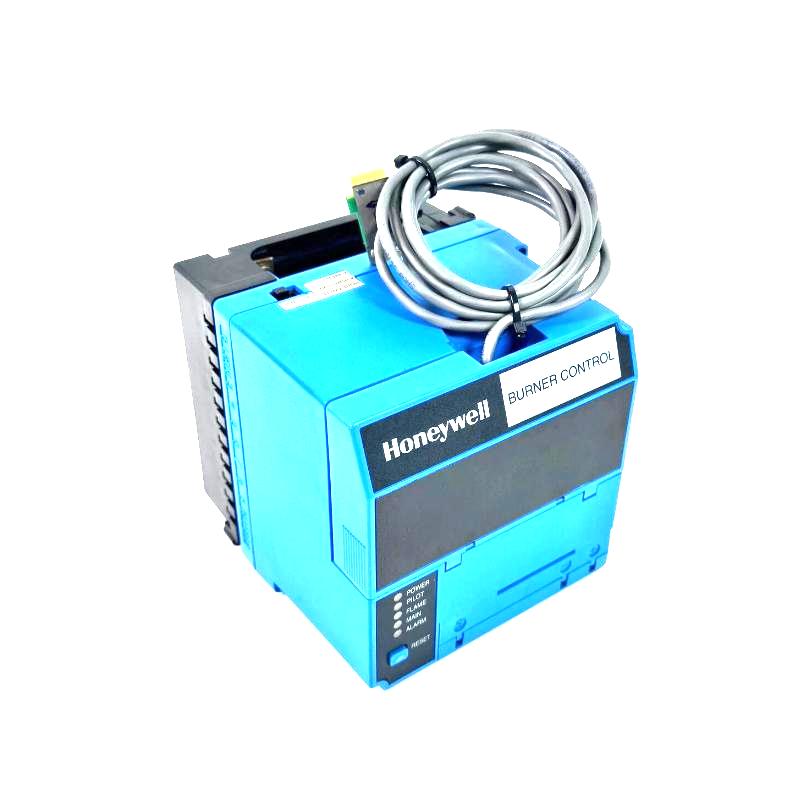

The Honeywell RM7800M1011 Burner Control is a microprocessor-based flame safeguard and burner management controller from the Honeywell 7800 Series, designed for single-burner combustion systems using gas, oil, coal, or dual-fuel configurations. It provides fully automated sequencing for ignition, flame supervision, purge control, and safety shutdown.
This model is widely used in industrial boilers and process heating applications where reliable burner sequencing, integrated diagnostics, and flexible configuration are required. It combines modular hardware architecture with built-in display functionality to support both commissioning and long-term maintenance efficiency.
Technical Specifications
| Parameter | Details |
|---|
| Manufacturer | Honeywell |
| Series | 7800 Series Burner Control |
| Model | RM7800M1011 |
| Control Type | Microprocessor-based burner management |
| Application | Single burner (gas, oil, coal, dual-fuel) |
| Power Supply | 120 VAC (+10%, -15%) |
| Frequency | 50/60 Hz |
| Operating Temperature | -40°C to +60°C |
| Flame Establishing Time (Pilot) | 4 or 10 seconds |
| Main Flame Establishing Time | 10 or 15 seconds |
| Post Purge | 15 seconds |
| Display | Includes S7800 keyboard/display module |
| Memory | Non-volatile fault & history storage |
| Diagnostics | Sequence status, lockout codes, fault history |

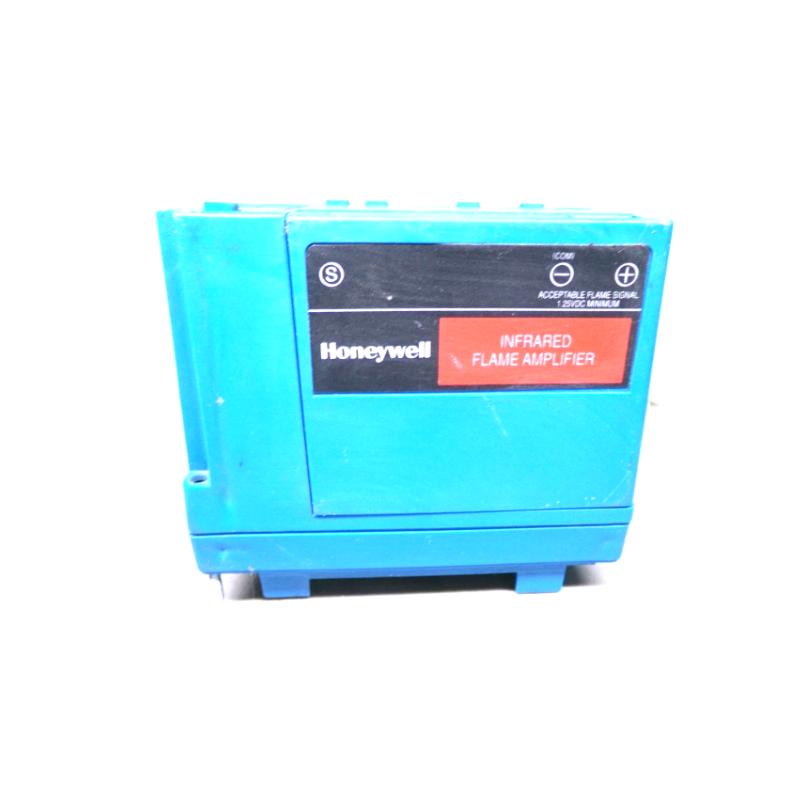

| Architecture | Modular plug-in flame amplifiers + purge timer card |
System Role & Application
The RM7800M1011 serves as the central logic and safety controller in burner systems, managing the full combustion cycle from pre-purge through ignition and stable operation to shutdown. It continuously monitors flame presence and system interlocks to ensure safe fuel handling at all times.
Typical applications include:
-
Industrial steam and hot water boilers
-
Process heating furnaces and ovens
-
Petrochemical and refinery combustion systems
-
Thermal processing equipment
-
Large HVAC heating plants
Its modular design allows integration with different flame detectors, amplifiers, and purge timing cards depending on system requirements.
Key Advantages
-
Complete Burner Sequencing Control: Automates ignition, purge, flame proving, and shutdown cycles
-
Integrated Display Interface: Built-in S7800 module enables real-time diagnostics and status monitoring
-
Strong Diagnostic Capability: Stores fault history and lockout events for faster troubleshooting
-
Modular Architecture: Supports interchangeable flame amplifiers and purge timer cards
-
Flexible Application Design: Suitable for multiple fuel types and burner configurations
-
Industrial Reliability: Designed for continuous-duty operation in harsh environments
This makes it a dependable solution for combustion systems requiring both operational flexibility and strict safety compliance.
Technical FAQs
1. What is the main function of RM7800M1011?
It controls burner ignition, flame supervision, purge cycles, and safety shutdown sequencing.
2. What fuel types does it support?
Gas, oil, coal, and dual-fuel systems.
3. Does it include a display module?
Yes, it includes an integrated S7800 keyboard/display module.
4. What is its operating temperature range?
-40°C to +60°C.
5. Is it modular?
Yes, it uses plug-in flame amplifiers and purge timer cards.
6. Can it store fault history?
Yes, non-volatile memory retains lockouts and system history.
7. What happens during flame failure?
The system immediately initiates safety lockout and shuts off fuel supply.
8. Is it suitable for continuous operation?
Yes, it is designed for industrial continuous-duty burner systems.
9. What improves its diagnostics?
Built-in display and stored sequence history.
10. Why is it widely used?
Because it combines safe burner sequencing, modular flexibility, and strong diagnostics in one platform.
