Product Introduction

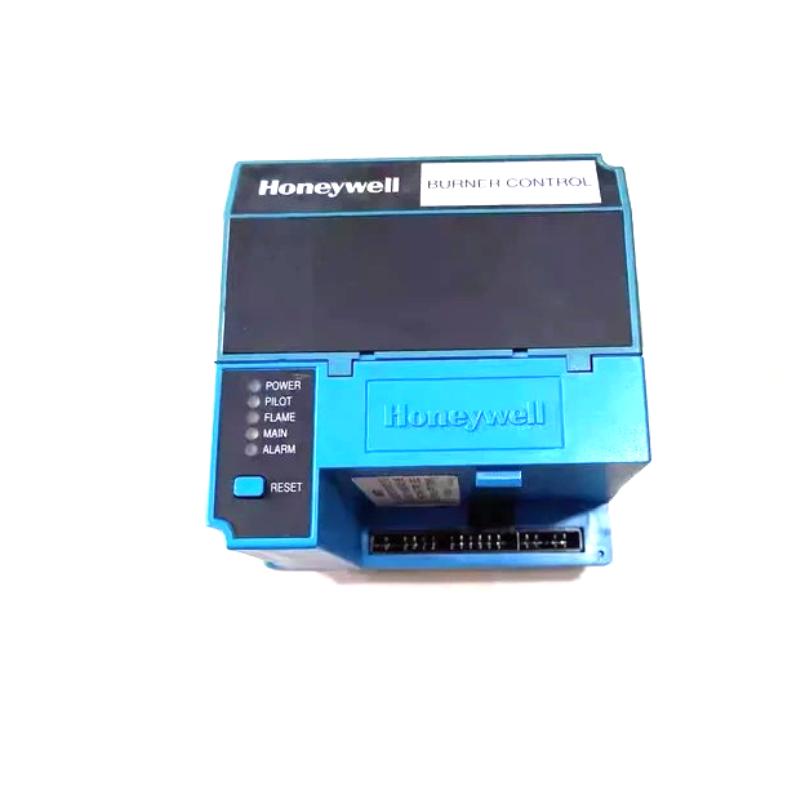

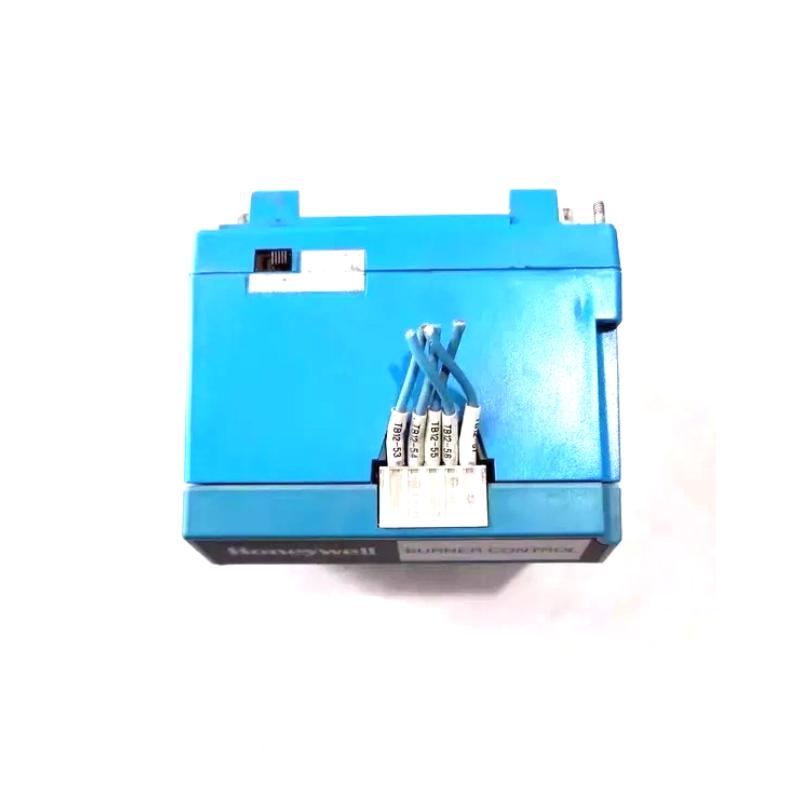

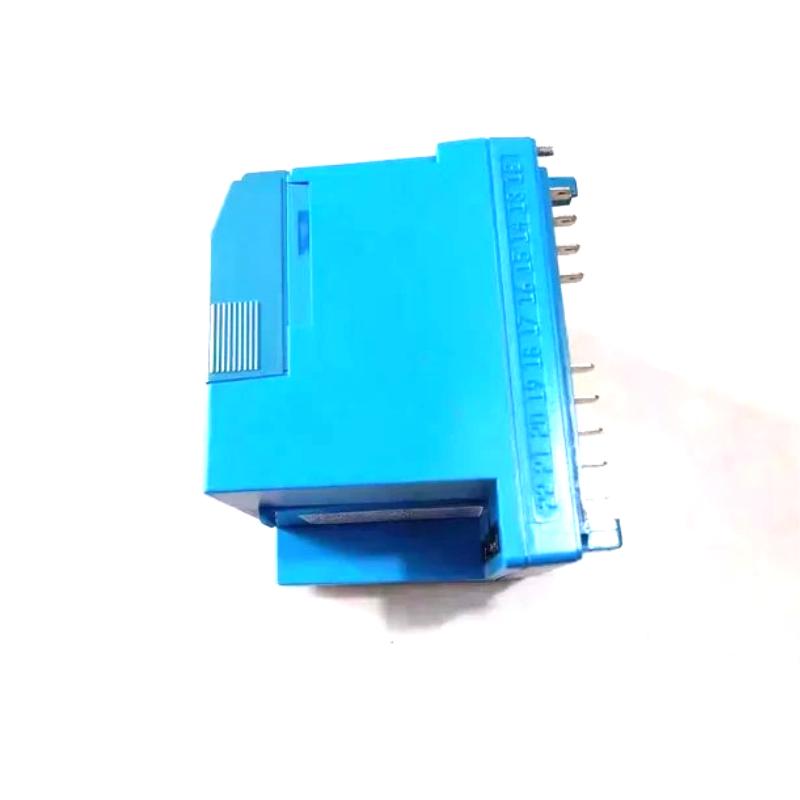

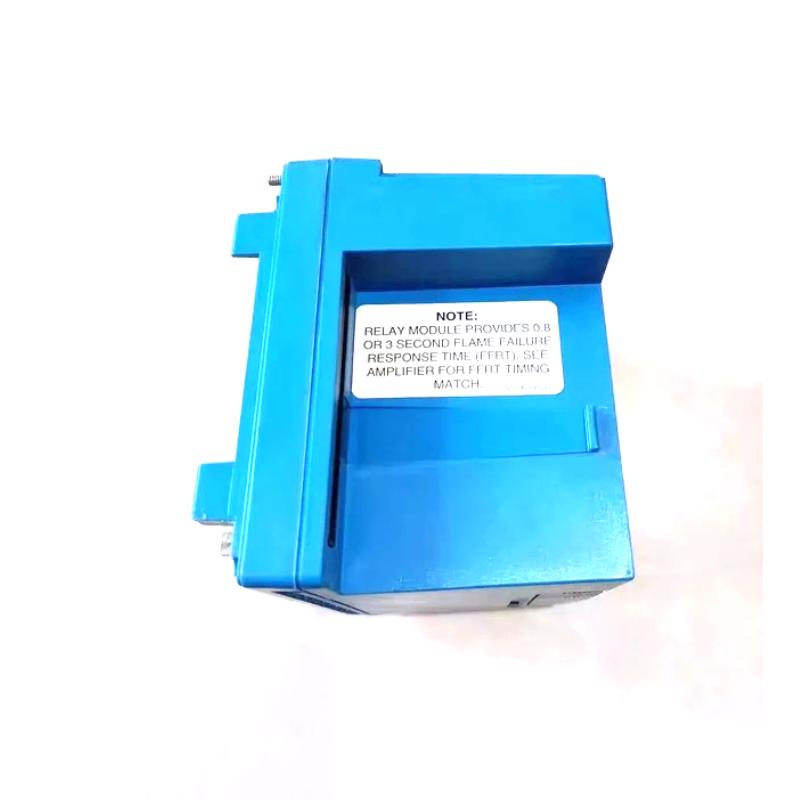

The Honeywell RM7800L1053 Burner Control is a microprocessor-based burner management and flame safeguard controller from the Honeywell 7800 Series, designed for automatically fired single-burner industrial combustion systems. It delivers precise sequencing of ignition, flame detection, purge cycles, and safety interlocks for gas, oil, or dual-fuel applications.
This model is commonly selected for industrial boilers and process heating systems where dependable ignition logic, real-time flame supervision, and integrated diagnostics are required. It includes a built-in display interface and supports modular plug-in components for flexible system configuration and serviceability.
Technical Specifications
| Parameter | Details |
|---|
| Manufacturer | Honeywell |
| Series | 7800 Series Burner Control |
| Model | RM7800L1053 |
| Control Type | Microprocessor-based flame safeguard controller |
| Application | Single burner (gas / oil / dual-fuel systems) |
| Power Supply | 120 VAC |
| Operating Temperature | -40°C to +60°C |
| Flame Establishing Time (Pilot) | 4 sec or 10 sec |
| Flame Establishing Time (Main) | 10 sec or 15 sec |
| Postpurge | 15 sec |
| Memory | Non-volatile (retains fault and sequence data) |

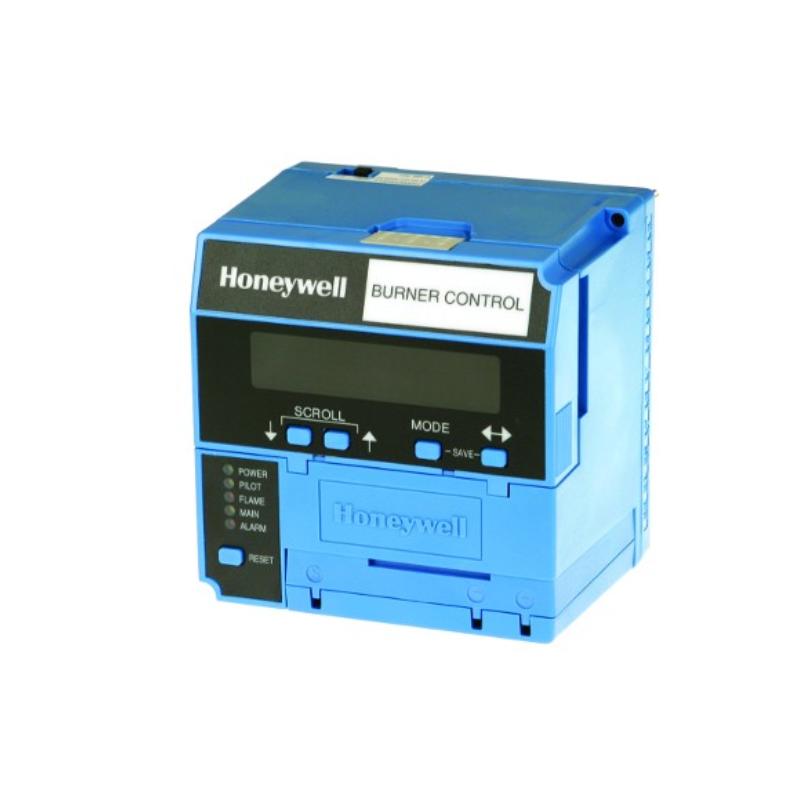

| Display | Integrated S7800 keyboard/display module |
| Diagnostics | Sequence status, lockout history, fault codes |
| Mounting | Q7800 subbase system |
System Role & Application
The RM7800L1053 acts as the central logic and safety coordinator for burner operation. It controls the full combustion sequence from pre-purge to post-purge while continuously verifying flame presence and system interlocks.
Typical applications include:
-
Industrial steam boilers
-
Process heating furnaces and ovens
-
Refinery and petrochemical burners
-
Thermal processing equipment
-
Large HVAC combustion systems
Its programmable sequencing logic allows consistent and repeatable burner operation, reducing operational risk and improving combustion efficiency.
Key Advantages
-
Complete Burner Sequencing Control: Manages purge, ignition, flame monitoring, and shutdown cycles
-
High Safety Reliability: Immediate lockout response during flame failure or unsafe conditions
-
Integrated Display Interface: Built-in S7800 module for real-time diagnostics and status monitoring
-
Modular Architecture: Compatible with plug-in amplifiers and purge timer cards
-
Strong Diagnostic Capability: Stores sequence history and fault information for troubleshooting
-
Industrial-Grade Design: Built for continuous operation in harsh thermal environments
This combination makes it a dependable choice for combustion systems requiring both operational flexibility and strict safety control.
Technical FAQs
1. What is the main function of RM7800L1053?
It manages burner ignition, flame supervision, and safe shutdown sequencing.
2. Does it support multiple fuels?
Yes, it supports gas, oil, and dual-fuel burner systems.
3. Is a display included?
Yes, it includes an integrated S7800 keyboard/display module.
4. What is its operating temperature range?
-40°C to +60°C.
5. How does it ensure safety?
It continuously monitors flame presence and triggers lockout during unsafe conditions.
6. What happens during flame failure?
The system immediately shuts off fuel and enters lockout mode.
7. Can it store fault history?
Yes, it retains sequence and diagnostic data in non-volatile memory.
8. What is the main flame establishing time?
Typically 10 or 15 seconds depending on configuration.
9. Is it suitable for continuous operation?
Yes, it is designed for industrial continuous-duty burner systems.
10. Why is it widely used?
Because it combines safety compliance, flexible sequencing, and strong diagnostics in one platform.
