Product Introduction

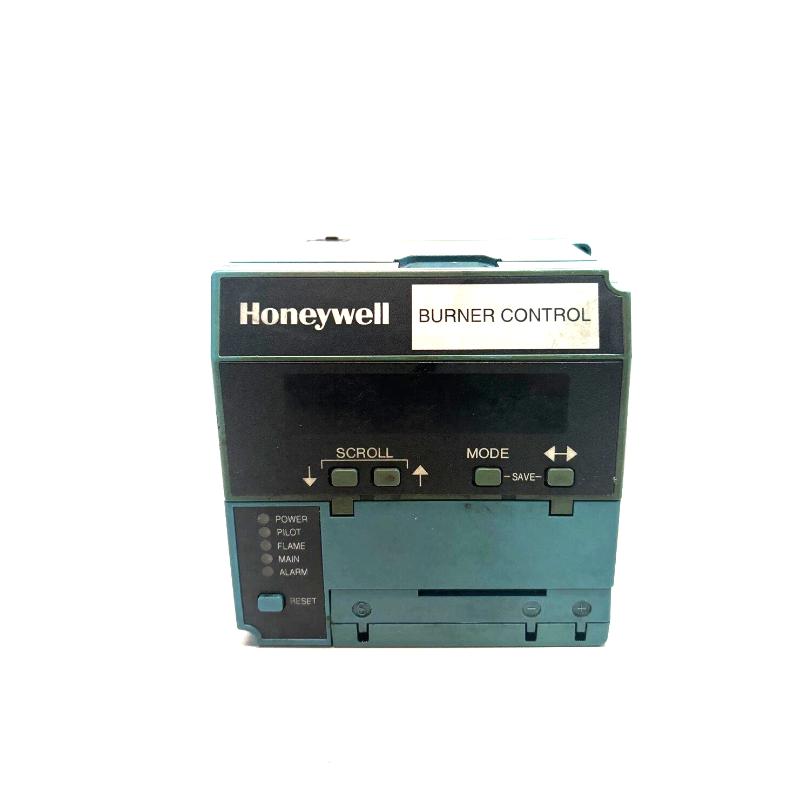

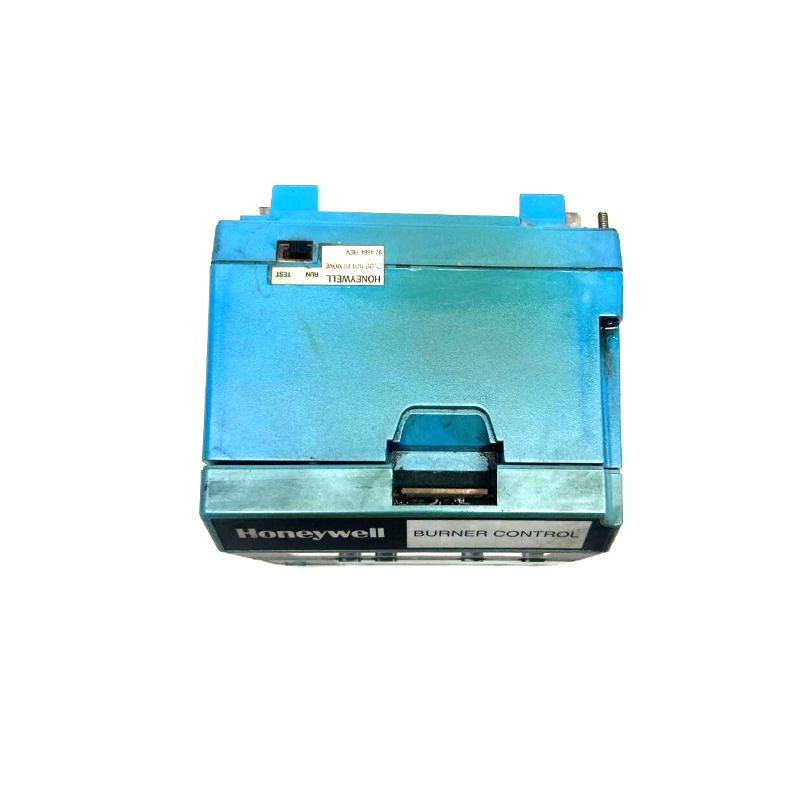

The Honeywell RM7800L1046 Burner Control is a microprocessor-based flame safeguard and sequencing controller from the Honeywell 7800 Series, designed for automatic single-burner combustion systems. It provides integrated management of ignition timing, flame supervision, purge cycles, and safety shutdown functions for gas, oil, or dual-fuel applications.
This model is widely used in industrial heating and boiler systems where precise combustion sequencing and high-integrity flame monitoring are required. Its modular architecture supports plug-in flame amplifiers, purge timers, and display interfaces, enabling flexible configuration and advanced diagnostics for maintenance efficiency.
Technical Specifications
| Parameter | Details |
|---|
| Manufacturer | Honeywell |
| Series | 7800 Series Burner Control |
| Model | RM7800L1046 |
| Control Type | Microprocessor-based burner management |
| Fuel Compatibility | Gas / Oil / Dual-fuel systems |
| Application | Single burner industrial combustion systems |
| Operating Temperature | -40°C to +60°C |
| Humidity Range | Up to 85% RH (non-condensing) |
| System Architecture | Modular plug-in relay system |
| Flame Detection | Compatible with Honeywell flame detectors |
| Diagnostics | Lockout history, sequence status, fault indication |
| Safety Functions | Flame failure lockout, interlock monitoring |
System Role & Application
The RM7800L1046 acts as the central safety controller for burner operation, managing the full combustion sequence from pre-purge to shutdown. It continuously verifies flame presence and ensures that fuel delivery is only permitted under safe conditions.
Typical applications include:
-
Industrial boilers and steam generation systems
-
Process heating furnaces
-
Petrochemical and refinery burners
-
Thermal processing equipment
-
Large-scale HVAC combustion systems
Its design supports stable operation in continuous-duty environments where combustion reliability directly impacts production safety and efficiency.
Key Advantages
-
Complete Burner Sequencing Control: Automates ignition, purge, and shutdown cycles
-
High Safety Integrity: Immediate lockout response during flame failure conditions
-

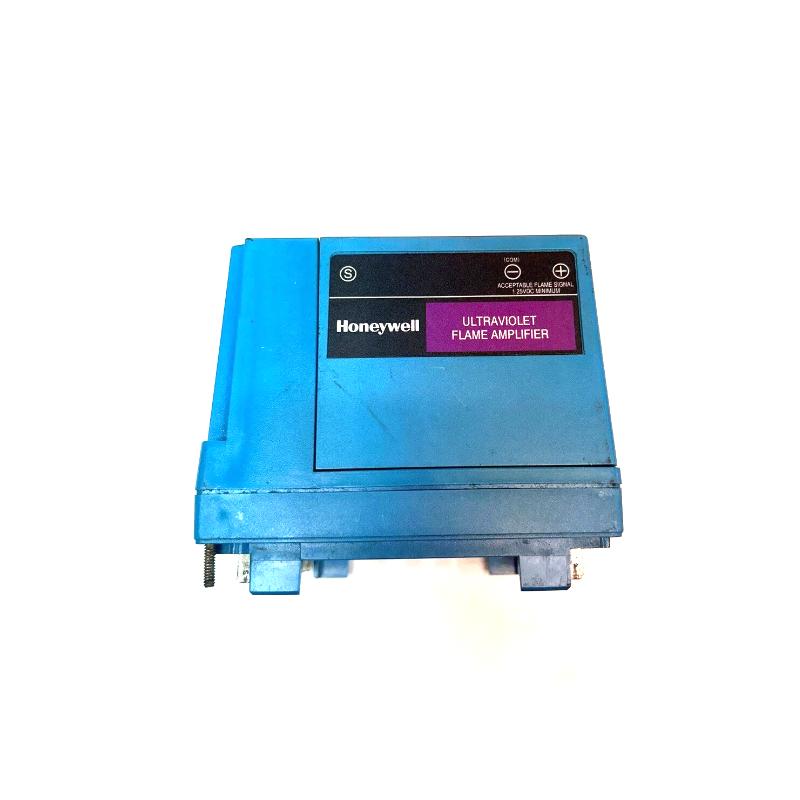

Modular Architecture: Supports interchangeable flame amplifiers and plug-in modules
-
Strong Diagnostic Capability: Provides clear fault history and system status feedback
-
Industrial Durability: Designed for harsh thermal and electrical environments
-
Flexible Integration: Compatible with Honeywell 7800 Series ecosystem components
This combination makes it a trusted solution for mission-critical combustion safety applications.
Technical FAQs
1. What is the main function of RM7800L1046?
It controls burner ignition, flame monitoring, and safe shutdown sequencing.
2. What type of burners does it support?
Single-burner gas, oil, or dual-fuel systems.
3. Is it part of a modular system?
Yes, it uses plug-in modules for flame detection and control logic expansion.
4. What happens during flame failure?
The system immediately triggers a safety lockout and stops fuel flow.
5. What is its operating temperature range?
-40°C to +60°C.
6. Does it support remote monitoring?
Yes, through Honeywell’s connected burner system ecosystem.
7. Can it store fault history?
Yes, it retains diagnostic and lockout information.
8. Is it suitable for continuous operation?
Yes, it is designed for industrial continuous-duty burners.
9. What improves its reliability?
Modular plug-in design and microprocessor-based control logic.
10. Why is it widely used?
Because it combines safety compliance, flexibility, and proven burner control performance.
