Product Introduction

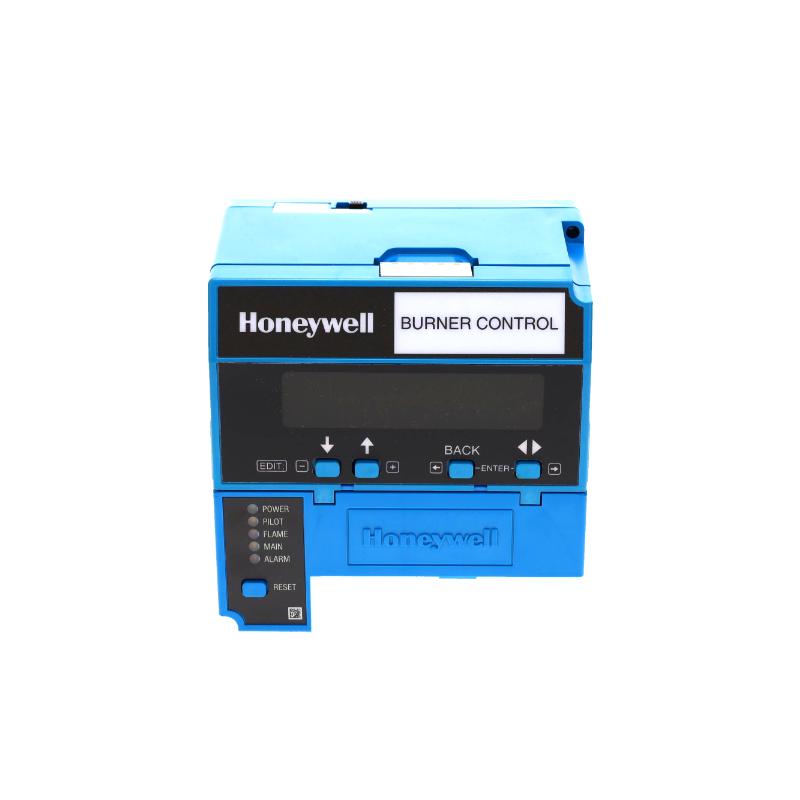

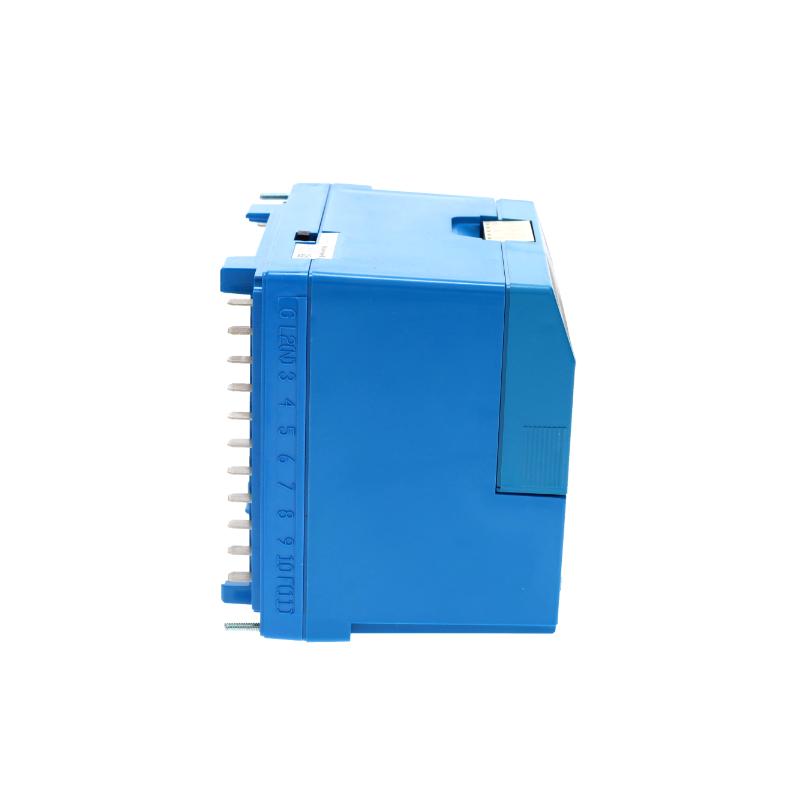

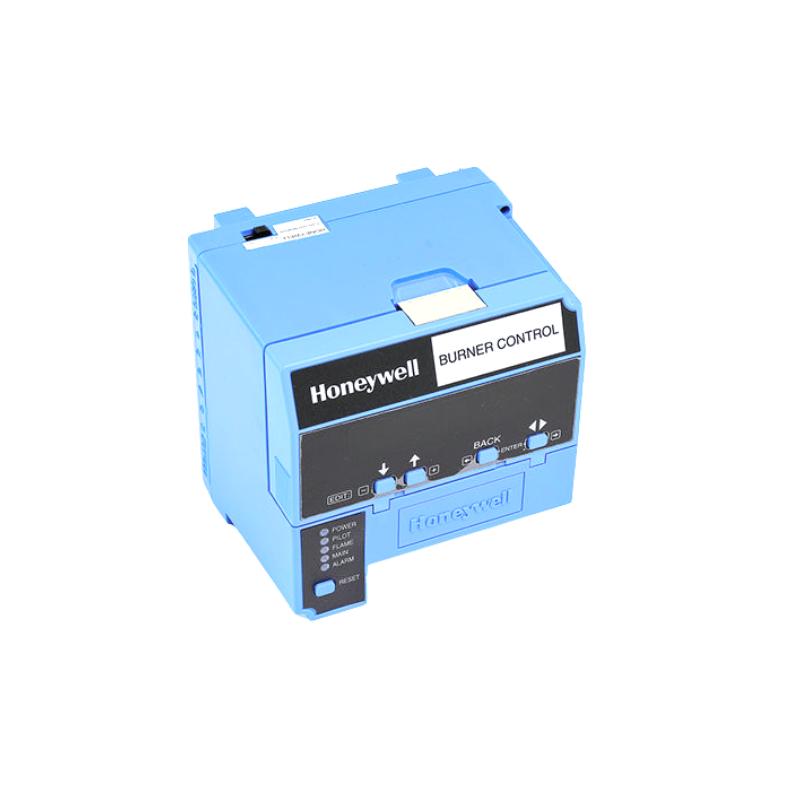

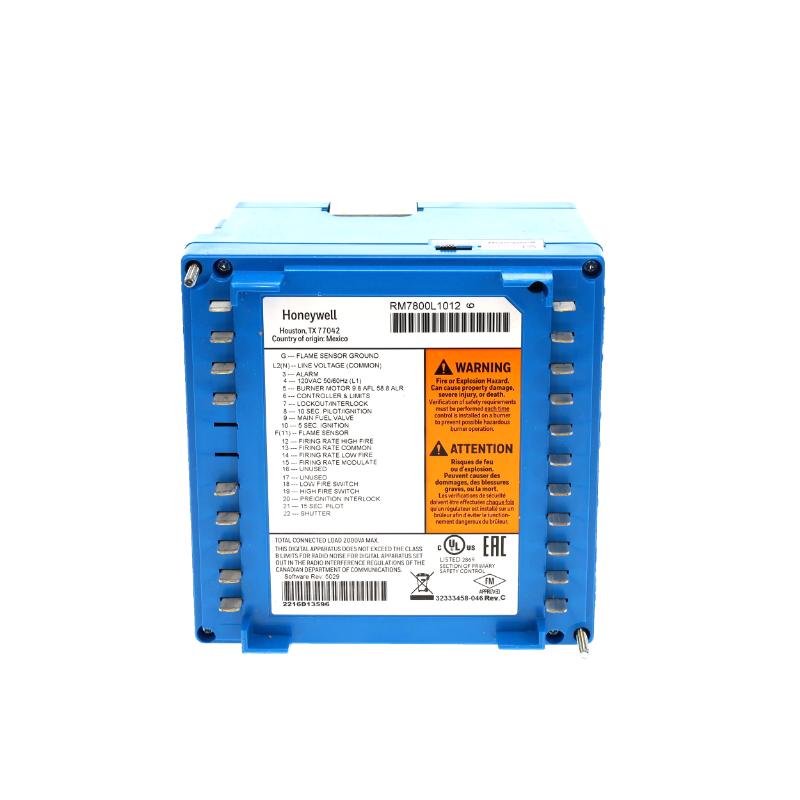

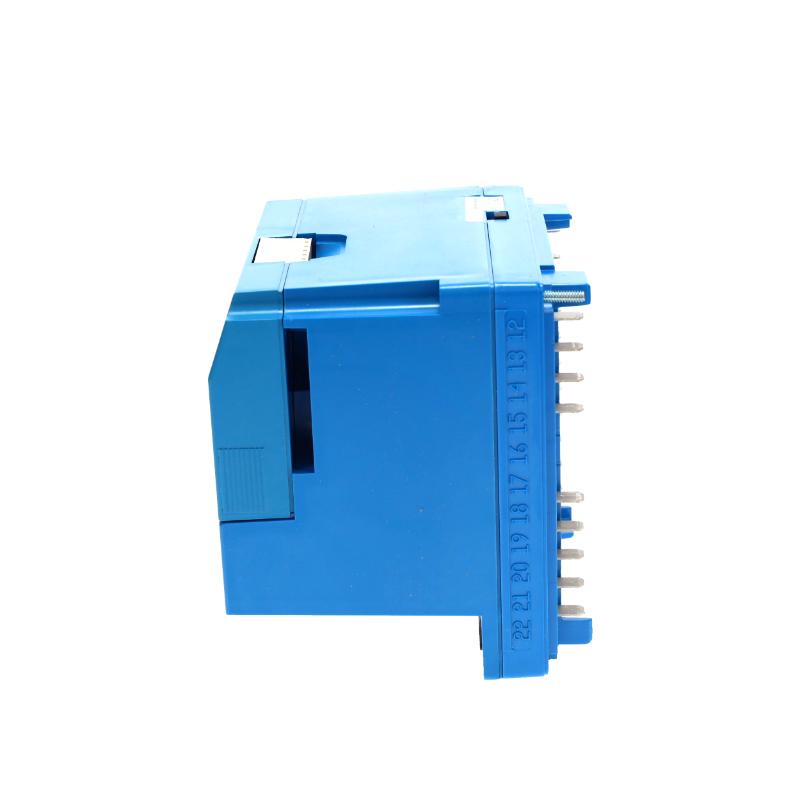

The Honeywell RM7800L1012 Burner Control is a microprocessor-based flame safeguard and burner management controller designed for single-burner combustion systems using gas, oil, coal, or dual-fuel configurations. It belongs to Honeywell’s 7800 Series and provides advanced sequencing, flame supervision, and integrated safety logic for industrial combustion applications.
This model is widely used in boiler systems and industrial heating processes where reliable ignition control, flame verification, and safe shutdown functions are required. It integrates modular plug-in components, enabling flexible configuration and advanced diagnostics for commissioning and maintenance.
Technical Specifications
| Parameter | Details |
|---|
| Manufacturer | Honeywell |
| Series | 7800 Series Burner Control |
| Model | RM7800L1012 |
| Power Supply | 120 VAC |
| Application | Single-burner gas/oil/coal systems |
| Control Type | Microprocessor-based flame safeguard |
| Fuel Staging | Low–High–Low (LHL) capability |
| Main Flame Establishing Time | 10 or 15 seconds |
| Pilot Flame Trial | 4 or 10 seconds |
| Post Purge | 15 seconds |
| Ambient Temperature | -40°C to +60°C |

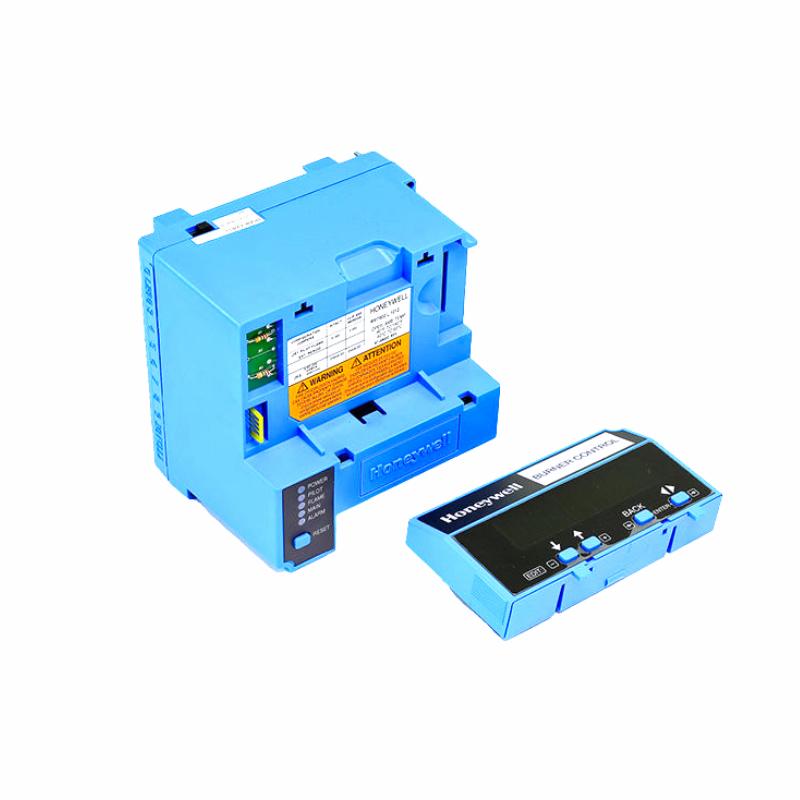

| Display | Includes S7800 display module |
| Diagnostics | Fault history, lockout codes, sequence status |
| Mounting | Panel-mounted control subbase system |
| Safety Features | Lockout interlocks, flame failure protection |
System Role & Application
The RM7800L1012 acts as the central safety and sequencing brain of a burner system. It controls ignition timing, monitors flame presence, and ensures safe shutdown if abnormal conditions occur.
Typical applications include:
-
Industrial and commercial boilers
-
Process heating systems
-
Refinery and petrochemical burners
-
Power plant auxiliary heating systems
-
Large HVAC combustion systems
Its modular architecture allows integration with flame detectors, amplifiers, purge timers, and remote display units for enhanced system visibility and control.
Key Advantages
-
Advanced Burner Sequencing: Automatically manages purge, ignition, and flame monitoring cycles
-
High Safety Integrity: Built-in lockout interlocks and flame failure response logic
-
Strong Diagnostic Capability: Stores fault history and lockout data for fast troubleshooting
-
Modular Flexibility: Supports interchangeable plug-in modules for different burner configurations
-
Reliable Operation in Harsh Environments: Designed for industrial temperature ranges and continuous operation
-
Enhanced Maintenance Visibility: S7800 display provides real-time system status and diagnostics
This makes it a dependable solution for critical combustion control systems where safety and uptime are essential.
Technical FAQs
1. What is the main function of RM7800L1012?
It controls burner ignition, flame monitoring, and safe shutdown sequencing.
2. What fuel types does it support?
Gas, oil, coal, and combination fuel systems.
3. Does it include a display?
Yes, it includes the S7800 display module for diagnostics.
4. What is the operating temperature range?
Typically -40°C to +60°C for industrial environments.
5. How does it improve safety?
It continuously verifies flame presence and triggers lockout if unsafe conditions occur.
6. Can it handle multi-stage burners?
Yes, it supports low–high–low staging control logic.
7. What happens during flame failure?
The system initiates lockout and shuts off fuel supply immediately.
8. Is it suitable for modern automation systems?
Yes, it integrates with modular Honeywell burner management ecosystems.
9. Can it store fault history?
Yes, it retains diagnostic and lockout data in non-volatile memory.
10. Is it still widely used today?
Yes, it remains a standard in industrial burner safety control systems.
