Product Introduction

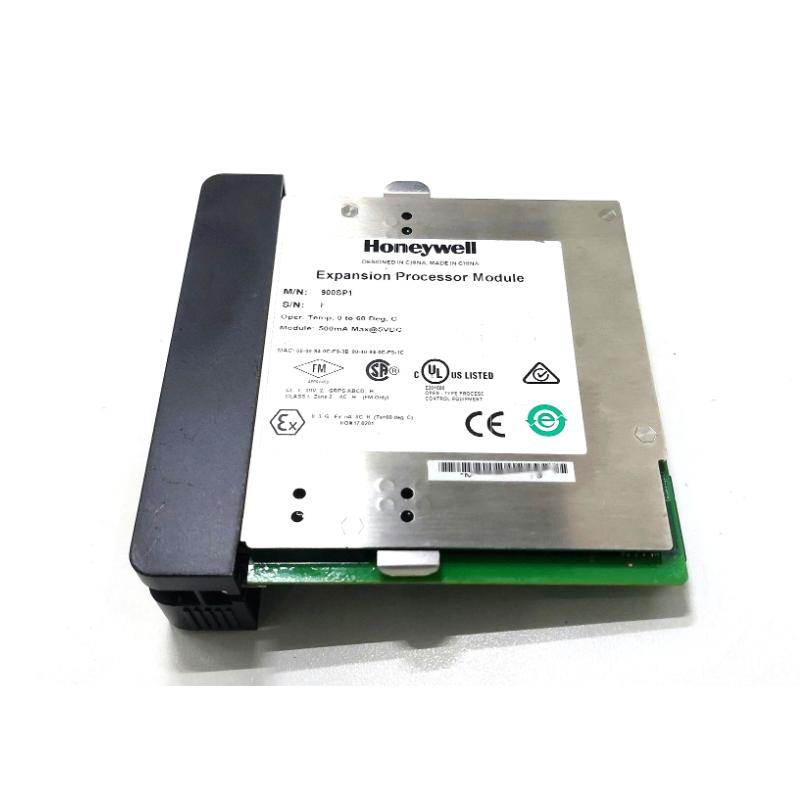

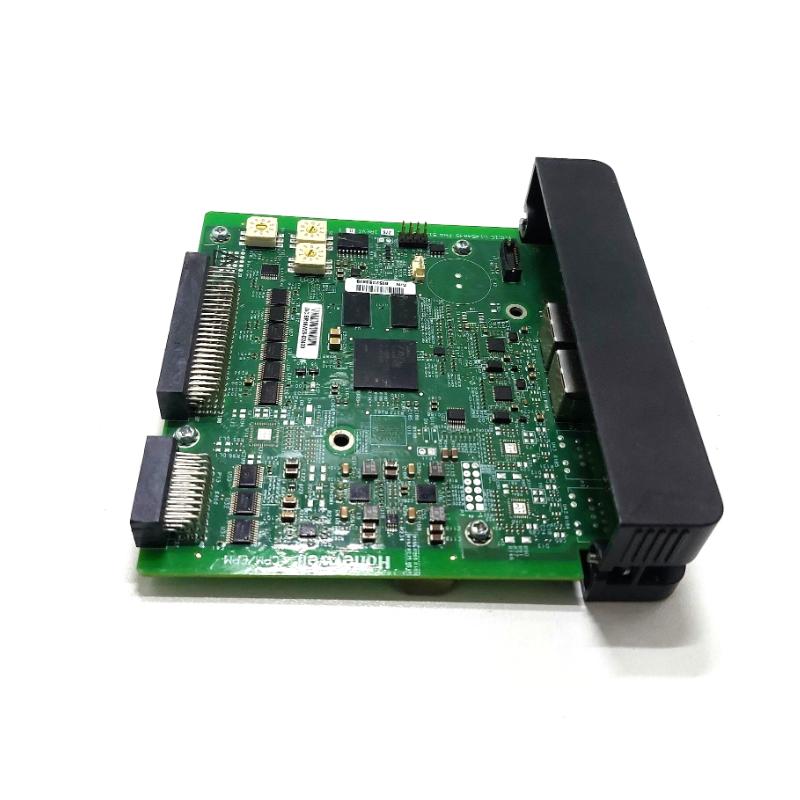

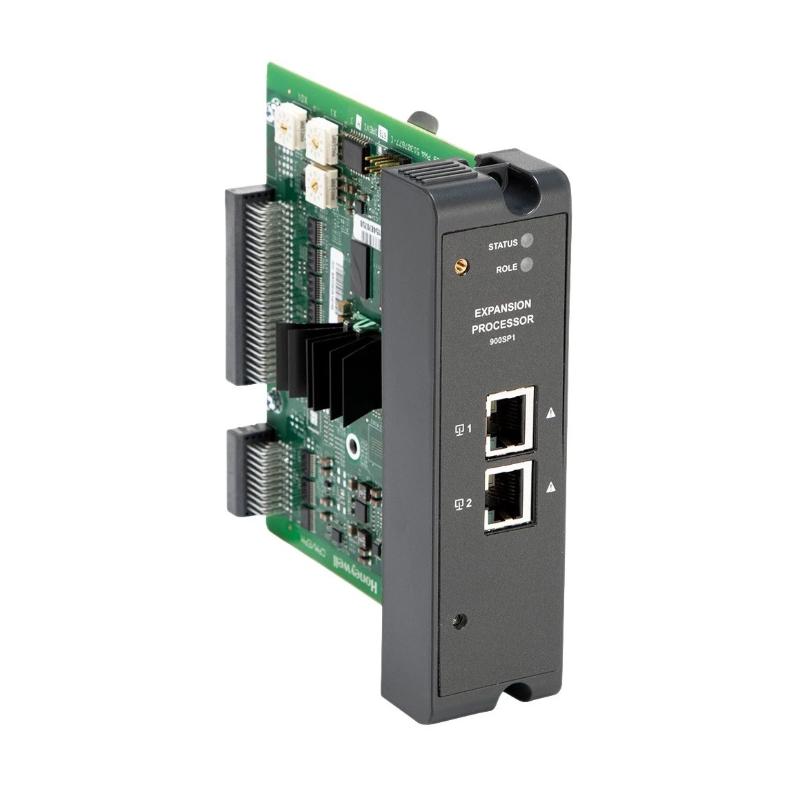

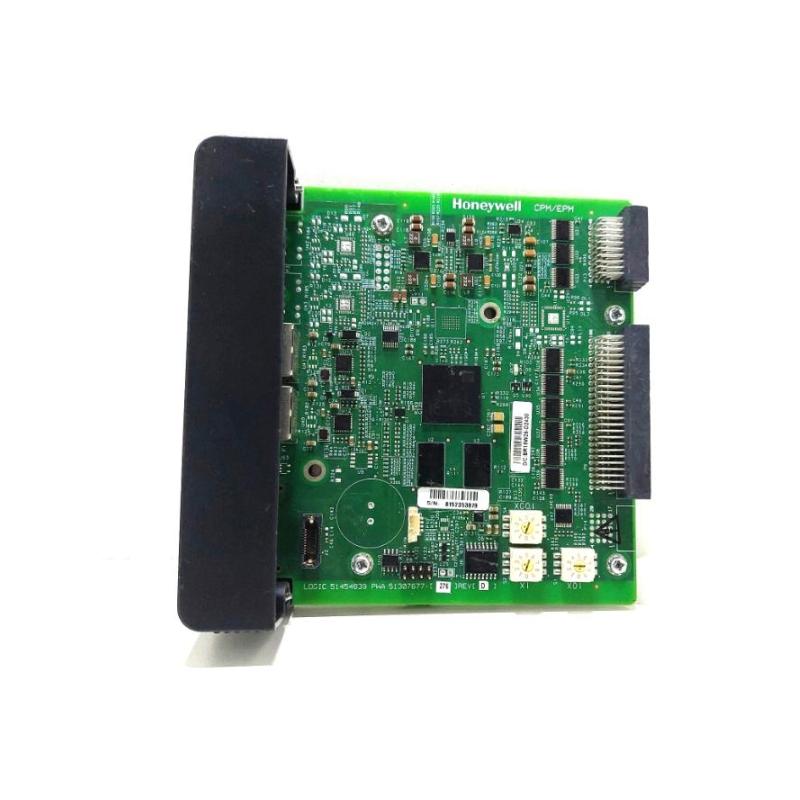

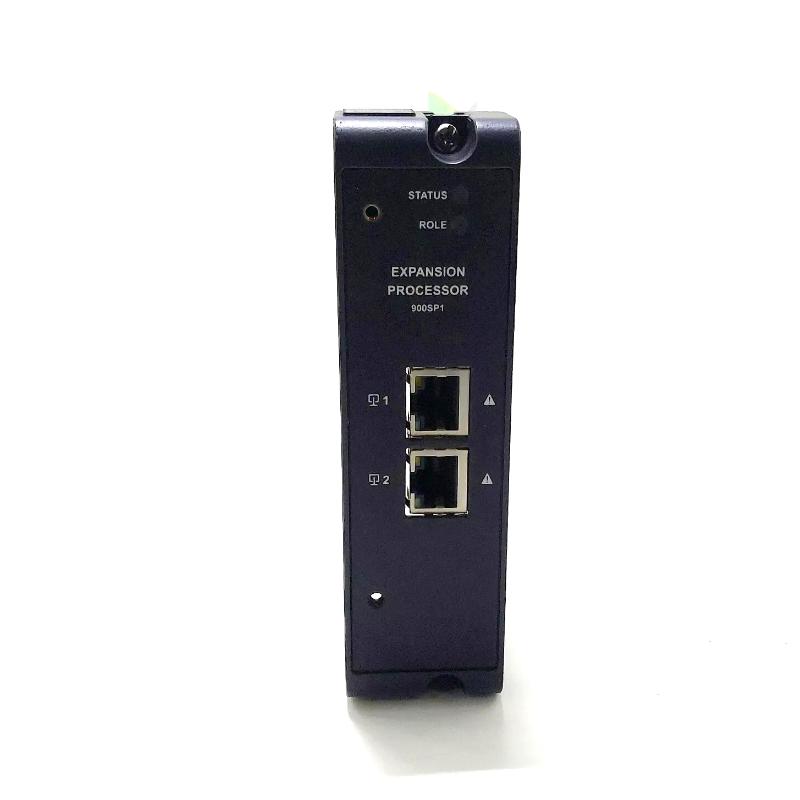

The Honeywell 900SP1-0300 ControlEdge HC900 Expansion Processor Module is designed to extend and coordinate distributed control architectures within the HC900 automation platform. It serves as an intelligent interface between the main Control Processor Module (CPM) and remote or expansion I/O racks, ensuring fast, deterministic, and synchronized communication across multi-rack systems.
Compared with other expansion processor variants, this model is optimized for extended environmental tolerance and robust network performance, making it suitable for complex industrial installations where system segmentation and scalability are essential.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Honeywell |
| Series | ControlEdge HC900 |
| Model Number | 900SP1-0300 |
| Module Type | Expansion Processor Module (EPM) |
| Processor | Dual-Core ARM Cortex-A9 (32-bit, 667 MHz) |
| Ethernet Ports | 2 × 10/100Base-TX |
| Network Interface | Shielded RJ45, auto-crossover |
| Isolation | 1500 V RMS (1 minute) |
| Addressing | Rotary switch (1–99 rack address) |
| Diagnostic Indicators | Multi-color status LEDs |
| Power Characteristics | ~5V internal logic supply (~520 mA typical) |
| Power Dissipation | ~2.6 W |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (HxWxD) | 137 × 38.1 × 151.7 mm |
| Weight | ~0.32–0.4 kg |
