Industrial Overview

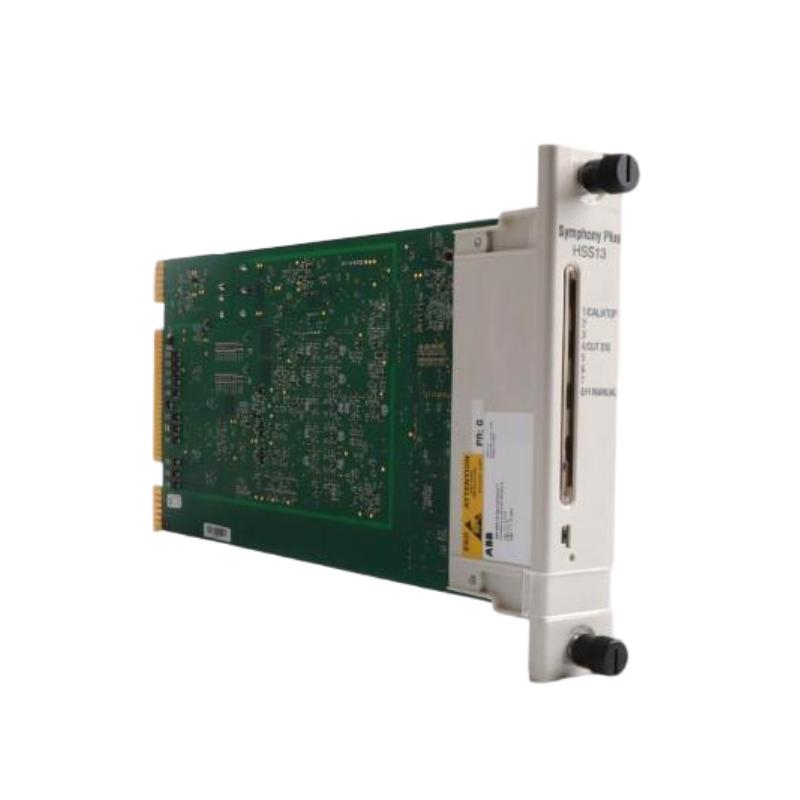

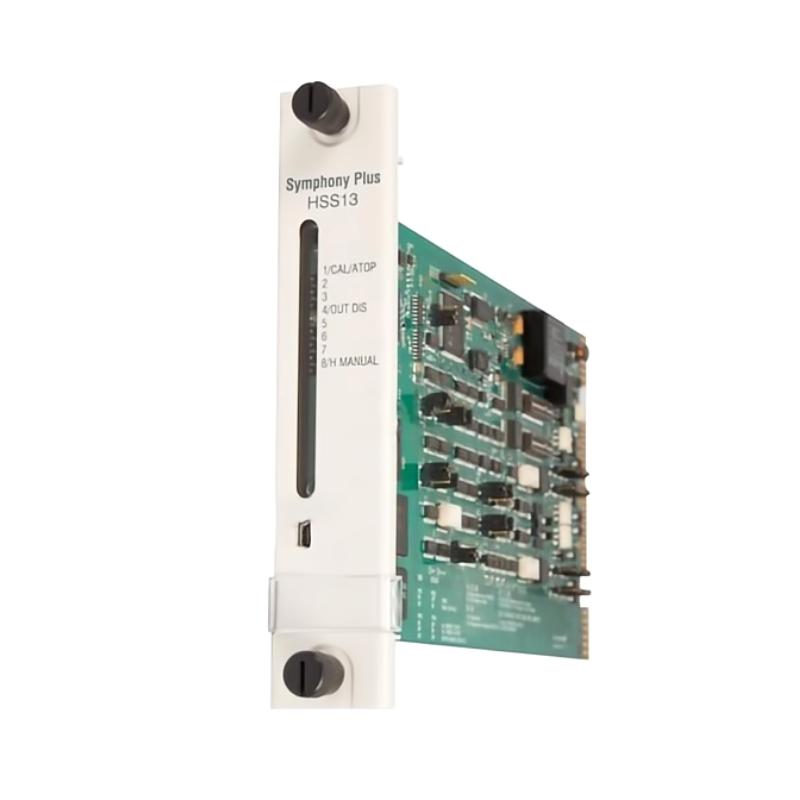

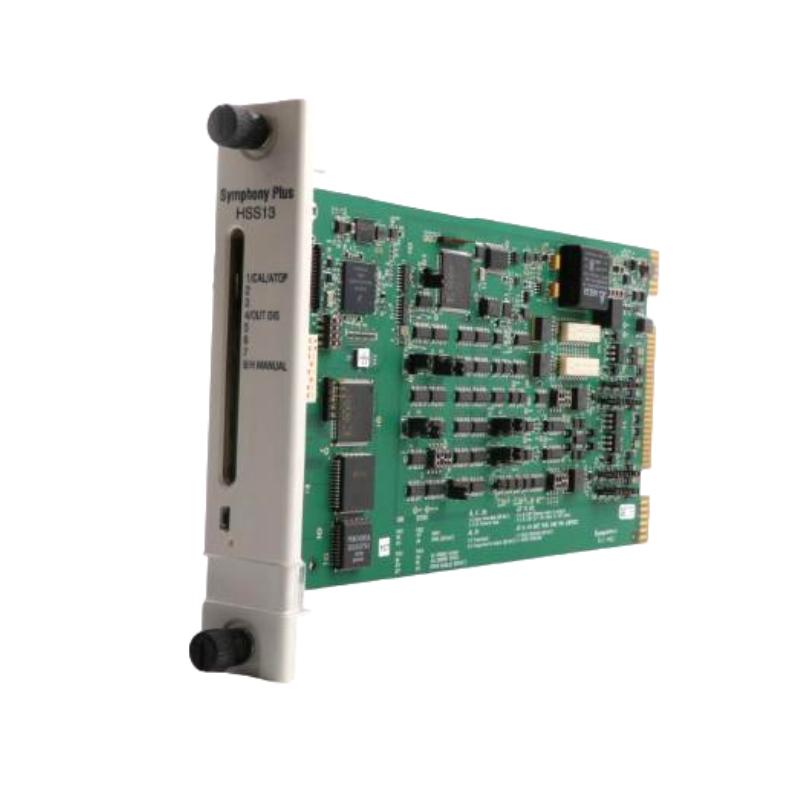

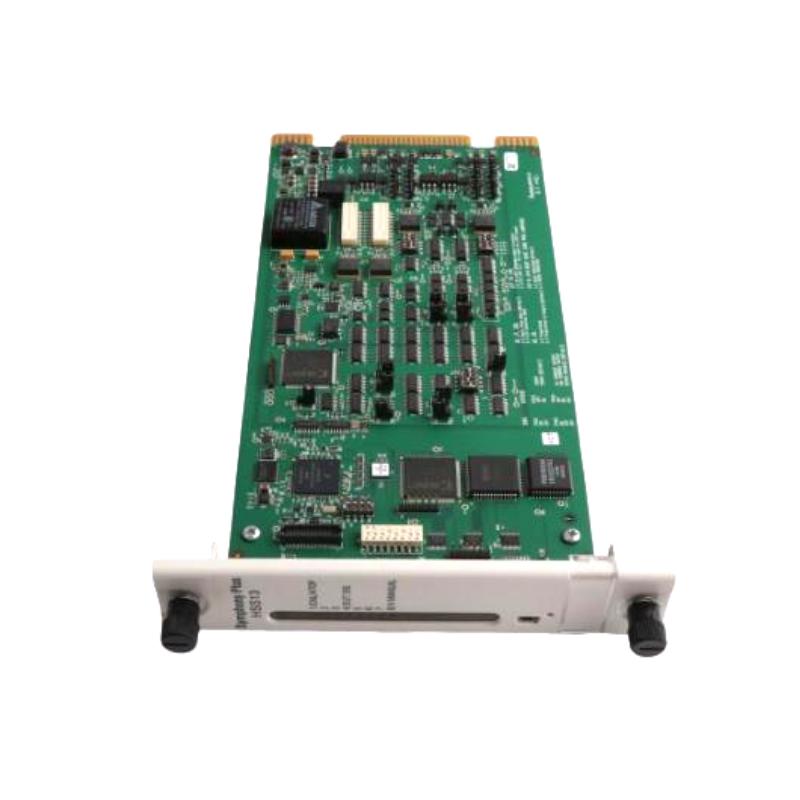

The ABB Bailey SPHSS13 Hydraulic Servo Module is an intelligent I/O control module used in ABB Symphony Plus and Bailey Infi 90 turbine control systems. It is designed to regulate hydraulic actuators with high precision, enabling accurate positioning of valves, guide vanes, and fuel control mechanisms in critical rotating equipment.
This module is commonly deployed in power generation and heavy process industries where stable turbine performance and fast actuator response are essential. It operates as a key interface between the digital control system and hydraulic servo systems, converting control signals into precise mechanical movement.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | ABB (Bailey Controls) |
| Model | SPHSS13 |
| Module Type | Hydraulic Servo Control Module |
| System Compatibility | ABB Symphony Plus / Bailey Infi 90 (HR Series) |
| Function | Valve position & hydraulic actuator control |
| Control Modes | PI control, P-only control |
| Feedback Support | AC/DC LVDT (Linear Variable Differential Transformer) |
| Redundancy | Dual servo coil support |
| Output Type | Current-controlled servo drive signal |
| Operating Temperature | -20°C to +60°C (typical industrial range) |
| Response Time | High-speed dynamic control (ms-level response) |
| Mounting Type | Harmony rack / HR turbine control system |
| Dimensions (L×W×H) | Approx. 297 × 175 × 36 mm |
| Weight | Approx. 0.27–0.8 kg |
Application Scenarios
The SPHSS13 is specifically designed for high-reliability turbine and hydraulic control applications, including:
-
Steam turbine throttle and control valve positioning
-
Gas turbine fuel valve regulation
-
Inlet guide vane and nozzle angle control
-
Hydro-mechanical actuator positioning systems
-
Power plant governor control loops
Its precise closed-loop control capability makes it essential in systems where small deviations in valve position can significantly impact turbine speed and stability.
Engineering Advantages
The SPHSS13 is built for precision hydraulic actuation control, combining digital intelligence with robust industrial signal conditioning. Its integrated microprocessor enables real-time adjustment of servo outputs based on feedback from LVDT sensors, ensuring highly accurate valve positioning.
A major advantage is its redundant servo coil architecture, which improves system availability and reduces the risk of single-point failure in critical turbine control loops. This is especially important in power generation environments where continuous operation is required.
It also supports both PI and P-only control modes, allowing engineers to fine-tune response behavior depending on whether stability or fast transient response is prioritized.
Additionally, its integration with ABB HR Series turbine systems ensures seamless communication with higher-level controllers, enabling coordinated plant-wide control strategies.
Technical FAQs
1. What is the main function of SPHSS13?
It controls hydraulic actuators for precise valve and turbine positioning.
2. What systems is it used in?
ABB Symphony Plus and Bailey Infi 90 HR Series turbine control systems.
3. What type of control does it support?
PI control and P-only control modes.
4. What feedback devices does it use?
AC or DC LVDT position feedback sensors.
5. What is its main industrial application?
Turbine governor and valve position control in power plants.
6. Does it support redundancy?
Yes, it uses redundant servo coil architecture.
7. Is it an analog or digital module?
It is an intelligent I/O module with digital processing and analog control output.
8. What industries use it most?
Power generation, oil & gas, petrochemical, and heavy industry.
9. What is its typical response characteristic?
High-speed, millisecond-level actuator response.
10. Is it part of modern systems?
It is primarily used in ABB legacy and installed base turbine control systems.
