Product Introduction

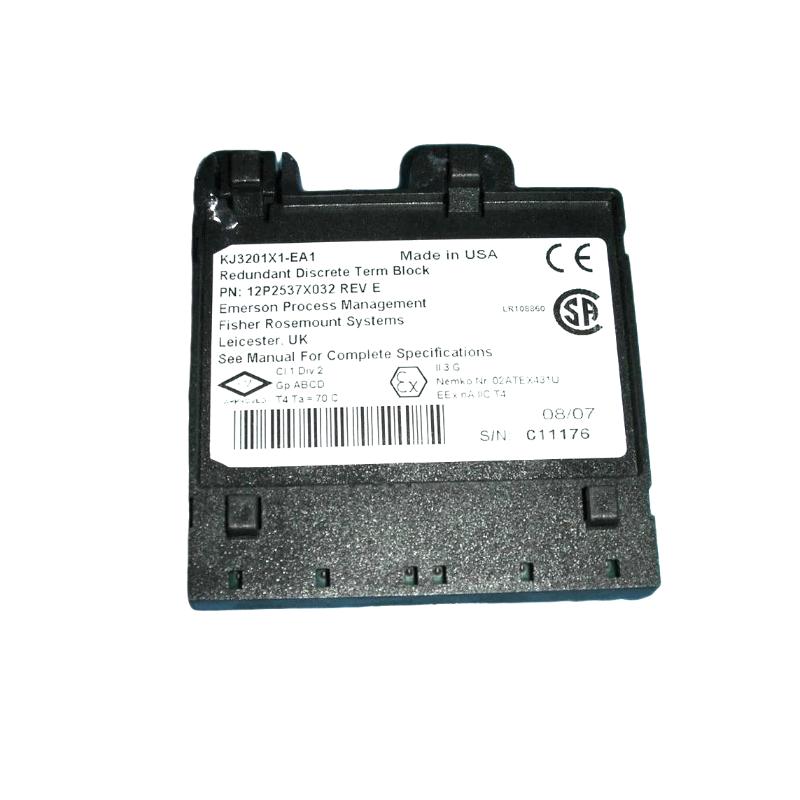

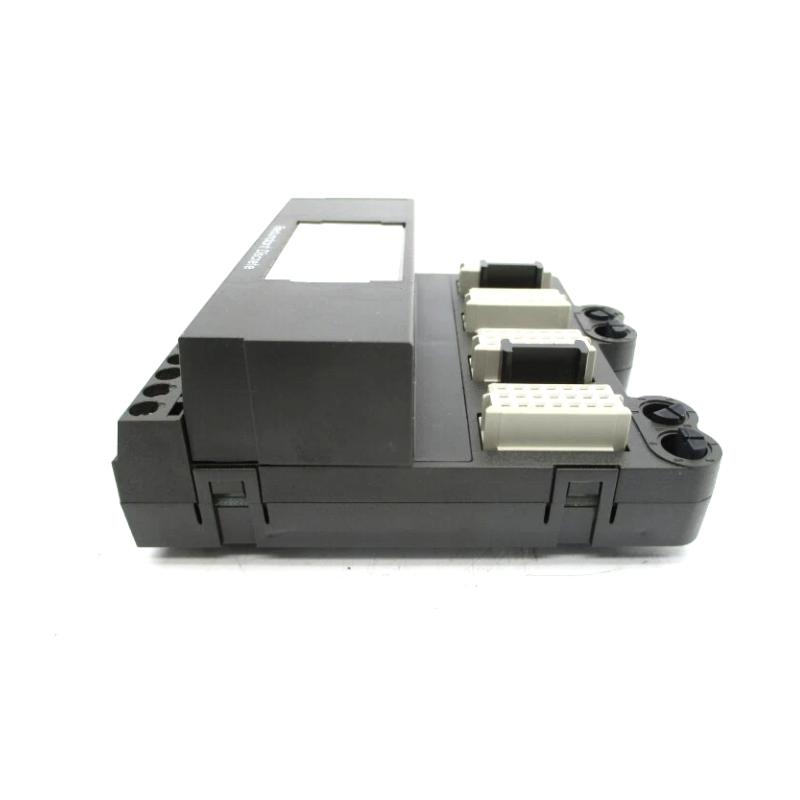

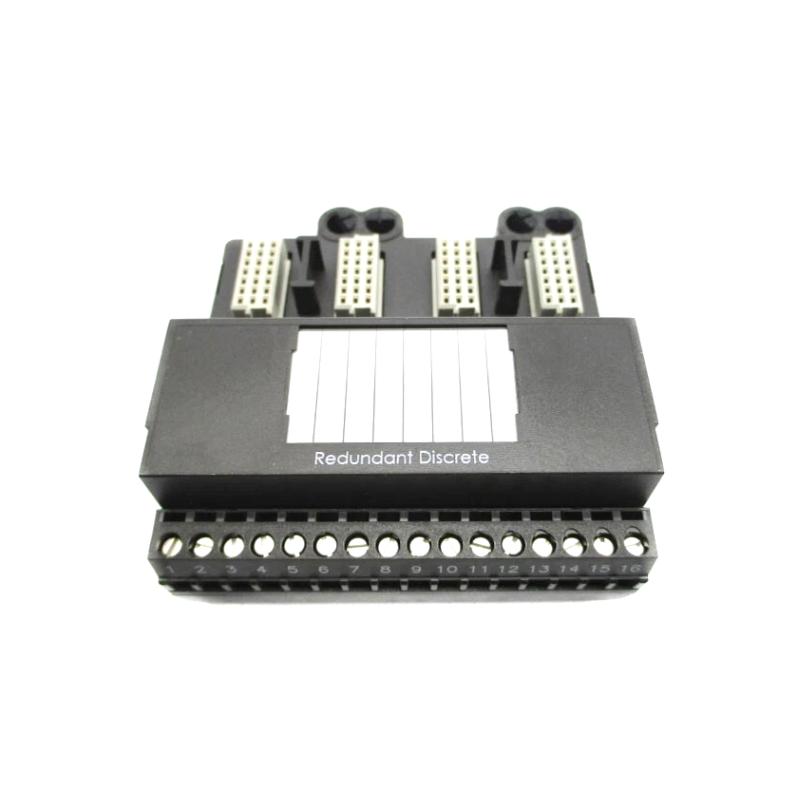

The Emerson VE4032S1T2B1 KJ3201X1‑EA1 Red Discrete Terminal Block is a color‑coded, industrial discrete wiring interface designed for Emerson’s DeltaV™ M‑series automation platform. Serving as the field‑termination solution for discrete output or input modules, this terminal block simplifies wiring, enhances signal clarity, and supports efficient panel organization.
Designed for environments where dependable field connections are critical, the red discrete terminal block provides secure and labeled termination points for 24 V DC control circuits. In complex automation cabinets, its modular and ergonomic design helps reduce installation errors, improve troubleshooting efficiency, and deliver long‑lasting reliability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Series | DeltaV™ M‑series |
| Model Number | VE4032S1T2B1 KJ3201X1‑EA1 |
| Module Type | Red Discrete Terminal Block |
| Color Code | Red (discrete circuits) |
| Termination Type | Screw or spring‑clamp connectors |
| Voltage Rating | 24 V DC logic‑level discrete signals |
| Number of Points | Typically matches discrete module channel count |
| Mounting | DIN rail or panel mount |
| Protection Rating | IP20 (internal enclosure) |
| Operating Temperature | –20 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity | 5–95 % non‑condensing |
| Dimensions | M‑series accessory form factor |
| Weight | Approx. 0.15 kg |
