Product Introduction

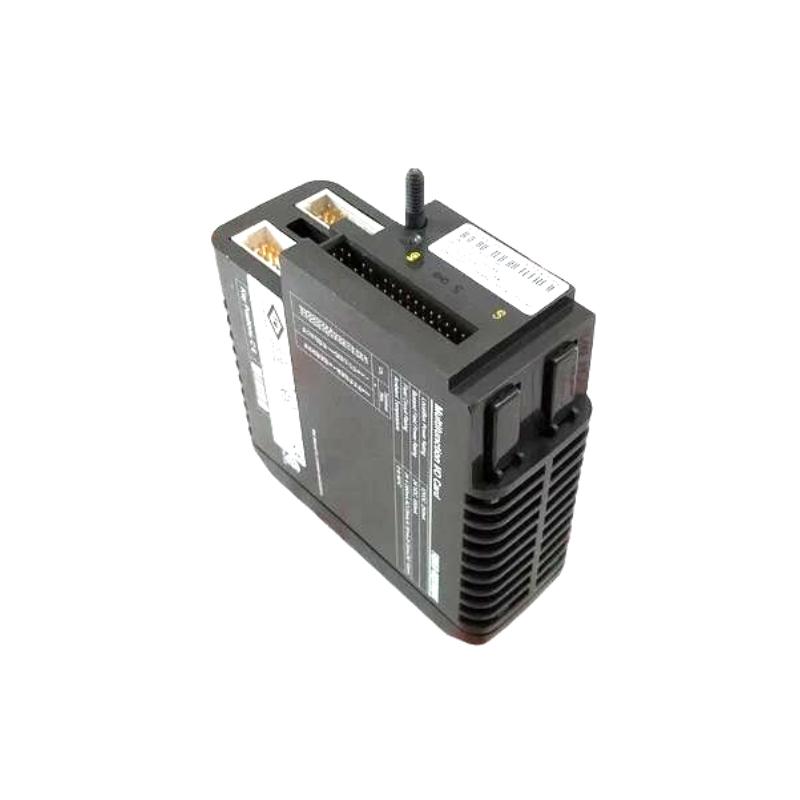

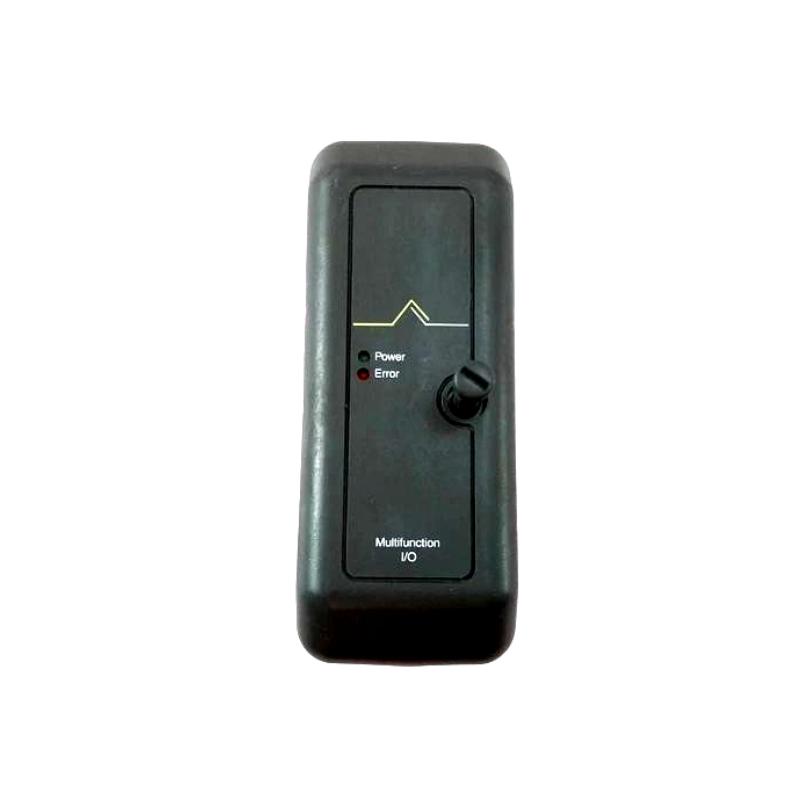

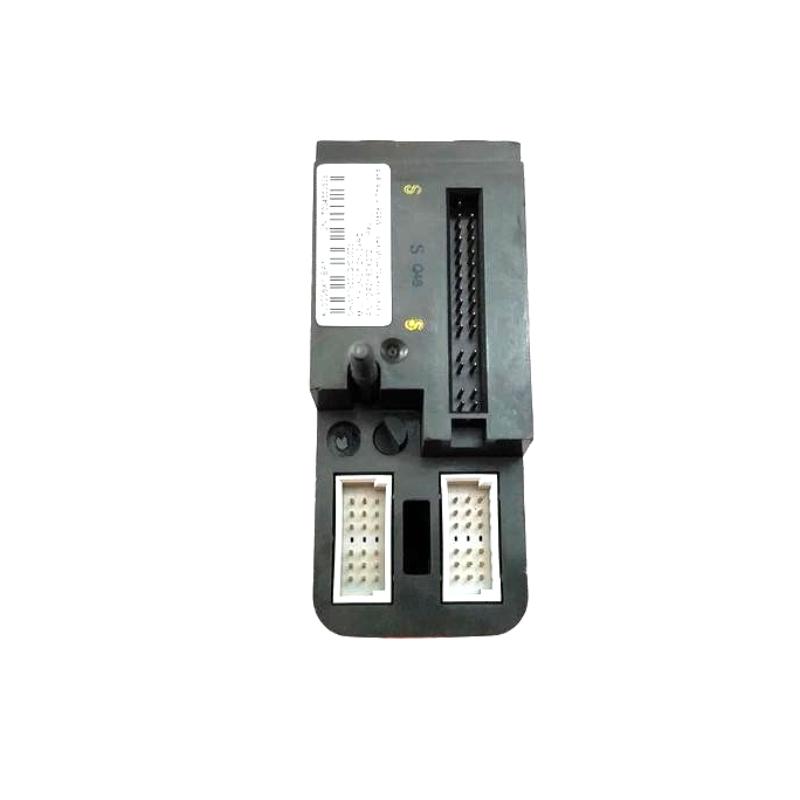

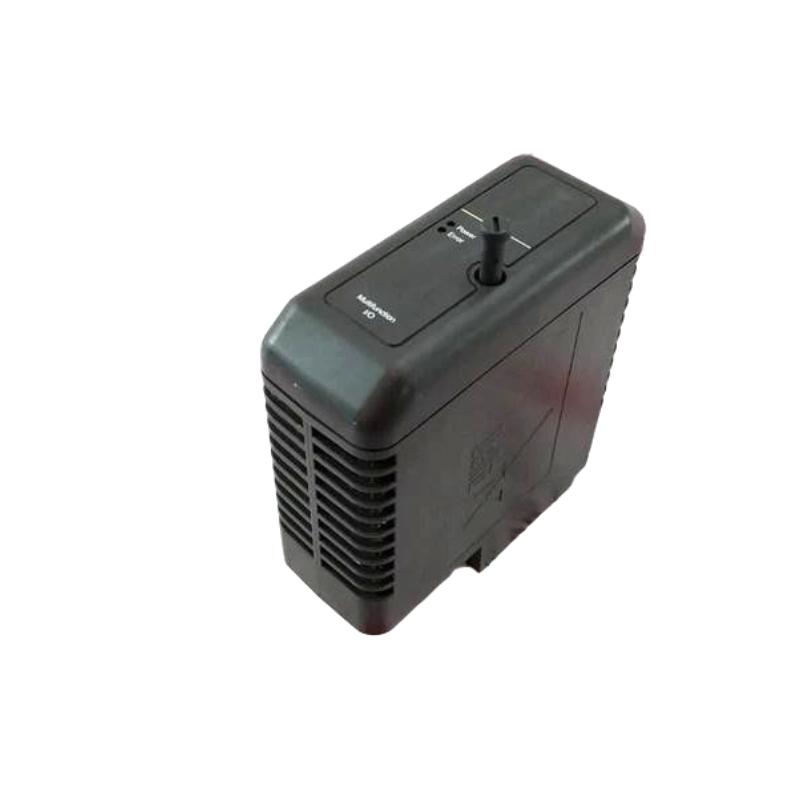

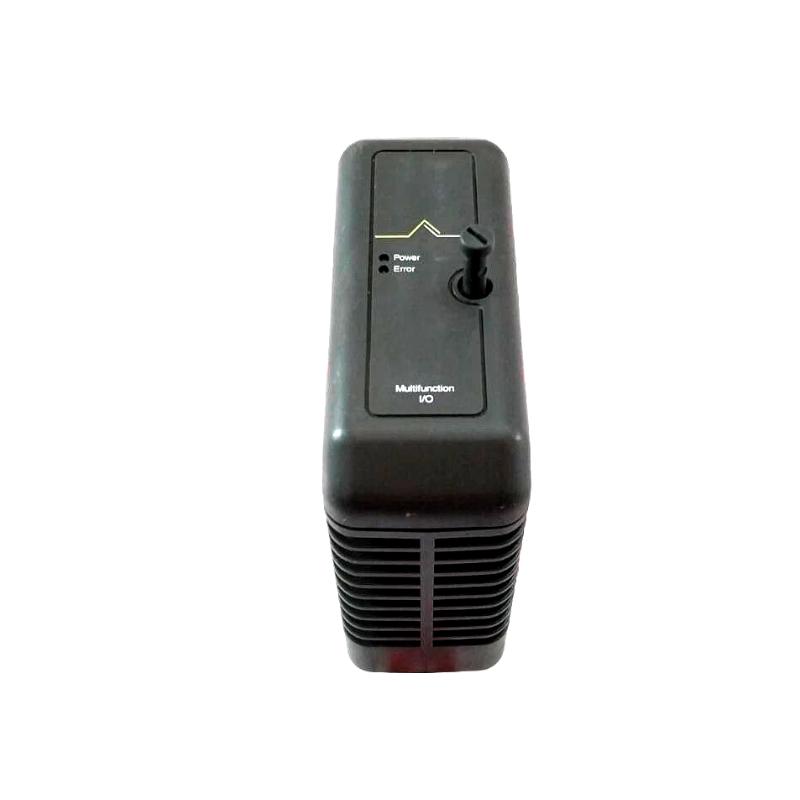

The Emerson VE4015 KJ3006X1‑BA1 DeltaV Pulse Count Input Card is a high‑precision digital module engineered to capture and high‑speed pulse and frequency signals from field devices and interface them directly with the DeltaV™ distributed control system. Built for demanding industrial automation environments, this card provides reliable pulse counting, rate measurement, and encoder interfacing capabilities that support accurate process tracking and control.
With robust signal conditioning, strong noise immunity, and seamless DeltaV integration, the VE4015 KJ3006X1‑BA1 is an ideal solution for applications requiring fast, dependable pulse data processing — including flow measurement, speed monitoring, batching, and event counting.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Series | DeltaV™ |
| Model Number | VE4015 KJ3006X1‑BA1 |
| Module Type | Pulse Count Input Card |
| Input Channels | Multiple high‑speed pulse inputs |
| Input Signal | Digital pulse / square‑wave |
| Maximum Frequency | Up to several kHz (application dependent) |
| Input Voltage | 24 V DC standard logic |
| Isolation | Channel and system isolation |
| Communication Interface | DeltaV system backplane |
| Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity | 5–95 % non‑condensing |
| Protection Rating | IP20 internal module |
| Mounting | DeltaV I/O rack/backplane |
| Dimensions (H × W × D) | ~168 × 87 × 44 mm |
| Weight | Approx. 0.25 kg |
