Technical FAQs

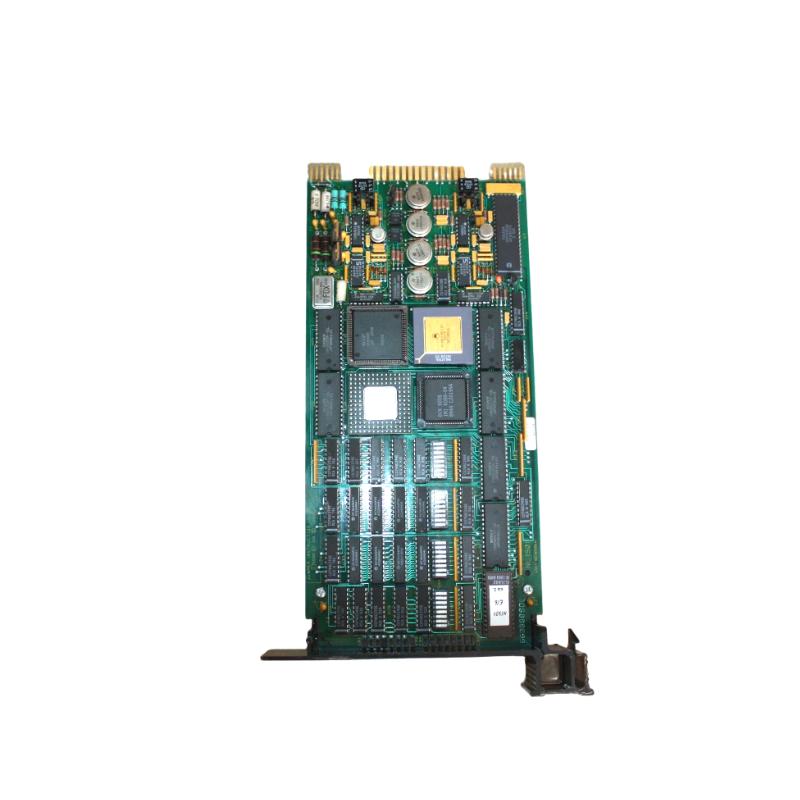

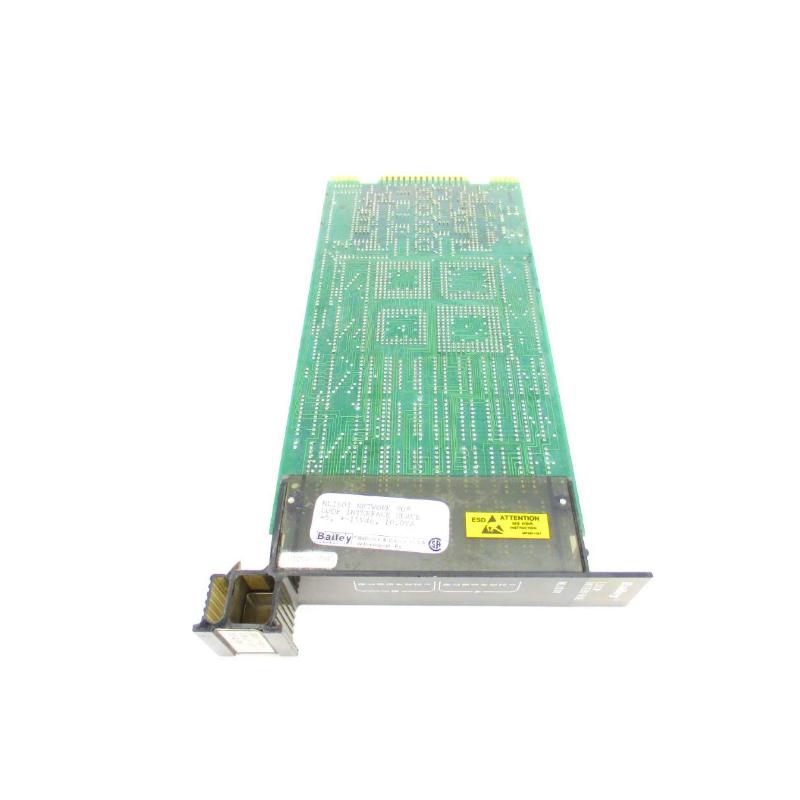

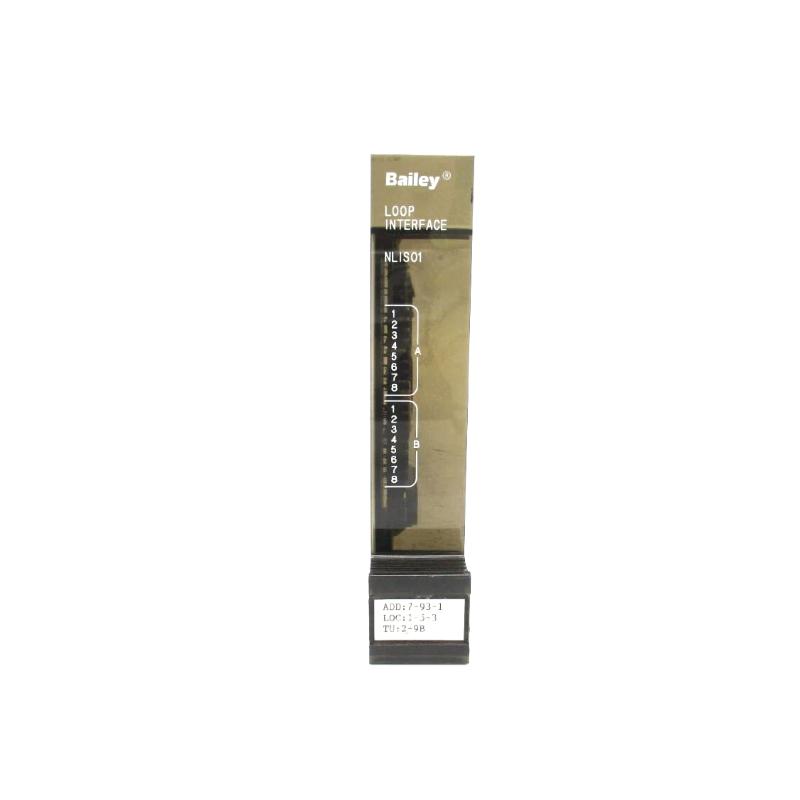

1. What is the primary function of the NLIS01 module?
   Acts as a loop interface slave, providing precise signal transmission and isolation between field devices and the control system.
2. Which types of analog signals are supported?
   Supports standard 4–20 mA current loops and voltage analog signals used in process automation.
3. Does it provide protection against electrical interference?
   Yes, the module offers electrical isolation to protect the control system from ground loops and voltage spikes.
4. Where is this module typically installed?
   Mounted inside control panels or I/O cabinets within industrial environments.
5. Is it compatible with non-ABB devices?
   Yes, it can interface with standard analog sensors and actuators that comply with 4–20 mA or voltage standards.
6. What is the operating temperature range?
   Suitable for typical industrial temperature ranges, ensuring reliable performance under harsh conditions.
7. What are the module’s dimensions?
   130 x 30 x 200 mm, allowing integration in compact or medium-sized control panels.
8. How heavy is the NLIS01?
   It weighs 0.771 kg, making installation and handling straightforward.
9. Can it be used in safety-critical control loops?
   Yes, its isolation and robust design improve system reliability and reduce risk of failures.
10. Is installation complex?
    No, it supports straightforward wiring and plug-and-play operation with ABB loop networks.
