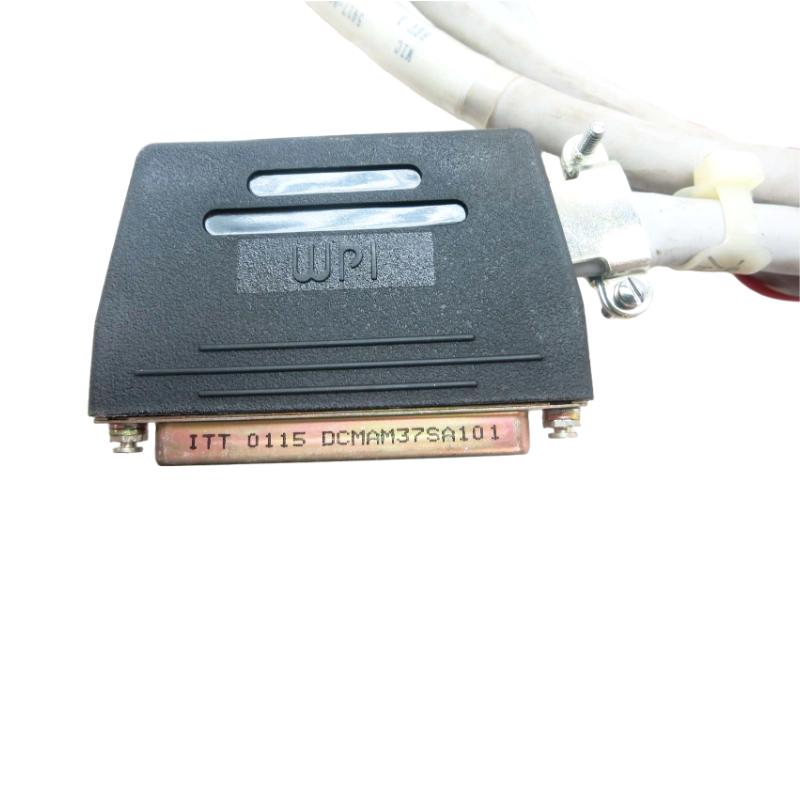

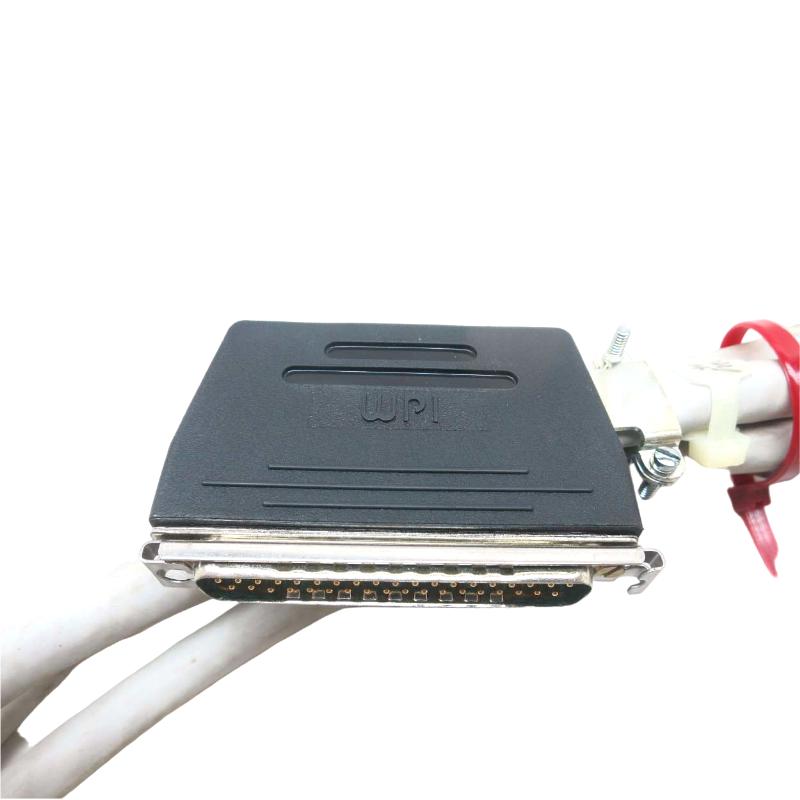

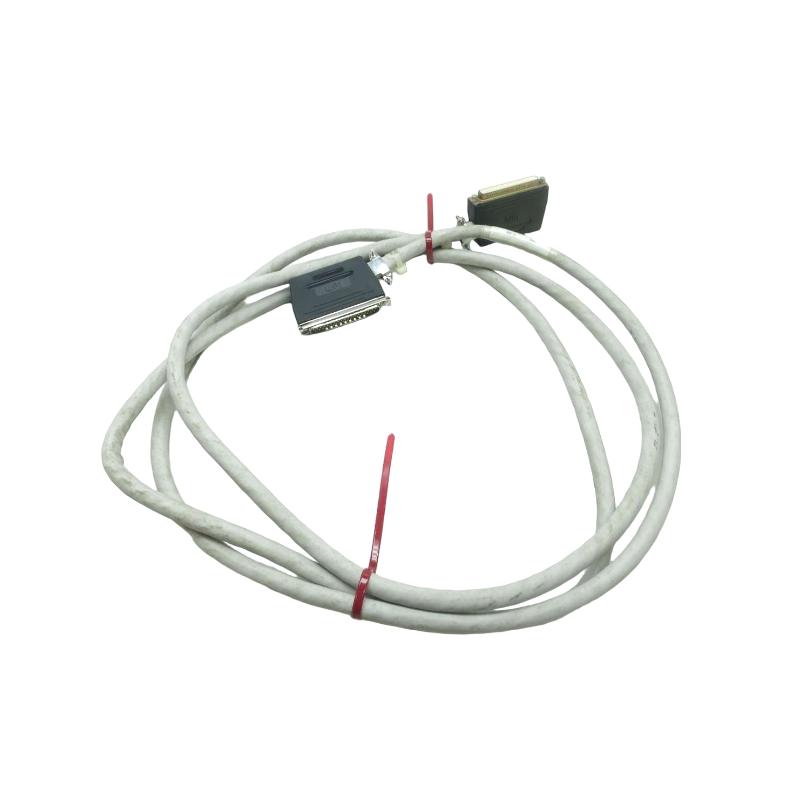

Woodward 5417‑040 Analog Signal Cable Assembly

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

Woodward 5417‑040 Analog Signal Cable Assembly

Name: Woodward 5417‑040 Analog Signal Cable Assembly
Brand: Woodward
SKU: 66
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Woodward
Item No.:5417-038
Product Origin:USA
Product Dimensions:Cable length ：7.62 m
Product Weight:1.2 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The Woodward 5417‑040 is a shielded analog signal cable designed for dependable transmission of low-level signals in industrial control and automation systems. It is commonly used to interconnect controllers, I/O modules, and field devices in Woodward systems. With robust shielding, flexible conductors, and durable insulation, the 5417‑040 ensures signal integrity, protection against electromagnetic interference (EMI), and ease of installation, making it suitable for both retrofit projects and routine maintenance in harsh industrial environments.

Technical Specifications

Parameter	Details
Product Type	Analog Signal Cable Assembly
Part Number	5417‑040
Cable Length	25 ft (≈ 7.62 m)
Conductors	Multi‑conductor cable with foil and braid shielding
Shielding	Full EMI shielding for noise protection and signal integrity
Operating Temperature	–20 °C to +70 °C
Storage Temperature	–40 °C to +85 °C
Mounting / Routing	Routed in control cabinets; shield grounded at enclosure or junction box
Typical Dimensions	25 ft length; diameter ≈ 12 mm
Weight	Approx. 1.2 kg

Applications

Analog signal wiring between controllers, I/O modules, and field sensors in Woodward systems
Industrial automation panels, turbine and generator control cabinets
Retrofit or replacement of legacy analog I/O cabling
Industrial environments requiring EMI-protected analog signal transmission
Power generation, water/wastewater, petrochemical, and chemical process control systems

Advantages

Shielded cable design ensures analog signal fidelity in electrically noisy environments
Extended 25‑ft length allows flexible routing across equipment and control panels
Durable insulation supports long-term use in industrial conditions
Compact and flexible for installation in confined cabinet layouts
Legacy compatibility with Woodward I/O and control systems
Simplifies maintenance and replacement to reduce downtime

Technical FAQs

What is the primary purpose of the 5417‑040 cable?
To transmit low-level analog signals between controllers, I/O modules, and field devices.
What is the standard length of this cable?
25 ft (≈ 7.62 m).
Does the cable feature shielding?
Yes — foil and braid shielding protects against EMI.
Which environments is this cable suitable for?
Industrial control environments with electrical noise; avoid moisture and excessive mechanical stress.
Can it be used in high-density analog I/O systems?
It is suitable for low- to medium-density analog I/O wiring.
What precautions should be taken during installation?
Maintain shield continuity, avoid sharp bends, and route away from high-voltage or noisy power cables.
Is it suitable for digital signals?
Primarily designed for analog signals; low-speed digital signals may not perform reliably.
What is the approximate diameter of the cable?
Approximately 12 mm.
What is the approximate weight of the assembly?
Around 1.2 kg.
How can proper installation be verified?
Ensure shield grounding, check signal stability, and test for noise or distortion with an oscilloscope or signal analyzer.
