Applications

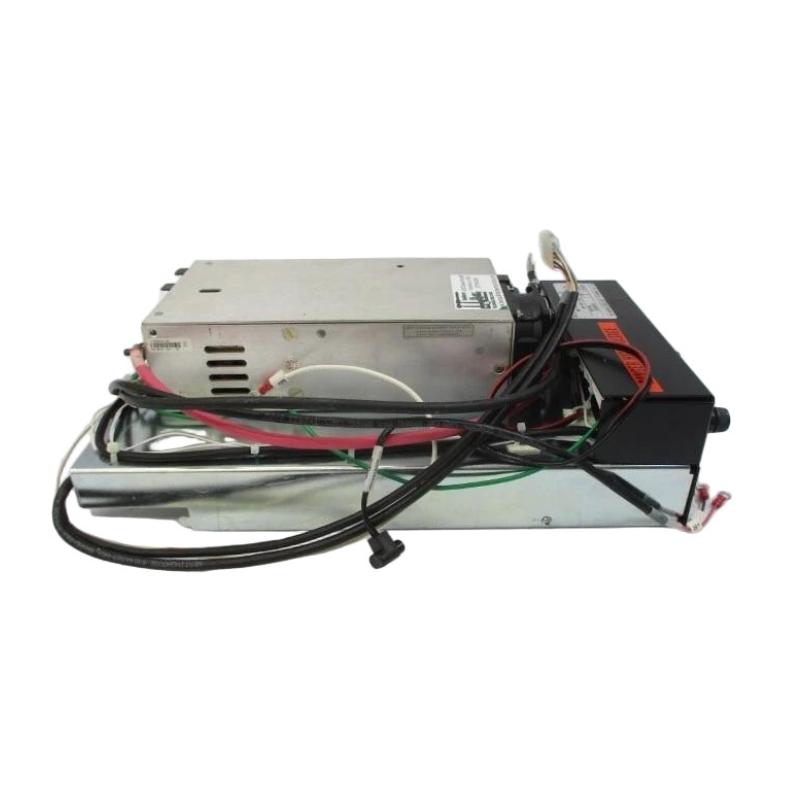

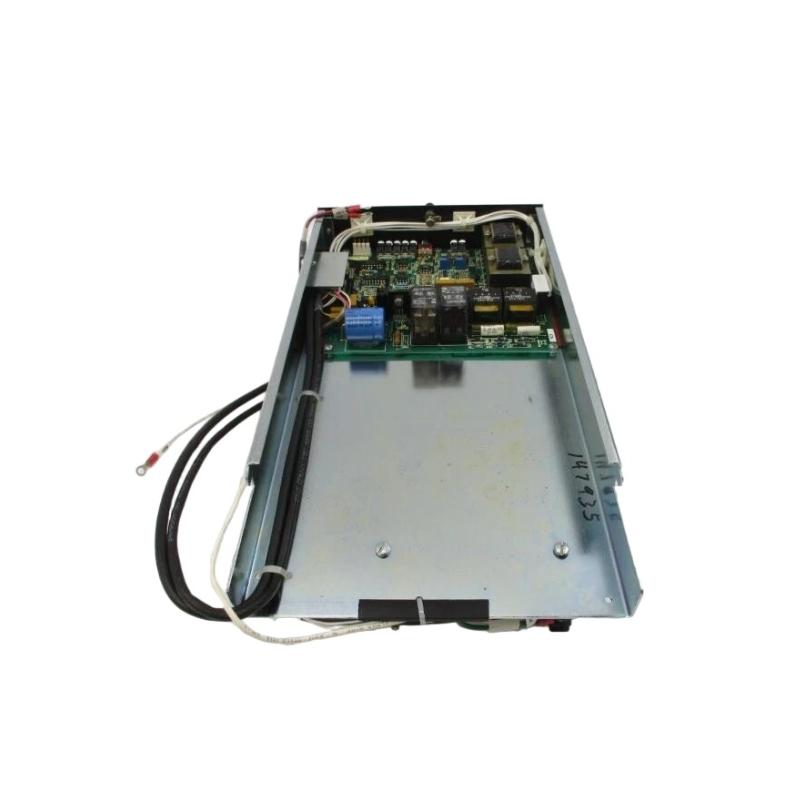

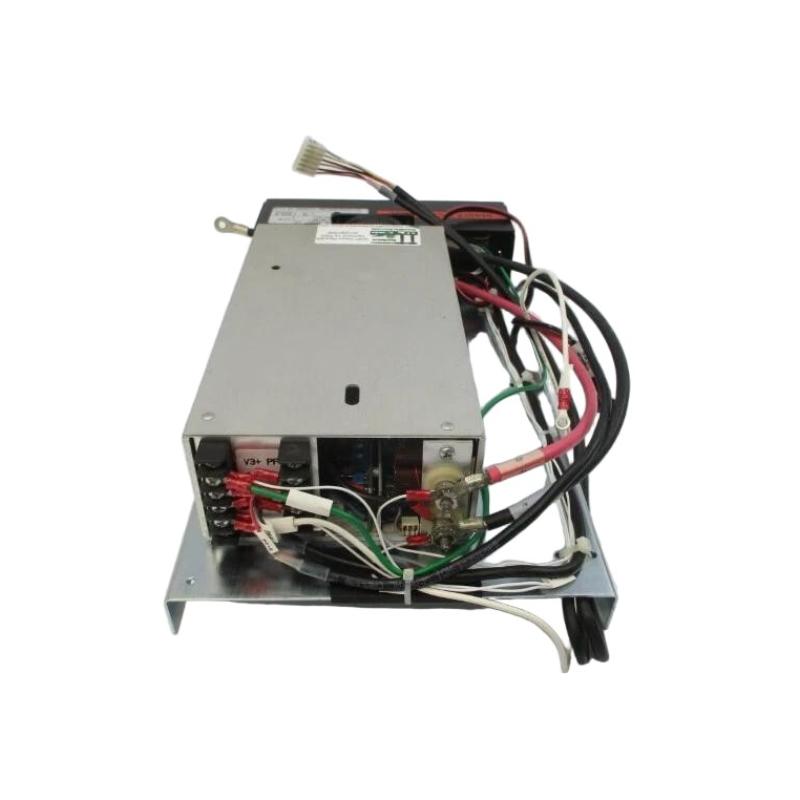

The 1D54582G05 Power Supply is essential for providing reliable power in automation systems where consistent, regulated DC voltage is critical:
-
Supplying DC power to Ovation controllers and processing boards
-
Powering analog and digital I/O modules
-
Support for turbine control and process automation systems
-
Providing backbone power for communication and interface modules
-
Industrial control cabinets, power plants, and process facilities
It ensures that core control infrastructure remains energized and stable—even under varying load conditions.
Advantages
-
Stable Regulated Output: Delivers clean and reliable 24 V DC power for sensitive control electronics.
-
Wide Input Range: Auto‑sensing VAC input accommodates global power standards without manual switching.
-
Protection Features: Built‑in overload, short‑circuit, and overvoltage protection enhance system safety and longevity.
-
Industrial Durability: Designed for extended operation in industrial temperature and humidity ranges.
-
Standard Rack Mounting: Fits seamlessly into Ovation system racks with secure mechanical engagement.
These capabilities make the power supply a dependable backbone component for any Ovation installation.
Technical FAQs
1. What input power does this module accept?
It accepts 100–240 VAC with auto‑sensing capability for global compatibility.
2. What DC output voltage does it provide?
It provides regulated 24 V DC for Ovation system components.
3. How much current can it deliver?
Typical output current capacity ranges from 10 A to 15 A, depending on configuration.
4. Does it include protection features?
Yes — it includes overload, short‑circuit, and overvoltage protection.
5. What environments is it rated for?
It is designed to operate from −10 °C to +60 °C and withstand up to 95 % non‑condensing humidity.
6. Does it require active cooling?
No. The module uses convection or passive cooling to reduce moving parts and maintenance.
7. Is it compatible with all Ovation modules?
Yes, it supplies the standard 24 V DC power required across Ovation controllers and I/O modules.
8. How is it installed?
Install the power supply into the designated rack slot with secure latching in the Ovation system chassis.
9. Does it support redundancy?
Yes — multiple power supplies can be configured in redundant arrangements for increased uptime.
10. Is this module serviceable?
Yes — modular design allows quick replacement without disrupting other system components.
