Technical FAQs

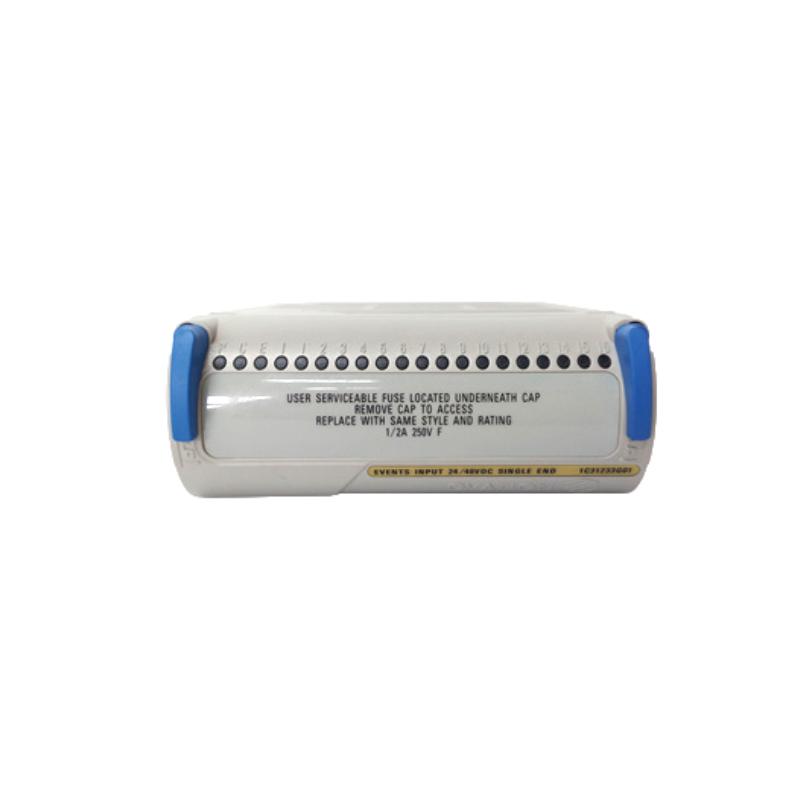

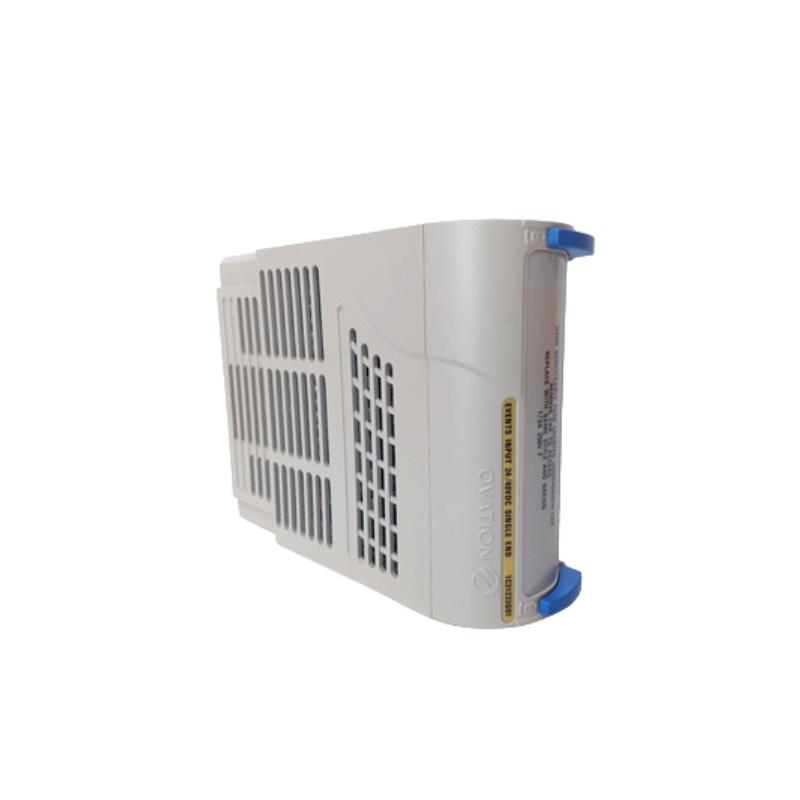

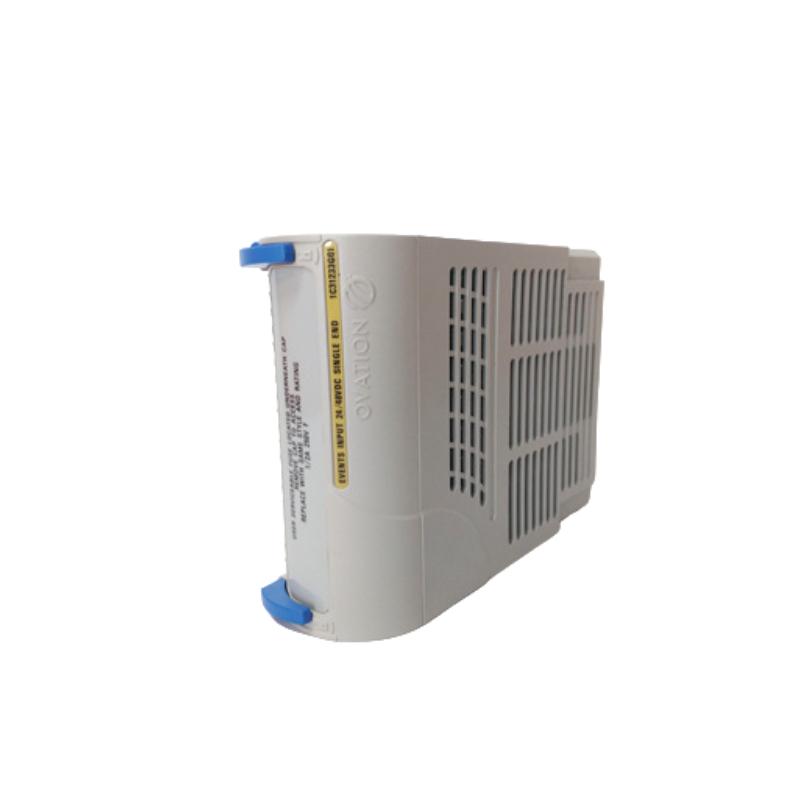

1. What kind of signals does the 1C31233G01 accept?
It accepts 24 V DC discrete logic signals from field devices.

2. How are inputs isolated?
Channel and system isolation help reduce noise and improve signal integrity.

3. Does it require an external power supply?
No — it is powered through the Ovation backplane.

4. What environments is it rated for?
It operates from −40 °C to +70 °C with up to 95 % non‑condensing humidity.

5. Can it capture fast digital transitions?
Yes, input capture is designed for fast, network‑coordinated response.

6. How does it connect to the control system?
Via the Ovation backplane and associated communication pathways within the DCS.

7. Is it suitable for safety interlocks?
Yes, it is commonly used for safety input capture where deterministic response is required.

8. How are field devices wired?
Discrete sensors and switches connect to the module’s input terminals per system wiring standards.

9. Does it support diagnostics?
Signal status and fault flags are made available to the controller for diagnostics.

10. How is the module installed?
Install directly into the appropriate backplane rack slot with secure mechanical engagement.
