Applications

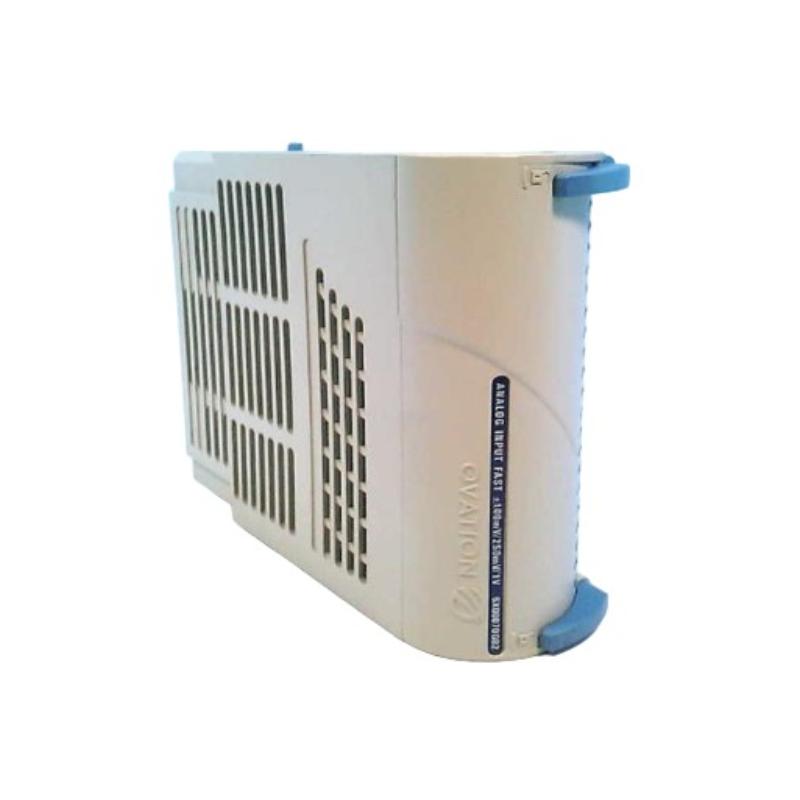

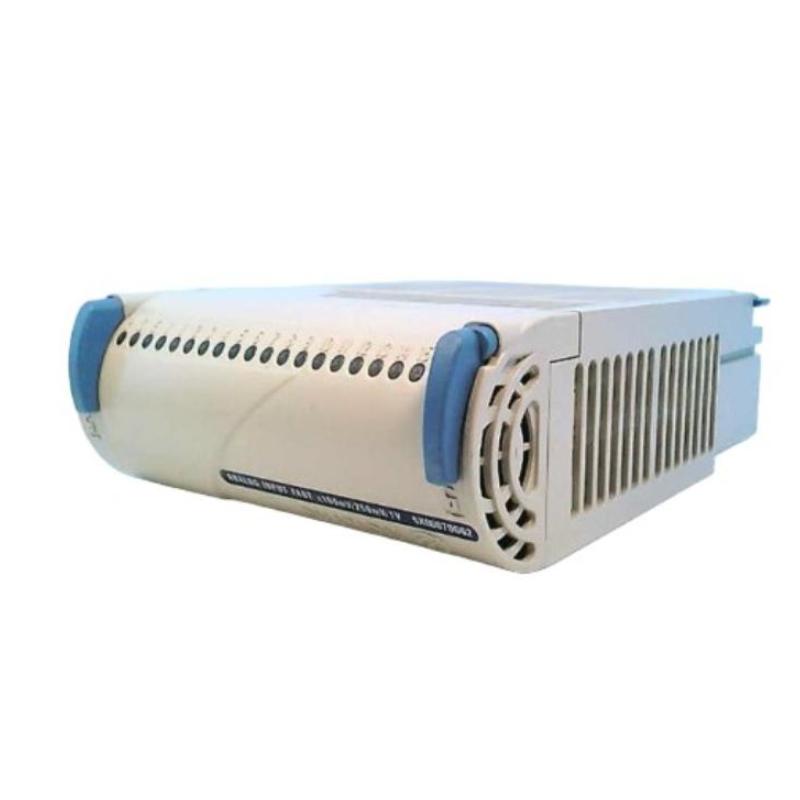

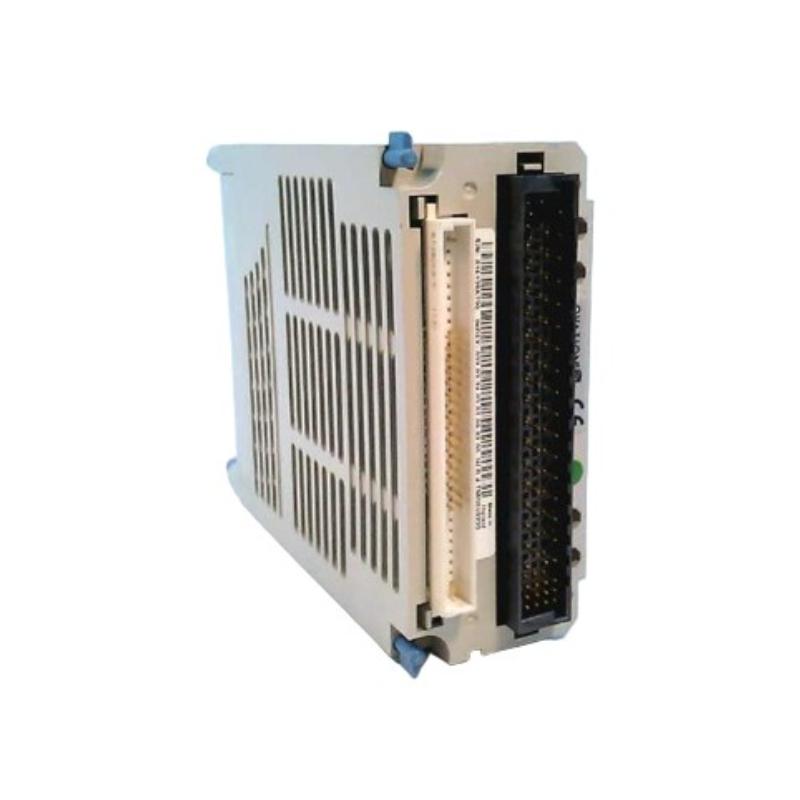

The 5X00070G02 Analog Fast Input Module is widely used in automation systems where quick response to analog changes is essential:
-
Dynamic process monitoring in power generation plants
-
Control loops requiring rapid analog feedback
-
Measurement of fast‑changing process variables such as vibration and rate‑of‑change sensor outputs
-
Advanced diagnostics where high‑resolution and high‑speed data are important
-
Integrated Ovation DCS systems managing time‑critical control logic
Its fast sampling capabilities allow controllers to react quickly to process changes, enhancing stability and responsiveness.
Advantages
-
High‑Speed Sampling: Designed to capture fast‑changing analog signals with minimal latency.
-
Accurate Analog Conversion: High‑precision ADC delivers reliable process variable measurements.
-
Real‑Time Response: Optimized for applications requiring rapid feedback and control adjustments.
-
Wide Environmental Tolerance: Supports a broad industrial temperature and humidity range.
-
Seamless Integration: Interfaces directly with Ovation DCS controllers for deterministic data flow.
These capabilities make it ideal for systems where standard analog modules are too slow to capture rapid process changes.
Technical FAQs
1. What types of analog signals can this module accept?
It supports common process analog inputs such as 0–20 mA, 4–20 mA, and ±10 V.
2. How is this module different from standard analog input modules?
It offers significantly faster sampling and response rates, making it suitable for dynamic process control.
3. Is it compatible with HART communication?
This model focuses on fast analog acquisition and does not provide HART protocol communication support.
4. What is the typical operating environment?
It is rated for −40 °C to +70 °C and up to 95 % non‑condensing humidity.
5. What power supply does it require?
The module operates on a standard 24 V DC supply.
6. How does it integrate with controllers?
It installs into the Ovation DCS rack backplane, communicating with controllers via the system network.
7. Can it support high‑precision control loops?
Yes — its fast sampling and accuracy make it suitable for real‑time feedback in control loops.
8. Is special calibration required?
Standard calibration procedures aligned with Ovation system practices ensure optimal performance.
9. How many channels does it typically provide?
It typically offers multiple high‑speed channels, depending on configuration.
10. Is installation straightforward?
Yes — it installs directly into the appropriate rack slot with secure mechanical latching, simplifying service and replacements.
