Product Overview

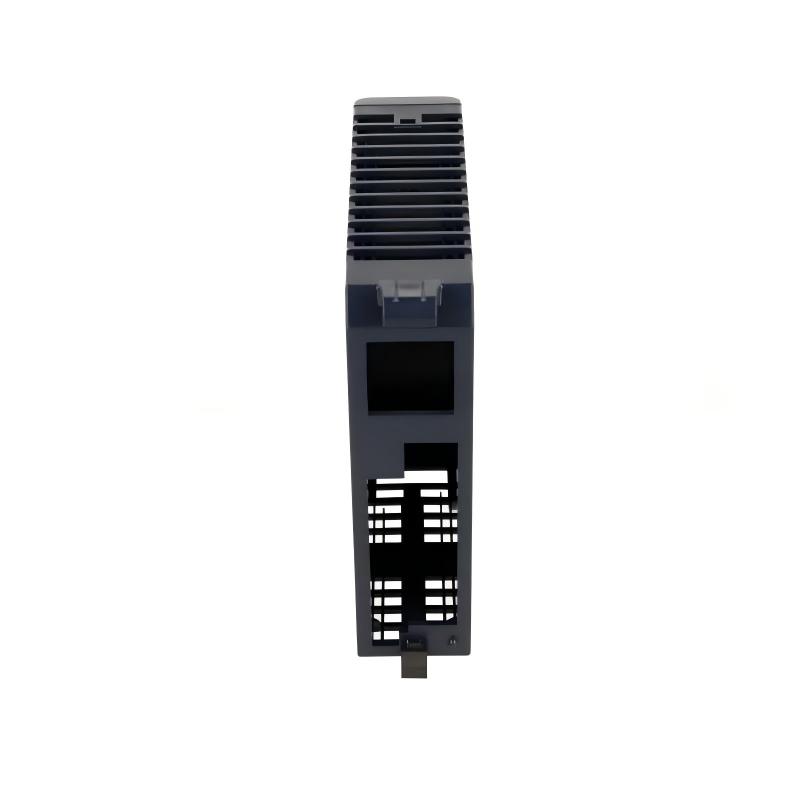

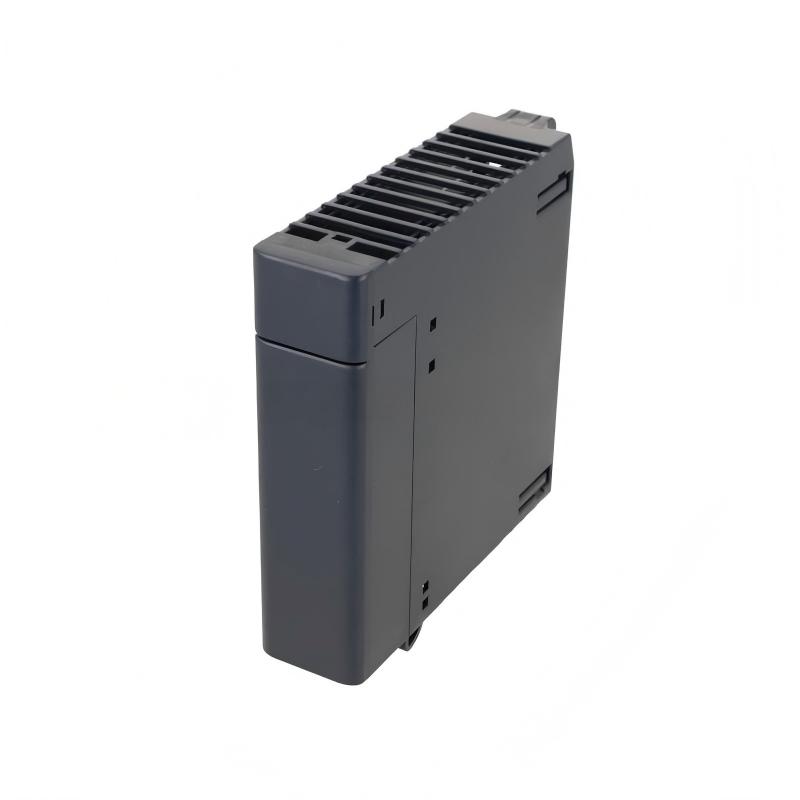

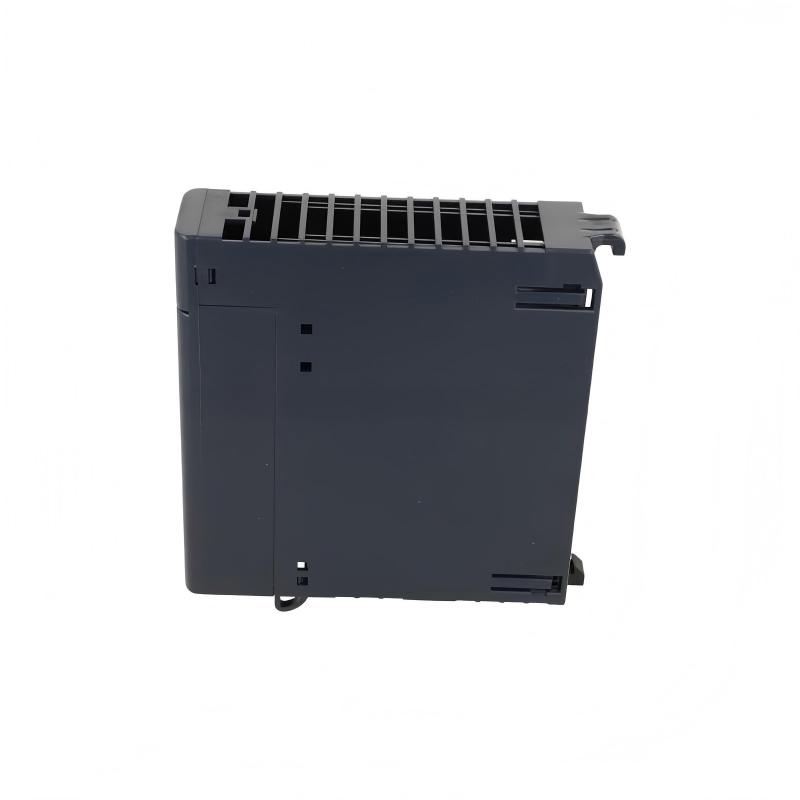

The GE IC694ACC310 Blank Slot Filler Module is a simple yet essential component for GE PACSystems and Series 90-30 PLC chassis. Designed to occupy unused slots, this module protects the backplane from dust, debris, and electrical interference while maintaining proper airflow and system integrity.
Lightweight and compact, the IC694ACC310 ensures that your PLC or PAC system remains clean, organized, and fully operational even when not all I/O or specialty modules are installed.
Technical Specifications
| Parameter | Specification |
|---|
| Model | IC694ACC310 |
| Product Type | Blank Slot Filler Module |
| Series | GE Series 90-30 / PACSystems |
| Function | Fills unused slots to protect backplane |
| Material | High-strength industrial-grade plastic |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Mounting | Standard Series 90-30 / PACSystems rack slot |
| Dimensions (HxWxD) | 90 × 35 × 115 mm |
| Weight | Approx. 0.1 kg |
| Compliance | UL, CE |
Applications
The IC694ACC310 Blank Slot Filler Module is widely used in PLC and PAC system installations where maintaining system reliability and cleanliness is critical:
-
Filling empty slots in GE Series 90-30 racks
-
Protecting PACSystems RX3i or Series 90-30 backplanes from dust or debris
-
Maintaining airflow and cooling efficiency in partially populated racks
-
Ensuring electrical isolation of unused slots
-
Simplifying system organization for future expansions
Technical FAQs
1. What is the primary purpose of the IC694ACC310?
To fill unused PLC or PAC system slots, protecting the backplane and maintaining airflow.
2. Is it compatible with PACSystems RX3i?
Yes, it fits standard RX3i and Series 90-30 racks.
3. Does it require any tools for installation?
No, it snaps into the slot securely without additional hardware.
4. Can it withstand industrial environments?
Yes, it is rated for 0°C to 70°C operating temperatures and industrial-grade durability.
5. Does it provide electrical isolation?
Yes, it prevents accidental electrical contact with unused slots.
6. Is it reusable?
Yes, it can be removed and reinstalled as needed.
7. How many modules can be installed in a chassis?
One per unused slot, as needed.
8. What is its weight?
Approximately 0.1 kg per module.
9. Does it interfere with system performance?
No, it is passive and has no impact on system operation.
10. Is it UL or CE certified?
Yes, it meets UL and CE safety standards.
