Product Overview (Introduction)

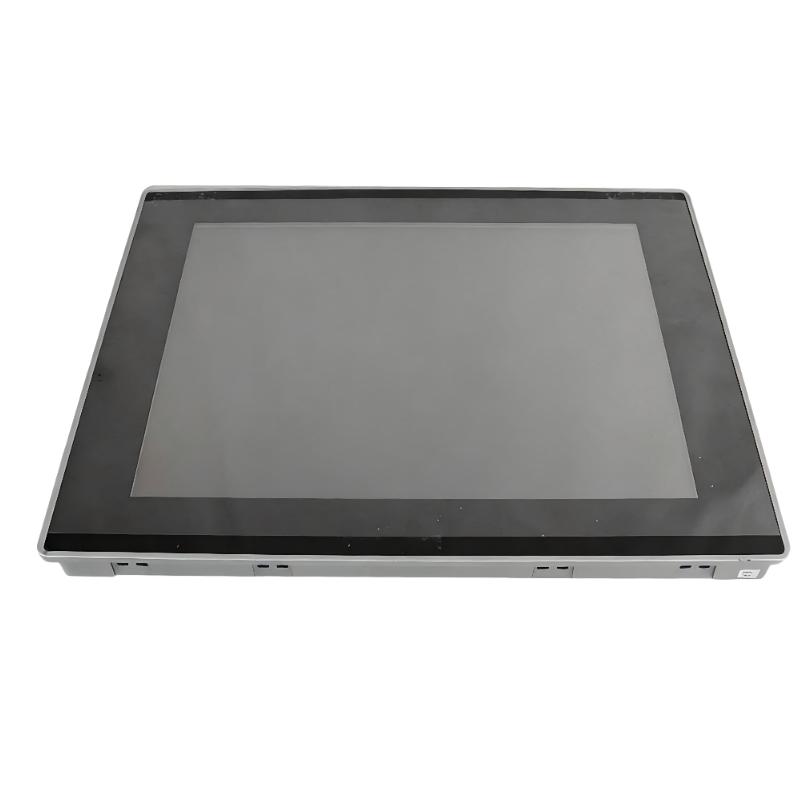

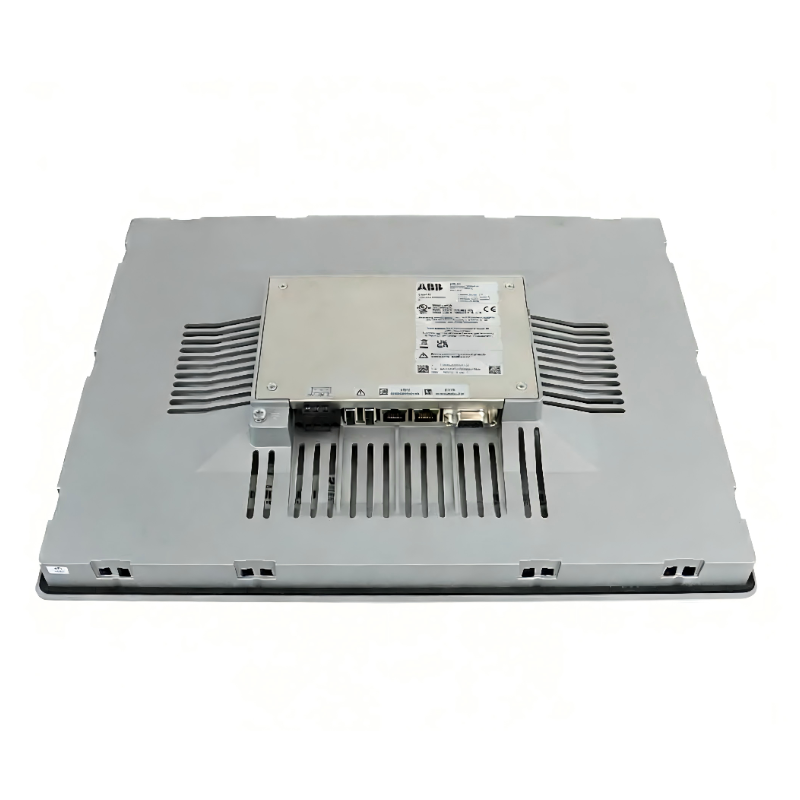

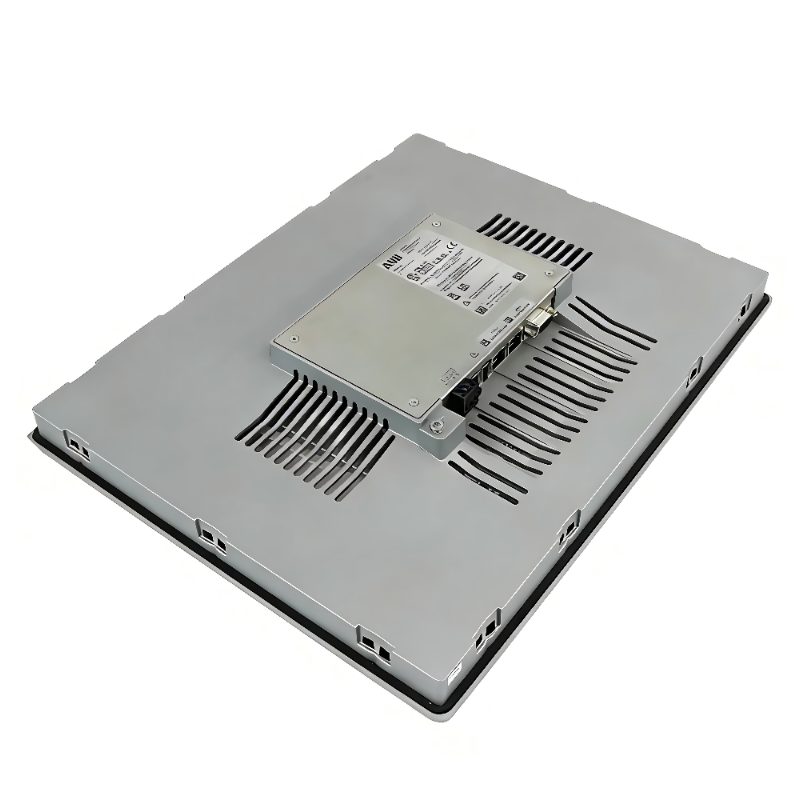

The ABB CP6415 1SAP541510R0001 Touchscreen is an industrial HMI panel developed to support efficient monitoring and control of automation systems. With its large display and responsive interface, it provides operators with clear access to system information, operational status, and machine controls.
In modern industrial environments, reliable operator interfaces play a critical role in maintaining productivity and ensuring process stability. The CP6415 supports real-time monitoring, alarm handling, and system interaction, making it suitable for complex automation installations.
Its durable construction and panel-mount design allow it to be integrated into control cabinets and operator stations while maintaining dependable performance in industrial settings.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | ABB |
| Model Number | CP6415 |
| Part Number | 1SAP541510R0001 |
| Product Type | Touchscreen HMI |
| Function | Human-Machine Interface |
| System Compatibility | ABB Automation Systems |
| Installation | Panel Mount |
| Application | Industrial Monitoring and Control |
| Dimensions (HxWxD) | 47 × 307 × 392 mm |
| Weight | 3.19 kg (7.03 lbs) |
Applications in Industrial Automation Systems (Applications)
The ABB CP6415 1SAP541510R0001 Touchscreen is a large-format industrial human-machine interface (HMI) designed for advanced monitoring and control of automated equipment and production systems. It enables operators to manage processes, visualize operational data, and interact with machinery through a responsive touchscreen interface.
Typical deployment scenarios include:
-
Large manufacturing production lines requiring centralized monitoring
-
Industrial process control systems with extensive operator interaction
-
Machine builder installations requiring high-visibility operator panels
-
Energy and utility facilities with system monitoring stations
-
Water and wastewater treatment plants with control room interfaces
-
Industrial environments utilizing ABB automation solutions
By providing a clear and responsive control interface, the CP6415 enhances operational awareness and process management in complex automation systems.
Operational Advantages (Advantages)
-
Large Display Interface
Provides expanded screen space for monitoring detailed process information.
-
Responsive Touch Interaction
Enables efficient navigation, control, and system adjustments by operators.
-
Industrial-Grade Reliability
Designed for continuous operation in demanding industrial environments.
-
Improved Process Visualization
Allows operators to view system data, alarms, and operational metrics clearly.
-
Flexible Integration
Suitable for installation in control panels, operator stations, and control rooms.
Technical FAQs (Technical FAQs)
-
What is the main function of the CP6415 touchscreen?
It acts as a human-machine interface for monitoring and controlling industrial automation systems.
-
Which automation systems is this HMI compatible with?
It is commonly used with ABB automation and control platforms.
-
Can the device display real-time process data?
Yes, it allows operators to view live system performance and process status.
-
Is the CP6415 suitable for industrial environments?
Yes, it is designed to operate reliably in factory and plant conditions.
-
Does the touchscreen support alarm and event monitoring?
Yes, alarms, system notifications, and operational alerts can be displayed.
-
Where is this HMI typically installed?
It is installed on control panels, operator stations, or centralized monitoring areas.
-
Can operators configure machine parameters through the panel?
Yes, authorized users can modify system settings and control operations.
-
Is the touchscreen suitable for continuous industrial use?
Yes, it is designed for ongoing operation in industrial environments.
-
Which industries commonly use this HMI?
Manufacturing, process industries, utilities, and heavy industrial automation.
-
Why is a large-format HMI beneficial in automation systems?
It improves visibility of system data and simplifies operator interaction with complex processes.
