Product Overview (Introduction)

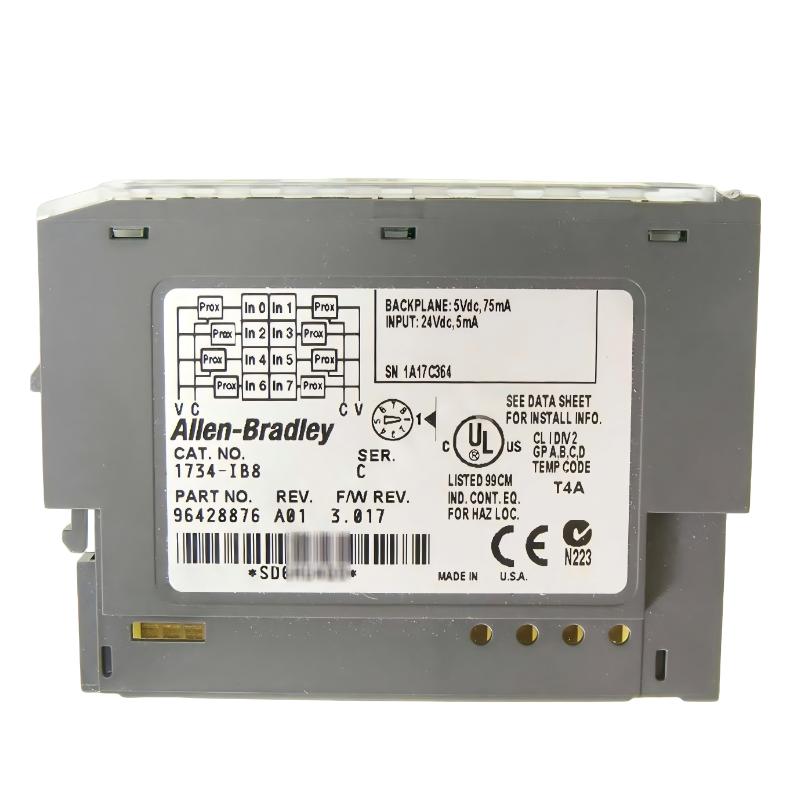

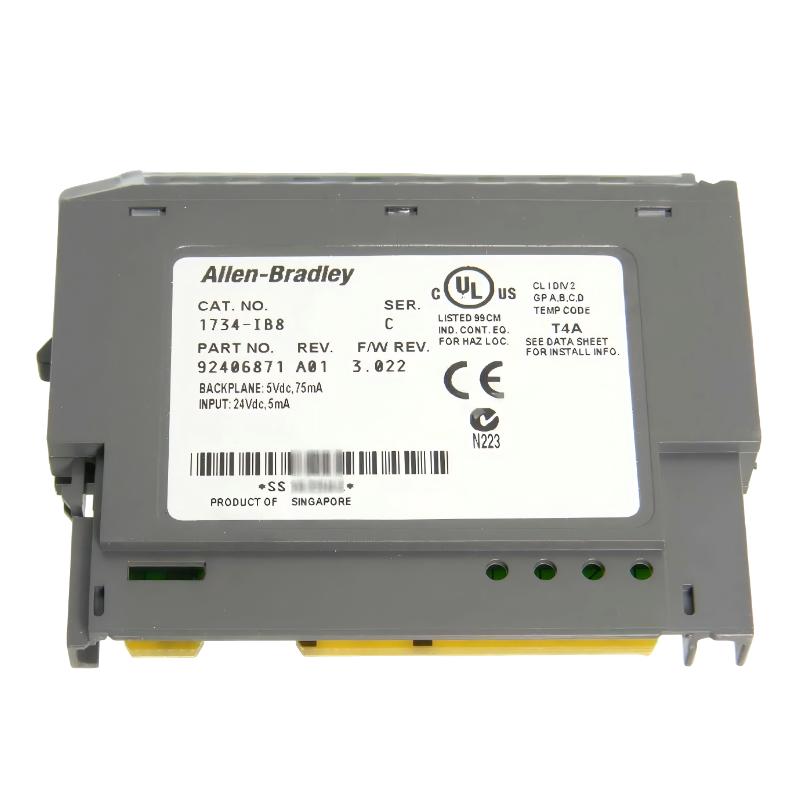

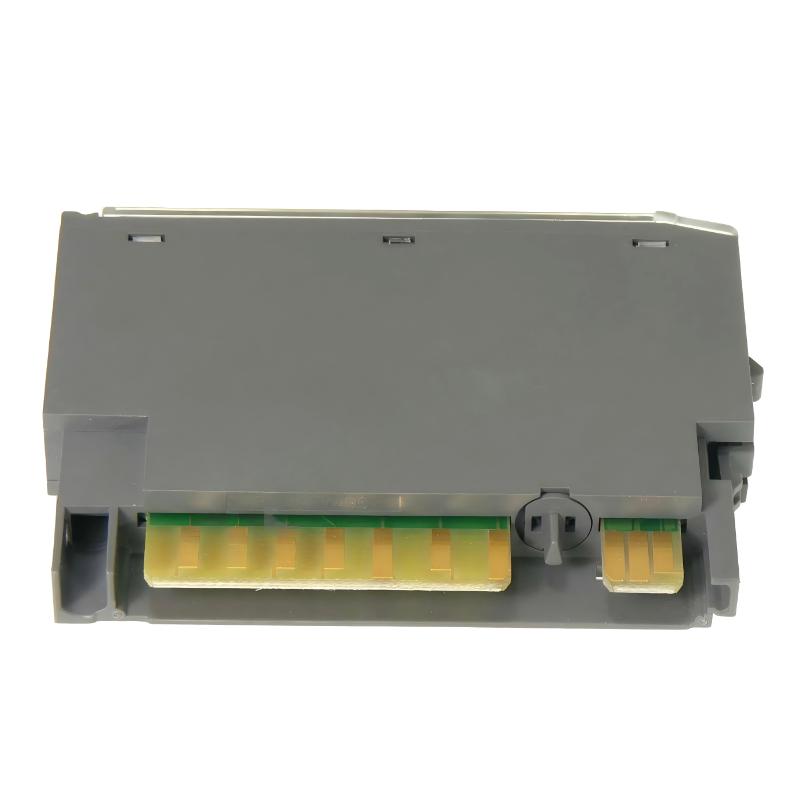

The Allen Bradley 1734-IB8 Numeric Input Module delivers eight discrete digital input channels for Compact I/O systems. Its compact design allows installation in constrained spaces while maintaining reliable operation in industrial environments.
This module enables accurate data collection from multiple input devices, supporting real-time process control and modular system expansion. By ensuring dependable signal acquisition, it helps maintain system stability and operational continuity across automation networks.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Allen Bradley |
| Model Number | 1734-IB8 |
| Module Type | Numeric Input Module |
| Function | Digital Numeric Input |
| System Compatibility | Allen Bradley Compact I/O Systems |
| Installation | Control Rack Mount |
| Input Type | Digital |
| Operating Temperature | 0°C to 60°C |
| Dimensions (HxWxD) | 56.6 × 12.1 × 77.5 mm |
| Weight | 0.032 kg (0.071 lbs) |
Applications in Distributed Control Systems (Applications)
The Allen Bradley 1734-IB8 Numeric Input Module is designed for Compact I/O systems, providing eight channels of digital numeric input for monitoring and controlling industrial processes. It is ideal for applications that require multiple discrete inputs in space-constrained automation setups.
Typical deployment scenarios include:
-
Automated assembly lines in automotive or electronics manufacturing
-
Packaging and material handling systems
-
Food and beverage processing facilities
-
Water and wastewater treatment automation
-
Industrial operations requiring multiple digital inputs in modular I/O architectures
-
Systems that need reliable real-time data collection from multiple devices
By enabling eight discrete inputs, the 1734-IB8 ensures efficient and reliable data acquisition for precise control of industrial processes.
Operational Advantages (Advantages)
-
Multi-Channel Digital Input
Supports eight channels of discrete numeric input for comprehensive monitoring.
-
Compact Form Factor
Small dimensions allow installation in space-limited control racks.
-
Seamless Integration
Works natively with Allen Bradley Compact I/O systems for modular system expansion.
-
Reliable Industrial Performance
Maintains signal integrity under electrical noise, vibration, and standard temperature variations.
-
Facilitates System Expansion
Additional modules can be added without disrupting existing operations.
Technical FAQs (Technical FAQs)
-
How many numeric inputs does the 1734-IB8 support?
Eight discrete digital inputs.
-
What voltage does the module operate on?
24V DC input.
-
Is the module hot-swappable?
Yes, it can be installed or replaced without shutting down the system.
-
Which systems is it compatible with?
Allen Bradley Compact I/O systems.
-
Can it operate in harsh industrial environments?
Yes, it is designed for reliable operation under electrical noise, vibration, and standard temperature ranges.
-
Does the module provide diagnostics?
Yes, LED indicators show input status and fault conditions.
-
What types of devices can connect to this module?
Compatible with digital sensors, switches, and other discrete input devices.
-
Can the module support system expansion?
Yes, it allows additional I/O modules to be integrated seamlessly.
-
What is the operating temperature range?
0°C to 60°C.
-
What is the main benefit of using this module?
Provides reliable multi-channel digital input for precise process monitoring and control.
