Accurate and Reliable Process Signal Acquisition

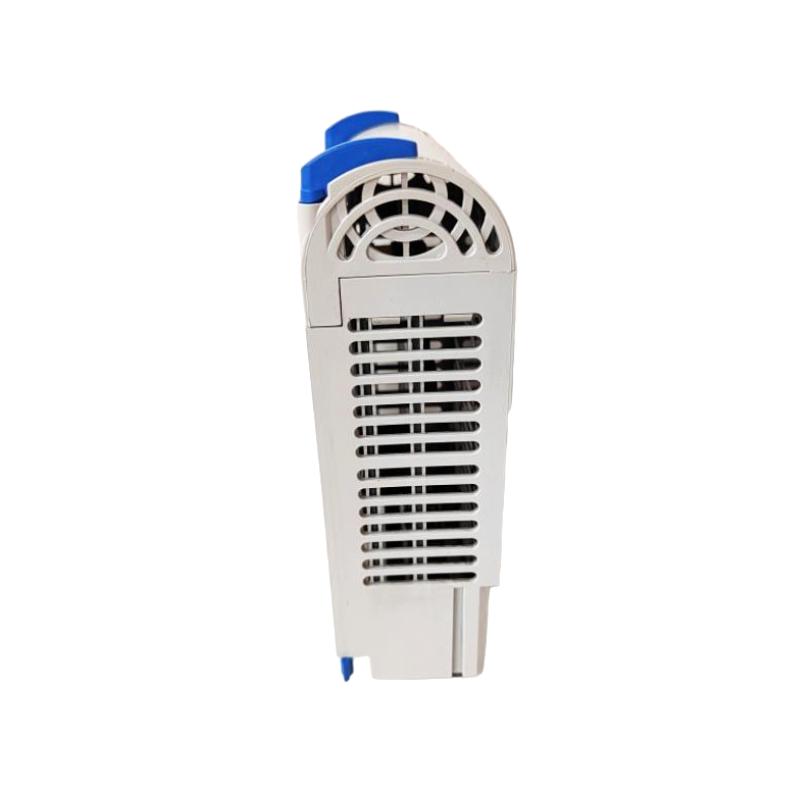

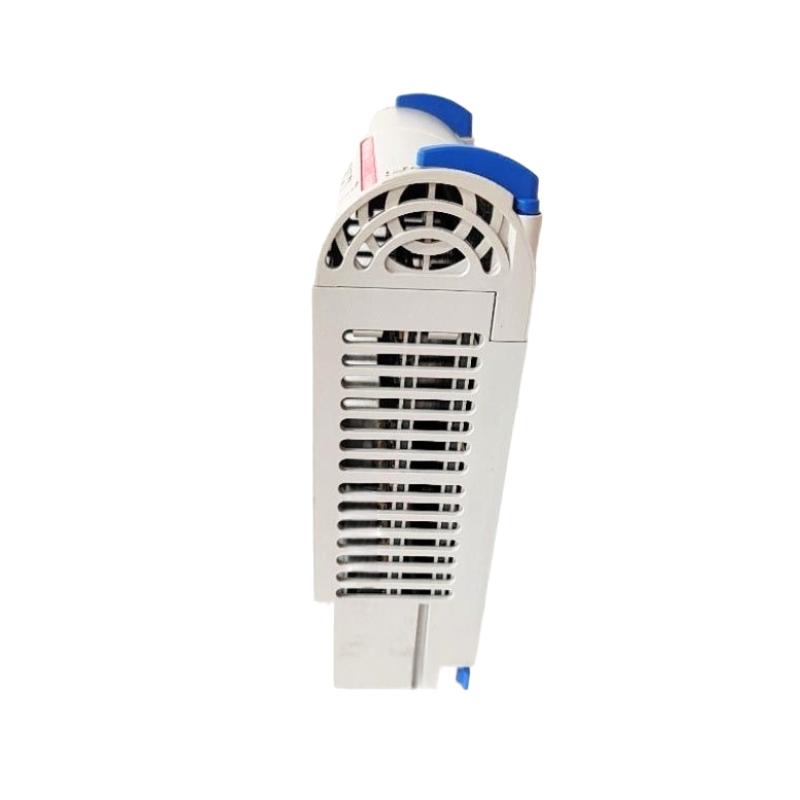

The Ovation 1C31224G02 Analog Input Module is a precision field interface designed for Emerson Ovation Distributed Control Systems (DCS). It provides high‑fidelity conversion of analog signals from field instruments—such as transmitters, sensors, and other process devices—into digital data that the control system can monitor and act upon.
With robust signal conditioning, electrical isolation, and standard rack integration, this module is ideal for industrial environments where reliable and accurate analog input is critical to performance and safety.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Emerson Ovation |
| Model | 1C31224G02 |
| Module Type | Analog Input Module |
| Input Channels | 8 isolated analog inputs |
| Input Signal Types | 0–20 mA, 4–20 mA, ±10 VDC |
| Resolution | 12‑bit or higher (system‑dependent) |
| Input Impedance | High impedance for signal accuracy |
| Isolation | Channel isolation to reduce noise influence |
| Backplane Interface | Standard Ovation rack connector |
| Power Source | Rack backplane power |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | –40 °C to 70 °C |
| Humidity | 5 % to 95 % non‑condensing |
| Dimensions (HxWxD) | Approx. 125 × 35 × 160 mm |
| Weight | Approx. 0.28 kg |
| Mounting | Rack slot installation |
Applications
The 1C31224G02 Analog Input Module is used wherever accurate analog measurements are needed to inform control logic, trending, and supervision:
-
Pressure, temperature, and flow transmitter signal acquisition
-
Level monitoring in tanks and vessels
-
Process loop feedback for regulatory control
-
Utility system analog data capture
-
Industrial automation with mixed analog and digital I/O
Applications
The 1C31224G02 Analog Input Module is used wherever accurate analog measurements are needed to inform control logic, trending, and supervision:
-
Pressure, temperature, and flow transmitter signal acquisition
-
Level monitoring in tanks and vessels
-
Process loop feedback for regulatory control
-
Utility system analog data capture
-
Industrial automation with mixed analog and digital I/O
Technical FAQs
1. How many input channels are available?
The module supports 8 isolated analog input channels.
2. What signal types does it support?
It accepts 0–20 mA, 4–20 mA current signals, and ±10 VDC voltage signals.
3. Is electrical isolation provided?
Yes, channel isolation helps reduce noise and improve measurement reliability.
4. How is the module powered?
Power is supplied through the Ovation rack backplane.
5. What environments is it designed for?
Industrial environments up to 55 °C and high humidity (non‑condensing).
6. How is field wiring connected?
Field wiring typically terminates through screw‑type terminals accessible at the front.
7. Does it support high‑speed sampling?
Sampling rate depends on system configuration and Ovation settings.
8. Can it interface with other automation systems?
Yes, when integrated through the Ovation control architecture.
9. What maintenance is recommended?
Periodic inspection of terminals and secure cable management improve longevity.
10. What are its dimensions and weight?
Approximately 125 × 35 × 160 mm; weight around 0.28 kg.
