Advanced Discrete Event Detection for High‑Performance Control

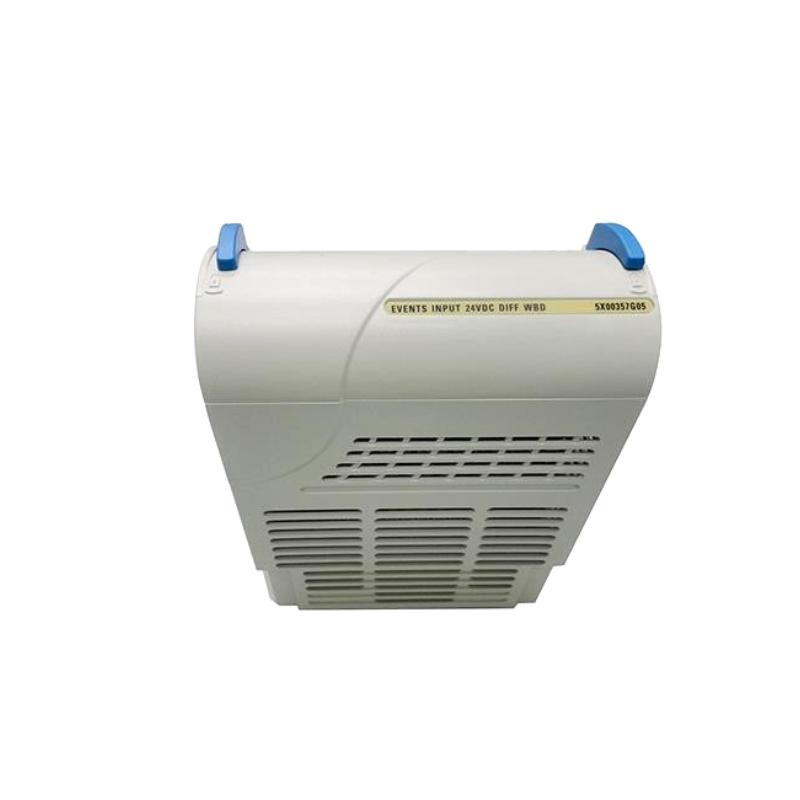

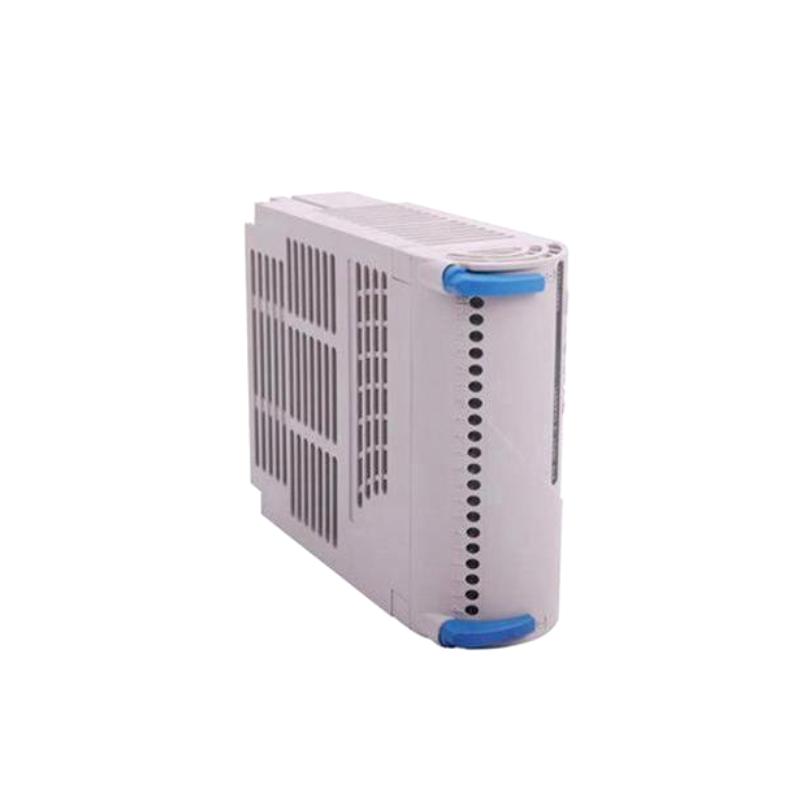

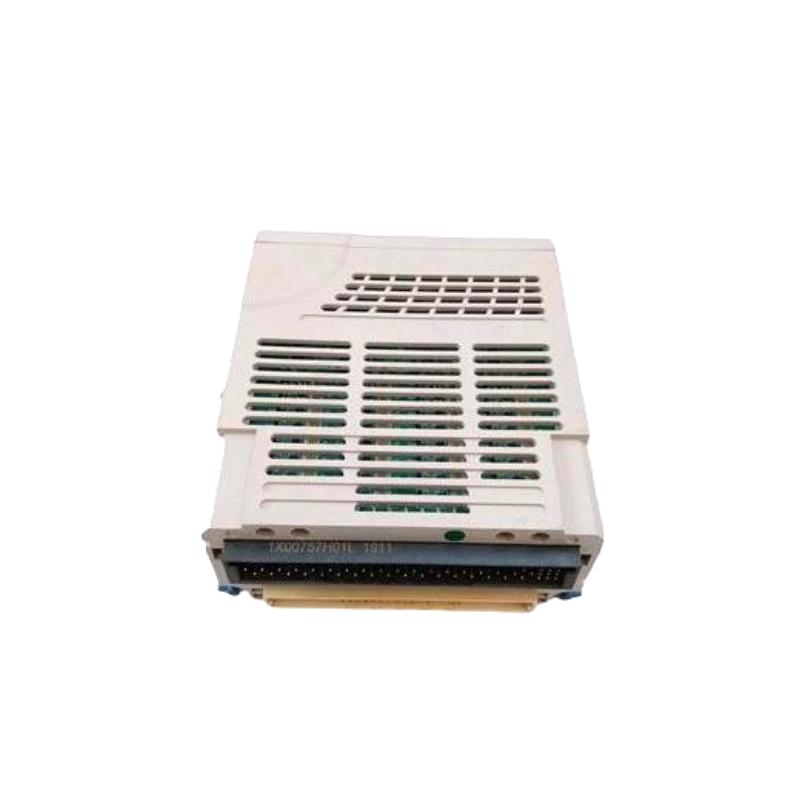

The Ovation 5X00357G05 16‑Channel Enhanced Events Input Module is designed to provide reliable and high‑resolution detection of discrete process events within Emerson’s Ovation Distributed Control System (DCS). This module captures fast digital input changes with enhanced event timing accuracy, enabling precise sequence monitoring, safety logic capture, and responsive control actions in complex automation environments.
Its enhanced event processing capability makes it a strong choice for applications where timing, event ordering, and transient condition detection are critical. The module integrates seamlessly into standard Ovation racks and offers robust electrical design suitable for demanding industrial conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson Ovation |
| Model | 5X00357G05 |
| Module Type | Enhanced Events Input Module |
| Input Channels | 16 discrete event inputs |
| Input Type | High‑speed electronic inputs |
| Input Voltage | 24 VDC nominal |
| Input Current | Low‑level (mA class) inputs |
| Isolation | Channel group optical isolation |
| Backplane Interface | Standard Ovation rack connector |
| Power Source | Rack backplane power |
| Detection Speed | High‑speed event detection (µs level) |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | –40 °C to 70 °C |
| Humidity | 5 % to 95 % non‑condensing |
| Dimensions (HxWxD) | Approx. 125 × 35 × 160 mm |
| Weight | Approx. 0.30 kg |
| Mounting | Rack slot installation |
