Overview & Functional Insight

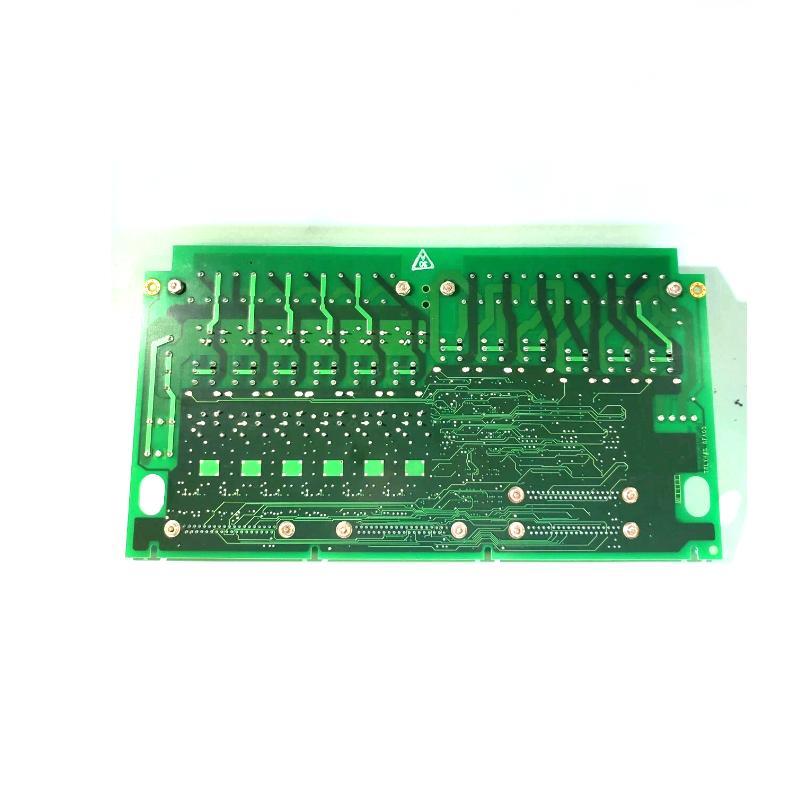

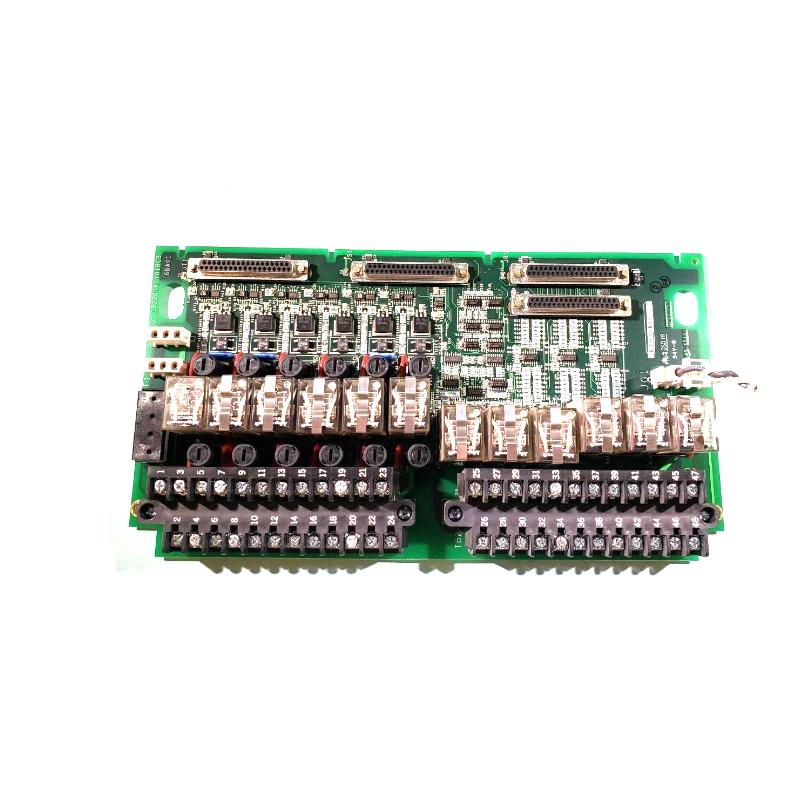

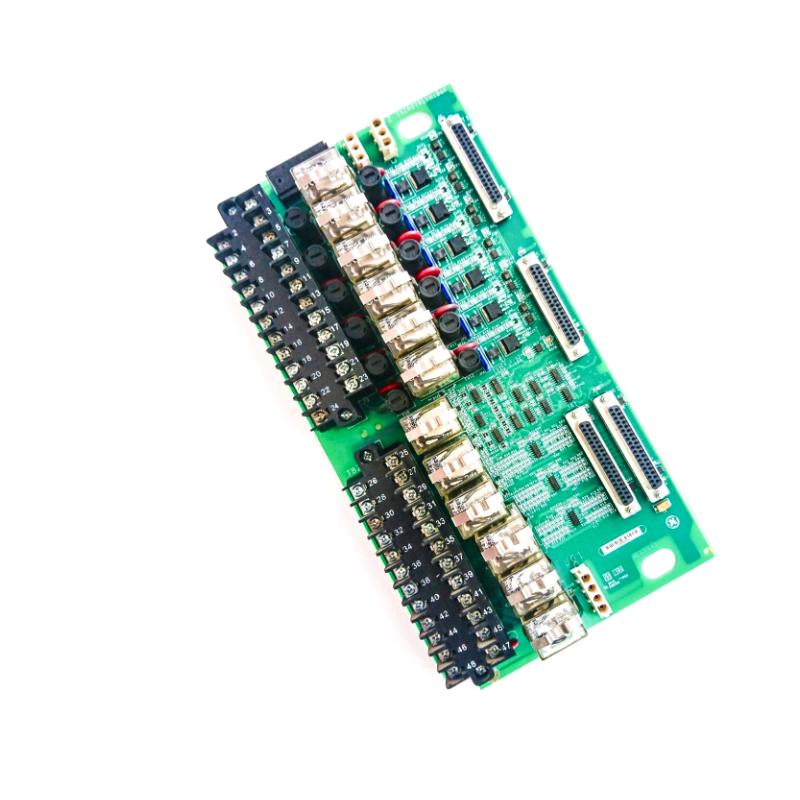

The GE IS200TRLYH2C Mark VIe Relay Output Terminal Board is a precision-engineered interface module designed to deliver reliable relay-based output control in turbine and industrial automation systems. As part of the Mark VI/VIe Speedtronic platform, it translates controller commands into physical switching actions, ensuring accurate operation of field devices such as solenoids, alarms, and trip circuits.
This version introduces enhanced monitoring flexibility and configurable output behavior, making it particularly suitable for applications requiring both dry contact outputs and solenoid driving within high-reliability environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | IS200TRLYH2C |
| Module Type | Relay Output Terminal Board |
| Series | GE Mark VI / Mark VIe |
| Relay Type | 12 Form-C sealed relays |
| Output Configuration | Solenoid drive or dry contact (jumper selectable) |
| Contact Rating | 24 VDC @ 3A |
| Channels | 12 relay outputs |
| Terminals | 48 barrier terminals |
| Power Distribution | 6 fused branches + 1 unfused branch |
| Feedback | Isolated contact voltage feedback |
| Suppression | MOV and RC snubber circuits |
| Redundancy | Supports simplex and TMR inputs |
| Operating Temperature | -30°C to +65°C |
| Mounting | Panel / rack-mounted |
| Dimensions (HxWxD) | Approx. 178 × 330 × 120 mm |
| Weight | Approx. 1.2 kg |
