Flexible Interface Adapter for XBT HMIs

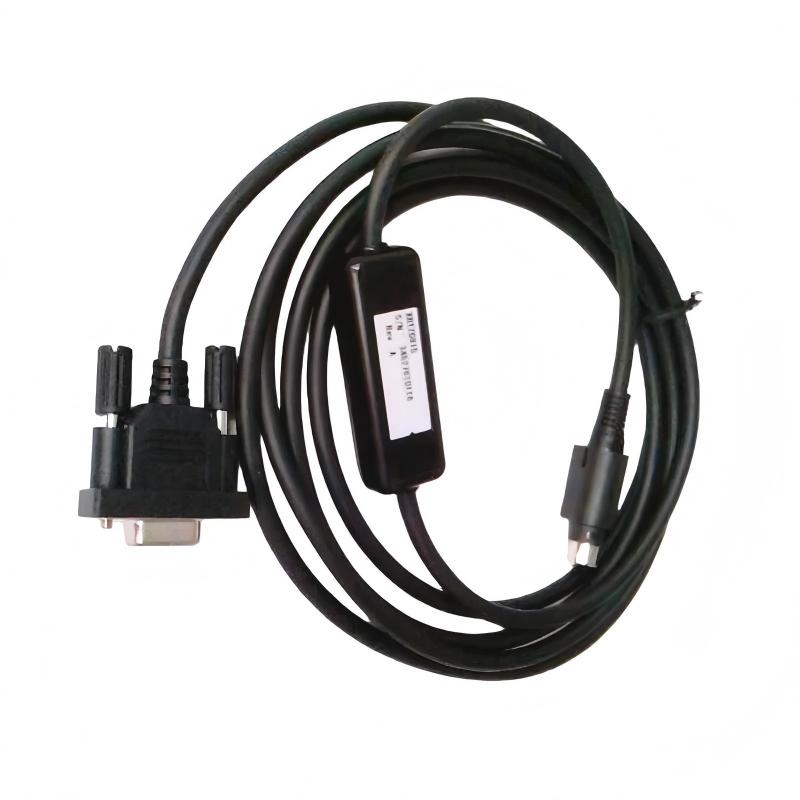

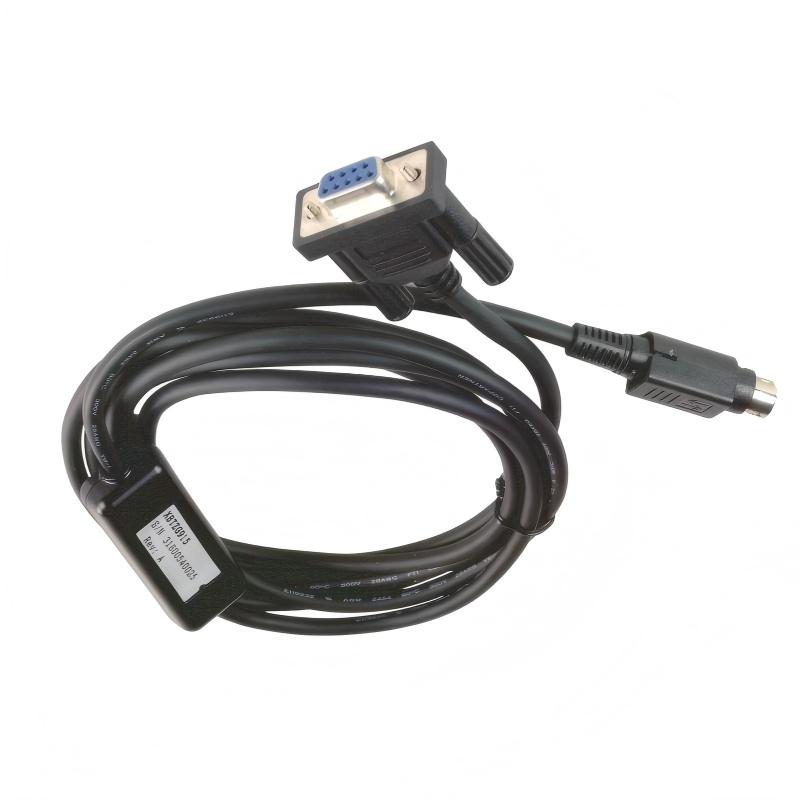

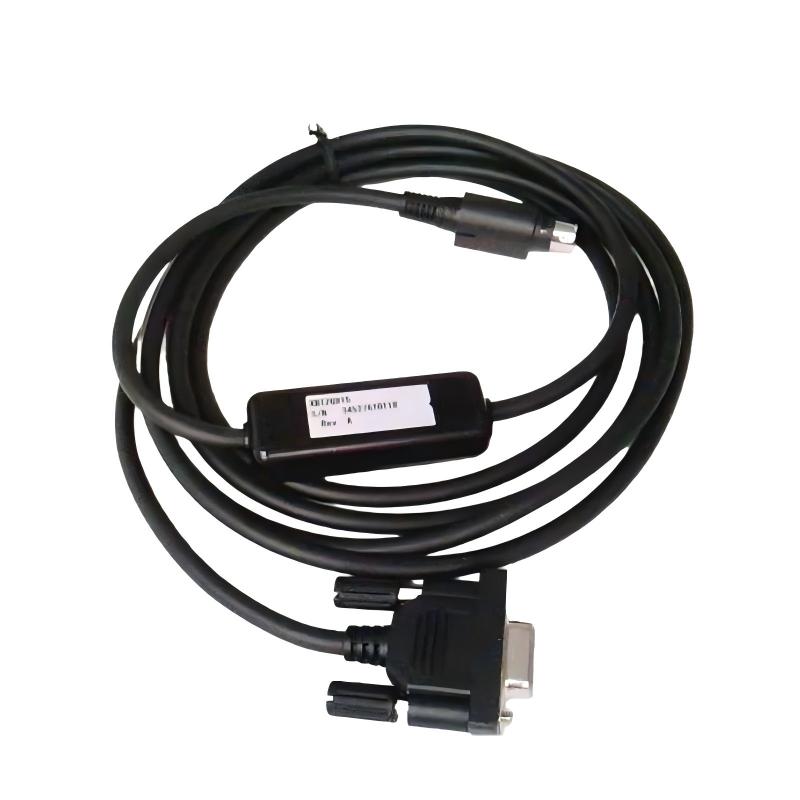

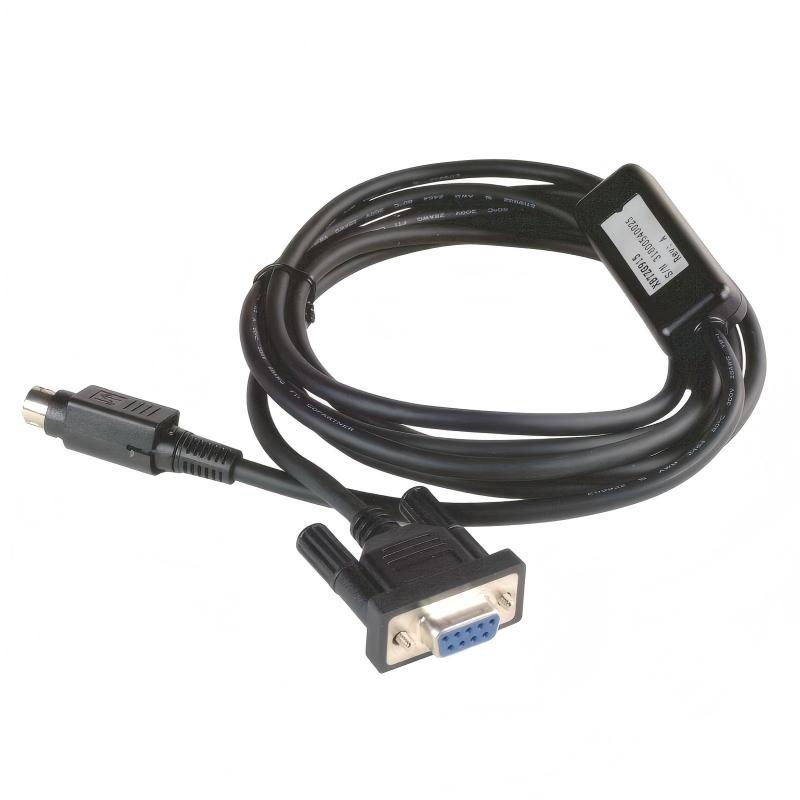

The Schneider XBTZG915 XBT Terminal Adapter is a purpose‑built interface accessory designed to facilitate connectivity between Schneider Electric XBT family operator panels and a wide range of industrial control systems. It provides a reliable physical interface that adapts communication signals to standard field protocols—simplifying wiring, reducing installation complexity, and enhancing system integration flexibility.
Ideal for machine control panels and automation systems, the XBTZG915 helps bridge legacy and modern devices with efficient signal routing and robust industrial performance.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | XBT Terminal Adapter |
| Model Number | XBTZG915 |
| Compatibility | Schneider Electric XBT HMI Panels |
| Connector Types | Multi‑pin terminal block |
| Supported Signals | RS‑232 / RS‑485 communication levels |
| Supported Protocols | Modbus RTU, Schneider serial protocols |
| Rated Voltage | 24 V DC typical for interface circuitry |
| Isolation | Optically isolated (where applicable) |
| Operating Temperature | ‑10°C to +60°C |
| Storage Temperature | ‑25°C to +85°C |
| Relative Humidity | 10–95% non‑condensing |
| Mounting | DIN‑rail or panel interface mount |
| Dimensions (HxWxD) | Approx. 90 × 50 × 30 mm |
| Weight | Approx. 0.15–0.20 kg |
Application Scenarios
The XBTZG915 adapter is widely used in automation systems where human‑machine interface panels need to connect to PLCs, data loggers, or supervisory systems using serial communication lines. Typical applications include:
-
Legacy System Integration: Bridging older XBT panels with modern PLCs using standard serial protocols.
-
Machine Interface Panels: Simplifying field wiring between operator panels and control CPUs.
-
Remote Monitoring Stations: Providing reliable serial links for data acquisition and visualization.
-
Control Cabinets: Organizing communication terminations and reducing wiring clutter in cabinets.
By centralizing terminal connections and signal adaptation, this adapter helps improve serviceability and long‑term reliability.
Key Advantages and Features
-
Standardized Interface: Converts XBT panel communication to RS‑232/RS‑485 wiring terminals.
-
Simplified Wiring: Reduces complex point‑to‑point connections with consolidated terminal points.
-
Flexible Mounting Options: DIN‑rail or panel mount support for clean control cabinet installations.
-
Industrial Durability: Designed to withstand temperature variations, mechanical vibration, and humidity typical of factory environments.
-
Improved Maintainability: Clear terminal labeling and accessible connection points streamline troubleshooting and service.
This module enhances hardware interoperability across automation systems while maintaining secure physical connections.
Technical FAQs
1. What is the purpose of the XBTZG915 adapter?
To provide a terminal interface between XBT HMI panels and control systems using standard serial communication lines.
2. Which communication standards does it support?
RS‑232 and RS‑485 serial interfaces.
3. Which HMI panels is it compatible with?
Designed for Schneider Electric XBT series HMI panels.
4. How is it mounted?
DIN‑rail or panel mount in control cabinets.
5. What protocols can be used through this adapter?
Modbus RTU and Schneider proprietary serial protocols.
6. Can it isolate signals?
Yes—optical isolation is provided where applicable for improved noise immunity.
7. What environments can it operate in?
Industrial environments with temperatures from ‑10°C to +60°C.
8. Does it support high humidity environments?
Yes, 10–95% non‑condensing.
9. Is it used for data acquisition?
Yes, especially in systems where panels report process data to controllers or loggers.
10. Does it help reduce wiring complexity?
Yes, by consolidating communication terminations into a single adapter.
