Technical FAQs

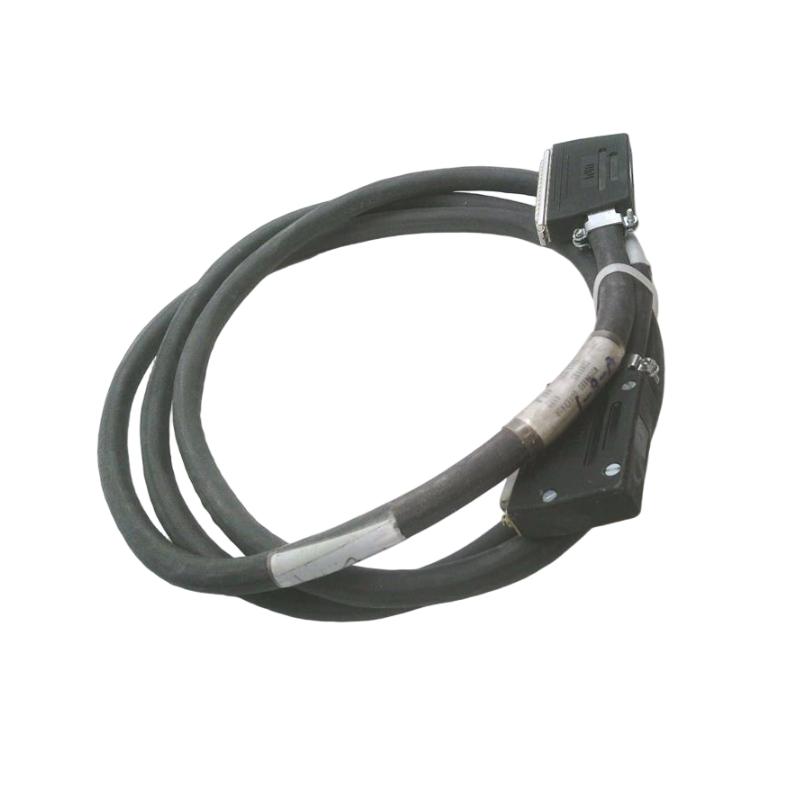

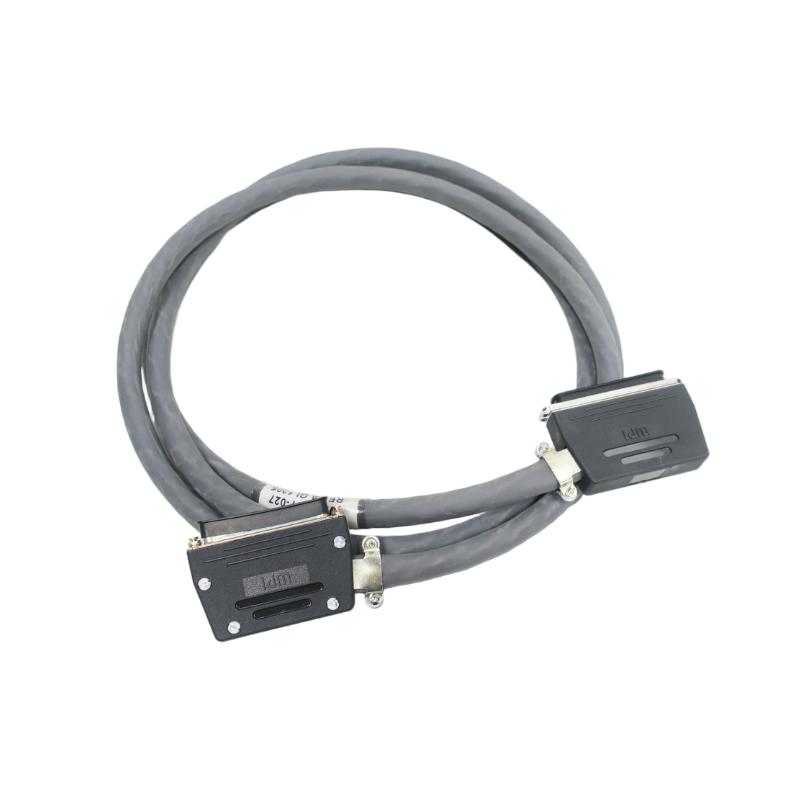

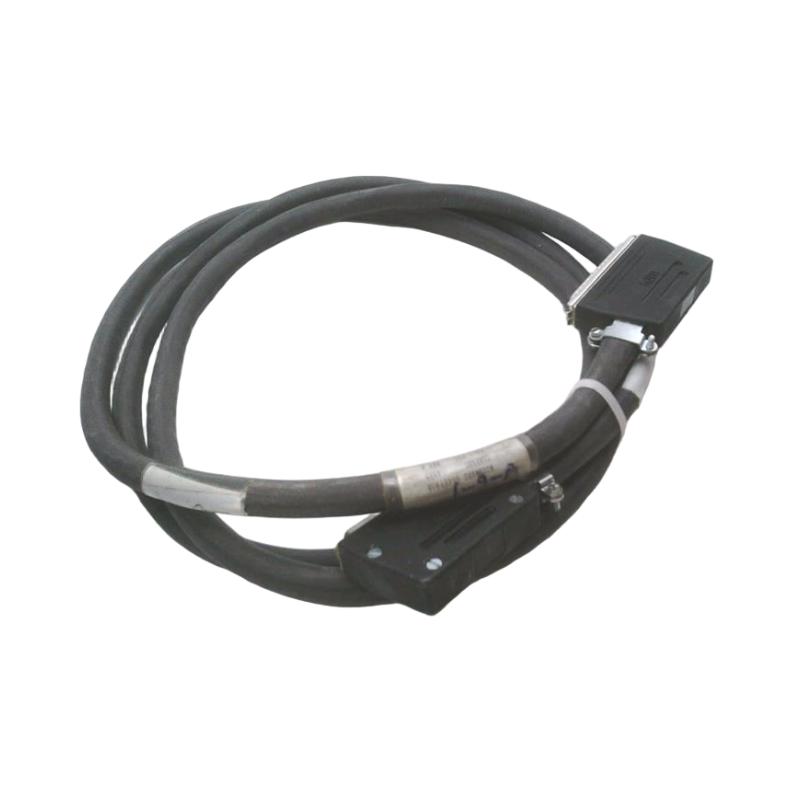

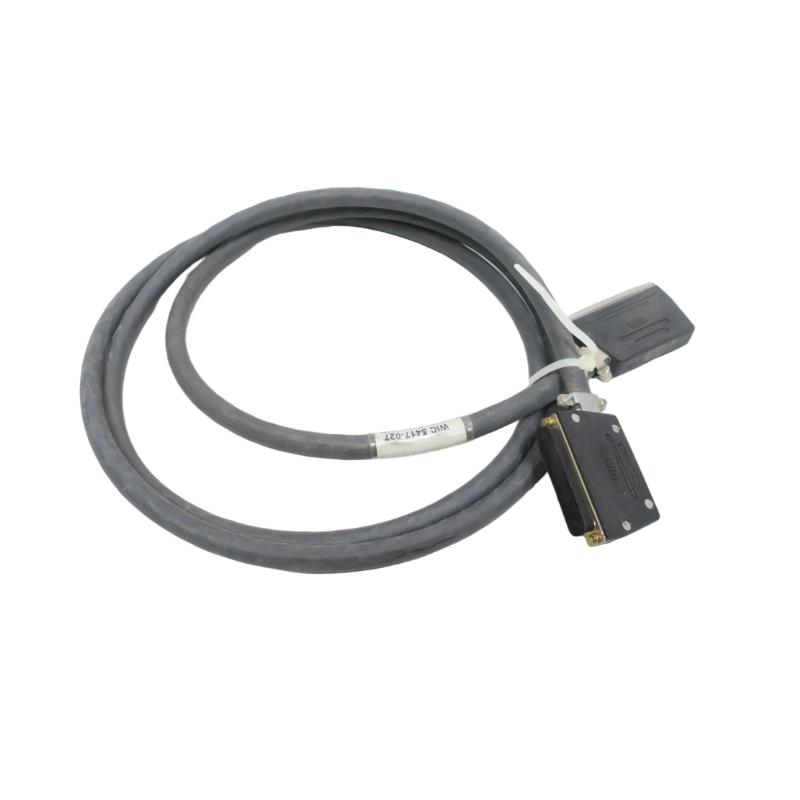

1. What is the primary function of the 5417‑027 cable?
   It transmits low-level analog signals between controllers, I/O modules, and field devices.

2. What is the standard length of this cable assembly?
   10 ft (≈ 3.05 m).

3. Does the cable have shielding?
   Yes, it includes foil and braid shielding to minimize EMI.

4. What environments is the cable suitable for?
   Industrial environments with electrical noise; avoid excessive moisture or mechanical stress.

5. Can it be used in modern high-density I/O systems?
   It is primarily suited for low- to moderate-density analog I/O wiring.

6. What precautions should be taken during installation?
   Maintain bend radius, preserve shield continuity, and route away from high-voltage cables.

7. Is the cable suitable for digital communication signals?
   It may carry low-speed digital signals, but it is designed for analog transmission.

8. What is the approximate diameter of the cable?
   Approximately 12 mm.

9. What is the approximate weight of the assembly?
   Around 0.6 kg.

10. How to verify proper installation?
    Check shield grounding, confirm signal stability, and test for noise or distortion with an oscilloscope or signal analyzer.
