Overview

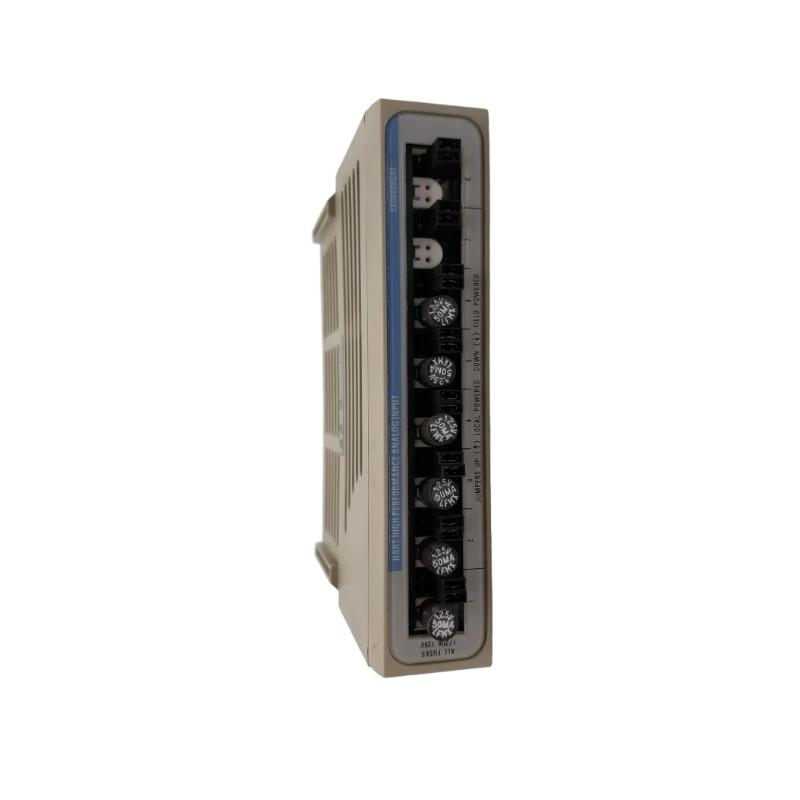

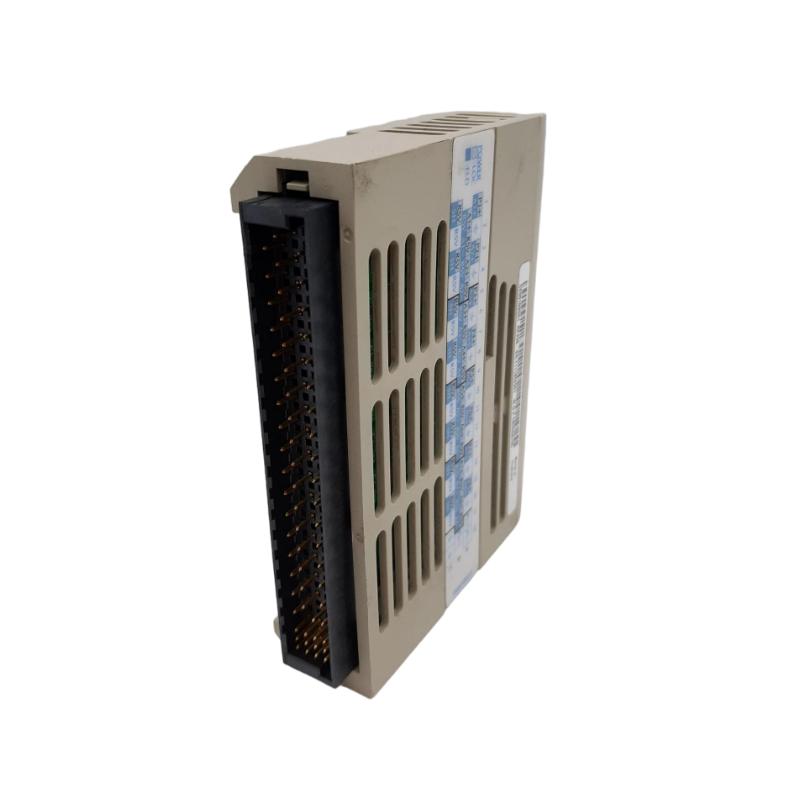

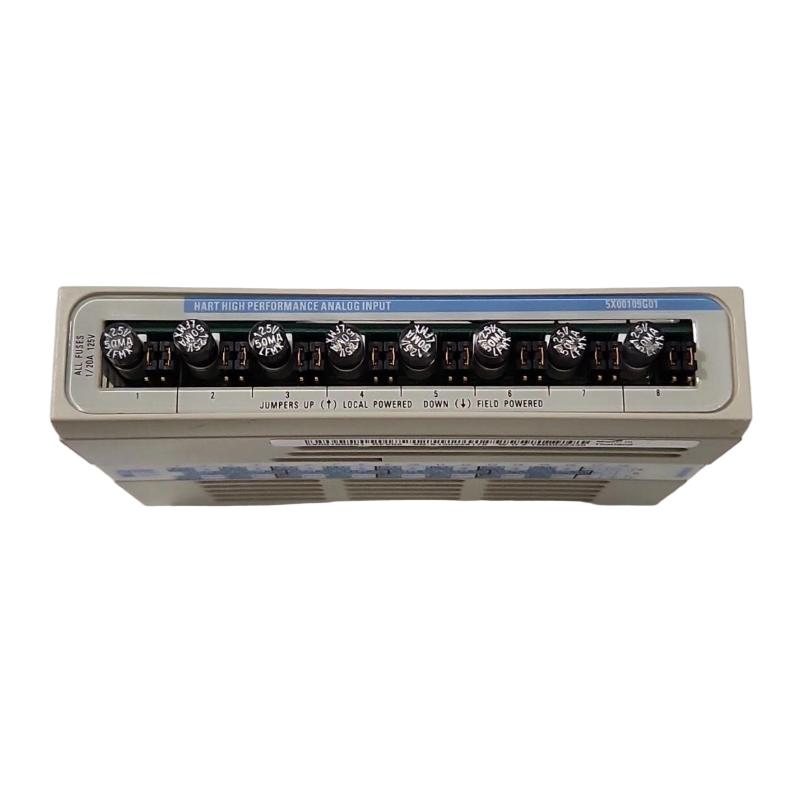

The Ovation 5X00109G01 8 Channel Analog Input Module is a high-precision signal acquisition component designed for the Emerson Ovation distributed control system (DCS). This module converts field analog signals into digital data that can be processed by the Ovation control platform, enabling accurate monitoring and control of industrial processes.
Featuring eight independent analog input channels, the module supports common industrial signals such as 4–20 mA current loops and voltage inputs, making it ideal for connecting transmitters, sensors, and instrumentation devices. Its integrated HART communication capability allows operators to access diagnostic information and configure smart field devices directly from the control system, enhancing plant visibility and maintenance efficiency.
The robust design and galvanic isolation ensure reliable performance in demanding environments such as power generation plants, water treatment facilities, and large-scale process automation systems.
Technical Specifications
| Parameter | Specification |
|---|
| Model | 5X00109G01 |
| Manufacturer | Emerson (Ovation) |
| Module Type | 8 Channel Analog Input Module |
| System Platform | Ovation Distributed Control System |
| Input Channels | 8 analog inputs |
| Supported Signal Types | 4–20 mA current loop, voltage inputs |
| A/D Resolution | Up to 16-bit analog-to-digital conversion |
| Accuracy | ±0.05% of full scale |
| Sampling Rate | Configurable up to 1000 samples/sec per channel |
| Input Impedance | Approx. 250–300 Ω |
| Isolation | Galvanic isolation between channels and system bus |
| Communication | HART support for smart device diagnostics |
| Power Supply | 24 V DC |
| Power Consumption | Typically under 5 W |
| Operating Temperature | –20 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 5–95% non-condensing |
| Mounting | Rack-mounted Ovation DCS module |
| Dimensions | Approx. 100 × 160 × 220 mm |
| Weight | Approx. 0.3–1.8 kg depending on configuration |
Applications
Power Generation Control Systems
Widely deployed in thermal and combined-cycle power plants to monitor pressure, temperature, and flow transmitters connected via 4–20 mA signals.
Process Industry Automation
Used in chemical, petrochemical, and manufacturing facilities to collect precise sensor data for advanced process control.
Water and Wastewater Treatment
Interfaces with instrumentation measuring pH, turbidity, and chemical dosing parameters for treatment optimization.
Industrial Monitoring Systems
Captures analog signals from distributed sensors and converts them into digital values for real-time supervisory monitoring.
Smart Instrument Integration
HART communication enables advanced diagnostics and configuration of intelligent field devices without additional hardware.
Advantages
High Measurement Accuracy
With high-resolution analog-to-digital conversion and precise calibration, the module ensures accurate process measurements.
Eight Independent Channels
Supports simultaneous monitoring of multiple analog signals, reducing the number of modules required in control cabinets.
HART Communication Capability
Provides access to smart transmitter diagnostics and configuration directly from the DCS.
Strong Electrical Isolation
Channel-to-channel and channel-to-logic isolation protects the control system from electrical disturbances.
Reliable Industrial Performance
Designed for continuous operation in harsh industrial environments with wide temperature tolerance.
Technical FAQs
1. What does the Ovation 5X00109G01 module do?
It converts analog signals from field instruments into digital data for processing by the Ovation control system.
2. How many analog inputs does it support?
The module supports eight independent analog input channels.
3. What types of signals can it read?
It can read 4–20 mA current loop signals and voltage inputs from industrial transmitters.
4. Does the module support smart instrument communication?
Yes, it supports HART communication for diagnostics and configuration of smart devices.
5. What resolution does the analog conversion provide?
The module offers up to 16-bit analog-to-digital conversion for precise measurement.
6. What power supply is required?
The module operates on a standard 24 V DC supply within the Ovation rack.
7. Is electrical isolation provided?
Yes, galvanic isolation protects the system and ensures signal integrity.
8. What industries typically use this module?
Power generation, water treatment, chemical processing, and large industrial automation systems.
9. How is the module installed?
It is installed in an Ovation DCS rack as part of the system’s modular I/O architecture.
10. Can it operate in harsh environments?
Yes, it is designed to function reliably between –20 °C and +60 °C with high humidity tolerance.
