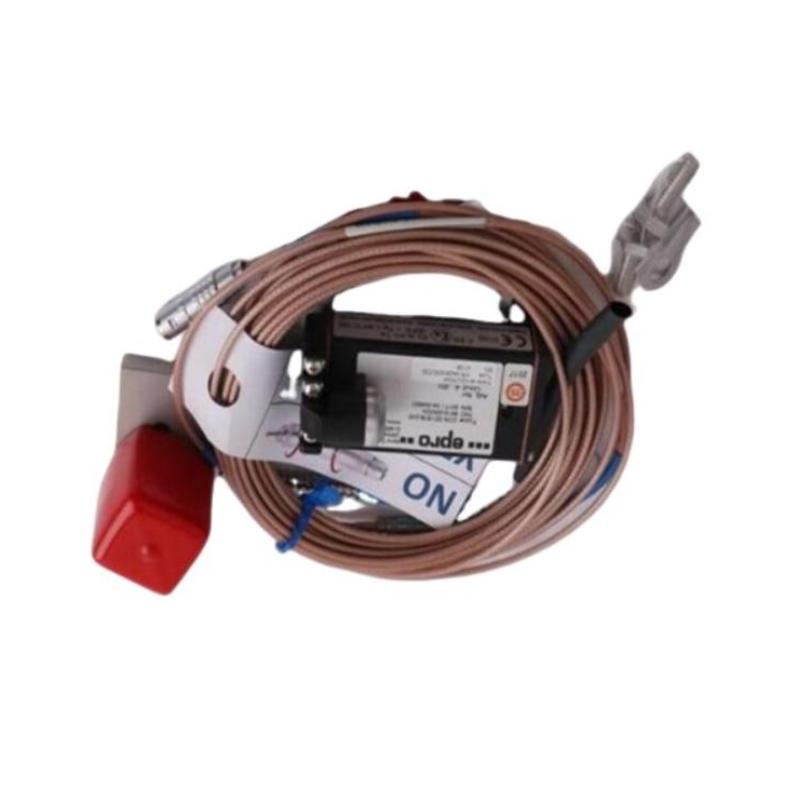

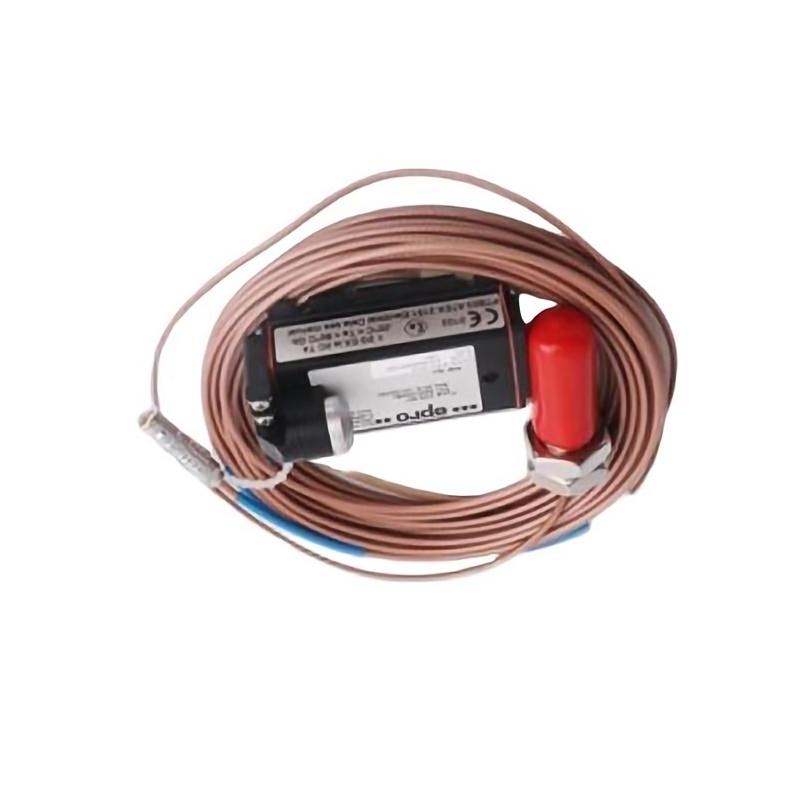

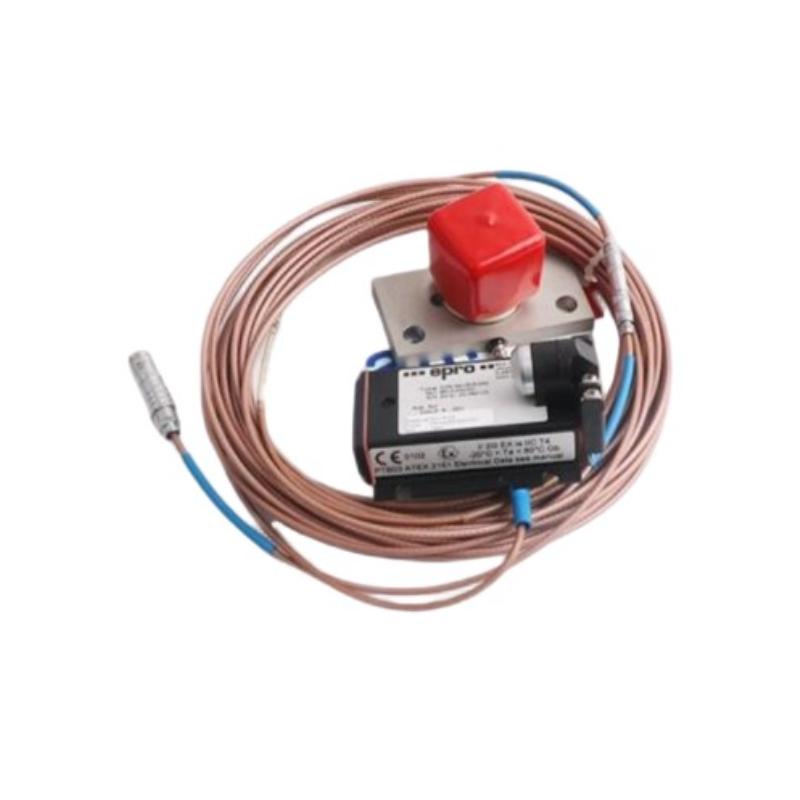

Epro CON021/916-240+PR6426/010-140 32mm Eddy Current Sensor

Brand:Epro PLC
Item No.:CON021/916-240+PR6426/010-140
Product Origin:Germany
Product Dimensions:32 mm
Product Weight:0.92 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction
The Epro CON021/916-240+PR6426/010-140 32mm Eddy Current Sensor is a highly accurate, non-contact measurement solution designed for demanding industrial applications that require precise displacement, vibration, and position monitoring. Featuring a 32mm sensing head, this sensor excels in measuring larger displacements and is particularly suited for heavy machinery and large rotating components. Utilizing eddy current technology, it provides non-contact, real-time feedback, making it ideal for monitoring the performance of critical industrial systems while eliminating issues related to wear, contamination, and maintenance. Its robust design and wide operational range ensure that it can reliably perform in harsh industrial environments.

Technical Specifications

Parameter Specification
Model CON021/916-240 + PR6426/010-140
Sensor Type Eddy Current Sensor
Sensing Head Diameter 32 mm
Weight 0.92 kg (2.03 lbs)
Measurement Range ±5 mm to ±20 mm
Resolution 1 µm
Operating Temperature -40°C to 85°C
Supply Voltage 24V DC
Output Signal Analog (4-20 mA or 0-10V, depending on configuration)
Accuracy ±1 µm
Response Time ≤ 1 ms
Protection Rating IP67 (dust-tight and waterproof)
Compliance CE, RoHS

Applications
The Epro CON021/916-240+PR6426/010-140 32mm Eddy Current Sensor is ideal for a variety of industrial applications that require precise and non-contact measurement:

  • Rotating Equipment Monitoring: Used to monitor large rotating components such as turbines, motors, and generators. The sensor helps detect misalignments, imbalances, and vibrations, ensuring the system operates smoothly and preventing potential failures.

  • Condition Monitoring Systems: Essential for predictive maintenance, this sensor detects early signs of wear, misalignment, or mechanical faults, helping prevent downtime and reduce repair costs by enabling timely maintenance.

  • Heavy Machinery Monitoring: This sensor is highly effective for large machinery applications, such as presses, mills, and industrial robots, where precise displacement measurements are crucial to maintaining operational efficiency and ensuring safety.

  • Structural Health Monitoring: It can be employed in monitoring large structures like bridges, cranes, or industrial buildings, providing valuable data on displacement and vibration to assess the integrity of these structures.

  • Vibration Analysis: Used in vibration monitoring systems to assess the dynamic performance of machinery, the sensor helps identify abnormal vibrations or operational inefficiencies that can affect machine health.


Advantages

  • High Precision and Accuracy: With a resolution of 1 µm and an accuracy of ±1 µm, the sensor offers highly precise and reliable measurements in a wide range of industrial applications.

  • Non-Contact Measurement: Utilizing eddy current technology, the sensor allows for non-contact measurement, reducing wear and tear on both the sensor and the measured components, ensuring longevity and lower maintenance costs.

  • Larger Sensing Head for Greater Range: The 32mm sensing head enables the sensor to measure larger displacements, making it ideal for applications involving heavy machinery or systems that experience greater movement or vibration.

  • Real-Time Data Acquisition: With a fast response time of ≤ 1 ms, this sensor provides real-time measurement data, essential for applications requiring dynamic feedback and quick decision-making.

  • Wide Operating Temperature Range: The sensor operates effectively in temperatures ranging from -40°C to 85°C, making it suitable for use in both extreme cold and high-temperature environments.

  • Rugged Design: With an IP67 protection rating, the sensor is dust-tight and waterproof, ensuring reliable performance even in harsh industrial environments exposed to contaminants such as moisture, dirt, and dust.

  • Flexible Integration: The sensor offers analog output options (4-20 mA or 0-10V), providing compatibility with various control and monitoring systems, enabling easy integration into existing infrastructure.

  • Durable and Low-Maintenance: The sensor’s robust design ensures long-term reliability, reducing the need for frequent maintenance or replacements and extending the life of the system.


Technical FAQs

  1. What is the purpose of the Epro CON021/916-240+PR6426/010-140 Eddy Current Sensor?
    The sensor is designed to measure displacement, position, and vibration of metallic components using non-contact eddy current technology, providing precise data for industrial systems.

  2. What is the measurement range of this sensor?
    The Epro CON021/916-240+PR6426/010-140 sensor has a measurement range of ±5 mm to ±20 mm, allowing it to measure larger displacements in heavy machinery and industrial equipment.

  3. What output signal does the sensor provide?
    The sensor provides an analog output, which can be configured as either 4-20 mA or 0-10V, depending on the specific needs of the application.

  4. How accurate is the sensor?
    The sensor has an accuracy of ±1 µm, offering highly precise measurements, ideal for applications that require fine displacement or vibration monitoring.

  5. What is the size of the sensing head?
    The sensing head of the Epro CON021/916-240+PR6426/010-140 sensor has a 32 mm diameter, making it suitable for larger displacement measurements in heavy industrial machinery.

  6. What is the operating temperature range of the sensor?
    The sensor operates effectively within a temperature range of -40°C to 85°C, making it adaptable to both cold and hot environments.

  7. What is the response time of the sensor?
    The Epro CON021/916-240+PR6426/010-140 has a fast response time of ≤ 1 ms, providing real-time data for dynamic applications.

  8. Can the sensor be used in harsh environments?
    Yes, the sensor is rated IP67, meaning it is dust-tight and waterproof, making it ideal for use in harsh industrial environments exposed to contaminants like dust, moisture, and dirt.

  9. In which industries can the sensor be used?
    This sensor is ideal for industries such as aerospace, automotive, energy, manufacturing, and heavy machinery, as well as any other industry that requires high-precision displacement and vibration measurement.

  10. What certifications does the sensor comply with?
    The sensor complies with CE and RoHS standards, ensuring that it meets the required safety, environmental, and quality regulations for industrial applications.
