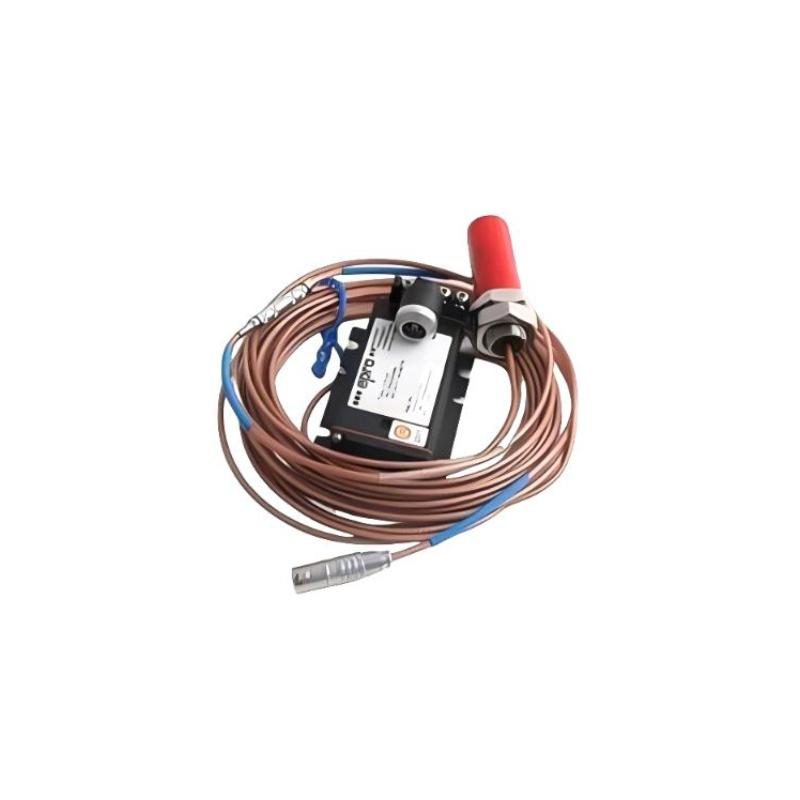

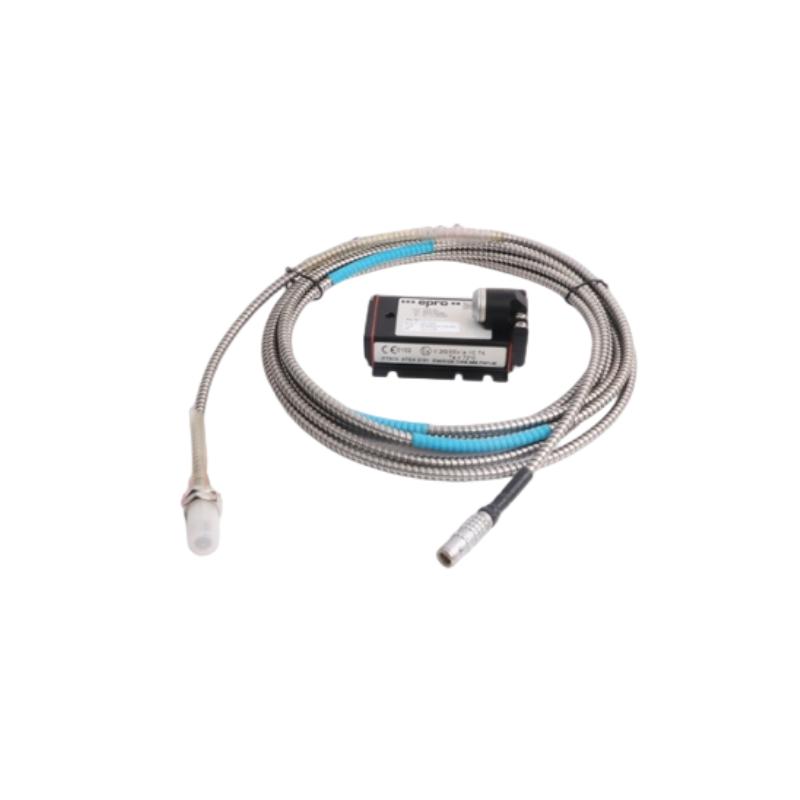

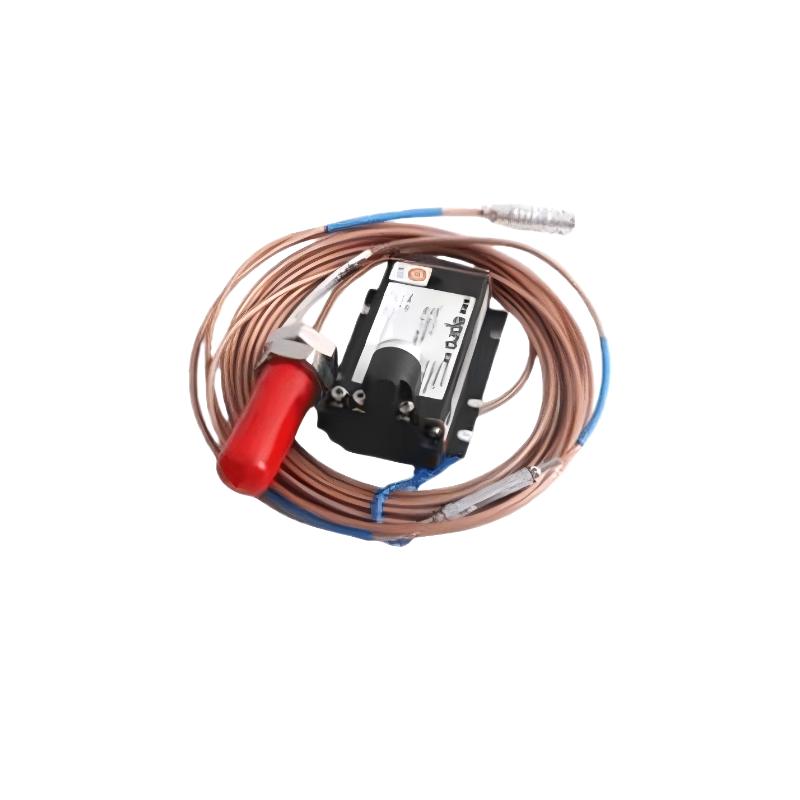

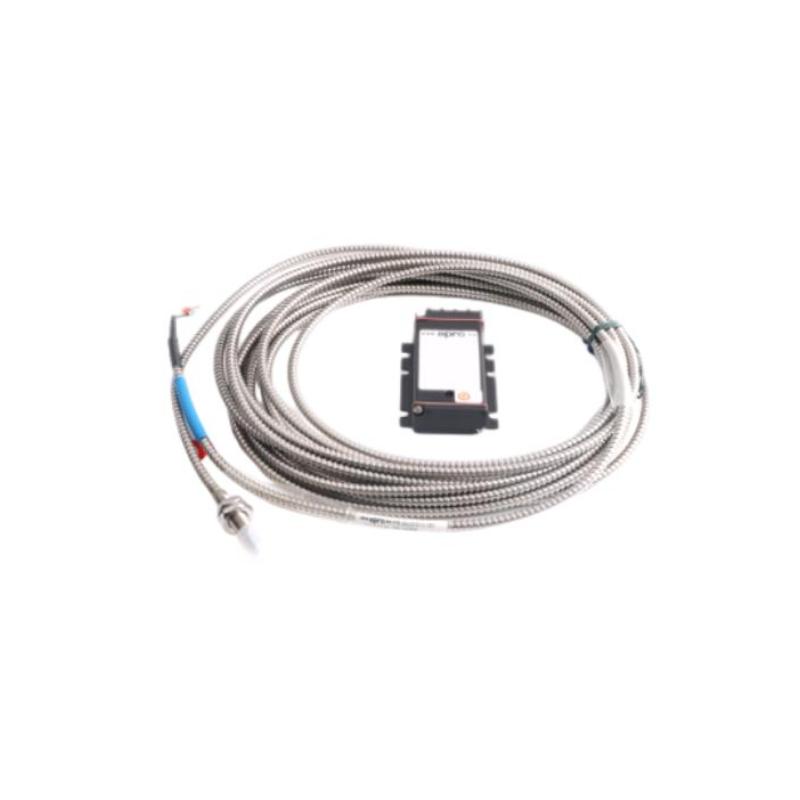

Epro CON021/916-200+PR6426/000-130 32mm Eddy Current Sensor

Brand:Epro PLC
Item No.:CON021/916-200+PR6426/000-130
Product Origin:Germany
Product Dimensions:32 mm
Product Weight:0.92 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction
The Epro CON021/916-200+PR6426/000-130 32mm Eddy Current Sensor is a high-precision, non-contact measurement tool designed for a wide range of industrial applications requiring reliable displacement, vibration, and position monitoring. With a larger 32mm sensing head, this sensor is optimized for detecting displacement and vibration in larger metallic components, making it ideal for applications in heavy machinery, rotating equipment, and large-scale industrial processes. By utilizing eddy current technology, the sensor provides accurate, real-time feedback without the need for physical contact, reducing wear and contamination risks. It is designed for environments where high precision and durability are critical, delivering consistent performance even in challenging industrial settings.

Technical Specifications

Parameter Specification
Model CON021/916-200 + PR6426/000-130
Sensor Type Eddy Current Sensor
Sensing Head Diameter 32 mm
Weight 0.92 kg (2.03 lbs)
Measurement Range ±5 mm to ±20 mm
Resolution 1 µm
Operating Temperature -40°C to 85°C
Supply Voltage 24V DC
Output Signal Analog (4-20 mA or 0-10V, depending on configuration)
Accuracy ±1 µm
Response Time ≤ 1 ms
Protection Rating IP67 (dust-tight and waterproof)
Compliance CE, RoHS

Applications
The Epro CON021/916-200+PR6426/000-130 32mm Eddy Current Sensor is suitable for a wide array of industrial applications requiring high-precision, non-contact measurement of displacement, position, and vibration:

  • Rotating Equipment Monitoring: Perfect for monitoring large rotating components such as turbines, motors, and compressors, ensuring their alignment and vibration levels are within acceptable limits to prevent failures.

  • Condition Monitoring Systems: Integrated into predictive maintenance systems, this sensor detects early signs of mechanical issues such as wear, misalignment, or imbalance, helping to avoid unplanned downtime and costly repairs.

  • Precision Measurement in Heavy Machinery: Ideal for measuring displacement in large machinery, such as presses, mills, and heavy-duty equipment used in manufacturing, ensuring these systems operate with maximum efficiency and accuracy.

  • Structural Monitoring: Used to monitor the displacement and vibration of large structural components, such as bridges, cranes, and building systems, helping to ensure structural integrity and safety.

  • Vibration Analysis in Large Systems: The sensor is useful for real-time vibration monitoring in large mechanical systems, helping to identify potential issues early and improve system performance and longevity.


Advantages

  • High Precision and Accuracy: The sensor offers a resolution of 1 µm and an accuracy of ±1 µm, ensuring extremely precise measurements even in large-scale industrial environments where accuracy is critical.

  • Non-Contact Measurement: By using eddy current technology, the sensor measures metallic components without direct contact, minimizing wear and reducing maintenance requirements for both the sensor and machinery.

  • Larger Sensing Head for Increased Range: With a 32mm sensing head, this sensor can measure larger displacements and is particularly well-suited for use in heavy machinery or components where a higher range of motion is required.

  • Fast Response Time: The sensor provides a fast response time of ≤ 1 ms, making it suitable for dynamic systems that require immediate feedback, such as rotating machinery or high-speed industrial processes.

  • Wide Operating Temperature Range: The sensor is designed to operate in a wide temperature range from -40°C to 85°C, ensuring reliability in both low-temperature and high-temperature environments.

  • Durability and Rugged Construction: Rated IP67, the sensor is dust-tight and waterproof, ensuring reliable operation even in harsh, dirty, or wet industrial conditions.

  • Flexible Integration: The sensor offers both 4-20 mA and 0-10V analog output options, allowing easy integration into a variety of control systems for seamless monitoring and control.

  • Long-Term Reliability: The robust construction ensures that the sensor will provide accurate and reliable measurements over a long lifespan, minimizing the need for maintenance or replacement.


Technical FAQs

  1. What is the primary function of the Epro CON021/916-200+PR6426/000-130 Eddy Current Sensor?
    This sensor is designed to measure displacement, vibration, and position of metallic components using non-contact eddy current technology, providing high-precision data for industrial applications.

  2. What is the measurement range of the Epro CON021/916-200+PR6426/000-130 sensor?
    The sensor offers a measurement range of ±5 mm to ±20 mm, making it suitable for applications requiring larger displacement measurements.

  3. What type of output does the sensor provide?
    The sensor provides an analog output that can be configured to either 4-20 mA or 0-10V, providing flexibility for integration with different control systems.

  4. How accurate is the Epro CON021/916-200+PR6426/000-130 sensor?
    The sensor offers a resolution of 1 µm and an accuracy of ±1 µm, ensuring highly precise and reliable measurements in demanding industrial settings.

  5. What is the diameter of the sensor’s sensing head?
    The sensing head of the Epro CON021/916-200+PR6426/000-130 sensor is 32 mm in diameter, which allows it to measure larger displacements effectively.

  6. What is the operating temperature range of the sensor?
    The sensor operates effectively in environments with temperatures ranging from -40°C to 85°C, making it suitable for use in both cold and hot conditions.

  7. How fast is the sensor's response time?
    The Epro CON021/916-200+PR6426/000-130 has a response time of ≤ 1 ms, providing real-time data for high-speed applications or dynamic systems.

  8. Can this sensor be used in harsh environments?
    Yes, with an IP67 rating, the sensor is dust-tight and waterproof, ensuring it performs reliably in harsh, industrial environments exposed to dirt, water, or other contaminants.

  9. What industries benefit from using the Epro CON021/916-200+PR6426/000-130 sensor?
    This sensor is ideal for industries such as aerospace, automotive, heavy machinery, energy, and structural monitoring, as well as any industry requiring high-precision displacement and vibration measurement.

  10. What certifications does the Epro CON021/916-200+PR6426/000-130 comply with?
    The sensor complies with CE and RoHS standards, ensuring it meets the necessary safety, environmental, and quality regulations for industrial use.
