Technical Overview

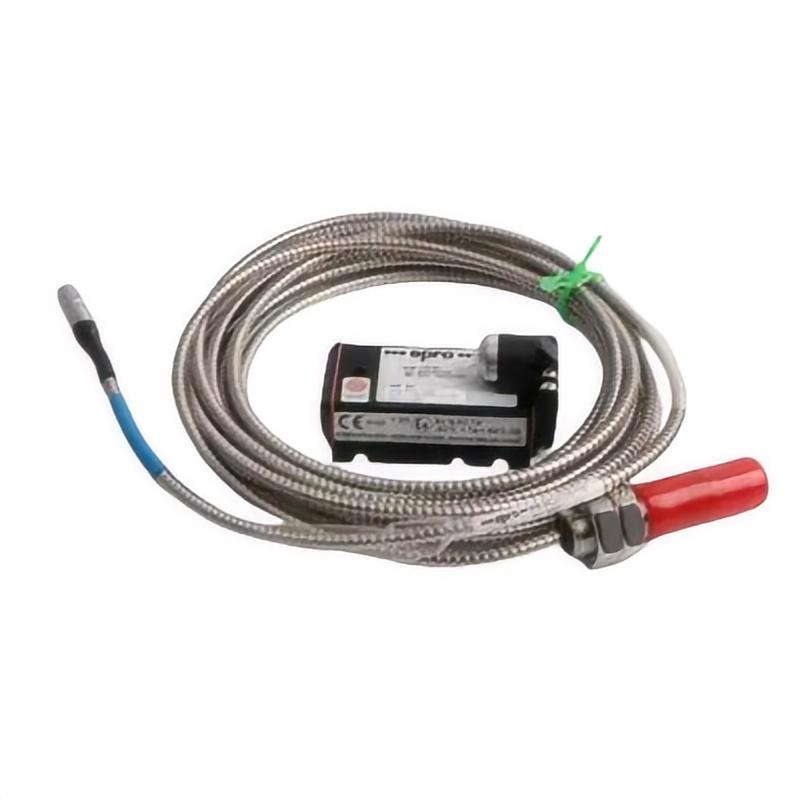

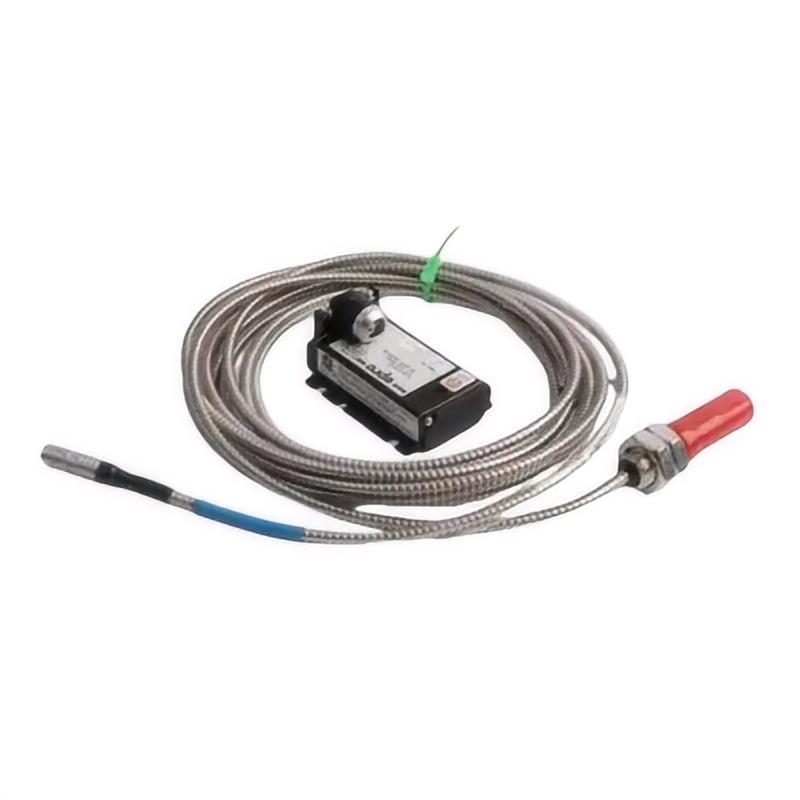

The CON021 + PR6424/010-100 system forms a complete displacement measurement chain. The probe generates a high-frequency electromagnetic field at the sensing tip. When positioned near a rotating shaft, variations in the air gap alter the eddy current distribution, producing measurable impedance changes.
These variations are transmitted to the CON021 signal conditioner, which converts them into a linear analog signal compatible with machinery monitoring systems. This architecture allows real-time shaft vibration and displacement analysis, forming a key layer of predictive maintenance strategy in high-value industrial equipment.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Epro |
| Model | CON021 + PR6424/010-100 |
| Sensor Type | Eddy Current Displacement Sensor |
| Probe Diameter | 16 mm |
| Sensor Head Diameter | 16 mm |
| Measurement Principle | Non-contact eddy current |
| Typical Application | Shaft vibration and displacement monitoring |
| Target Material | Conductive metallic surfaces |
| Signal Output | Analog (via CON021 signal conditioner) |
| Installation | Threaded industrial mounting |
| Weight | 0.32 kg (≈ 0.71 lb) |
Where It Performs Best
The Epro CON021 signal conditioner combined with the PR6424/010-100 16 mm eddy current probe is engineered for continuous shaft displacement and vibration monitoring in heavy rotating machinery. This configuration is particularly suited for installations where high mechanical loads, thermal fluctuations, and long operational cycles are standard.
Common deployment environments include:
-
Base-load and peak-load steam turbines
-
Industrial gas compressors in refining units
-
Turbo-generators in power plants
-
Large centrifugal pumps in pipeline systems
-
High-speed rotating shafts in petrochemical production
Its 16 mm probe diameter offers stable electromagnetic field distribution, making it ideal for demanding turbomachinery monitoring applications.
Operational Advantages
True Non-Contact Sensing
Utilizes eddy current technology to measure displacement without mechanical interaction, eliminating wear.
High Dynamic Response
Captures both slow axial movement and high-frequency vibration signals accurately.
Stable Signal Conditioning
The CON021 unit ensures precise linearization and analog output stability.
Industrial Durability
Designed to withstand vibration, oil mist, and temperature variation common in turbine halls and compressor decks.
Long-Term Measurement Reliability
Optimized for continuous monitoring systems where downtime risk must be minimized.
Technical FAQs
1. What is the function of the PR6424/010-100 probe?
It detects shaft displacement or vibration by measuring changes in eddy current flow within a conductive target.
2. What role does the CON021 module play?
It converts and conditions the probe’s raw signal into a calibrated analog output.
3. What type of machinery is this configuration typically used for?
It is widely applied in turbines, compressors, and generator shaft monitoring systems.
4. Can it be integrated into machinery protection systems?
Yes, it is commonly used in vibration monitoring and protective shutdown architectures.
5. What material must the target surface be?
The probe requires a conductive metallic surface, typically steel or alloy shafts.
6. Does probe diameter affect measurement characteristics?
Yes, a 16 mm probe typically supports greater measurement stability and range compared to smaller probes.
7. Is the system suitable for continuous 24/7 monitoring?
Yes, it is designed for permanent installation in critical rotating assets.
8. How is measurement gap set during installation?
The initial gap is adjusted according to manufacturer calibration specifications during commissioning.
9. Can it measure axial thrust movement?
Yes, when positioned appropriately, it can monitor axial displacement.
10. What factors influence signal accuracy?
Calibration, cable configuration, installation alignment, and target material properties affect accuracy.
