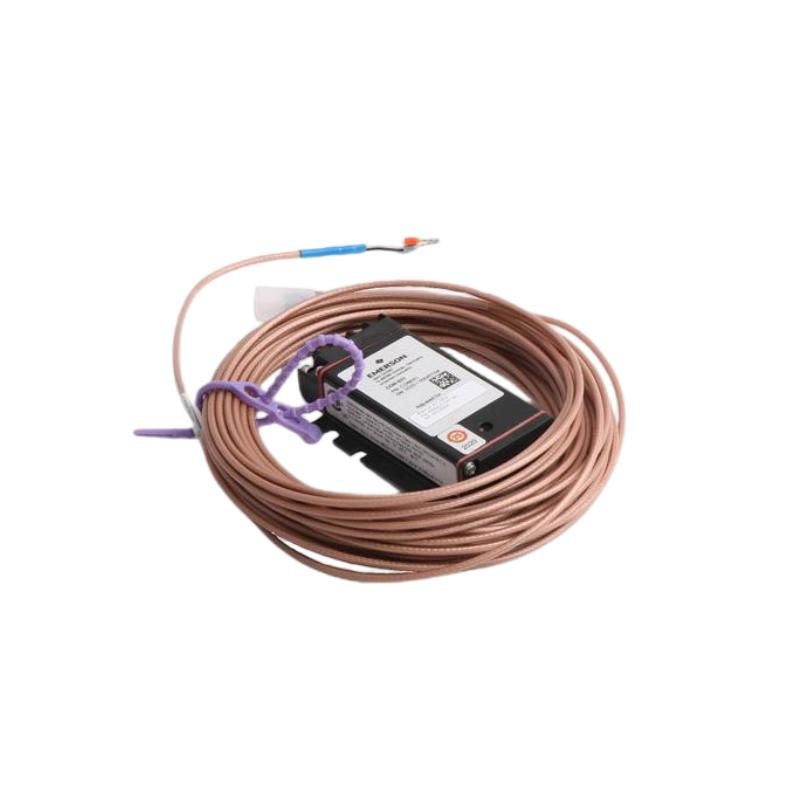

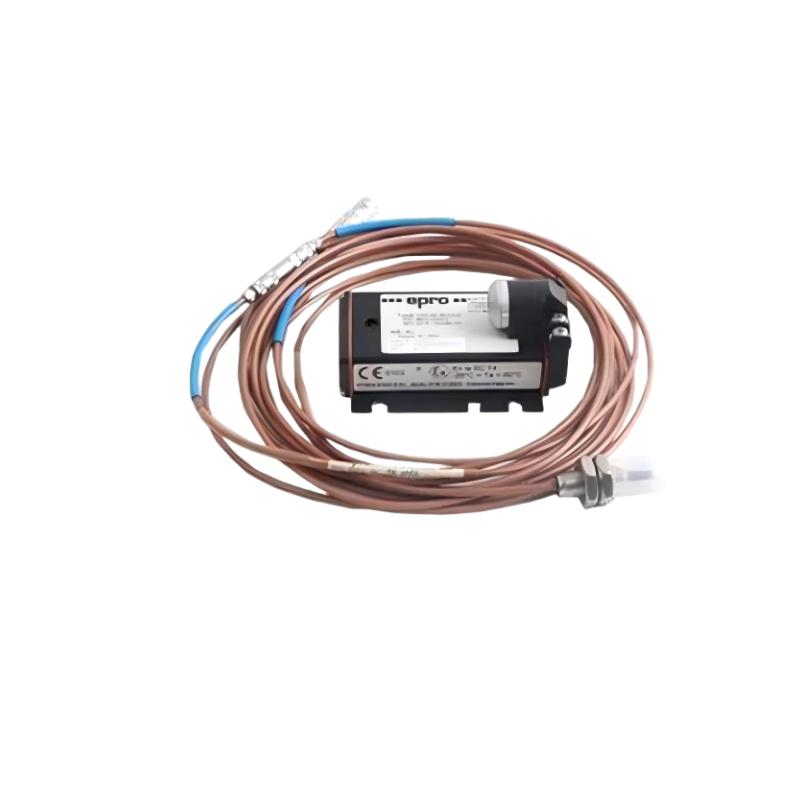

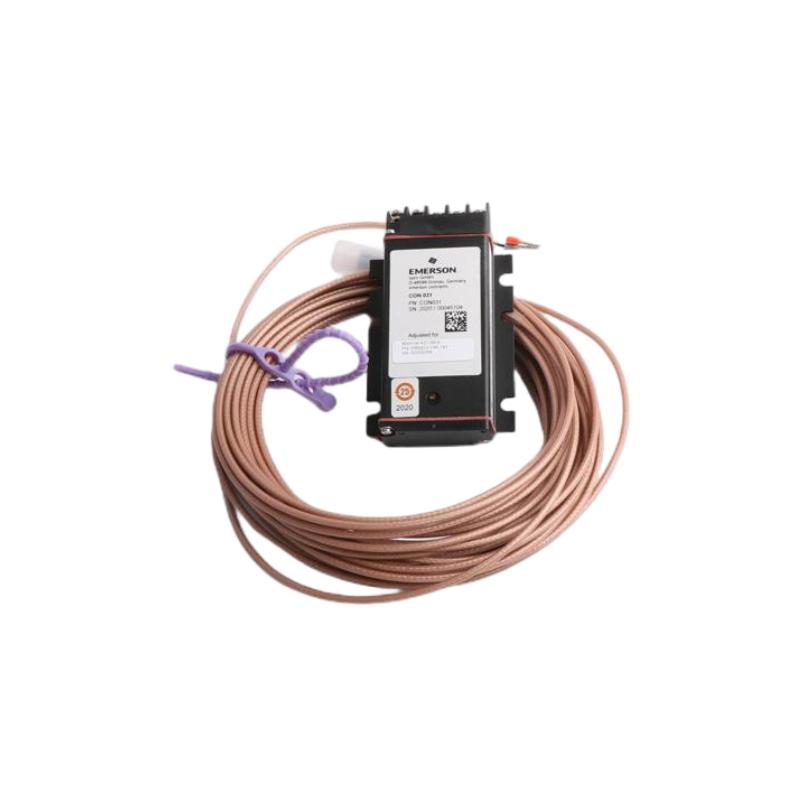

Epro CON021/914-100+PR6423/010-010-CN 8mm Eddy Current Sensor

Brand:Epro PLC
Item No.:CON021/914-100+PR6423/010-010-CN
Product Origin:Germany
Product Dimensions:8 mm
Product Weight:0.22 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction
The Epro CON021/914-100+PR6423/010-010-CN 8mm Eddy Current Sensor is a highly accurate, non-contact measurement solution designed for precise displacement, vibration, and position monitoring in industrial applications. Featuring an 8mm sensing head, this sensor is ideal for environments where space is constrained, but accuracy and reliability remain paramount. It utilizes advanced eddy current technology to measure metallic surfaces without direct contact, thus eliminating issues of wear and contamination. This sensor is well-suited for a variety of industries where high precision and real-time measurement are critical, including rotating machinery, automated systems, and condition monitoring applications.

Technical Specifications

Parameter Specification
Model CON021/914-100 + PR6423/010-010-CN
Sensor Type Eddy Current Sensor
Sensing Head Diameter 8 mm
Weight 0.22 kg (0.49 lbs)
Measurement Range ±2 mm to ±5 mm
Resolution 1 µm
Operating Temperature -40°C to 85°C
Supply Voltage 24V DC
Output Signal Analog (4-20 mA or 0-10V, depending on configuration)
Accuracy ±1 µm
Response Time ≤ 1 ms
Protection Rating IP67 (dust-tight and waterproof)
Compliance CE, RoHS

Applications
The Epro CON021/914-100+PR6423/010-010-CN 8mm Eddy Current Sensor is ideal for various industrial applications where high-precision, non-contact measurement of displacement, vibration, and position is required:

  • Rotating Equipment Monitoring: Used for measuring displacement, vibration, and alignment in rotating machinery such as motors, turbines, and shafts. The sensor helps prevent failures by providing real-time feedback on machine health.

  • Condition Monitoring Systems: In predictive maintenance systems, this sensor plays a crucial role in detecting early signs of wear or misalignment, allowing for timely maintenance and avoiding unplanned downtime.

  • Machine Tool Monitoring: In precision machining applications, this sensor tracks tool deflection, spindle positioning, and other critical parameters to ensure manufacturing accuracy and consistency.

  • Automated Systems and Robotics: Suitable for monitoring displacement and position in automated production lines, conveyors, and robotic systems, helping to enhance operational efficiency and accuracy.

  • Vibration Monitoring: Perfect for measuring vibration in mechanical systems, the sensor helps ensure the stability and integrity of components under dynamic loading conditions.


Advantages

  • High Precision and Accuracy: With a resolution of 1 µm and an accuracy of ±1 µm, this sensor provides exceptionally precise measurements, ensuring reliable performance even in high-accuracy applications.

  • Non-Contact Measurement: Utilizing eddy current technology, the sensor provides non-contact measurement, reducing wear on both the sensor and the monitored components, and minimizing contamination risks.

  • Compact and Space-Saving Design: The 8mm sensing head is ideal for applications where space is limited, providing precise measurements without the need for bulky sensor units.

  • Real-Time Feedback: With a fast response time of ≤ 1 ms, the sensor delivers real-time data, which is crucial for applications requiring dynamic monitoring and immediate adjustments.

  • Wide Operating Temperature Range: This sensor operates effectively in temperatures from -40°C to 85°C, making it adaptable to a wide range of industrial environments, from freezing cold to high-temperature operations.

  • Rugged Durability: With an IP67 protection rating, the sensor is dust-tight and waterproof, making it ideal for use in harsh, dirty, or wet environments.

  • Flexible Integration Options: The sensor supports both 4-20 mA and 0-10V analog output signals, offering versatility for integration into a wide variety of control and monitoring systems.

  • Long-Lasting Reliability: Designed for durability and minimal maintenance, the sensor ensures consistent performance over time, reducing downtime and maintenance costs.


Technical FAQs

  1. What is the primary function of the Epro CON021/914-100+PR6423/010-010-CN Eddy Current Sensor?
    This sensor measures displacement, vibration, and position of metallic components using non-contact eddy current technology, providing high-precision feedback in industrial applications.

  2. What is the measurement range of the Epro CON021/914-100+PR6423/010-010-CN sensor?
    The sensor has a measurement range of ±2 mm to ±5 mm, making it suitable for a variety of applications that require precise measurements of medium to larger displacements.

  3. What output signal does the sensor provide?
    The sensor provides an analog output that can be configured as either 4-20 mA or 0-10V, offering flexibility for integration with various control and monitoring systems.

  4. What is the resolution and accuracy of the sensor?
    The sensor offers a resolution of 1 µm and an accuracy of ±1 µm, ensuring precise and reliable measurements for demanding industrial applications.

  5. What is the size of the sensor's sensing head?
    The sensing head of the Epro CON021/914-100+PR6423/010-010-CN has an 8 mm diameter, making it compact and ideal for use in constrained spaces.

  6. What is the operating temperature range of the sensor?
    The sensor is capable of operating in temperatures from -40°C to 85°C, ensuring reliable performance in both extreme cold and high-temperature environments.

  7. How fast is the sensor’s response time?
    The Epro CON021/914-100+PR6423/010-010-CN has a fast response time of ≤ 1 ms, providing real-time feedback on displacement and vibration for dynamic monitoring.

  8. Can this sensor be used in harsh environments?
    Yes, with an IP67 rating, the sensor is dust-tight and waterproof, making it ideal for use in harsh, industrial environments exposed to dust, moisture, or other contaminants.

  9. What industries benefit from using this sensor?
    This sensor is ideal for industries such as automotive, aerospace, manufacturing, energy, and robotics, as well as any other sector requiring high-precision monitoring of rotating machinery, vibration, or displacement.

  10. What certifications does the Epro CON021/914-100+PR6423/010-010-CN comply with?
    The sensor complies with CE and RoHS standards, ensuring it meets the necessary safety, environmental, and quality requirements for industrial applications.
