Product Introduction

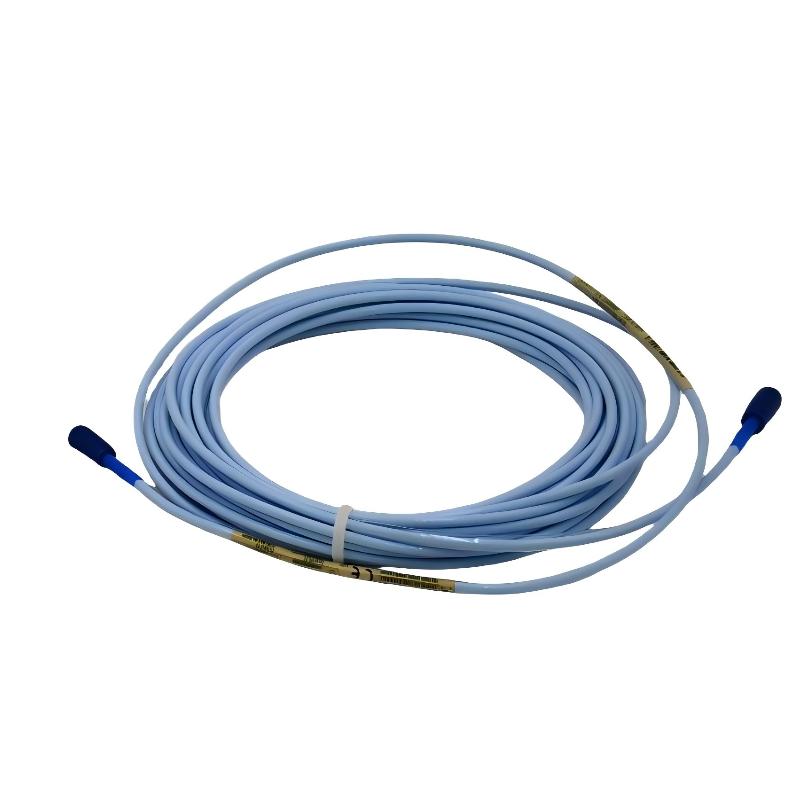

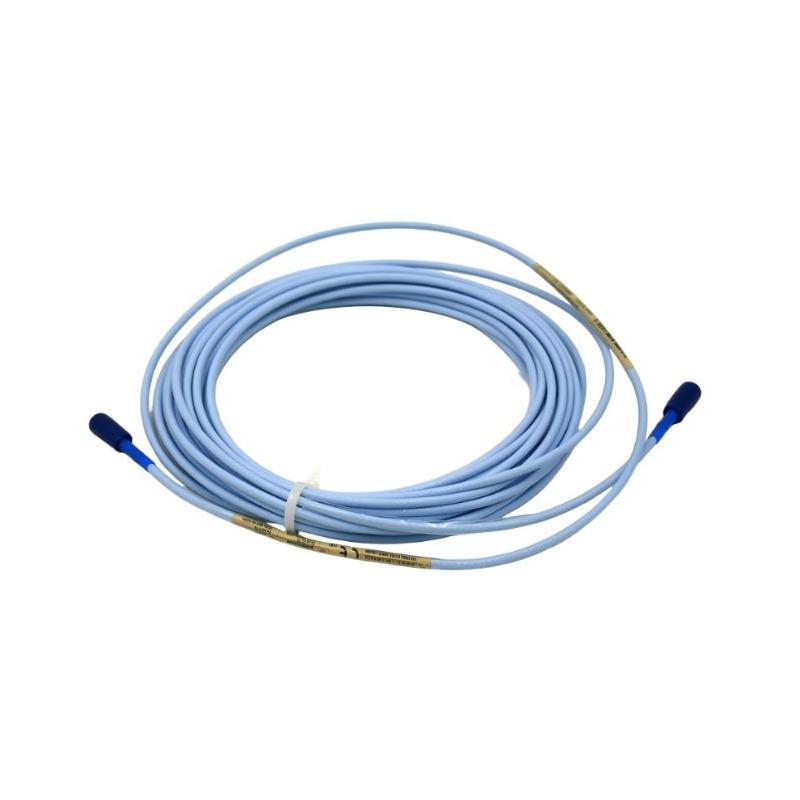

The Bently Nevada 102045-080-00-05 Cable is a configurable-length signal transmission component engineered for use in precision rotating machinery monitoring systems. In condition monitoring architectures, cable assemblies are integral to maintaining calibrated signal integrity from probe tip to monitoring rack.
This model supports flexible installation requirements while preserving the electrical characteristics required for accurate displacement and vibration measurements. It is suited for high-reliability industrial environments where early fault detection is critical to operational continuity.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Signal Cable |
| Model Number | 102045-080-00-05 |
| Cable Length | Optional (per system configuration) |
| Application | Proximity probe signal transmission |
| Shielding | Industrial-grade shielded construction |
| Connector Type | Factory-installed compatible connectors |
| Installation | Rotating machinery protection systems |
| Shipping Weight | 3 kg (approx. 6.61 lb) |
Typical Machinery Monitoring Applications
The 102045-080-00-05 Cable is designed for integration within Bently Nevada proximity probe and vibration monitoring systems. It forms part of the calibrated signal transmission path between eddy current probes, extension assemblies, and machinery protection modules.
It is commonly deployed in:
-
Steam and gas turbine monitoring systems
-
Large centrifugal compressor protection
-
Critical pump and motor vibration measurement
-
Power generation rotating equipment
-
Oil & gas processing facilities
In these environments, cable specification is not incidental — it directly influences system calibration stability and measurement accuracy.
Engineering Strengths
From a rotating machinery diagnostics perspective, cable assemblies must preserve signal integrity while withstanding industrial operating conditions.
Calibration-Matched Design
The cable is manufactured to maintain impedance and electrical characteristics compatible with Bently Nevada proximity systems.
Optional Length Configuration
Available in configurable lengths to meet total system length requirements while preserving calibration parameters.
Industrial Shielding
Shielded construction minimizes electromagnetic interference in high-voltage or high-current environments.
Mechanical Durability
Engineered outer jacket supports routing through machinery housings and control cabinets.
System Integrity Assurance
Designed for use within approved Bently Nevada 3300 and 3500 monitoring platforms.
Technical FAQs
-
What is the primary function of this cable?
It transmits eddy current probe signals to monitoring modules in machinery protection systems.
-
Why is cable length optional?
Total system length must match calibration specifications; selectable lengths allow proper system configuration.
-
Does cable length affect measurement accuracy?
Yes. The combined probe and cable length is part of the calibrated measurement chain.
-
Is this cable shielded?
Yes, it features shielding to reduce electromagnetic interference.
-
Can non-approved cables be substituted?
Substitution may compromise calibration accuracy and system reliability.
-
Is it suitable for high-vibration environments?
Yes, it is designed for industrial rotating equipment installations.
-

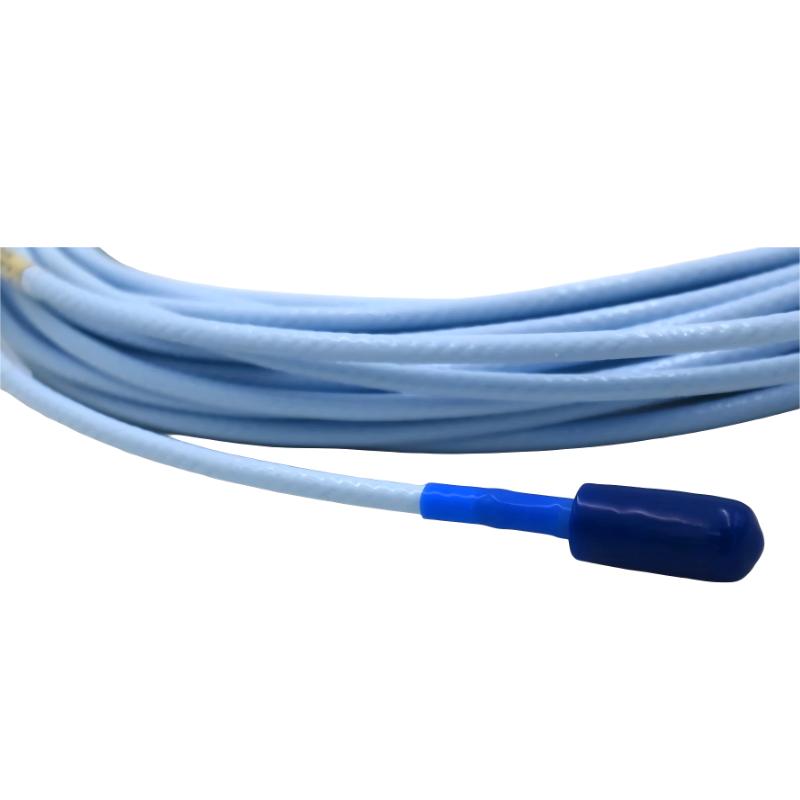

What type of connectors are included?
Factory-installed connectors compatible with specified probe and monitoring modules.
-

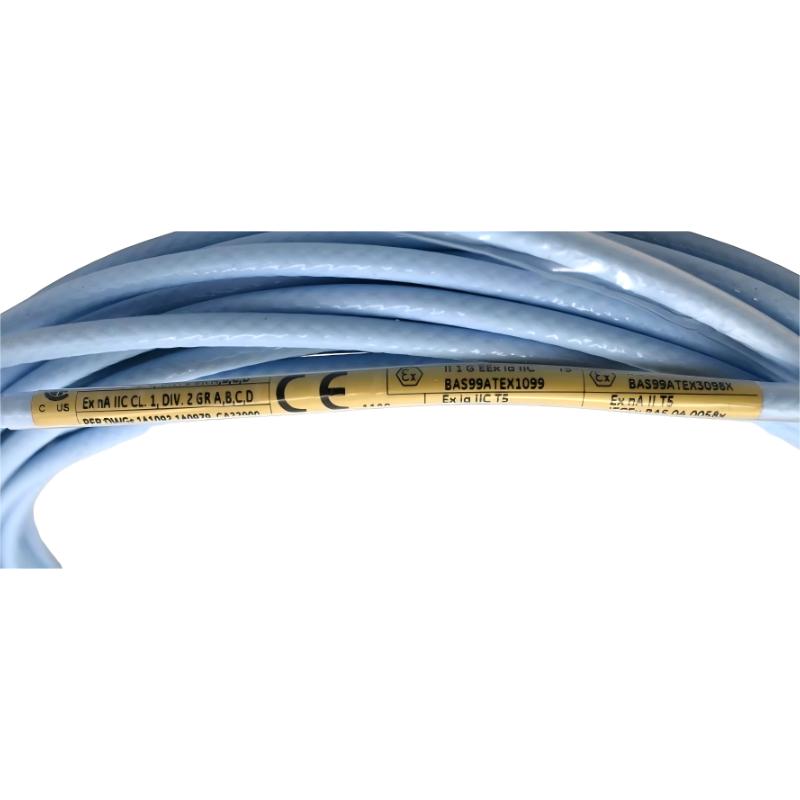

Does it support hazardous area installations?
Suitability depends on the overall system certification and installation method.
-
How should it be routed to minimize noise?
It should be separated from high-power cables and grounded according to system guidelines.
-
What happens if the specified total system length is exceeded?
Exceeding recommended lengths may alter system calibration and affect measurement accuracy.
