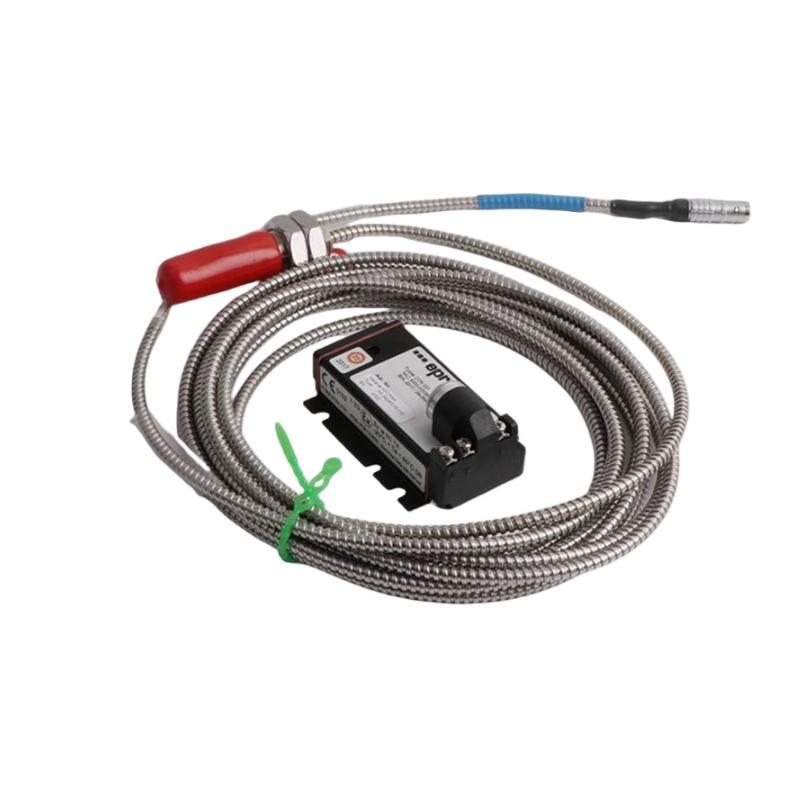

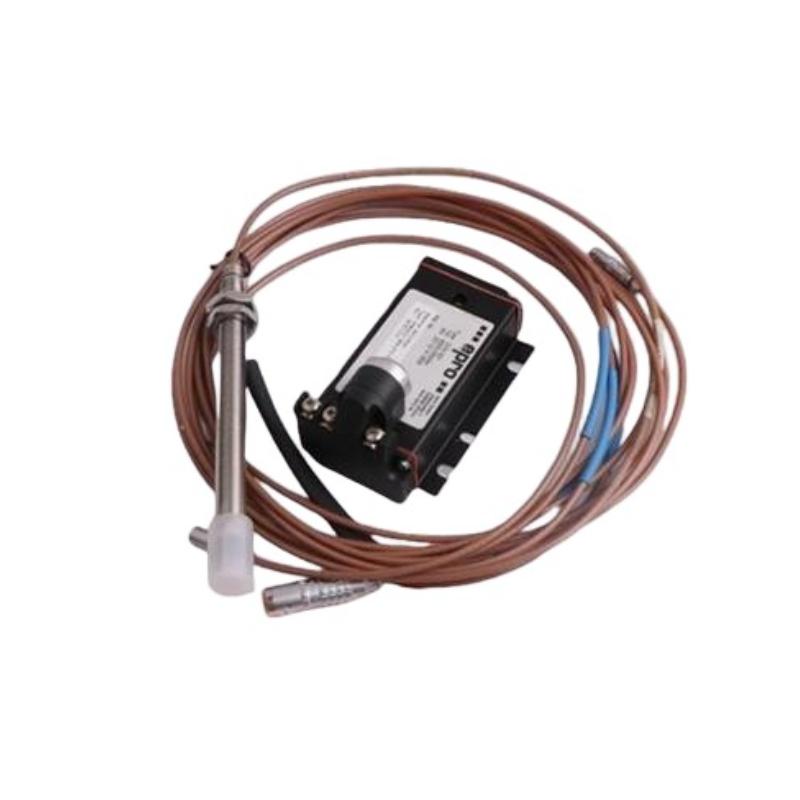

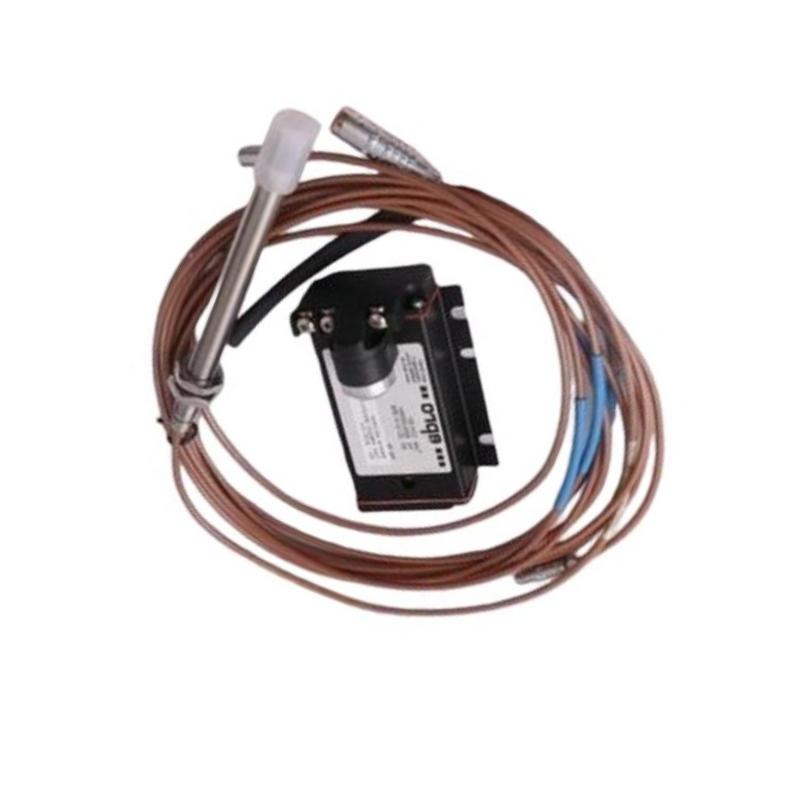

Epro CON021/913-040+PR6424/000-000 16mm Eddy Current Sensor

Brand:Epro PLC
Item No.:CON021/913-040+PR6424/000-000
Product Origin:Germany
Product Dimensions:16 mm
Product Weight:0.32 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction
The Epro CON021/913-040+PR6424/000-000 16mm Eddy Current Sensor is a versatile, high-performance solution for precise, non-contact measurement of displacement, position, and vibration in industrial applications. With its compact 16mm sensing head, this sensor is ideal for use in environments with space constraints while maintaining high accuracy and reliability. Leveraging advanced eddy current technology, the sensor is capable of measuring metallic surfaces without direct contact, making it highly suitable for monitoring critical machinery, rotating components, and systems exposed to high-speed operations. Its robust design ensures it performs reliably in challenging environments, making it a dependable tool for condition monitoring and predictive maintenance systems across various industries.

Technical Specifications

Parameter Specification
Model CON021/913-040 + PR6424/000-000
Sensor Type Eddy Current Sensor
Sensing Head Diameter 16 mm
Weight 0.32 kg (0.71 lbs)
Measurement Range ±5 mm to ±10 mm
Resolution 1 µm
Operating Temperature -40°C to 85°C
Supply Voltage 24V DC
Output Signal Analog (4-20 mA or 0-10V, depending on configuration)
Accuracy ±1 µm
Response Time ≤ 1 ms
Protection Rating IP67 (dust-tight and waterproof)
Compliance CE, RoHS

Applications
The Epro CON021/913-040+PR6424/000-000 16mm Eddy Current Sensor is suitable for a wide range of applications that require precise, non-contact displacement, vibration, and position measurements:

  • Rotating Machinery Monitoring: Ideal for measuring the displacement, vibration, and position of rotating components such as shafts, motors, and turbines, providing real-time feedback to prevent failures.

  • Condition Monitoring Systems: Used in predictive maintenance systems, the sensor helps detect early signs of wear or misalignment, improving machine uptime and reducing unexpected failures.

  • High-Speed Machining Monitoring: The sensor can be used to monitor tool deflection, spindle positioning, and other critical parameters in high-speed machining processes, ensuring product quality and precision.

  • Automated Systems: This sensor is highly effective for applications in robotics, conveyor systems, and automated production lines, where precise and reliable measurement of displacement and position is required.

  • Vibration Analysis: It is also used in vibration monitoring to analyze the condition of structural components or mechanical systems, ensuring that they are operating within safe parameters.

Advantages

  • Exceptional Precision and Accuracy: With a resolution of 1 µm and an accuracy of ±1 µm, this sensor provides high-precision measurements, ideal for applications requiring the highest standards of measurement accuracy.

  • Non-Contact Measurement: Utilizing eddy current technology, the sensor provides non-contact measurement of metallic surfaces, reducing wear and tear on both the sensor and the monitored components.

  • Compact Design: The 16mm sensing head allows for installation in tight spaces where larger sensors might not fit, making it perfect for applications with limited space.

  • Real-Time Measurement: With a fast response time of ≤ 1 ms, the sensor offers real-time feedback, essential for monitoring dynamic systems such as rotating machinery and high-speed processes.

  • Wide Operating Temperature Range: The sensor operates in temperatures ranging from -40°C to 85°C, ensuring reliable performance in both cold and high-temperature environments.

  • Durable and Reliable: The IP67 protection rating ensures the sensor is dust-tight and waterproof, providing reliable performance in challenging industrial environments exposed to dust, moisture, and other contaminants.

  • Flexible Output Options: The sensor offers two analog output options (4-20 mA or 0-10V), allowing for flexible integration into existing control and monitoring systems.

  • Long-Term Durability: The robust construction ensures that the sensor delivers long-term, maintenance-free operation, even in harsh industrial conditions.


Technical FAQs

  1. What is the primary purpose of the Epro CON021/913-040+PR6424/000-000 Eddy Current Sensor?
    This sensor is designed for non-contact measurement of displacement, vibration, and position of metallic components, offering high precision in critical industrial applications.

  2. What is the measurement range of the Epro CON021/913-040+PR6424/000-000 sensor?
    The sensor has a measurement range of ±5 mm to ±10 mm, making it suitable for applications that require precise measurements of medium to larger displacements.

  3. What output signal does the sensor provide?
    The sensor provides an analog output, which can be configured as either 4-20 mA or 0-10V, depending on the needs of the integration system.

  4. What is the resolution and accuracy of the sensor?
    The sensor offers a resolution of 1 µm and an accuracy of ±1 µm, ensuring precise measurements for highly sensitive applications.

  5. What is the size of the sensor's sensing head?
    The sensing head of the Epro CON021/913-040+PR6424/000-000 is 16 mm in diameter, which makes it compact enough for tight-space installations without sacrificing measurement quality.

  6. What is the operating temperature range of the sensor?
    This sensor can operate within a temperature range of -40°C to 85°C, making it adaptable to both low and high-temperature environments.

  7. How fast is the sensor's response time?
    The Epro CON021/913-040+PR6424/000-000 has a very fast response time of ≤ 1 ms, providing real-time feedback and making it ideal for high-speed processes and dynamic systems.

  8. Can the sensor be used in harsh industrial environments?
    Yes, the sensor is rated IP67, meaning it is dust-tight and waterproof, making it suitable for use in harsh industrial environments exposed to contaminants like moisture and dust.

  9. What industries are best suited for this sensor?
    This sensor is ideal for industries such as automotive, aerospace, manufacturing, energy, and robotics, as well as any other sector requiring precise and non-contact measurement of rotating machinery, vibration, or position.

  10. What certifications does the Epro CON021/913-040+PR6424/000-000 comply with?
    The sensor complies with CE and RoHS standards, ensuring it meets the required safety, environmental, and quality standards for industrial use.
