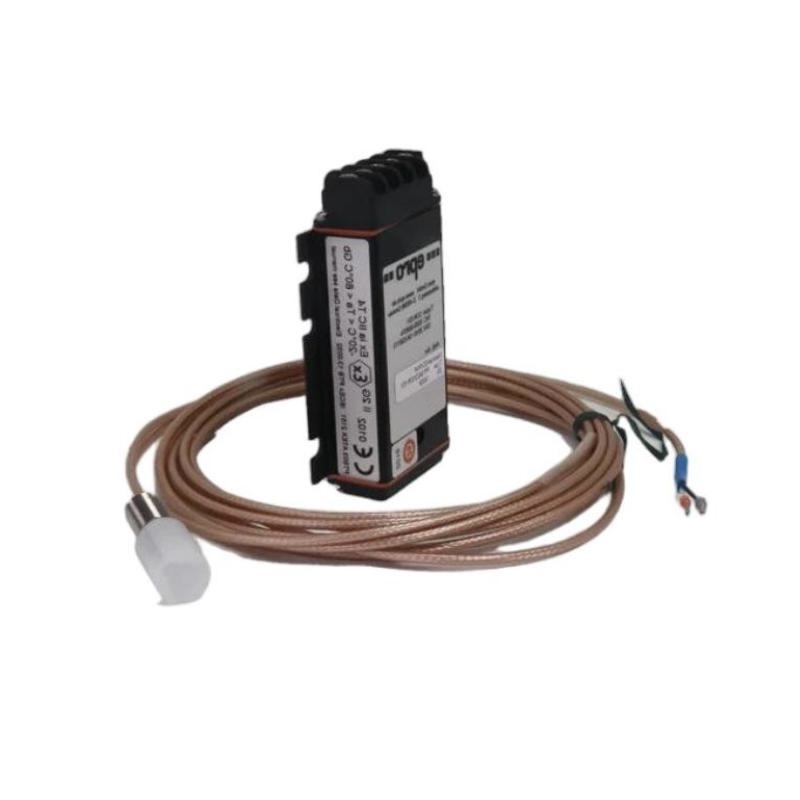

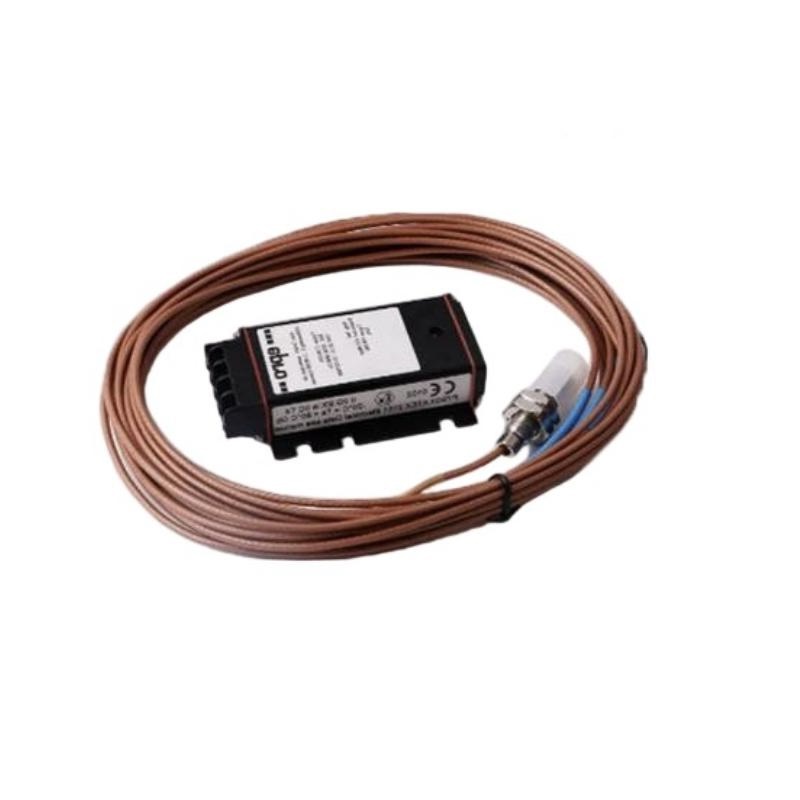

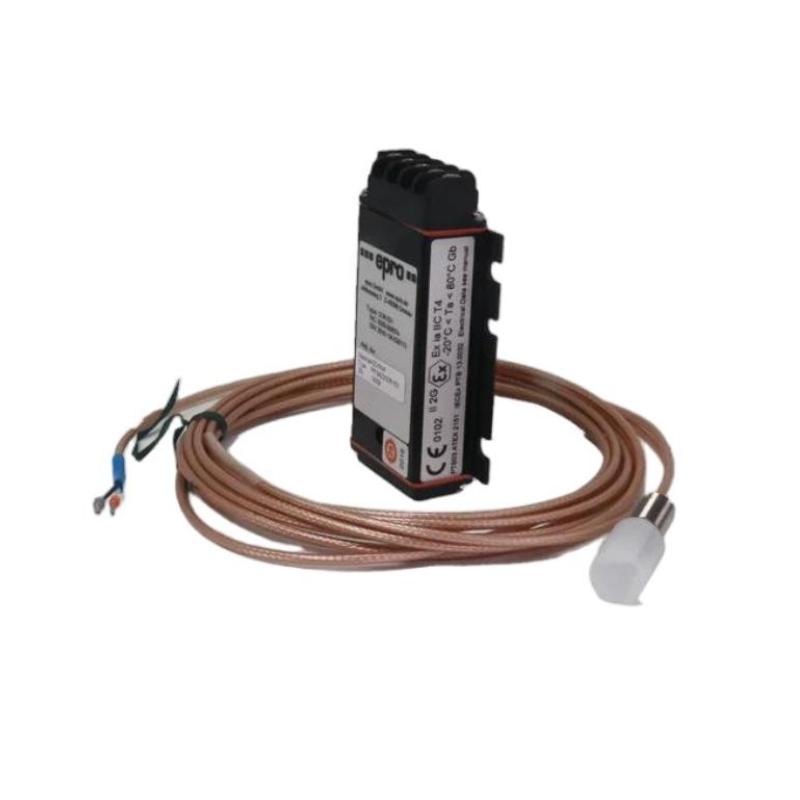

Epro CON021/913-040+PR6423/015-000-CN 8mm Eddy Current Sensor

Brand:Epro PLC
Item No.:CON021/913-040+PR6423/015-000-CN
Product Origin:Germany
Product Dimensions:8 mm
Product Weight:0.22 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction
The Epro CON021/913-040+PR6423/015-000-CN 8mm Eddy Current Sensor offers highly accurate, non-contact measurement of displacement, position, and vibration, making it ideal for a variety of industrial applications. With a compact 8mm sensing head, this sensor is designed for tight-space installations while maintaining high sensitivity and precision. Utilizing advanced eddy current technology, it can measure metallic surfaces without physical contact, minimizing wear and extending both sensor and machine life. Its robust construction ensures reliable performance in even the most demanding environments, making it a perfect choice for monitoring rotating machinery, automated systems, and precision components in high-speed processes.

Technical Specifications

Parameter Specification
Model CON021/913-040 + PR6423/015-000-CN
Sensor Type Eddy Current Sensor
Sensing Head Diameter 8 mm
Weight 0.22 kg (0.49 lbs)
Measurement Range ±2 mm to ±5 mm
Resolution 1 µm
Operating Temperature -40°C to 85°C
Supply Voltage 24V DC
Output Signal Analog (4-20 mA or 0-10V, depending on configuration)
Accuracy ±1 µm
Response Time ≤ 1 ms
Protection Rating IP67 (dust-tight and waterproof)
Compliance CE, RoHS

Applications
The Epro CON021/913-040+PR6423/015-000-CN 8mm Eddy Current Sensor is designed for a wide range of industrial applications requiring high-precision, non-contact displacement, vibration, and position measurements:

  • Rotating Equipment Monitoring: Perfect for monitoring the displacement and vibration of rotating machinery, such as shafts, motors, and turbines. Its compact design makes it especially useful in systems where space is limited.

  • Condition Monitoring Systems: Used in predictive maintenance systems to monitor the health of critical equipment, detecting early signs of mechanical wear or misalignment, helping to prevent unplanned downtime.

  • Machine Tool Monitoring: Ideal for precision measurement applications, such as tool deflection and spindle positioning, ensuring the accuracy of machining processes and maintaining high product quality.

  • Automated Control Systems: In robotic systems, conveyors, and other automated applications, this sensor provides precise measurements of displacement and position to enhance operational efficiency and control.

  • Vibration Analysis: Suitable for measuring the vibration of components or systems where accurate feedback is essential for maintaining machine stability and integrity.


Advantages

  • High Precision and Accuracy: With a resolution of 1 µm and an accuracy of ±1 µm, this sensor provides precise measurements, making it ideal for applications that require the highest level of accuracy.

  • Non-Contact Measurement: The sensor uses eddy current technology to measure metallic surfaces without physical contact, reducing the risk of wear, contamination, and maintenance issues.

  • Compact Design: The 8mm sensing head is ideal for applications in tight or confined spaces, where larger sensors would not fit or could obstruct the system.

  • Fast Response Time: With a response time of ≤ 1 ms, this sensor delivers real-time displacement and vibration measurements, critical for dynamic systems that require quick feedback.

  • Wide Temperature Range: Operating within a range of -40°C to 85°C, the sensor is suited for both cold and hot industrial environments, ensuring reliable operation in a variety of settings.

  • Durability: The IP67 rating means the sensor is dust-tight and waterproof, providing protection against harsh conditions like moisture, dirt, and industrial contaminants.

  • Flexible Output Options: The sensor supports both 4-20 mA and 0-10V analog output signals, providing flexibility for integration with different control and monitoring systems.

  • Long-Term Reliability: Built with a rugged design, the sensor ensures long-lasting performance and minimal maintenance, even in challenging industrial environments.


Technical FAQs

  1. What is the primary function of the Epro CON021/913-040+PR6423/015-000-CN Eddy Current Sensor?
    The sensor is designed for non-contact measurement of displacement, position, and vibration in metallic components, providing high-precision feedback in critical industrial applications.

  2. What is the measurement range of the Epro CON021/913-040+PR6423/015-000-CN sensor?
    The sensor has a measurement range of ±2 mm to ±5 mm, making it versatile for various precision measurement tasks.

  3. What type of output signal does the sensor provide?
    The sensor offers an analog output signal, which can be configured as either 4-20 mA or 0-10V, depending on the application and system integration.

  4. How accurate is the sensor?
    The Epro CON021/913-040+PR6423/015-000-CN sensor provides an accuracy of ±1 µm, ensuring precise and reliable measurements in demanding environments.

  5. What is the diameter of the sensing head?
    The sensor features an 8mm sensing head, making it ideal for installations in tight spaces where larger sensors would be impractical.

  6. What is the operating temperature range of the sensor?
    The sensor operates within a wide temperature range of -40°C to 85°C, ensuring reliable performance in both low and high-temperature environments.

  7. How fast is the sensor’s response time?
    The sensor responds quickly, with a response time of ≤ 1 ms, making it suitable for applications that require real-time feedback on displacement or vibration.

  8. Can this sensor be used in hazardous environments?
    Yes, with an IP67 protection rating, the sensor is dust-tight and waterproof, making it ideal for use in harsh industrial environments where exposure to dust, water, or other contaminants is common.

  9. What industries benefit most from the Epro CON021/913-040+PR6423/015-000-CN sensor?
    This sensor is ideal for industries like automotive, aerospace, manufacturing, energy, and any sector where precision measurement of machinery performance is critical.

  10. What certifications does the Epro CON021/913-040+PR6423/015-000-CN comply with?
    The sensor complies with CE and RoHS standards, ensuring it meets European safety, environmental, and quality requirements.
