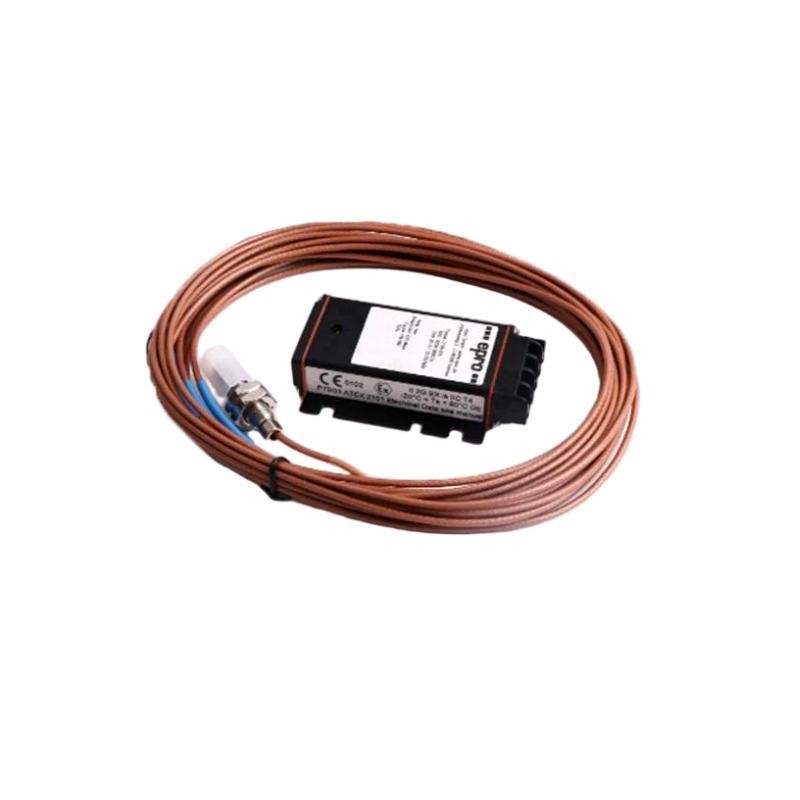

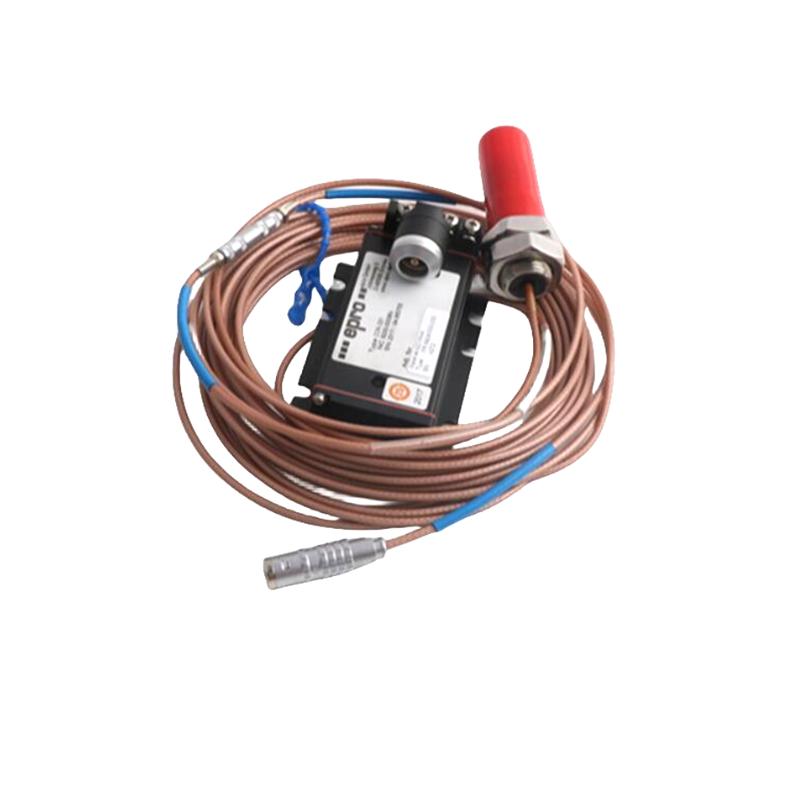

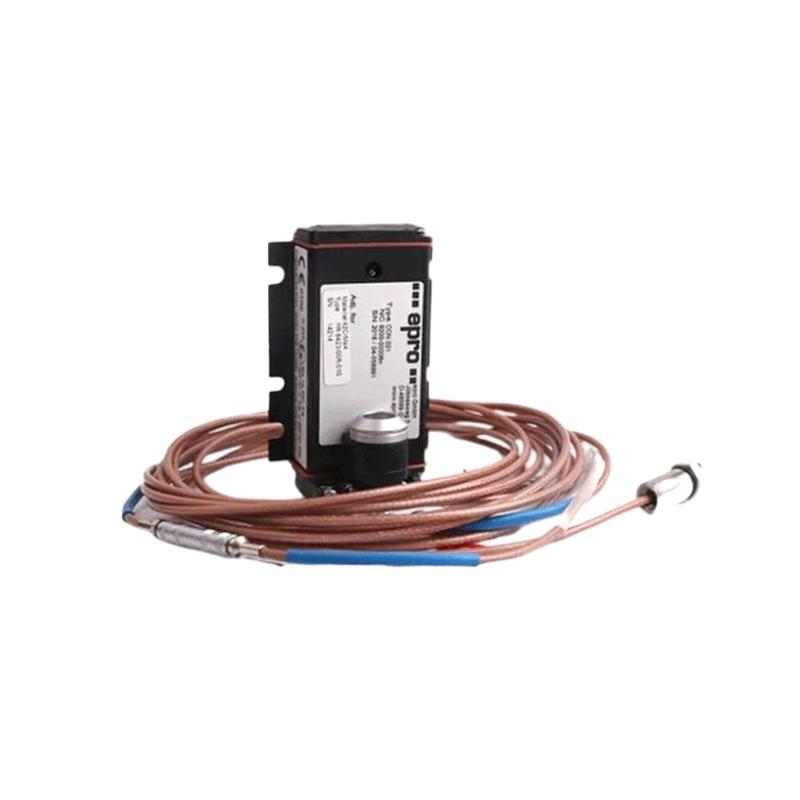

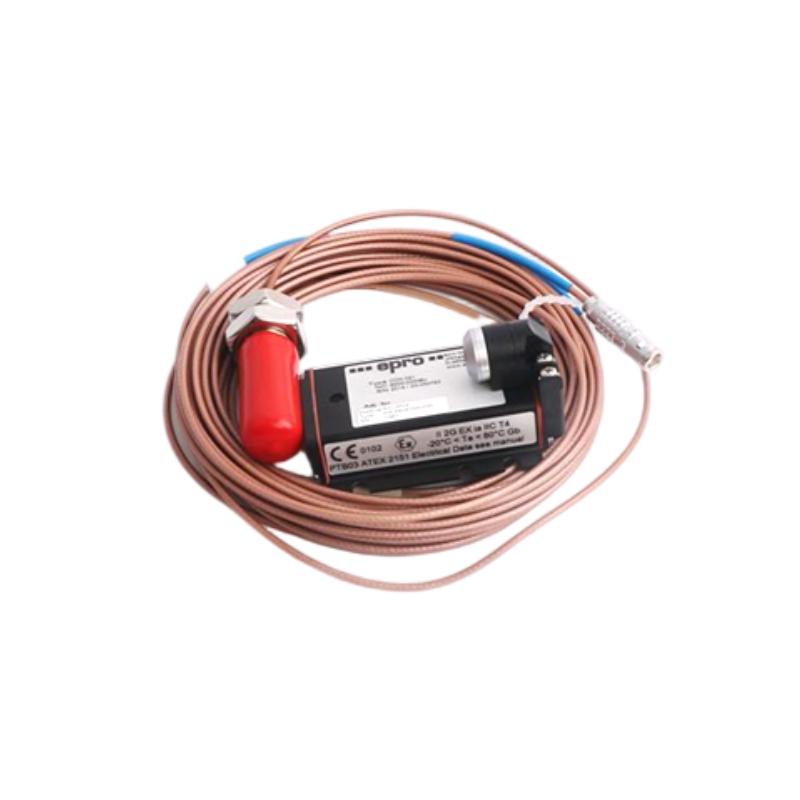

Epro CON020/T4+PR6424/01 16mm Eddy Current Sensor

Brand:Epro PLC
Item No.:CON020/T4+PR6424/01
Product Origin:Germany
Product Dimensions:16 mm
Product Weight:0.2 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction
The Epro CON020/T4+PR6424/01 16mm Eddy Current Sensor is a precision measurement solution designed for detecting displacement, position, and vibration of metallic objects in industrial applications. With a compact 16mm sensing head, this sensor is ideal for tight-space installations while maintaining excellent accuracy. Utilizing advanced eddy current technology, it provides non-contact measurement, which is especially beneficial for monitoring rotating machinery, high-speed parts, and components where direct contact is impractical or undesirable. This sensor is known for its robust performance, high sensitivity, and reliability, making it suitable for a wide range of applications in both automated and manual processes.

Technical Specifications

Parameter Specification
Model CON020/T4 + PR6424/01
Sensor Type Eddy Current Sensor
Sensing Head Diameter 16 mm
Weight 0.2 kg (0.44 lbs)
Measurement Range ±5 mm to ±10 mm
Resolution 1 µm
Operating Temperature -40°C to 85°C
Supply Voltage 24V DC
Output Signal Analog (4-20 mA or 0-10V, depending on configuration)
Accuracy ±1 µm
Response Time ≤ 1 ms
Protection Rating IP67 (dust-tight and waterproof)
Compliance CE, RoHS

Applications
The Epro CON020/T4+PR6424/01 16mm Eddy Current Sensor is well-suited for numerous industrial applications requiring high-precision, non-contact measurement:

  • Rotating Equipment Monitoring: Perfect for monitoring the displacement and vibration of rotating components such as shafts, motors, and turbines. It helps to ensure machinery operates within safe limits, reducing the risk of failure.

  • Vibration and Position Measurement: Used to measure the vibration or position of machinery, parts, and structural components, providing valuable data for predictive maintenance and condition monitoring.

  • Condition Monitoring Systems: Integral to predictive maintenance systems, this sensor helps detect early signs of wear or misalignment, reducing unexpected downtime and optimizing maintenance schedules.

  • Precision Measurement Systems: Ideal for high-precision machine tools, the sensor can track tool deflection, spindle movements, and other critical measurements to maintain accuracy in manufacturing processes.

  • Automated Control Systems: The sensor is used for monitoring displacement and position in automated production lines, robotics, and conveyor systems to ensure smooth operation and minimize production delays.


Advantages

  • High Precision and Accuracy: The Epro CON020/T4+PR6424/01 sensor offers outstanding accuracy, with a measurement error of only ±1 µm and a resolution of 1 µm, ensuring precise results for demanding applications.

  • Non-Contact Measurement: Using eddy current technology, the sensor measures metallic surfaces without direct contact, minimizing wear and extending both sensor and component lifespans.

  • Compact Design: The 16mm sensing head allows for integration into tight spaces, making it ideal for applications with limited installation room.

  • Fast Response Time: The sensor provides real-time feedback with a response time of ≤ 1 ms, which is essential for dynamic monitoring of machinery and systems.

  • Wide Operating Temperature Range: It operates effectively in temperatures from -40°C to 85°C, making it suitable for both cold and high-temperature environments.

  • Durability: With an IP67 protection rating, the sensor is dust-tight and waterproof, ensuring reliable performance even in challenging environments.

  • Flexible Output Options: The sensor supports analog output options, either 4-20 mA or 0-10V, allowing easy integration into a wide range of industrial monitoring and control systems.

  • Long-Term Reliability: The robust construction ensures reliable operation even in harsh conditions, reducing the need for frequent maintenance and downtime.


Technical FAQs

  1. What is the primary function of the Epro CON020/T4+PR6424/01 Eddy Current Sensor?
    This sensor is designed to measure displacement, position, and vibration of metallic components, offering a non-contact solution ideal for monitoring rotating machinery and critical systems.

  2. What is the measurement range of the Epro CON020/T4+PR6424/01?
    The sensor can measure displacement within a range of ±5 mm to ±10 mm, making it versatile for a variety of applications.

  3. What is the resolution and accuracy of the sensor?
    The sensor provides a high resolution of 1 µm and an accuracy of ±1 µm, ensuring precise measurements in critical industrial applications.

  4. What type of output signal does the sensor provide?
    The sensor provides an analog output, which can be configured as either 4-20 mA or 0-10V, depending on your system's requirements.

  5. What is the diameter of the sensor’s sensing head?
    The sensing head of the Epro CON020/T4+PR6424/01 has a compact diameter of 16 mm, making it ideal for installations where space is limited.

  6. What is the operating temperature range of the sensor?
    The sensor is designed to operate within a wide temperature range of -40°C to 85°C, ensuring reliable performance in various environmental conditions.

  7. How fast is the sensor’s response time?
    The sensor has a fast response time of ≤ 1 ms, which provides real-time displacement and vibration measurements, crucial for dynamic applications.

  8. Can the sensor be used in hazardous or extreme environments?
    Yes, the sensor is built to withstand harsh conditions, with an IP67 protection rating that makes it dust-tight and waterproof, perfect for challenging environments.

  9. What industries can benefit from using this sensor?
    The Epro CON020/T4+PR6424/01 is ideal for industries such as automotive, manufacturing, aerospace, and energy, as well as any other sector requiring precise monitoring of rotating machinery, vibration, or displacement.

  10. What certifications does the Epro CON020/T4+PR6424/01 comply with?
    The sensor complies with CE and RoHS certifications, ensuring it meets European safety and environmental standards for industrial applications.
