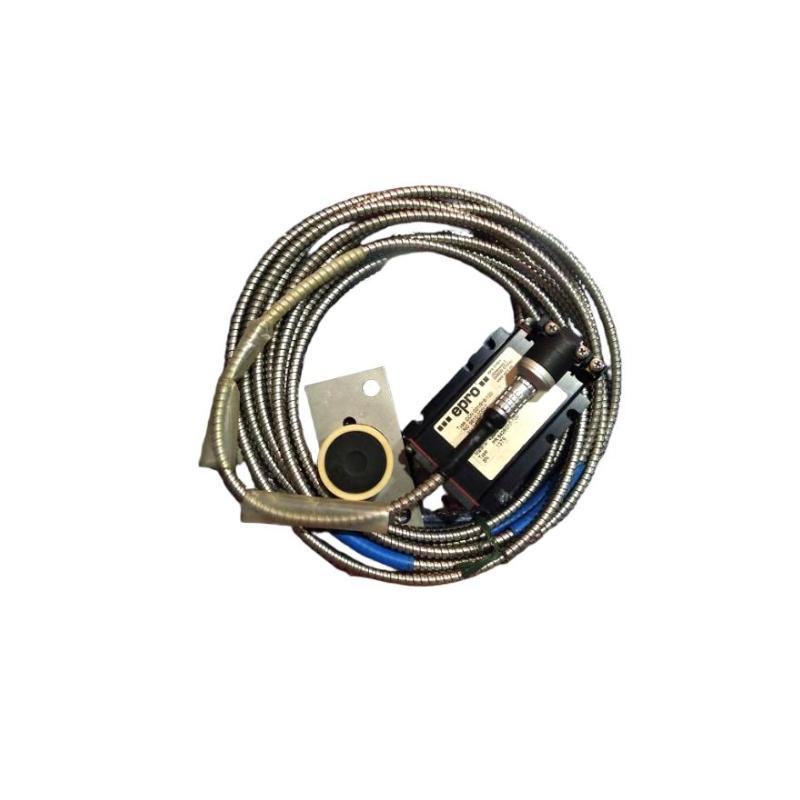

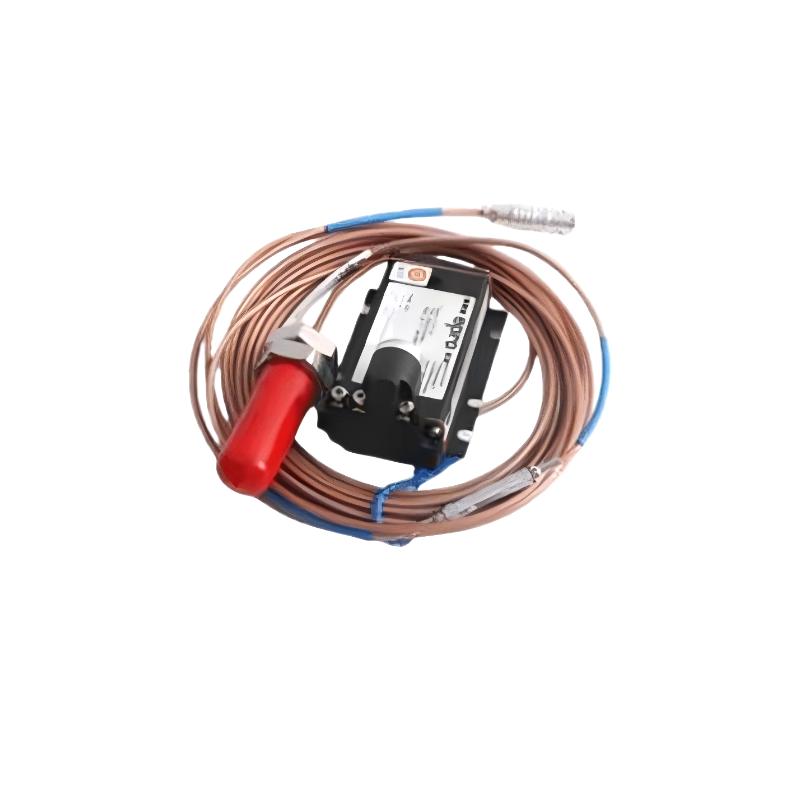

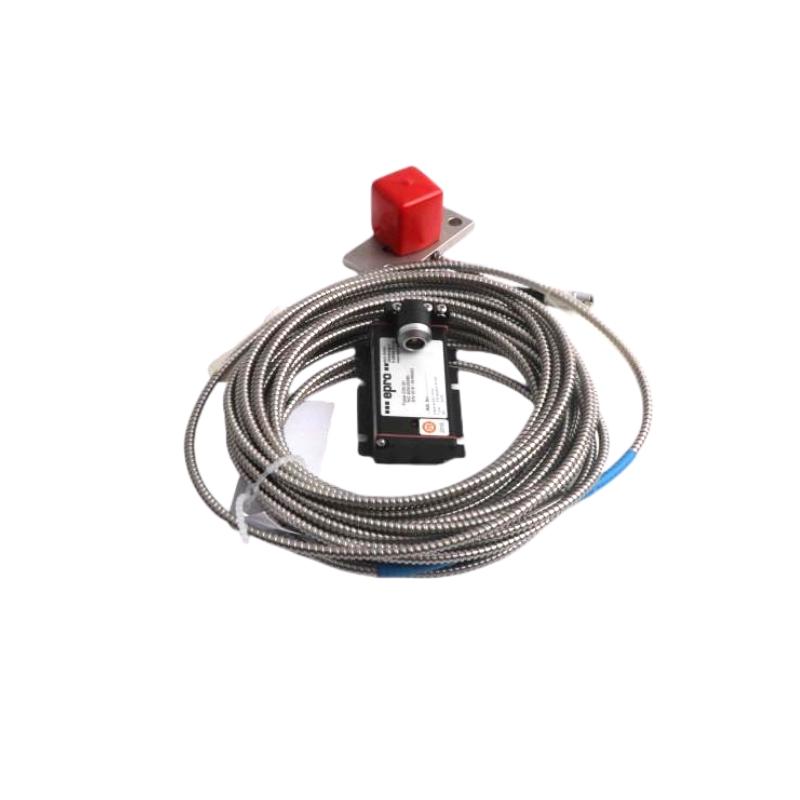

Epro CON011/916-120+PR6426/010-140 32mm Eddy Current Sensor

Brand:Epro PLC
Item No.:CON011/916-120+PR6426/010-140
Product Origin:Germany
Product Dimensions:32 mm
Product Weight:1.4 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction
The Epro CON011/916-120+PR6426/010-140 32mm Eddy Current Sensor is an advanced solution for high-precision, non-contact measurement of displacement, position, and vibration in industrial applications. This sensor utilizes eddy current technology to provide accurate and reliable measurements of metallic surfaces, making it ideal for monitoring rotating machinery, structural components, and other critical systems where contact-based measurement is not possible. With its large 32mm sensing head, this sensor offers enhanced measurement range and sensitivity, ensuring outstanding performance even in challenging industrial environments. Its compact design, coupled with robust construction, makes it suitable for a wide range of monitoring, control, and predictive maintenance tasks.

Technical Specifications

Parameter Specification
Model CON011/916-120 + PR6426/010-140
Sensor Type Eddy Current Sensor
Sensing Head Diameter 32 mm
Weight 1.4 kg (3.09 lbs)
Measurement Range ±10 mm to ±20 mm
Resolution 1 µm
Operating Temperature -40°C to 85°C
Supply Voltage 24V DC
Output Signal Analog (4-20 mA or 0-10V, depending on configuration)
Accuracy ±1 µm
Response Time ≤ 1 ms
Protection Rating IP67 (dust-tight and waterproof)
Compliance CE, RoHS

Applications
The Epro CON011/916-120+PR6426/010-140 32mm Eddy Current Sensor is perfect for a variety of industrial applications that require high-precision measurements:

  • Rotating Machinery Monitoring: Ideal for monitoring the displacement and vibration of rotating components such as shafts, motors, turbines, and other critical machinery parts. It helps prevent mechanical failure by providing early warning signs of wear or misalignment.

  • Vibration and Position Measurement: Used for measuring the vibration and position of structural components, ensuring the integrity of machinery and preventing catastrophic failures due to excessive vibrations or misalignment.

  • Machine Tool Monitoring: Measures tool deflection, spindle position, and other critical variables in high-precision machining, ensuring that parts are produced within tolerances.

  • Condition Monitoring Systems: This sensor is integral to predictive maintenance systems, allowing operators to monitor the health of machines and take corrective actions before failures occur.

  • Automated Systems: Used in robotics, conveyors, and other automated control systems for precise displacement measurement, ensuring accurate and efficient operation of automated processes.


Advantages

  • High Precision and Accuracy: With a resolution of 1 µm and an accuracy of ±1 µm, the sensor delivers highly precise measurements, ideal for critical industrial applications.

  • Non-Contact Measurement: Utilizing eddy current technology, this sensor performs measurements without physical contact, reducing wear and tear and prolonging the sensor's life while minimizing the risk of contamination.

  • Wide Measurement Range: The 32mm sensing head allows for a broader field of measurement, providing better sensitivity and accuracy, especially for larger components and rotating machinery.

  • Fast Response Time: With a response time of ≤ 1 ms, this sensor provides real-time feedback on machinery performance, making it suitable for dynamic systems where quick response is essential.

  • Wide Temperature Range: The sensor operates in temperatures from -40°C to 85°C, making it adaptable to a variety of industrial environments, from cold storage facilities to high-temperature manufacturing processes.

  • Rugged and Durable: The IP67 protection rating ensures the sensor is dust-tight and waterproof, offering reliable performance even in harsh, high-dust, or wet environments.

  • Versatile Output Options: Available with both 4-20 mA and 0-10V analog outputs, the sensor can be easily integrated into existing control and monitoring systems, offering flexibility in how data is transmitted and processed.

  • Compact Design: Despite its large sensing head, the sensor is compact and easy to integrate into existing systems without taking up significant space.


Technical FAQs

  1. What is the primary function of the Epro CON011/916-120+PR6426/010-140 Eddy Current Sensor?
    This sensor is designed to measure displacement, position, and vibration of metallic surfaces in a contactless manner, providing high-precision feedback in various industrial applications.

  2. What is the measurement range of the sensor?
    The sensor has a measurement range of ±10 mm to ±20 mm, depending on the specific application and configuration.

  3. What is the output signal of the sensor?
    The sensor provides an analog output signal, either 4-20 mA or 0-10V, depending on the chosen configuration. This flexibility allows it to integrate easily into different industrial systems.

  4. How accurate is the sensor?
    The sensor offers a high level of accuracy, with an error margin of just ±1 µm, ensuring that it provides precise measurements even in critical applications.

  5. What is the diameter of the sensing head?
    The sensing head of the Epro CON011/916-120+PR6426/010-140 is 32 mm in diameter, which allows for enhanced measurement capabilities, especially for larger components and rotating machinery.

  6. What is the operating temperature range of the sensor?
    The sensor operates within a temperature range of -40°C to 85°C, making it suitable for use in a wide range of environmental conditions.

  7. What industries can benefit from using this sensor?
    This sensor is ideal for industries such as manufacturing, automotive, aerospace, power generation, and any other sector where high-precision monitoring of rotating machinery, vibration, and displacement is critical.

  8. How fast is the sensor’s response time?
    The sensor has a very fast response time of ≤ 1 ms, providing real-time feedback, which is essential for dynamic systems where immediate responses are required.

  9. Can the sensor be used in hazardous or extreme environments?
    Yes, with its IP67 protection rating, the sensor is dust-tight and waterproof, making it suitable for use in harsh and potentially hazardous environments.

  10. What certifications does the Epro CON011/916-120+PR6426/010-140 comply with?
    The sensor complies with CE and RoHS standards, ensuring that it meets European safety and environmental requirements for industrial use.
