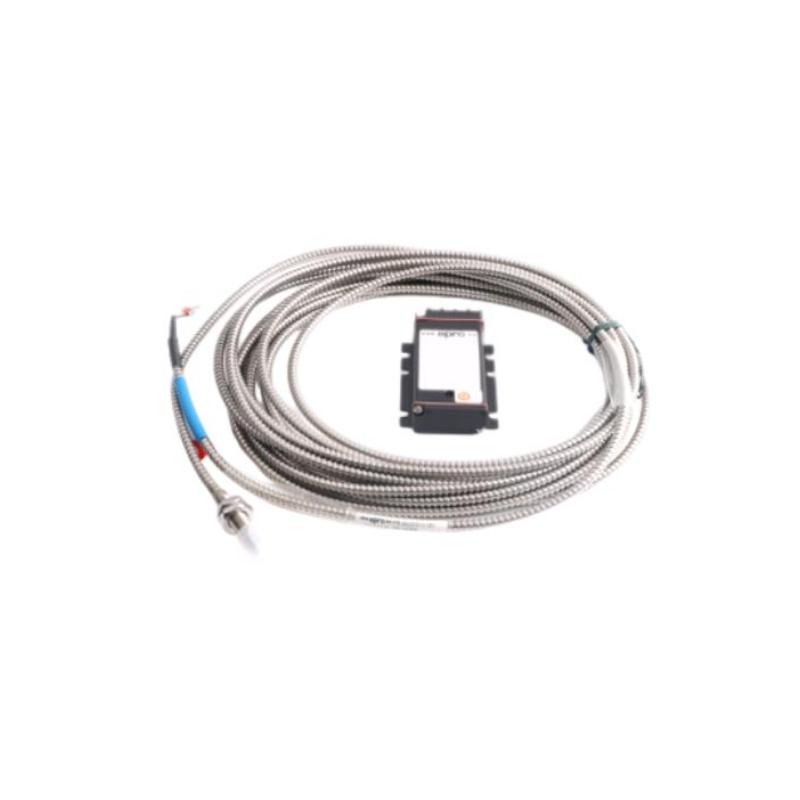

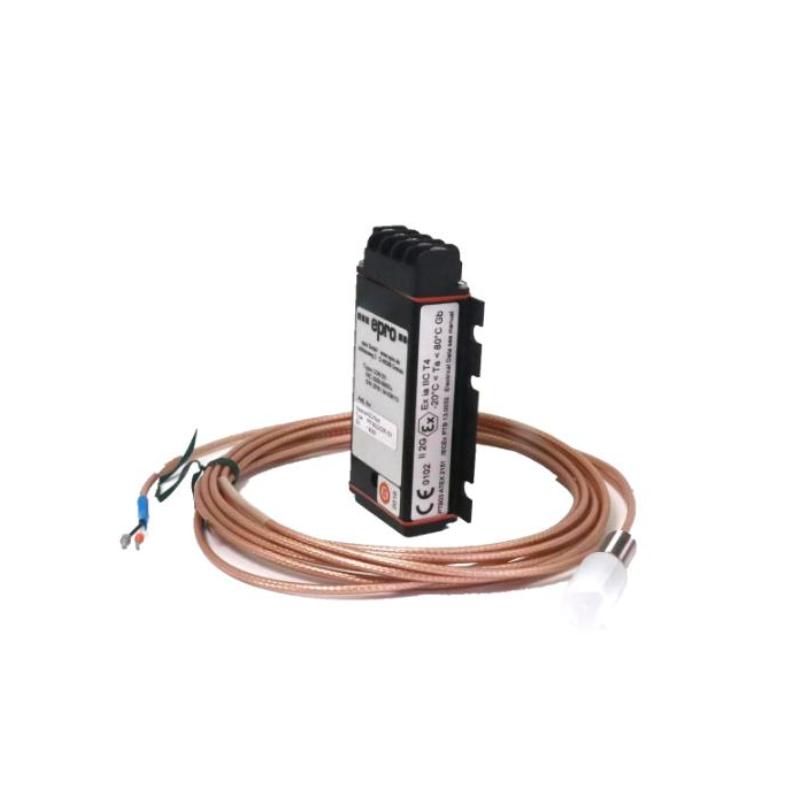

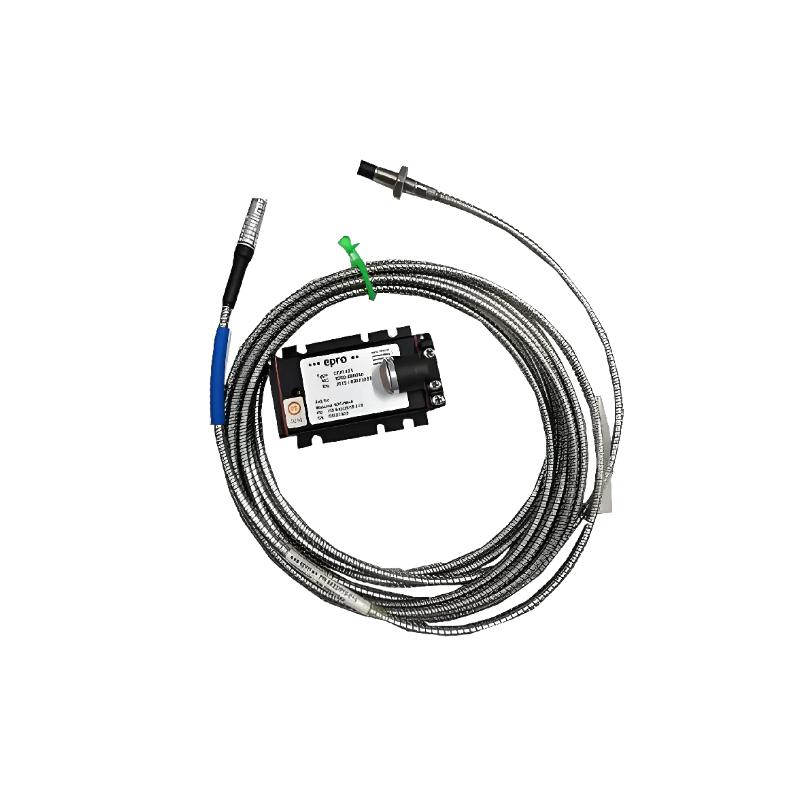

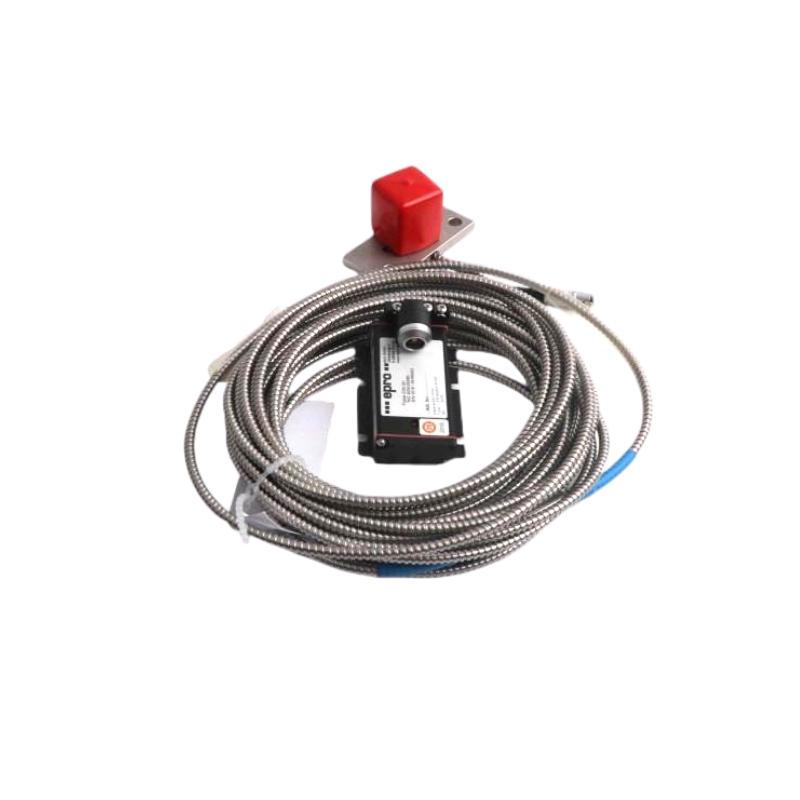

Epro PR6426/010-110+CON011/916-120 32mm Eddy Current Sensor

Brand:Epro PLC
Item No.:PR6426/010-110+CON011/916-120
Product Origin:Germany
Product Dimensions:32 mm
Product Weight:1.4 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction
The Epro PR6426/010-110+CON011/916-120 32mm Eddy Current Sensor is a high-performance solution designed for precise displacement, vibration, and position measurements in industrial applications. With a robust 32mm sensing head, it offers exceptional accuracy and reliability, even in harsh environments. The sensor utilizes advanced eddy current technology, allowing for non-contact measurement of metallic surfaces, making it ideal for monitoring rotating machinery, structural components, and various other systems where direct contact is impractical or undesirable. With its high-resolution capabilities and rugged construction, this sensor is perfect for critical monitoring and predictive maintenance tasks across a wide range of industries.

Technical Specifications

Parameter Specification
Model PR6426/010-110 + CON011/916-120
Sensor Type Eddy Current Sensor
Sensing Head Diameter 32 mm
Weight 1.4 kg (3.09 lbs)
Measurement Range ±10 mm to ±20 mm
Resolution 1 µm
Operating Temperature -40°C to 85°C
Supply Voltage 24V DC
Output Signal Analog (4-20 mA or 0-10V, depending on configuration)
Accuracy ±1 µm
Response Time ≤ 1 ms
Protection Rating IP67 (dust-tight and waterproof)
Compliance CE, RoHS

Applications
The Epro PR6426/010-110+CON011/916-120 32mm Eddy Current Sensor is used in various industrial applications requiring precise measurement of displacement, position, or vibration:

  • Rotating Machinery Monitoring: Perfect for measuring the displacement of rotating components such as shafts, motors, turbines, and rotors. It provides valuable data for condition monitoring and predictive maintenance.

  • Vibration Analysis: Ideal for measuring vibrations in high-speed rotating machinery or systems where traditional contact-based sensors are not practical.

  • Automated Control Systems: Used in industrial control systems for monitoring displacement and position in automated production lines, robotics, and conveyors.

  • Condition Monitoring and Predictive Maintenance: Provides real-time feedback for machinery performance, enabling early detection of potential failures and reducing unplanned downtime.

  • Precision Machine Tools: The sensor can be used to measure tool deflection, workpiece position, and other critical parameters in precision machining operations.


Advantages

  • High Accuracy and Precision: With an accuracy of ±1 µm and a resolution of 1 µm, this sensor offers extremely precise measurements, ideal for high-precision industrial applications.

  • Non-Contact Measurement: The eddy current technology allows for non-contact measurement of metallic surfaces, reducing wear and tear and extending sensor lifespan.

  • Large Sensing Head: The 32mm sensing head provides increased measurement range, making it ideal for larger components or applications requiring a broader field of measurement.

  • Fast Response Time: The sensor offers a fast response time of ≤ 1 ms, which is essential for dynamic measurement and real-time feedback in machinery monitoring and control systems.

  • Wide Operating Temperature Range: The sensor is designed to operate in a broad temperature range of -40°C to 85°C, ensuring reliable performance in extreme environmental conditions.

  • Durability and Reliability: With an IP67 protection rating, the sensor is dust-tight and waterproof, making it suitable for use in harsh environments with exposure to moisture, dust, and other contaminants.

  • Versatile Output Options: The sensor provides flexible analog outputs (4-20 mA or 0-10V), allowing easy integration into various industrial control and monitoring systems.

  • Durable Construction: The robust design ensures the sensor performs reliably over time, even in demanding industrial environments.


Technical FAQs

  1. What is the primary function of the Epro PR6426/010-110+CON011/916-120 Eddy Current Sensor?
    This sensor is used for non-contact measurement of displacement, position, and vibration in industrial applications, particularly for rotating machinery and condition monitoring.

  2. What is the measurement range of the sensor?
    The sensor offers a measurement range of ±10 mm to ±20 mm, depending on the configuration, making it suitable for a wide range of applications.

  3. What is the resolution and accuracy of the sensor?
    The sensor provides a resolution of 1 µm and an accuracy of ±1 µm, ensuring precise and reliable measurements.

  4. What output signal does the sensor provide?
    The sensor offers an analog output signal, which can be configured as either 4-20 mA or 0-10V, providing compatibility with various industrial control systems.

  5. What is the size of the sensing head?
    The sensing head of the sensor has a diameter of 32 mm, allowing for measurements over a larger area and offering higher sensitivity for certain applications.

  6. What is the operating temperature range of the sensor?
    The sensor operates within a temperature range of -40°C to 85°C, ensuring reliable performance in extreme industrial environments.

  7. How fast is the sensor's response time?
    The sensor has a fast response time of ≤ 1 ms, providing real-time displacement and position feedback for monitoring dynamic systems.

  8. What industries can benefit from using the PR6426/010-110+CON011/916-120?
    The sensor is ideal for industries such as manufacturing, energy, automotive, aerospace, and any industry requiring precise monitoring of displacement, vibration, or position of mechanical components.

  9. Can the sensor be used in hazardous environments?
    The sensor has an IP67 protection rating, which makes it suitable for use in harsh and potentially hazardous environments, offering dust and water resistance.

  10. What certifications does the sensor comply with?
    The Epro PR6426/010-110+CON011/916-120 complies with CE and RoHS certifications, ensuring that it meets European safety and environmental standards.
