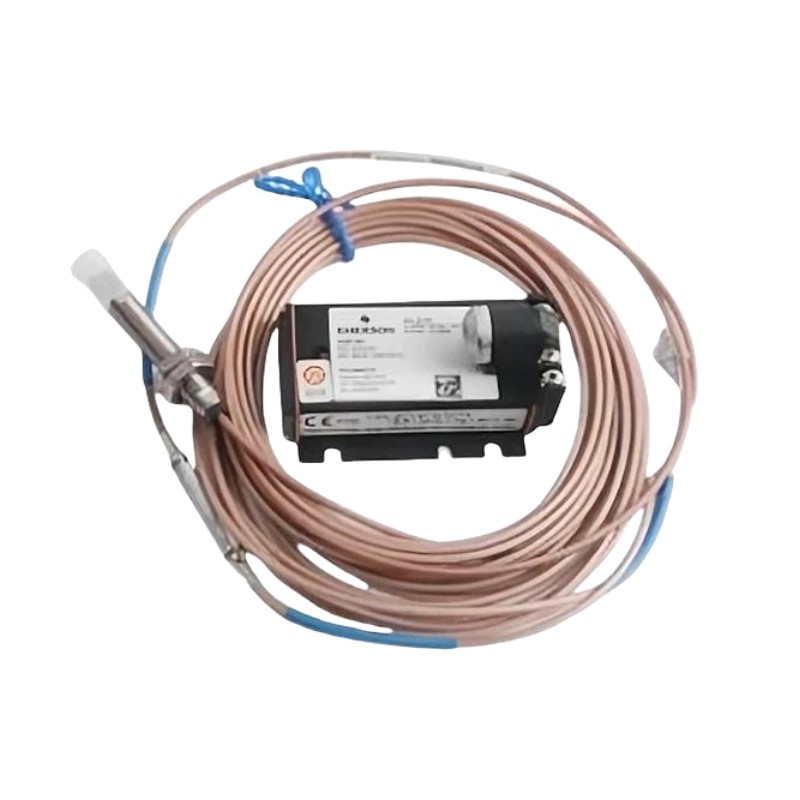

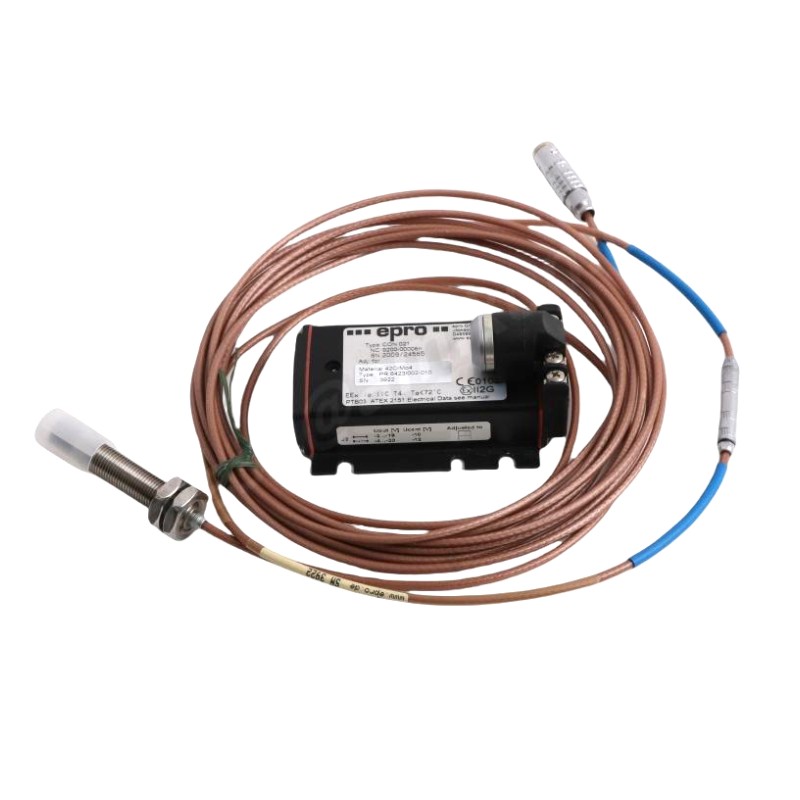

Epro CON010+PR6423/010-120 8mm Eddy Current Sensor

Brand:Epro PLC
Item No.:CON010+PR6423/010-120
Product Origin:Germany
Product Dimensions: 8 mm
Product Weight:0.22 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction
The Epro CON010+PR6423/010-120 8mm Eddy Current Sensor is a high-precision displacement sensor designed to measure relative displacement, position, or vibration in industrial environments. This sensor is particularly suited for applications requiring high-speed, contactless measurement of metallic surfaces. Its robust construction, combined with advanced eddy current sensing technology, ensures reliable performance in harsh environments, making it ideal for monitoring critical machinery and systems. The 8mm diameter sensing head allows for easy integration in tight spaces while maintaining excellent accuracy and stability.

Technical Specifications

Parameter Specification
Model CON010+PR6423/010-120
Sensor Type Eddy Current Sensor
Sensing Head Diameter 8 mm
Weight 0.22 kg (0.49 lbs)
Measurement Range ±5 mm to ±10 mm
Resolution 1 µm
Operating Temperature -40°C to 85°C
Supply Voltage 24V DC
Output Signal Analog, 4-20 mA, or 0-10V (depending on configuration)
Accuracy ±1 µm
Response Time ≤ 1 ms
Protection Rating IP67 (dust-tight and waterproof)
Compliance CE, RoHS

Applications
The Epro CON010+PR6423/010-120 8mm Eddy Current Sensor is designed for use in a wide variety of industrial applications:

  • Rotating Machinery Monitoring: Measures the displacement of rotating parts such as shafts, rotors, and bearings, providing real-time feedback on mechanical integrity.

  • Vibration Analysis: Used to monitor vibration and position changes in industrial equipment, ensuring that maintenance can be scheduled before failure occurs.

  • Machine Tool Monitoring: Tracks tool deflection and position in precision machining operations, helping to maintain product quality and machining accuracy.

  • Automated Control Systems: Integrates into automation systems for precise monitoring of position and distance measurements in robotics, conveyors, and industrial processes.

  • Condition Monitoring: Ideal for use in predictive maintenance systems, the sensor helps detect mechanical issues early, preventing costly downtime and equipment failure.


Advantages

  • High Accuracy and Precision: With an accuracy of ±1 µm and a resolution of 1 µm, this sensor provides highly accurate displacement measurements, critical for high-precision applications.

  • Contactless Measurement: The eddy current technology ensures that measurements are taken without direct contact with the measured object, reducing wear and tear and increasing sensor lifespan.

  • Fast Response Time: With a response time of ≤ 1 ms, the sensor provides real-time data, which is essential for dynamic monitoring of machinery and systems.

  • Wide Temperature Range: The sensor operates in a wide temperature range from -40°C to 85°C, making it suitable for use in extreme industrial environments.

  • Compact and Robust Design: The 8mm sensing head allows for installation in confined spaces, while the IP67 protection rating ensures the sensor is dust-tight and waterproof, making it ideal for tough industrial conditions.

  • Versatile Output Options: The sensor offers flexible output options, including analog signals (4-20 mA or 0-10V), making it compatible with a wide range of control systems and measurement devices.

  • Durability: The robust construction and high protection rating make the sensor resistant to dirt, dust, and moisture, ensuring long-term reliable operation even in harsh environments.


Technical FAQs

  1. What is the primary function of the Epro CON010+PR6423/010-120 Eddy Current Sensor?
    The primary function of this sensor is to measure the relative displacement, position, or vibration of metallic objects, offering high accuracy and reliability in industrial environments.

  2. What is the measurement range of the Epro CON010+PR6423/010-120 sensor?
    The sensor has a measurement range of ±5 mm to ±10 mm, depending on the specific configuration and application.

  3. What output signal does the sensor provide?
    The sensor provides an analog output, either in the form of a 4-20 mA or 0-10V signal, depending on the configuration, which makes it compatible with various industrial control systems.

  4. What is the accuracy of the Epro CON010+PR6423/010-120 sensor?
    The sensor offers an accuracy of ±1 µm, ensuring highly precise measurement of displacement and position.

  5. What is the sensing head diameter of the sensor?
    The sensing head has a compact diameter of 8 mm, allowing for installation in tight spaces while maintaining precise measurements.

  6. What is the operating temperature range of the Epro CON010+PR6423/010-120 sensor?
    The sensor operates effectively in temperatures ranging from -40°C to 85°C, making it suitable for a wide range of industrial applications.

  7. How fast is the sensor’s response time?
    The Epro CON010+PR6423/010-120 sensor has a very fast response time of ≤ 1 ms, providing real-time feedback on position and displacement.

  8. What is the protection rating of the sensor?
    The sensor has an IP67 protection rating, meaning it is dust-tight and can withstand immersion in water, making it durable and reliable in tough environments.

  9. Can the Epro CON010+PR6423/010-120 sensor be used for vibration monitoring?
    Yes, the sensor is ideal for vibration monitoring, providing precise measurements of displacement and movement to track the condition of machinery.

  10. What certifications does the sensor comply with?
    The sensor complies with CE and RoHS certifications, ensuring that it meets essential safety and environmental standards for industrial use.
