Ovation 1X00781H01L Power Supply Module

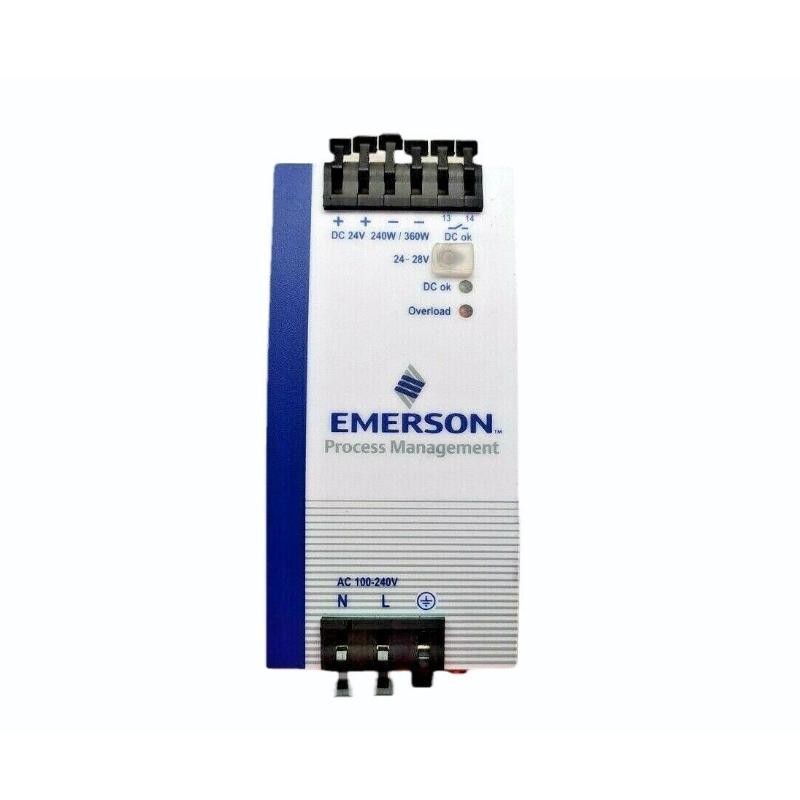

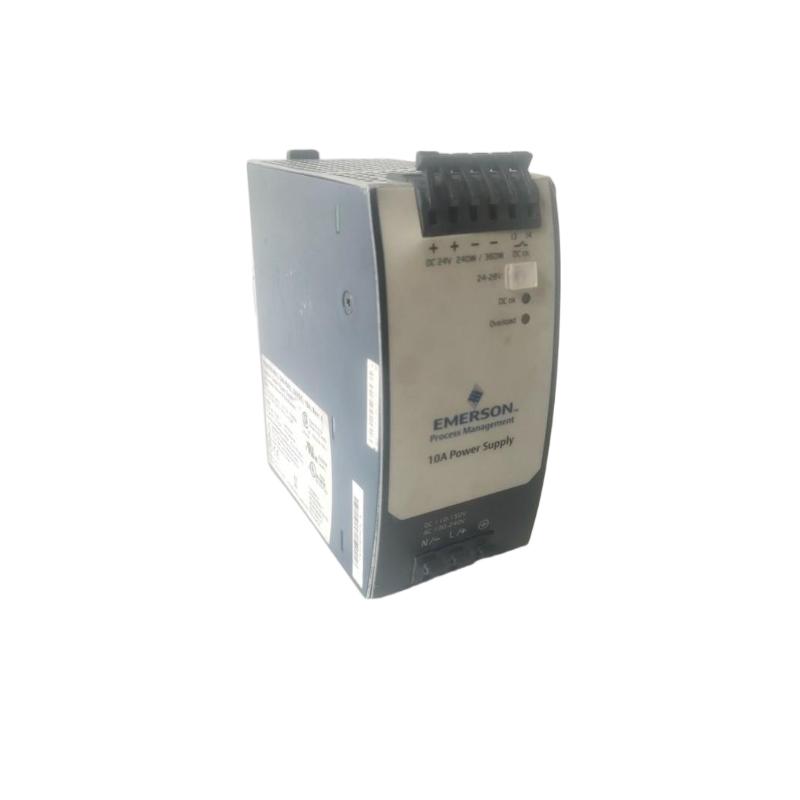

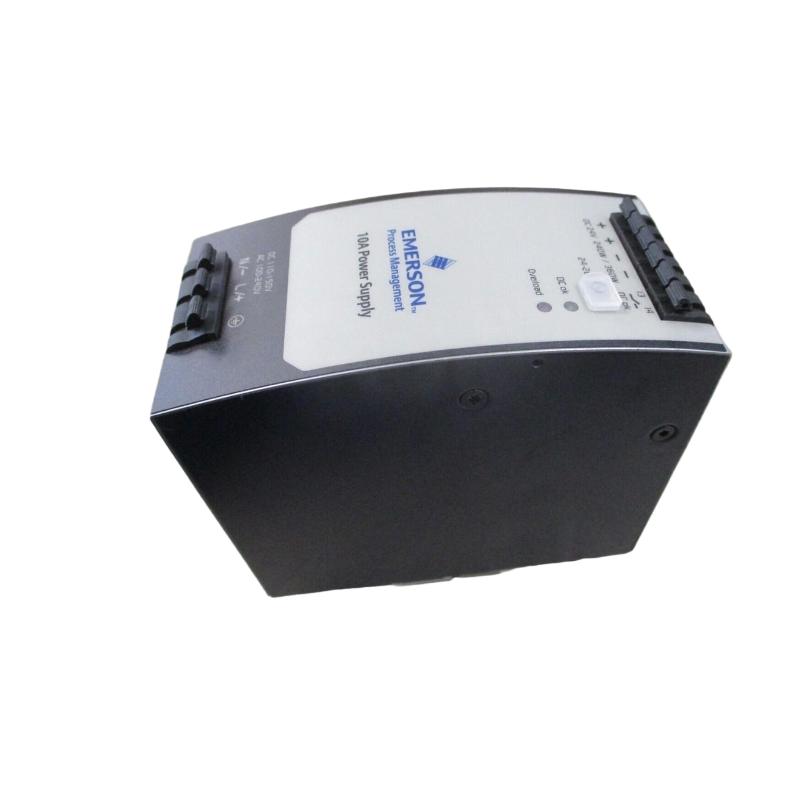

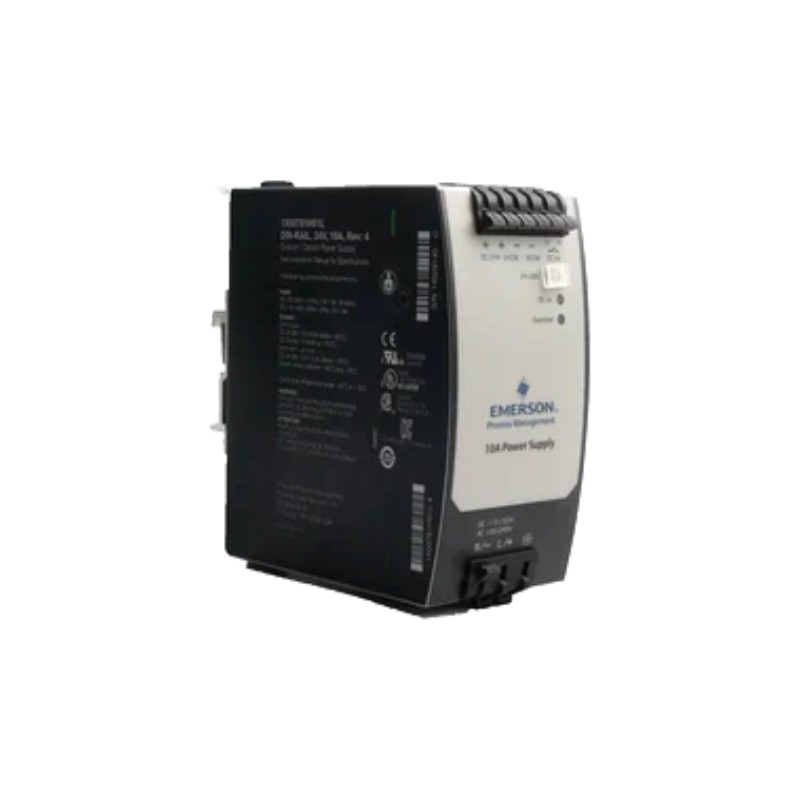

Name: Ovation 1X00781H01L Power Supply Module
Brand: Ovation DCS
SKU: 42
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Ovation DCS
Item No.:1X00781H01L
Product Origin:USA
Product Dimensions:128 × 125 × 130 mm
Product Weight:1.2 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The Ovation 1X00781H01L is a high-reliability DIN-rail power supply module designed for Emerson Ovation Distributed Control Systems. Engineered for continuous industrial operation, it provides a stable 24 VDC output to controllers, I/O stations, communication interfaces, and auxiliary equipment. Its rugged construction and wide operating limits make it suitable for demanding environments such as power generation, water treatment, petrochemical plants, and other mission-critical automation systems.

General Specifications

Parameter	Details
Module Type	DIN-Rail Power Supply Module
Model Number	1X00781H01L
Input Voltage	85–264 VAC or 90–375 VDC
Output Voltage	24 VDC regulated
Output Current	10 A nominal
Output Power	Approx. 240 W (application-dependent)
Operating Temperature	–40 °C to +70 °C
Protection Functions	Overload, short-circuit, overvoltage, thermal protection
Mounting	DIN-rail cabinet mounting
Dimensions	128 × 125 × 130 mm (H × W × D)
Weight	Approx. 1.2 kg

Applications

Primary power source for Ovation controller stations
Power distribution for remote I/O, field interfaces, and signal modules
Redundant power systems within Ovation cabinets
Cabinet-level industrial automation equipment requiring regulated 24 VDC
Replacement or upgrade for legacy Ovation power supply modules
Environments requiring wide temperature tolerance and electrical robustness

Advantages

Wide input range supports both AC and DC, simplifying global installation
Industrial-grade stability ensures consistent 24 VDC under variable loads
High immunity to surge and transient events, suitable for electrical-noise-heavy facilities
DIN-rail design improves installation flexibility and cabinet layout efficiency
Extended temperature capability supports extreme climates and critical operations
Comprehensive protection features prevent damage and improve longevity
High reliability proven in long-cycle continuous-operation DCS environments

Technical FAQs

What type of systems use the 1X00781H01L?
It is used in Emerson Ovation DCS systems as a 24 VDC power source for controllers and I/O modules.
Can the module support redundant power setups?
Yes, it is commonly installed in dual or N+1 redundant configurations for reliability.
Is the module suitable for harsh environments?
Yes, its –40 °C to +70 °C operating range supports extreme climates.
What is the typical power output?
Around 240 W depending on load and operating temperature.
Does it include protection features?
It has overload, short-circuit, overvoltage, and over-temperature protection.
Can it run from a DC input source?
Yes, it supports 90–375 VDC input.
What equipment does it usually power?
Controllers, I/O carriers, relay modules, and communication units.
What is the mounting method?
Standard DIN-rail installation inside Ovation cabinets.
How heavy is the module?
Approximately 1.2 kg.
Does it require forced cooling?
No, it is convection-cooled and designed for natural airflow inside control cabinets.
