Technical FAQs

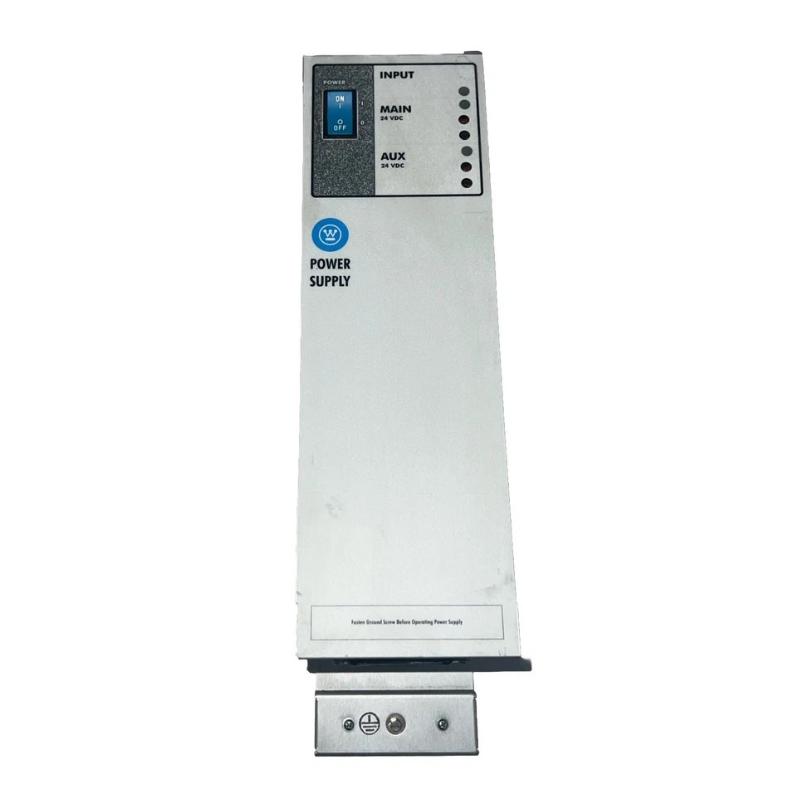

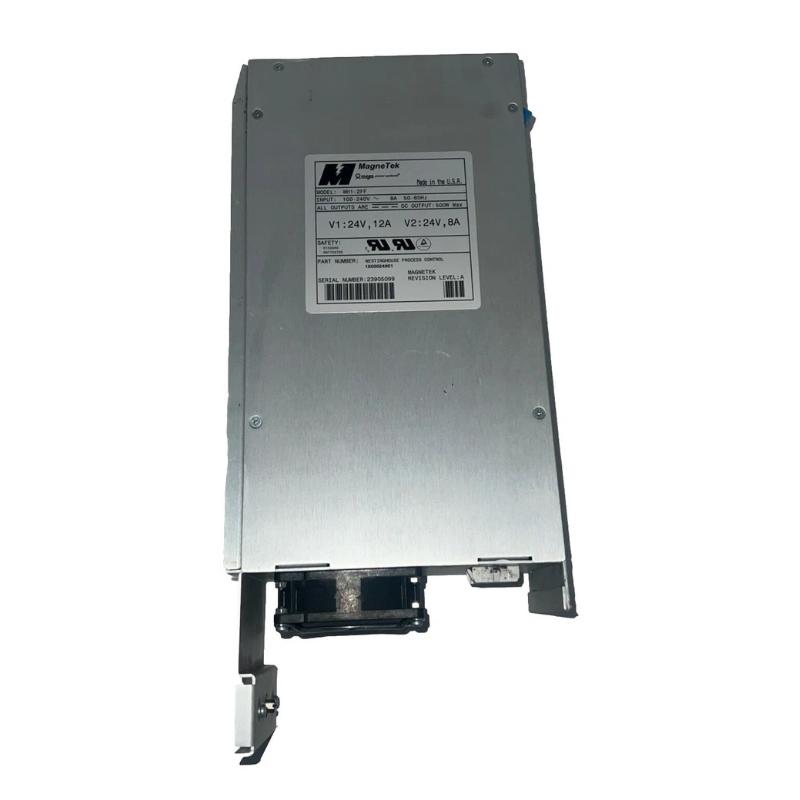

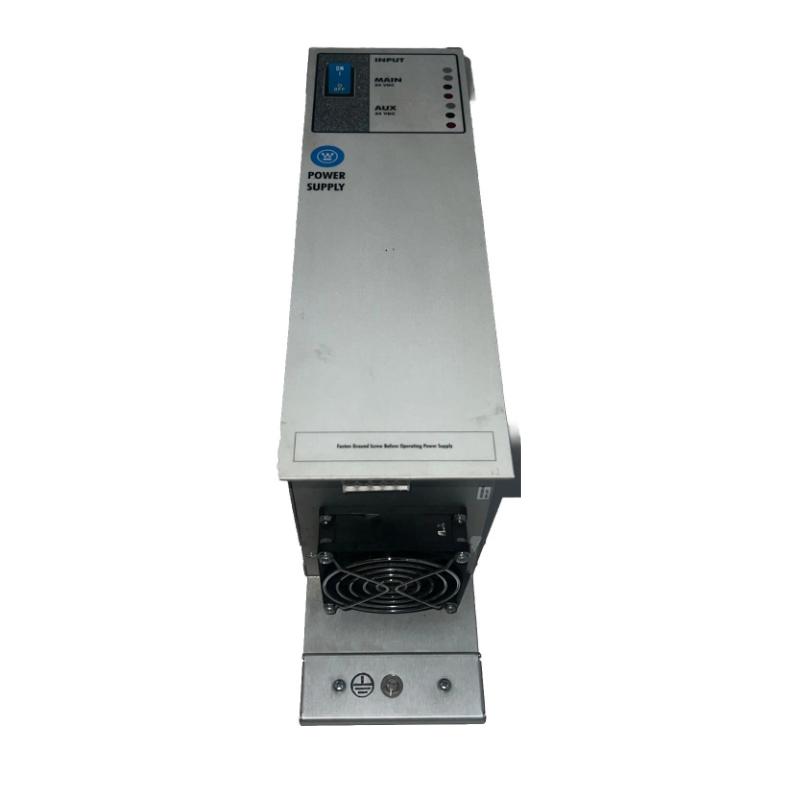

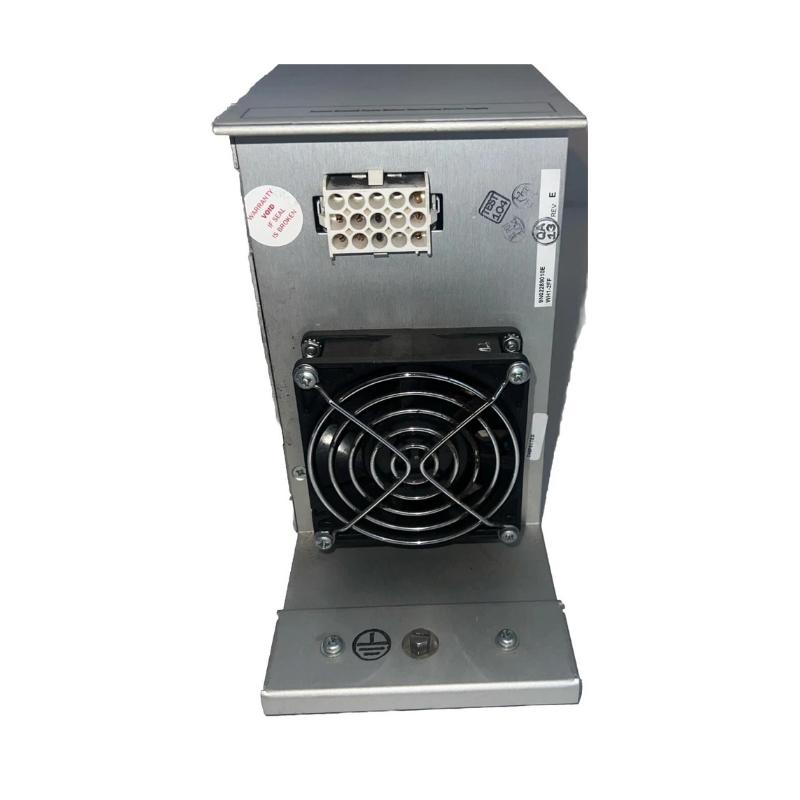

1. What is the purpose of the 1X00024H01 module?
   It supplies regulated DC power to Ovation controllers, I/O, and communication hardware.

2. Does it support worldwide AC standards?
   Yes, it accepts 100–240 VAC, making it suitable for global installations.

3. What is its DC output rating?
   The module delivers a stable 24 VDC output for the system’s electronics.

4. How much current can it supply?
   It typically supports 10–12 A depending on load and configuration.

5. Can the module be used in redundant systems?
   Yes, Ovation systems commonly deploy it in N+1 or parallel redundant setups.

6. What are the physical dimensions?
   102 × 406 × 178 mm (H × W × D).

7. How heavy is the unit?
   Approximately 3.5 kg.

8. Is the module still commonly available?
   Many systems continue using it as a critical spare for legacy Ovation platforms.

9. What environments is it suitable for?
   Harsh industrial environments, including wide temperature ranges and electrical noise conditions.

10. What systems does it support?
    It is designed specifically for Emerson Ovation Distributed Control Systems.
