Technical FAQs

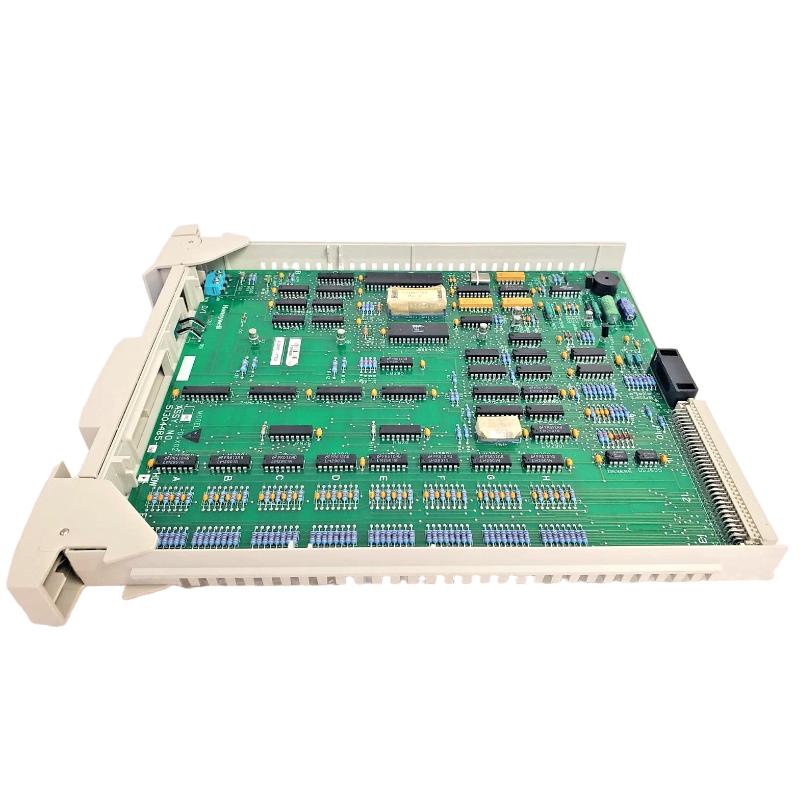

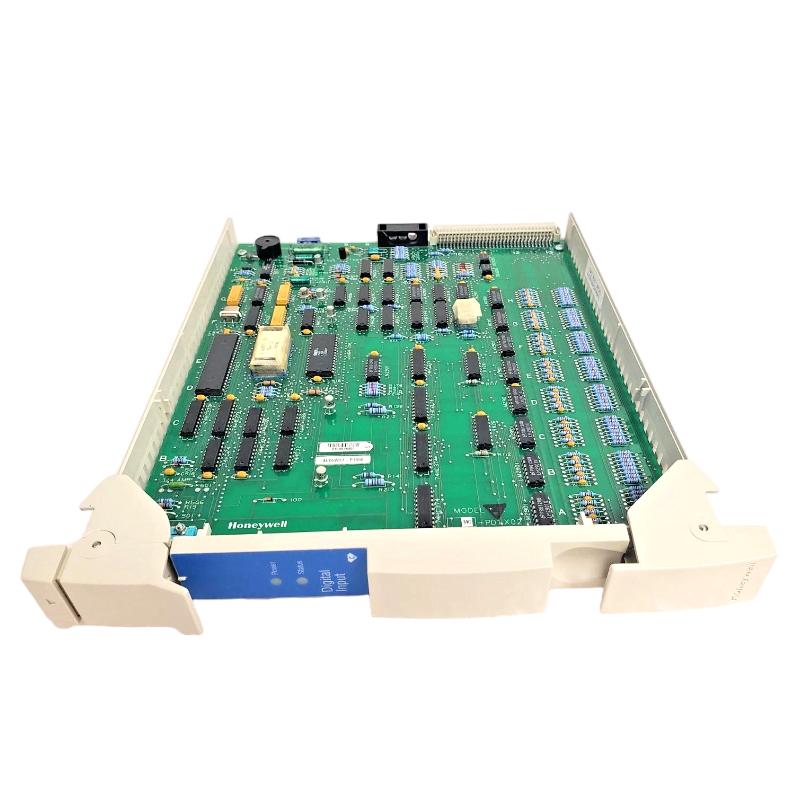

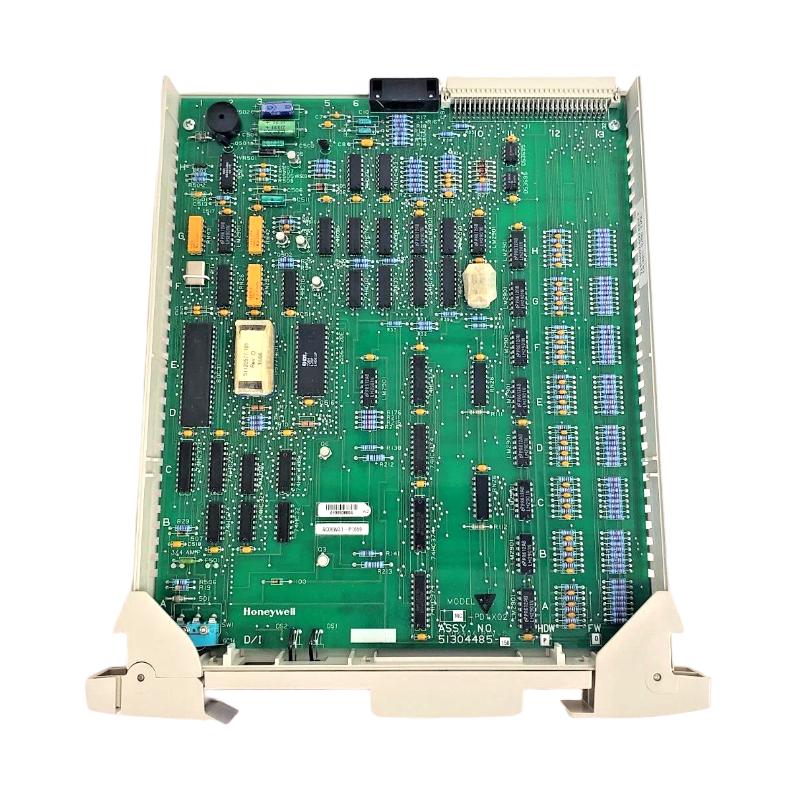

1. What type of input signals does the Honeywell MC-PD1X02/MC-PDIX02 handle?

   • The module processes digital input signals, typically on/off or binary signals from field devices like switches, relays, and sensors.

2. How is the module mounted?

   • The module is designed for DIN rail mounting, allowing for simple and secure installation in control panels.

3. What is the power supply requirement for this module?

   • The module requires a 24 VDC power supply for operation.

4. What is the operating temperature range of this module?

   • The module operates within the temperature range of -20°C to +60°C.

5. How many digital inputs does the module support?

   • It supports up to 16 digital inputs, ideal for a wide range of applications.

6. What are the typical applications for the Honeywell MC-PD1X02/MC-PDIX02?

   • The module is used in industrial automation, process control systems, and safety-critical applications to monitor on/off states from field devices.

7. Can the module be used in hazardous environments?

   • While the module is suitable for industrial environments, specific hazardous location certifications should be checked before installation in explosive environments.

8. How does the module ensure signal integrity?

   • The module features advanced filtering and processing capabilities, ensuring that digital input signals are accurately processed and immune to common electrical interferences in industrial environments.

9. Is the module compatible with Honeywell’s other control systems?

   • Yes, the module is fully compatible with Honeywell’s broader automation and control systems, allowing seamless integration for efficient system operation.

10. What are the main benefits of using this digital input module?

• The main benefits include high reliability, easy installation, a wide input range, and seamless integration with Honeywell’s automation systems, making it ideal for industrial and safety-critical applications.
