ABB DSAI 301 57120001-CB DS Analog Input Unit

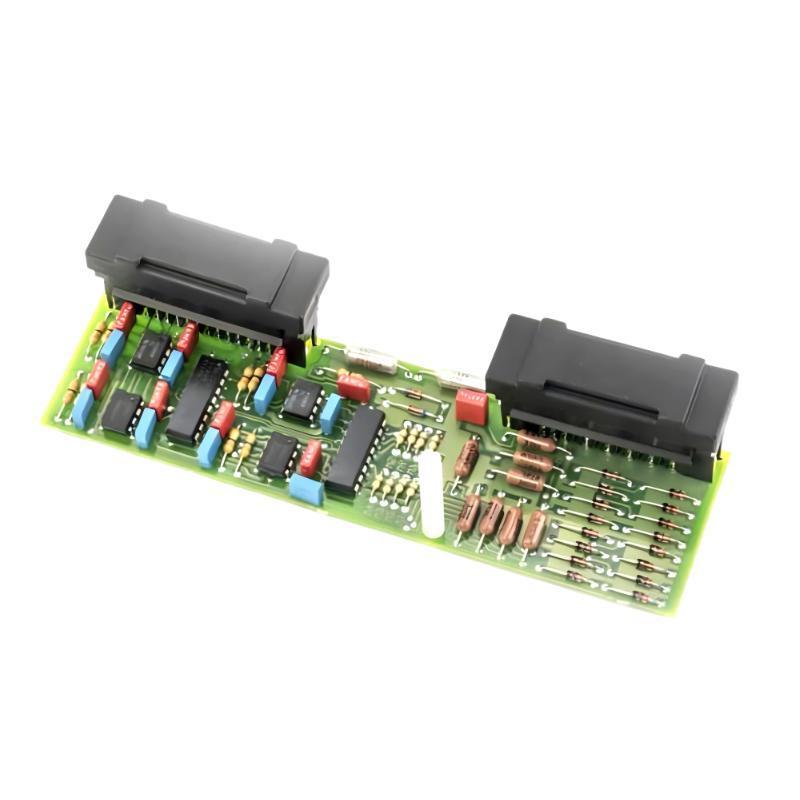

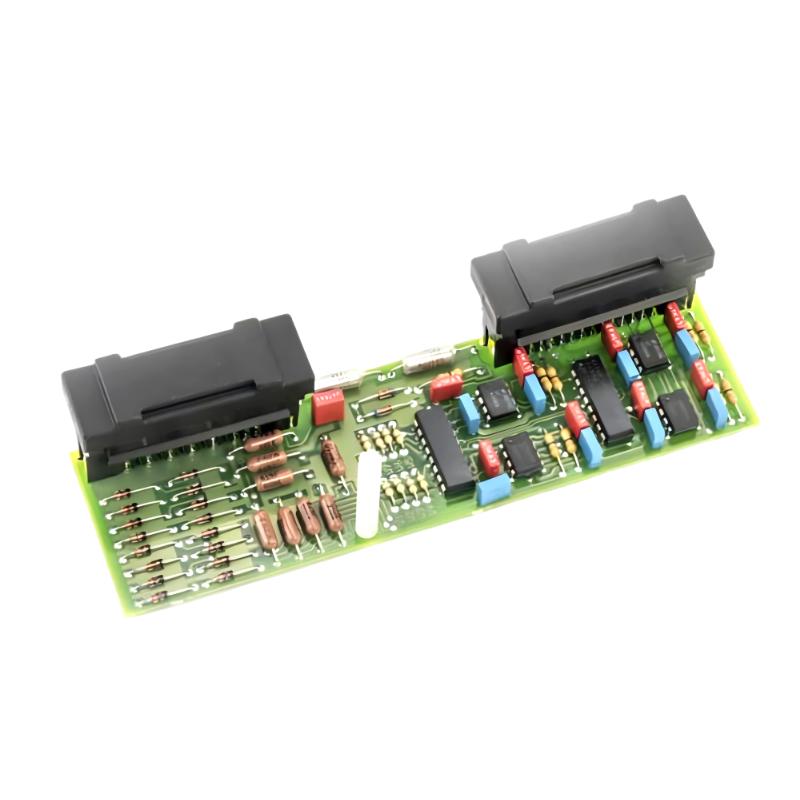

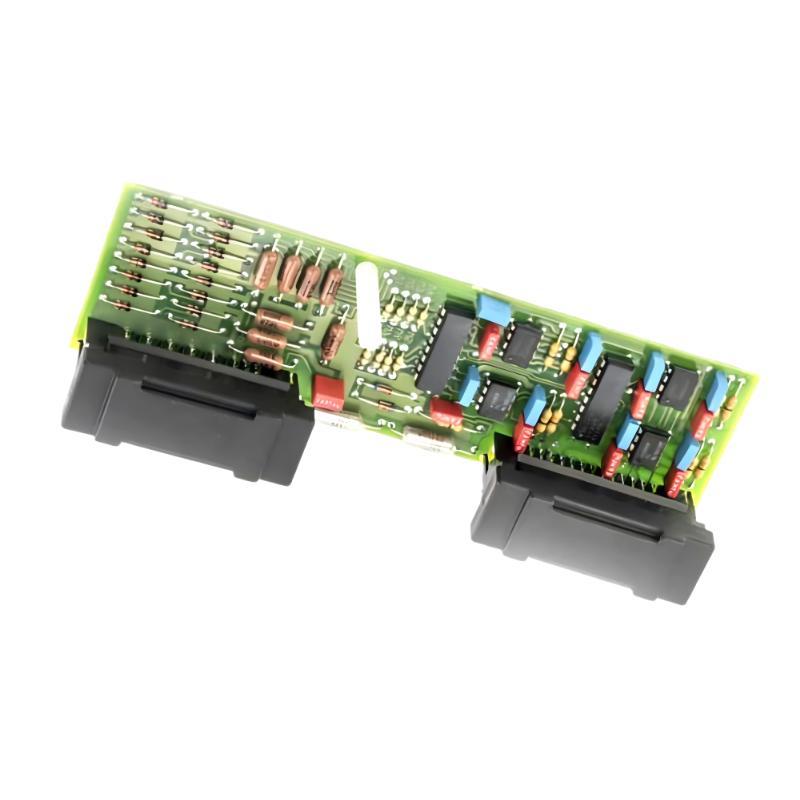

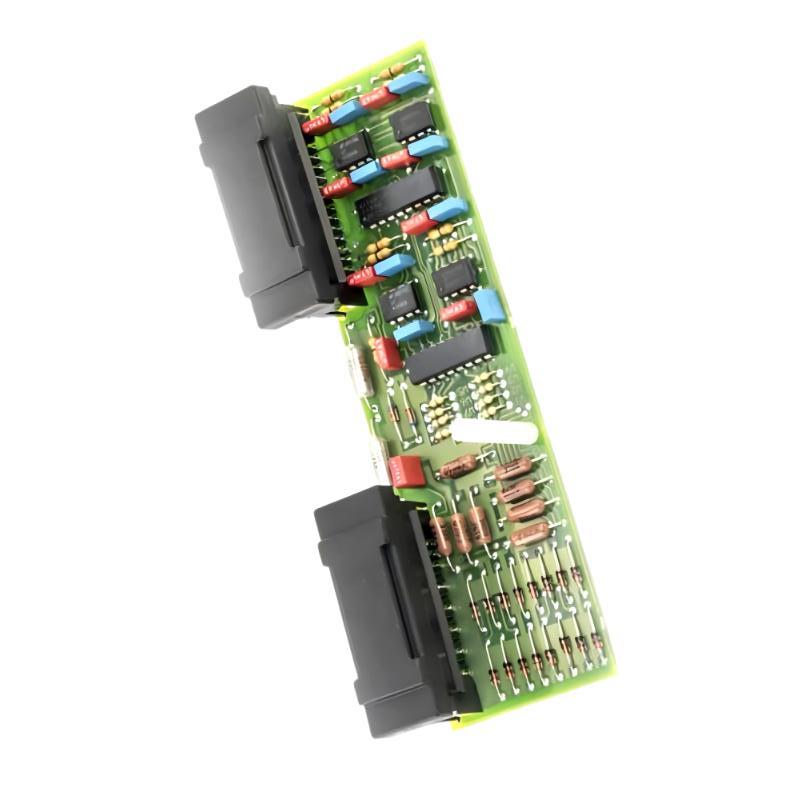

Name: ABB DSAI 301 57120001-CB DS Analog Input Unit
Brand: ABB PLC
SKU: 2273
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:DSAI 301
Product Origin:Sweden (SE)
Product Dimensions:214 x 120 x 40 mm
Product Weight:0.5 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction
The ABB DSAI 301 57120001-CB is an advanced analog input module designed for high-performance data acquisition in automation systems. It is a key component of the ABB Distributed System (DS) platform, providing precise, real-time measurement of physical parameters such as temperature, pressure, and flow. This unit's reliability, speed, and versatility make it an ideal choice for various industrial applications, including manufacturing, energy, and process control.

Technical Specifications

Specification	Value
Model	DSAI 301 57120001-CB DS Analog Input Unit
Type	Analog Input Module
Input Channels	8 Channels (Differential or Single-ended)
Voltage Range	±10 V DC
Current Range	4-20 mA
Input Impedance	1 MΩ
Conversion Time	1 ms
Operating Voltage	24 V DC
Operating Temperature	-20°C to 60°C
Dimensions (W x H x D)	214 mm x 120 mm x 40 mm
Weight	0.5 kg

Applications

The DSAI 301 is ideal for industrial automation systems that require precise analog signal processing, making it suitable for industries such as oil & gas, power generation, and water treatment.
Its ability to handle both voltage and current signals allows the unit to integrate with a variety of sensor types, which makes it highly adaptable for monitoring and control tasks across diverse industrial processes.
The module is well-suited for process control applications, where accurate, real-time measurement of temperature, pressure, and flow is critical for optimizing system performance and ensuring operational efficiency.

Advantages

High Precision: The DSAI 301 ensures accurate data acquisition through a low input impedance (1 MΩ) and a fast conversion time of 1 ms, essential for high-precision control in real-time systems.
Versatility in Signal Handling: The module supports both differential and single-ended input signals, offering flexibility to accommodate various industrial sensors and expanding the system's capability.
Enhanced Reliability: Built for industrial environments, the DSAI 301 operates effectively in temperatures ranging from -20°C to 60°C, ensuring consistent and reliable performance even in harsh conditions.

Technical FAQs

How many input channels does the DSAI 301 support?
The DSAI 301 offers 8 input channels, allowing it to simultaneously handle multiple sensor signals.
What is the voltage range that the DSAI 301 can handle?
The module supports a voltage range of ±10 V DC, making it compatible with a wide array of voltage-based sensors.
What types of input signals can the DSAI 301 process?
It can process both differential and single-ended signals, providing flexibility for integration with various sensor types.
What is the conversion speed of the DSAI 301?
The unit offers a fast conversion time of 1 ms, allowing it to capture and process data quickly for high-speed applications.
What is the operating voltage for the DSAI 301?
The module operates on a 24 V DC supply, which is commonly used in industrial automation systems.
Can the DSAI 301 be used in extreme environmental conditions?
Yes, the unit is designed to operate in temperatures ranging from -20°C to 60°C, making it suitable for use in harsh industrial environments.
Is the DSAI 301 compatible with other ABB DS system components?
Yes, the DSAI 301 is designed to integrate seamlessly with other ABB Distributed System components, ensuring smooth operation and communication across the system.
How accurate is the data acquisition from the DSAI 301?
The DSAI 301 provides high-accuracy data acquisition, with a low input impedance and fast conversion time, ensuring precise monitoring and control.
What types of industrial applications is the DSAI 301 suitable for?
The DSAI 301 is ideal for applications that require precise measurement of physical parameters, including temperature, pressure, and flow, in industries such as power generation, water treatment, and manufacturing.
What is the input impedance of the DSAI 301?
The DSAI 301 has an input impedance of 1 MΩ, ensuring minimal signal distortion and high accuracy when processing analog inputs.
