Introduction

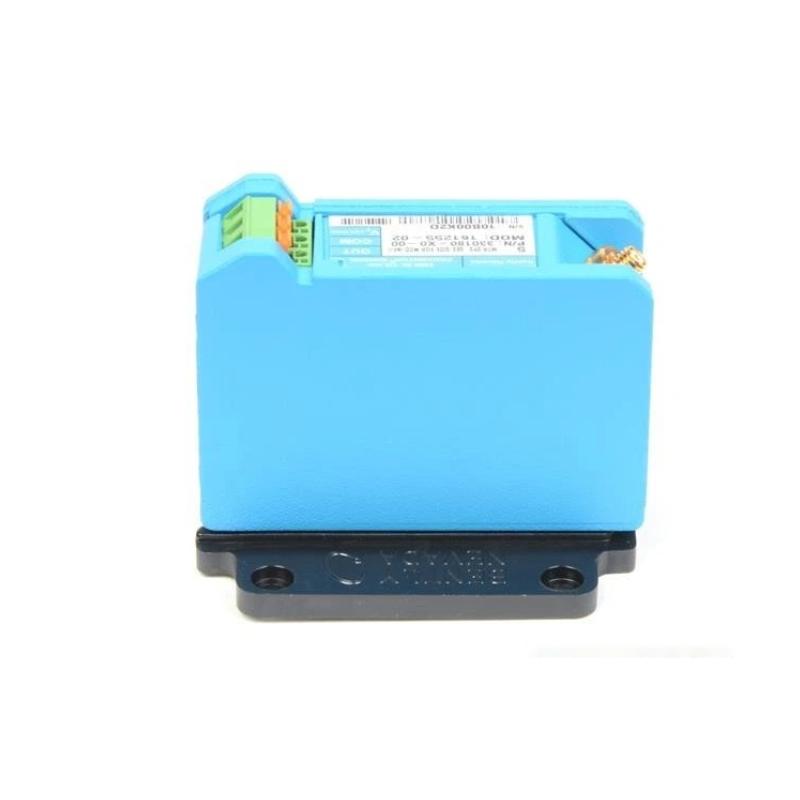

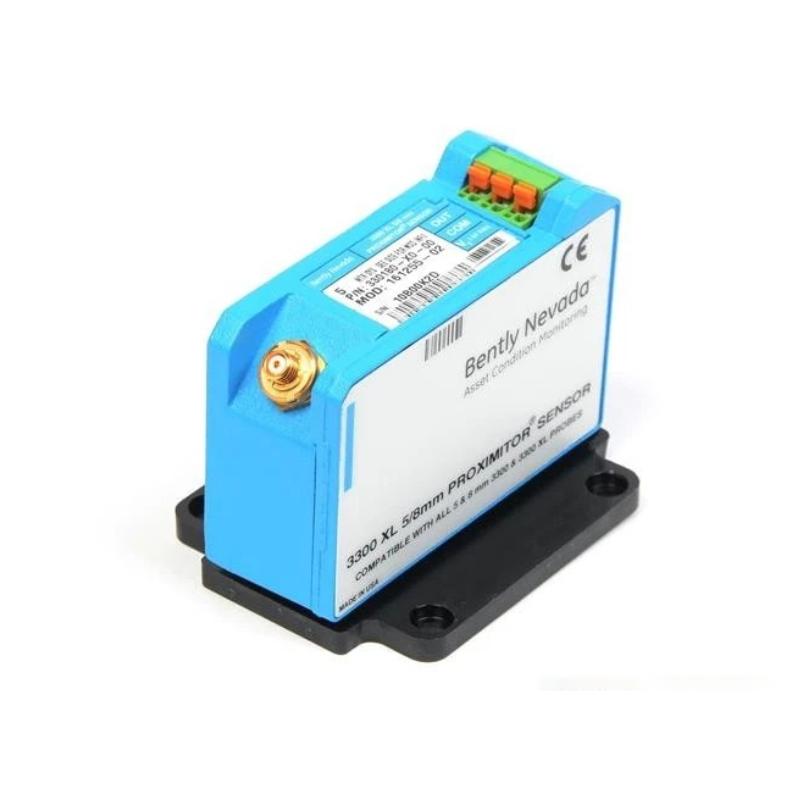

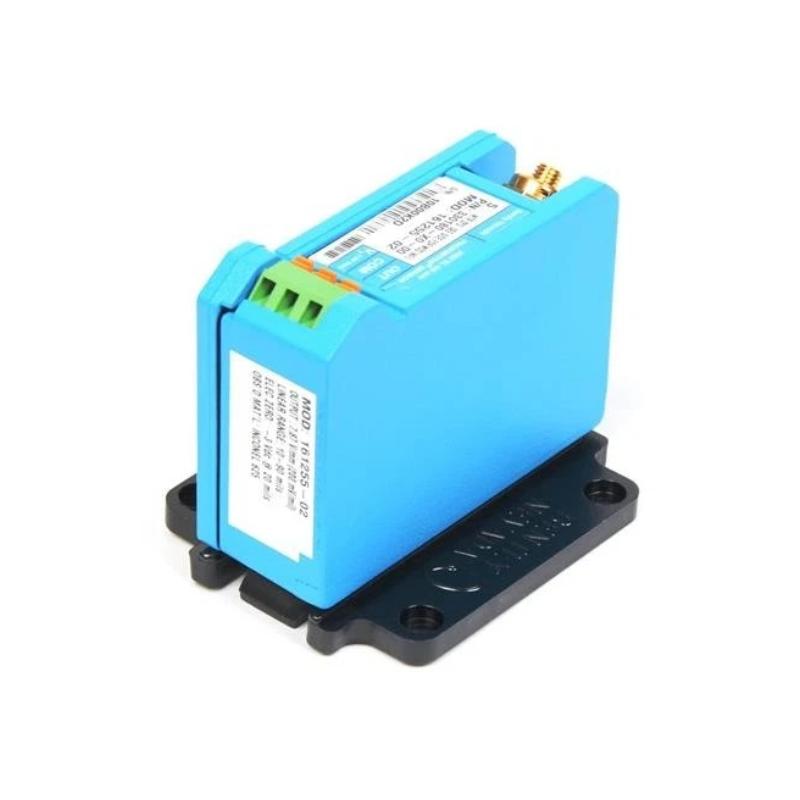

The Bently Nevada 330180-X0-00 / 143416-107 is a 3300 XL Proximitor Sensor intended for use in 5 mm and 8 mm non-contact proximity transducer systems. When paired with the appropriate proximity probe and extension cable, it converts changes in the distance between the probe tip and a conductive shaft surface into a proportional electrical signal.
Designed for rotating-machinery condition monitoring, this Proximitor Sensor is well suited to applications where direct shaft vibration and position measurements are more useful than relying solely on casing measurements. Typical equipment includes steam and gas turbines, compressors, pumps, motors, generators, and other fluid-film-bearing machinery.
The X0 configuration is associated with a 5-meter system and panel-mount arrangement, providing a convenient solution for installations where the Proximitor Sensor is located within a conventional instrumentation panel. The additional identifier 143416-107 is included with the product designation for identification purposes and can be useful when matching an existing installation or spare-parts record.
The 3300 XL platform is also designed around interchangeable system components, allowing compatible probes, extension cables, and Proximitor Sensors to be configured as a complete measurement chain. This makes the 330180-X0-00 a practical option for both new monitoring installations and maintenance replacement work.
Technical Specifications
The 330180-X0-00 is the Proximitor Sensor component rather than the complete proximity probe assembly. A complete 3300 XL 8 mm transducer system normally consists of a compatible probe, extension cable, and Proximitor Sensor.
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model | 330180-X0-00 |
| Additional Identification | 143416-107 |
| Product Family | 3300 XL 5/8 mm Proximity Transducer System |
| Product Type | Proximitor Sensor |
| Mounting Configuration | Panel Mount |
| System Length | 5 m (16.4 ft) |
| Measurement Technology | Eddy-current, non-contact proximity measurement |
| Compatible Probe System | 3300-series 5 mm, 3300 8 mm, and 3300 XL 8 mm probes |
| Primary Measurements | Shaft vibration and shaft position |
| Additional Measurement Functions | Keyphasor reference and speed measurement when appropriately configured |
| Linear Range | 0.2 to 1.5 mm (8 to 60 mils) |
| Standard Test Gap | 1.27 mm (50 mils) |
| Power Supply | -17.5 to -26 Vdc without barriers |
| Maximum Consumption | Approximately 12 mA |
| Nominal Output Resistance | 50 Ω |
| Sensor Housing Material | A308 aluminum |
| Typical Sensor Weight | 246 g (8.67 oz) |
| Typical Complete System Weight | Approximately 0.7 kg (1.5 lb) |
| Approx. Mounting Height | 83.8 mm (3.30 in) |
| System Configuration | 5 m total system length |
| Installation | Industrial instrumentation panel |
Applications
Turbine Shaft Vibration Monitoring
The 330180-X0-00 can be integrated into turbine monitoring systems where continuous shaft vibration and position information is required. Direct shaft measurement can provide valuable insight into rotor behavior and changing operating conditions.
Compressor Condition Monitoring
Large centrifugal and process compressors can experience imbalance, misalignment, rotor movement, and bearing-related problems. A properly configured proximity system provides direct shaft-motion information that can support machinery protection and predictive maintenance.
Pumps and Motors
Industrial pumps and motors often operate continuously and under changing loads. Shaft proximity measurements can complement other vibration measurements and help maintenance personnel identify changes in machine behavior.
Generator Monitoring
Large generators and other rotating electrical equipment can use proximity transducers to monitor rotor movement. Shaft vibration and position information can become part of a broader machinery-protection strategy.
Fluid-Film Bearing Machines
The 3300 XL 8 mm system is especially appropriate for fluid-film bearing machines because direct shaft measurements can provide useful information about rotor position and dynamic movement.
Keyphasor and Speed Measurement
When paired with the appropriate probe and monitoring equipment, the proximity system can also provide Keyphasor reference or speed-related information for rotating machinery.
Advantages
Convenient 5-Meter Configuration
The 330180-X0-00 provides a 5-meter system configuration, making it a practical choice when the Proximitor Sensor can be positioned reasonably close to the monitored machine.
Traditional Panel Mounting
The panel-mount arrangement provides a familiar installation format for existing machinery-monitoring cabinets. This can be particularly beneficial when replacing older Proximitor Sensors without changing the overall cabinet architecture.
Non-Contact Measurement
Eddy-current sensing allows the associated probe to measure shaft movement without physical contact with the rotating surface. This makes the technology well suited to high-speed machinery and continuous monitoring.
Flexible 5/8 mm Compatibility
The 3300 XL Proximitor Sensor accepts compatible 3300-series 5 mm, 3300 8 mm, and 3300 XL 8 mm probes and extension cables. This provides useful flexibility for facilities maintaining established 3300-series systems.
Interchangeable System Architecture
The 3300 XL platform is designed so that compatible probes, extension cables, and Proximitor Sensors can be used as a matched system without requiring individual component bench calibration in standard configurations.
Strong Industrial Performance
The 3300 XL 8 mm platform is designed for stable measurement of both static shaft position and dynamic vibration. This makes it a dependable foundation for machinery protection, monitoring, and condition-based maintenance.
Practical Retrofit Solution
For plants already operating Bently Nevada proximity monitoring channels, the 330180-X0-00 can provide a straightforward replacement option when the existing probe, cable, system length, mounting, and electrical requirements are compatible.
Technical FAQs
1. What is the Bently Nevada 330180-X0-00?
The 330180-X0-00 is a 3300 XL Proximitor Sensor used with compatible 5 mm or 8 mm proximity probes and extension cables for non-contact shaft vibration and position measurement.
2. What is 143416-107?
143416-107 is an additional identification associated with the product designation provided for this item. When ordering a replacement, the complete marking on the existing hardware should be checked to ensure the correct configuration is selected.
3. Is the 330180-X0-00 itself an 8 mm probe?
No. It is the Proximitor Sensor. The 8 mm proximity probe is a separate sensing component installed near the monitored shaft.
4. What does the X0 configuration indicate?
The X0 configuration corresponds to the 5-meter system and panel-mount arrangement within the 3300 XL Proximitor Sensor ordering structure.
5. What is the measurement range?
The standard 3300 XL 8 mm system has a published linear range of approximately 0.2 to 1.5 mm (8 to 60 mils) under specified test conditions.
6. What power supply is required?
The standard system requires approximately -17.5 to -26 Vdc without barriers, with maximum current consumption of approximately 12 mA.
7. How much does the Proximitor Sensor weigh?
The Proximitor Sensor itself weighs approximately 246 g (8.67 oz). A complete transducer system, including probe and extension cable, is typically around 0.7 kg (1.5 lb).
8. What are the dimensions of the 330180-X0-00?
The published mounting information for the panel-mounted 3300 XL Proximitor Sensor indicates a housing height of approximately 83.8 mm (3.30 in). Actual installation space should include room for connectors, field wiring, and cable routing.
9. Can it be used with existing 3300-series probes?
Yes, the 3300 XL Proximitor Sensor is designed to accept compatible 3300-series 5 mm, 3300 8 mm, and 3300 XL 8 mm proximity probes and extension cables. The complete system configuration should be verified before mixing components.
10. What should be checked before ordering a replacement?
Confirm the full part number, additional identification such as 143416-107, 5-meter system length, panel-mount configuration, probe type, extension cable, power requirements, monitoring-system interface, and any required approvals. Matching the complete configuration is especially important for critical machinery-protection applications.
