Introduction

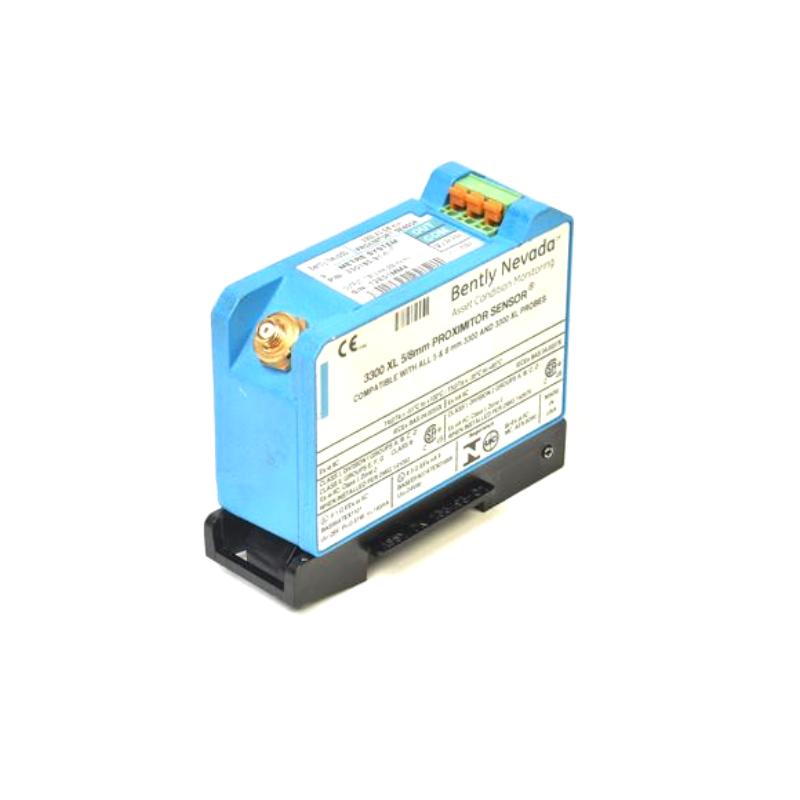

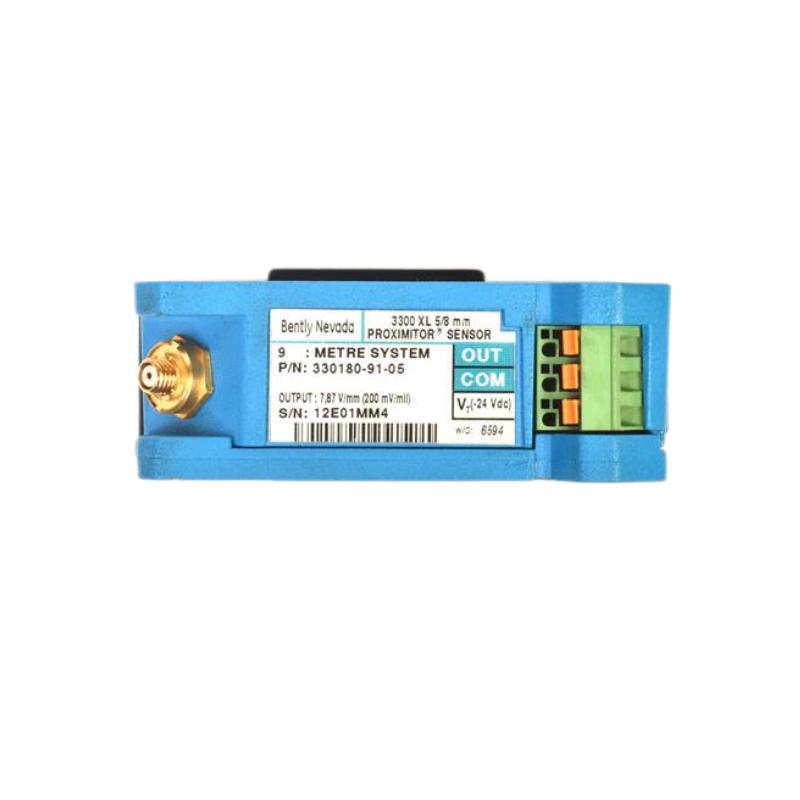

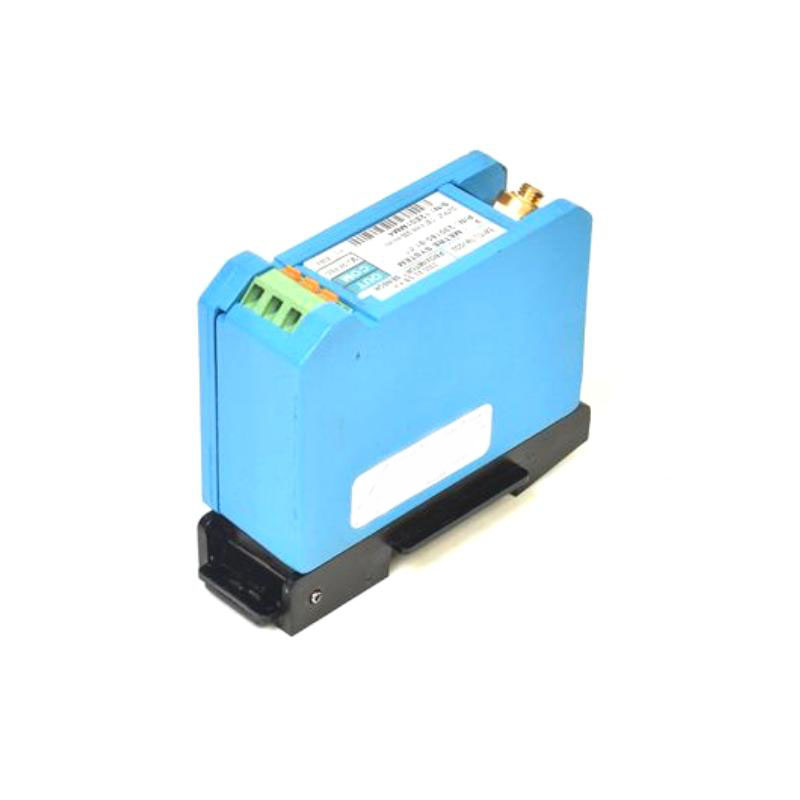

The Bently Nevada 330180-91-AE is a 3300 XL 5/8 mm Proximitor Sensor designed for use in non-contact shaft measurement systems on critical rotating machinery. It works with a compatible proximity probe and extension cable to detect changes in the gap between the probe tip and the monitored shaft, producing a signal proportional to shaft displacement.
As part of the established 3300 XL proximity monitoring platform, the 330180-91-AE is a practical choice for turbine, compressor, pump, motor, generator, and other high-value rotating equipment where dependable shaft vibration and position information is essential. Its configuration is particularly useful for installations that require a DIN-rail mounting arrangement, helping engineers keep monitoring hardware organized within a compact instrumentation cabinet.
The 3300 XL design also provides a convenient solution for plants maintaining existing Bently Nevada machinery protection systems. When the sensor, probe, and extension cable are correctly matched, the resulting transducer system provides continuous shaft-motion information that can support machinery protection, condition monitoring, and predictive maintenance programs.
Technical Specifications
The 330180-91-AE is identified as a 3300 XL 5/8 mm Proximitor Sensor. The complete proximity measurement system requires compatible components, so system length and probe selection should be confirmed against the existing installation before replacement.
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model | 330180-91-AE |
| Product Family | 3300 XL 5/8 mm Proximity Transducer System |
| Product Type | Proximitor Sensor |
| Mounting Style | DIN-rail mounting |
| Measurement Technology | Eddy-current, non-contact proximity measurement |
| Compatible System | 3300 XL 5 mm / 8 mm proximity system |
| Primary Measurement | Shaft vibration and shaft position |
| Typical Equipment | Turbines, compressors, pumps, motors, generators and gearboxes |
| Sensor Function | Converts probe gap variation into an electrical measurement signal |
| Installation | Instrumentation cabinet / DIN-rail installation |
| System Configuration | Determined by matched probe and extension cable |
| Dimensions | DIN-rail sensor housing; overall installation dimensions depend on mounting arrangement |
| Weight | Approximately 0.2–0.25 kg class; exact shipping weight varies with packaging and accessories |
| Application Type | Machinery protection and condition monitoring |
Applications
Steam and Gas Turbine Monitoring
The 3300 XL 8 mm proximity system is widely suited to turbine applications where shaft vibration and axial or radial shaft movement need to be observed continuously. Properly positioned proximity probes can provide direct information about rotor behavior.
Compressor Protection
Large compressors can be affected by imbalance, misalignment, rotor movement, bearing deterioration, and other mechanical conditions. A proximity transducer system provides a direct measurement of shaft motion that can complement other machine-monitoring signals.
Pump and Motor Applications
Industrial pumps and motors often operate continuously under demanding loads. Monitoring shaft vibration and position can help maintenance personnel identify changes in machine behavior before they develop into more serious mechanical issues.
Generator and Rotating Electrical Equipment
The sensor can be integrated into monitoring arrangements for generators and other large rotating electrical machines where non-contact shaft measurement is required.
Gearbox and Mechanical Drive Systems
Gearboxes and coupled rotating equipment can develop alignment, bearing, and rotor-related problems. Shaft proximity measurements can provide an additional source of diagnostic information for critical drive trains.
Continuous Condition Monitoring
When connected to an appropriate machinery monitoring system, the 330180-91-AE can form part of a continuous measurement chain. Long-term trends can help engineers compare current machine behavior with established operating conditions.
Advantages
Established 3300 XL Architecture
The 3300 XL platform has been developed specifically for industrial rotating-machinery monitoring. Using a compatible Proximitor Sensor can make maintenance of an existing 3300 XL installation more straightforward.
DIN-Rail Installation
The 330180-91-AE offers a convenient DIN-rail mounting format for instrumentation cabinets. This can simplify cabinet organization and make the sensor easier to integrate into a structured control or machinery-protection panel.
Non-Contact Shaft Measurement
The eddy-current measurement principle allows the associated probe to monitor shaft movement without physical contact. This eliminates mechanical contact at the sensing interface and is well suited to continuously rotating machinery.
Flexible System Configuration
The Proximitor Sensor can be paired with compatible probes and extension cables to accommodate different machine layouts. This allows engineers to select a suitable probe location and position the electronics at a practical instrumentation point.
Useful for Critical Machinery
For equipment where unplanned downtime can have significant operational consequences, direct shaft measurements can provide valuable information for protection and maintenance decisions.
Maintenance-Friendly Replacement
The recognizable 3300 XL system architecture can be advantageous for facilities already operating Bently Nevada monitoring equipment. Matching the existing part number and system configuration can reduce unnecessary changes during maintenance.
Technical FAQs
1. What is the Bently Nevada 330180-91-AE?
The 330180-91-AE is a 3300 XL 5/8 mm Proximitor Sensor used as part of a Bently Nevada non-contact proximity measurement system for rotating machinery.
2. Is the 330180-91-AE an 8 mm proximity probe?
No. The 330180-91-AE is the Proximitor Sensor, not the probe itself. A complete system normally combines the Proximitor Sensor with a compatible proximity probe and extension cable.
3. What does 5/8 mm mean in the product description?
The designation identifies compatibility with the 3300 XL 5 mm and 8 mm proximity probe system family. It does not mean that the sensor itself has a 5 mm or 8 mm physical sensing tip.
4. What type of mounting does the 330180-91-AE use?
The -91 configuration is associated with DIN-rail mounting, making it suitable for installation within an appropriately configured instrumentation cabinet.
5. What does the Proximitor Sensor measure?
Working with the correct probe and cable, the system can measure shaft vibration and shaft position by detecting changes in the distance between the probe and the conductive shaft surface.
6. What equipment can use this proximity system?
Typical applications include steam turbines, gas turbines, compressors, pumps, motors, generators, gearboxes, and other rotating machinery where shaft displacement information is required.
7. Can the 330180-91-AE replace another 3300 XL Proximitor Sensor?
Potentially, but replacement should not be based on the model family alone. The mounting configuration, probe type, cable length, electrical characteristics, approvals, and existing monitoring-system requirements should all be checked.
8. Does the 330180-91-AE include the proximity probe?
No. The Proximitor Sensor is one part of the complete transducer system. The required probe and extension cable must be selected to match the installation.
9. What should be checked before ordering a replacement?
Confirm the complete existing part number, mounting style, probe diameter, cable length, installation environment, certification requirements, and the interface with the existing machinery monitoring system. These details are particularly important for critical-machine protection systems.
10. Why choose a 3300 XL proximity system for rotating equipment?
A properly configured proximity system provides direct, non-contact information about shaft movement. This makes it valuable for continuous monitoring of vibration and shaft position and for identifying changes in rotating-machine behavior.
