Introduction

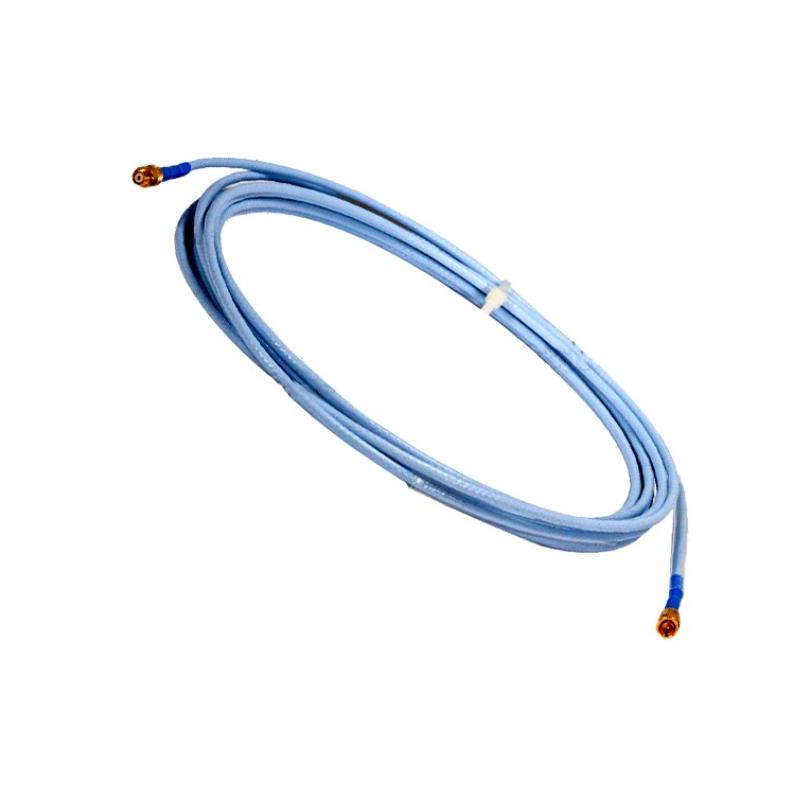

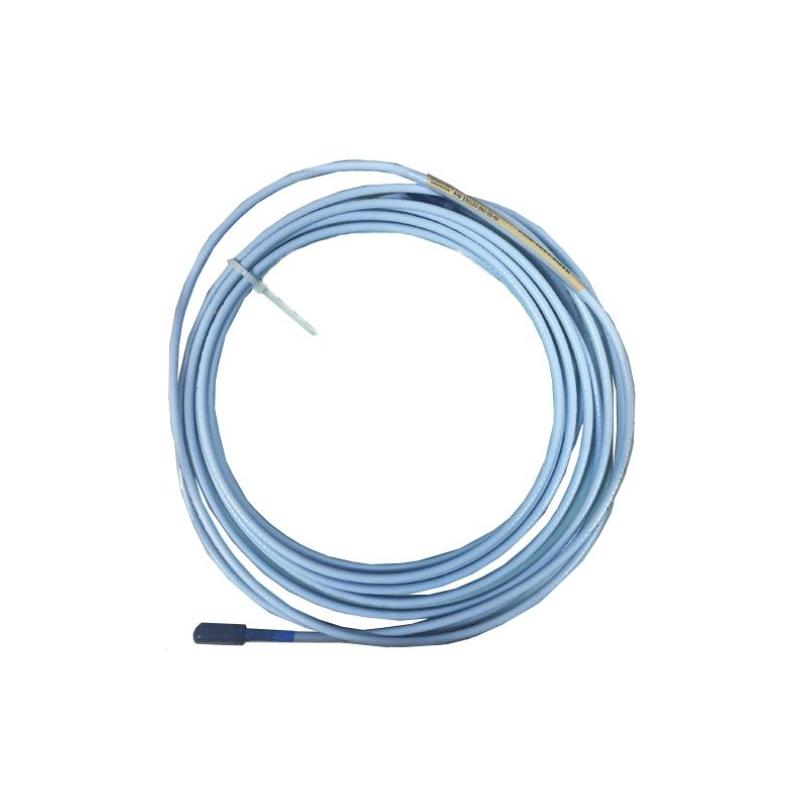

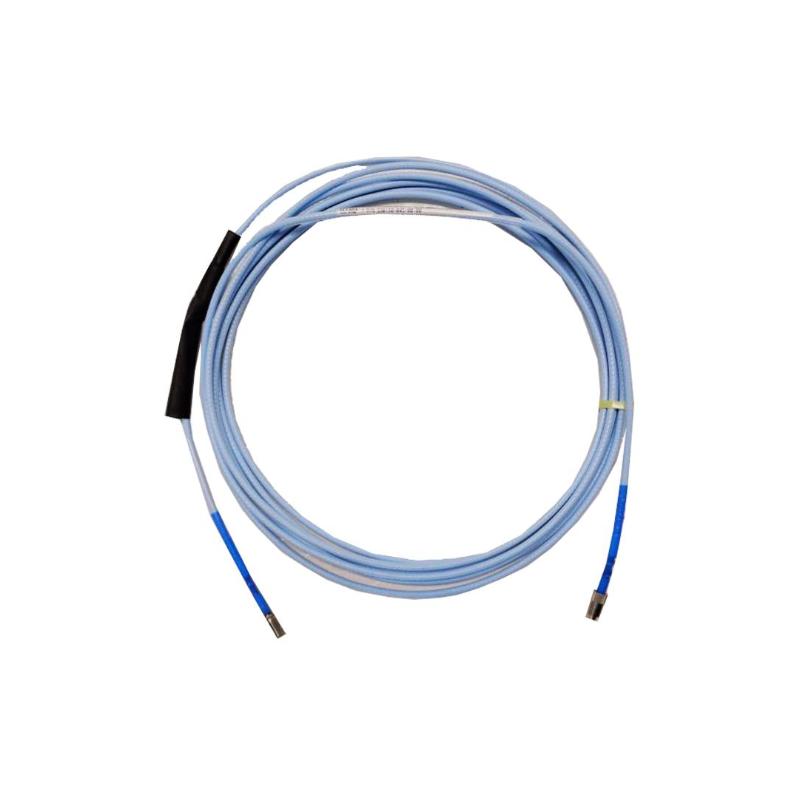

The Bently Nevada 330130-065-00-05 is a 6.5-meter 3300 XL Standard Extension Cable designed for compatible 3300 XL proximity measurement systems. It provides additional installation reach between the sensing probe and associated monitoring electronics while retaining the compact standard cable configuration.
The 065 designation identifies the 6.5-meter cable length, while 00 specifies the standard cable configuration. The final 05 identifies the multiple-agency approval option associated with CSA, ATEX, and IECEx approvals. This combination makes the model a useful choice for installations where a longer cable run is required and the applicable hazardous-area certification must be taken into consideration.
Compared with shorter 3300 XL extension options, the 330130-065-00-05 provides extra routing flexibility without moving to an armored construction. Its relatively compact form makes it well suited to organized cable routes around turbines, compressors, pumps, motors, and other critical rotating equipment.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330130-065-00-05 |
| Product Series | 3300 XL |
| Product Type | Standard Extension Cable |
| Cable Length | 6.5 m (21.3 ft) |
| Length Option | 065 |
| Cable Option | 00 – Standard cable |
| Approval Option | 05 – CSA, ATEX, IECEx approvals |
| Cable Construction | Standard, unarmored configuration |
| Connector Configuration | Standard cable configuration |
| Typical Application | 3300 XL proximity measurement systems |
| Cable Diameter | Approximately 3.2 mm |
| Approx. Cable Weight | Approximately 0.034 kg* |
| Shipping Weight | Approximately 1 kg* |
| Power Requirement | Passive cable assembly |
| Country of Manufacture | USA |
Applications
Extended Proximity Measurement Runs
The 330130-065-00-05 is a practical choice when the distance between a compatible proximity probe and monitoring electronics exceeds the reach provided by shorter extension cables. Its 6.5-meter length gives system designers additional flexibility during equipment layout.
Rotating Machinery Monitoring
The cable can form part of a 3300 XL proximity measurement arrangement used on turbines, compressors, pumps, motors, generators, and other rotating machinery. These systems can support measurement of shaft vibration, displacement, and position as part of a broader machinery-monitoring strategy.
Hazardous-Location Installations
The 05 approval configuration makes this model relevant to installations where the applicable CSA, ATEX, or IECEx requirements are part of the equipment-selection process. Final suitability depends on the certification of the complete measurement system and the specific installation conditions.
Retrofit and Replacement Projects
A 6.5-meter replacement cable can be particularly valuable when an existing machine layout has already established a specific cable length. Matching the complete part number helps avoid unintentionally changing the cable construction or approval configuration during maintenance.
Space-Constrained Instrumentation
Because this is the standard, unarmored configuration, it can be easier to route through cable trays, instrument panels, machinery enclosures, and other locations where a larger armored cable would be unnecessarily bulky.
Advantages
Extended 6.5-Meter Reach
The 6.5-meter length provides a useful middle ground between shorter 4.5- or 6-meter configurations and longer extension options. It can accommodate equipment layouts that require additional reach while keeping cable management relatively straightforward.
Multiple Agency Approval Option
The final -05 configuration is a major selection feature. CSA, ATEX, and IECEx approvals provide an appropriate option for applications where these certification requirements apply. The complete system certification should always be checked before installation.
Slim Standard Construction
The 00 cable configuration provides a compact alternative to armored versions. This is advantageous when the cable is routed through protected areas and additional mechanical armor is not necessary.
Designed for 3300 XL Measurement Architecture
The 330130 family is intended for 3300 XL proximity measurement applications. Selecting the correct extension-cable configuration helps maintain the intended electrical relationship between the probe, extension cable, and associated Proximitor® sensor.
Practical Replacement Solution
For maintenance teams, the clearly defined 330130-065-00-05 part number simplifies identification when replacing an existing cable with the same length and approval configuration. This can help reduce selection errors during planned maintenance.
Better Routing Flexibility
The additional 0.5 meter compared with a 6.0-meter cable may provide useful freedom when equipment locations, junction points, or cable-entry positions make a shorter cable difficult to route cleanly.
Technical FAQs
1. What is the Bently Nevada 330130-065-00-05?
It is a 3300 XL Standard Extension Cable with a nominal length of 6.5 meters and a multiple-agency approval configuration.
2. How long is the 330130-065-00-05?
The cable is 6.5 meters (approximately 21.3 feet) long. The “065” section of the part number identifies the cable-length option.
3. What does the “00” configuration mean?
The 00 designation identifies the standard cable configuration rather than an armored or otherwise enhanced cable construction.
4. What does the final “05” indicate?
The 05 approval option is associated with CSA, ATEX, and IECEx approvals for the applicable 3300 XL configuration.
5. Is the 330130-065-00-05 an armored cable?
No. The 00 cable option represents the standard configuration. If the installation requires additional mechanical armor, a different 330130 configuration should be selected.
6. Is this cable suitable for hazardous-area applications?
The -05 version provides the relevant multiple-agency approval option. However, the actual suitability of a particular installation depends on the complete certified system, area classification, installation method, and applicable local requirements.
7. What is the approximate weight of this cable?
Available product data lists a net weight of approximately 0.034 kg and a shipping weight of approximately 1 kg. These figures should be interpreted according to how the supplier defines the supplied and packaged assembly.
8. Does the cable require its own power supply?
No. The extension cable is a passive component within the proximity measurement system and does not require an independent power source.
9. Can the 330130-065-00-05 replace a 6-meter cable?
It may be suitable where the additional 0.5-meter length is acceptable and the complete system remains correctly configured. However, replacement should be based on the original system requirements rather than cable length alone.
10. What should be checked before ordering this model?
Verify the complete part number, required 6.5-meter length, standard cable construction, approval requirements, compatible proximity probe, associated Proximitor® sensor, and the required total electrical system length. For hazardous-area installations, certification compatibility should also be confirmed.
