Product Overview

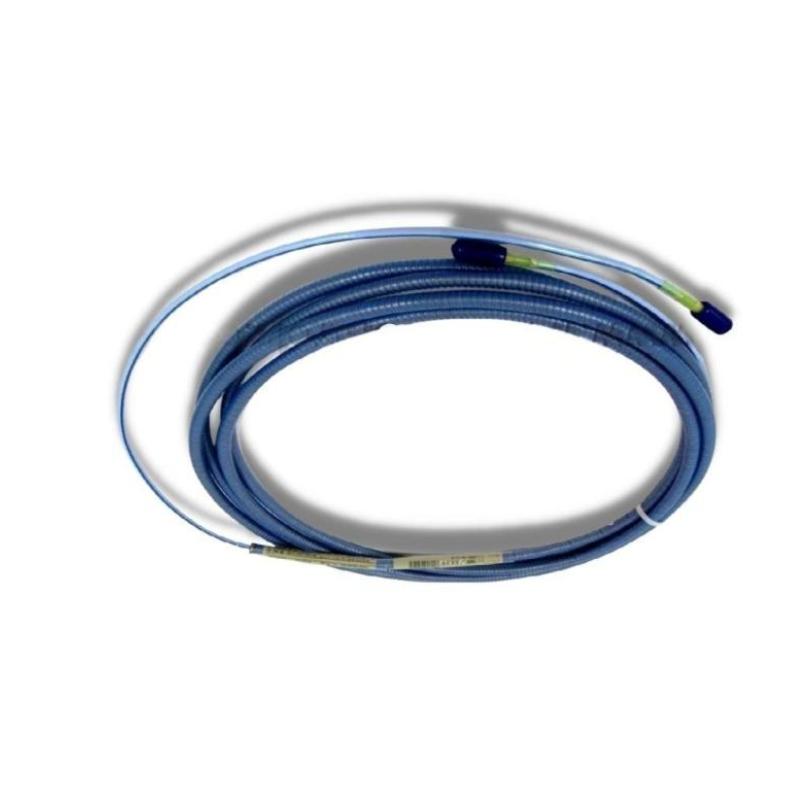

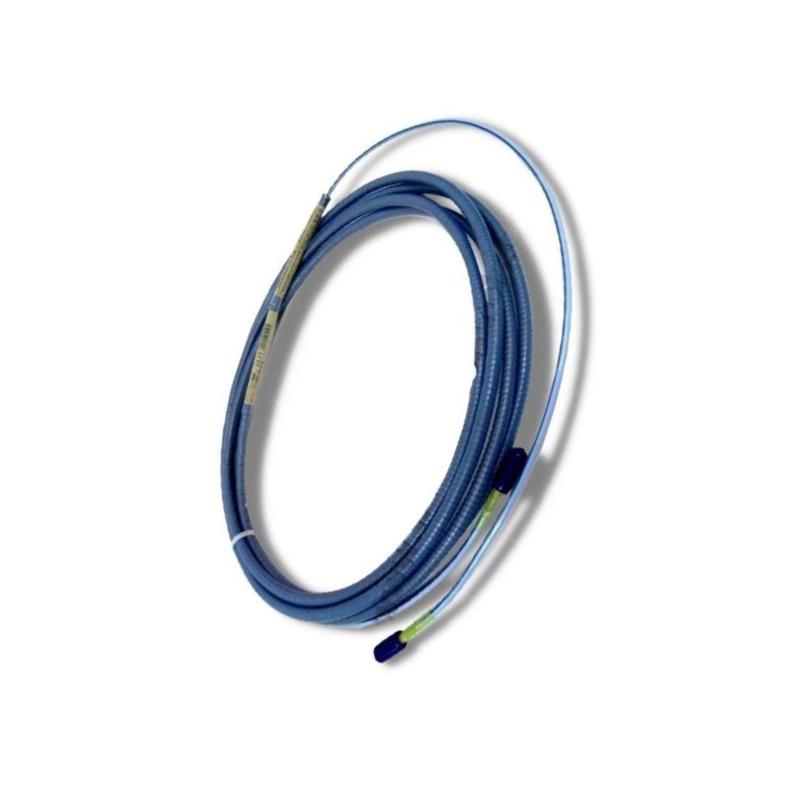

The Bently Nevada 330854-040-24-00 3300 XL 25 mm Extension Cable is engineered to deliver reliable signal transmission for the 3300 XL 25 mm Proximity Transducer System. Designed for demanding industrial environments, this extension cable provides stable electrical performance while maintaining measurement accuracy over extended distances.
Configured with a 4.0-meter (13.1-foot) High Temperature FluidLoc® cable, this model is well suited for applications involving steam turbines, compressors, generators, and other rotating equipment operating under elevated temperatures. Its rugged construction helps minimize moisture ingress, supports long-term durability, and ensures dependable performance in harsh process conditions.
Engineering Specifications
| Item | Description |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330854-040-24-00 |
| Product Type | 3300 XL 25 mm Extension Cable |
| Series | 3300 XL 25 mm Proximity Transducer System |
| Cable Length | 4.0 m (13.1 ft) |
| Cable Option | High Temperature FluidLoc® Cable |
| Cable Material | 75 Ω Triaxial PFA-Insulated FluidLoc Cable |
| Cable Capacitance | Typical 69.9 pF/m |
| Operating Temperature | -35°C to +200°C |
| Storage Temperature | -35°C to +200°C |
| Agency Approval | None (Option 00) |
| Approximate Dimensions | 8.9 × 11.7 × 24.1 cm (packaged reference) |
| Approximate Weight | 0.14 kg |
Typical Industrial Applications
Built for reliable machinery protection and condition monitoring, the 330854-040-24-00 extension cable is commonly installed in industries where accurate vibration and shaft position measurements are critical.
Typical applications include:
-
Steam turbine monitoring
-
Gas turbine protection systems
-
Centrifugal compressors
-
Industrial pumps
-
Electric generators
-
Petrochemical processing plants
-
Power generation facilities
-
Oil & gas production equipment
-
Process manufacturing plants
-
Heavy rotating machinery monitoring
Why Choose This Extension Cable
Reliable performance is essential for vibration monitoring systems, and this extension cable is designed with that objective in mind.
Key advantages include:
-
High-quality signal transmission for precise vibration measurements
-
High Temperature FluidLoc® construction for demanding environments
-
Excellent resistance to moisture and industrial contaminants
-
Durable cable design for long service life
-
Compatible with the 3300 XL 25 mm proximity transducer system
-
Stable electrical characteristics that help maintain sensor accuracy
-
Flexible installation with a practical 4-meter cable length
-
Designed to reduce maintenance requirements and improve system reliability
-
Suitable for continuous operation in high-temperature applications
-
Trusted solution for critical rotating equipment monitoring applications.
Technical FAQs
1. What is the primary purpose of this extension cable?
It connects the proximity probe to the monitoring system while preserving signal integrity and measurement accuracy.
2. What cable length does this model provide?
This configuration includes a 4.0-meter (13.1-foot) extension cable.
3. Which transducer system is it designed for?
It is intended for use with the Bently Nevada 3300 XL 25 mm Proximity Transducer System.
4. What does the "24" configuration represent?
Option "24" specifies the High Temperature FluidLoc® cable configuration.
5. Can it operate in high-temperature environments?
Yes. It is designed for continuous operation up to 200°C under appropriate installation conditions.
6. Is the cable suitable for steam turbine applications?
Yes. It is commonly used in steam turbines and other high-temperature rotating machinery.
7. What insulation material is used?
The cable utilizes PFA-insulated 75 Ω triaxial construction for dependable electrical performance.
8. Does this model include agency approvals?
No. The "00" option indicates that no specific agency approval is included.
9. Can the cable be installed in demanding industrial environments?
Yes. Its rugged construction is intended for harsh industrial operating conditions where durability and reliability are important.
10. Why is using the correct extension cable important?
Selecting the proper cable helps maintain calibrated system performance, ensuring accurate vibration and position measurements throughout the monitoring system.
