FluidLoc Extension Cable Designed for Reliable Industrial Monitoring

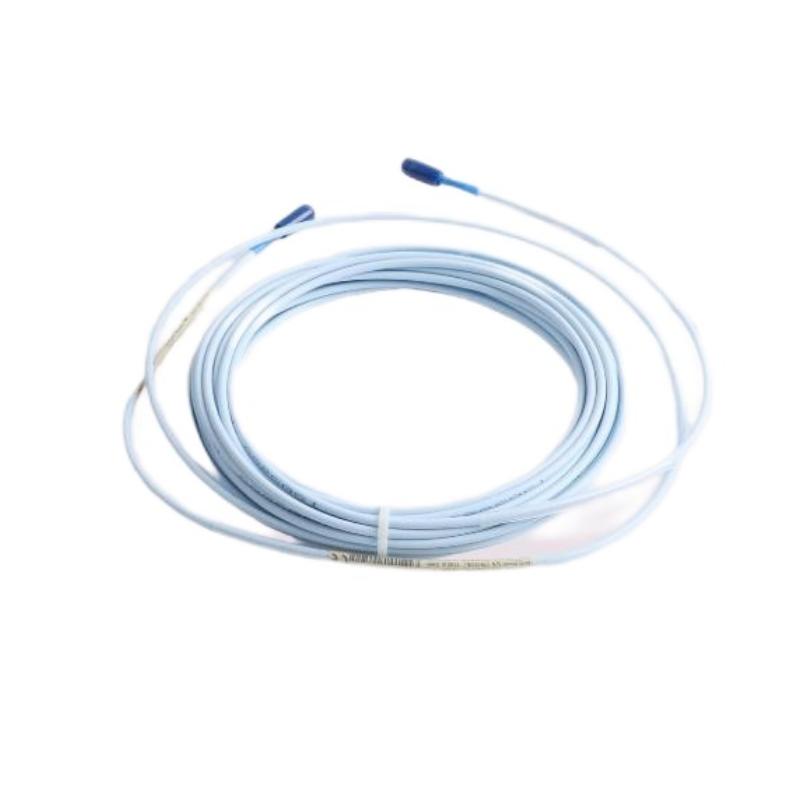

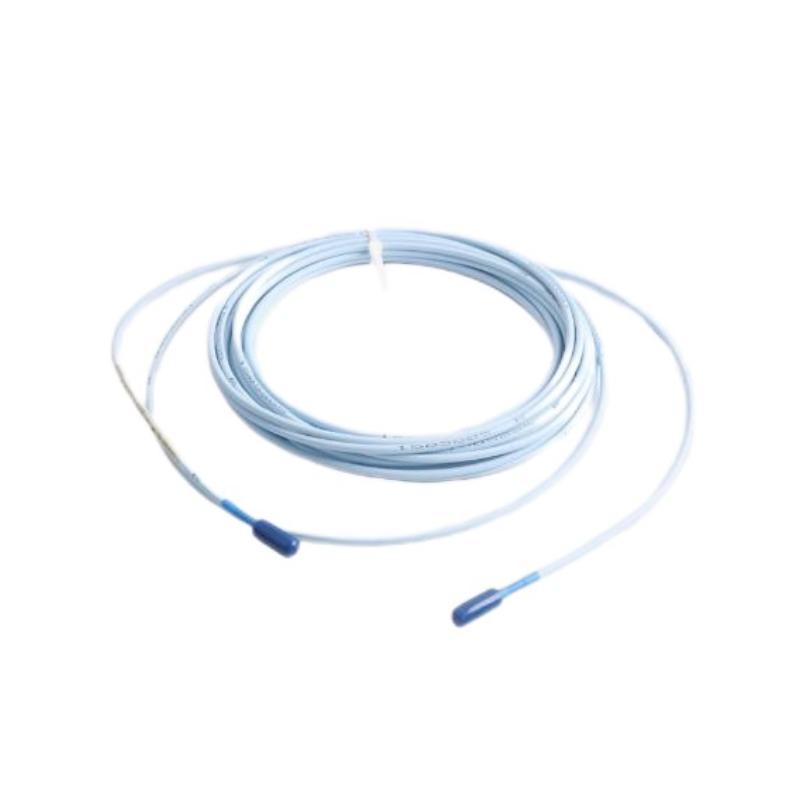

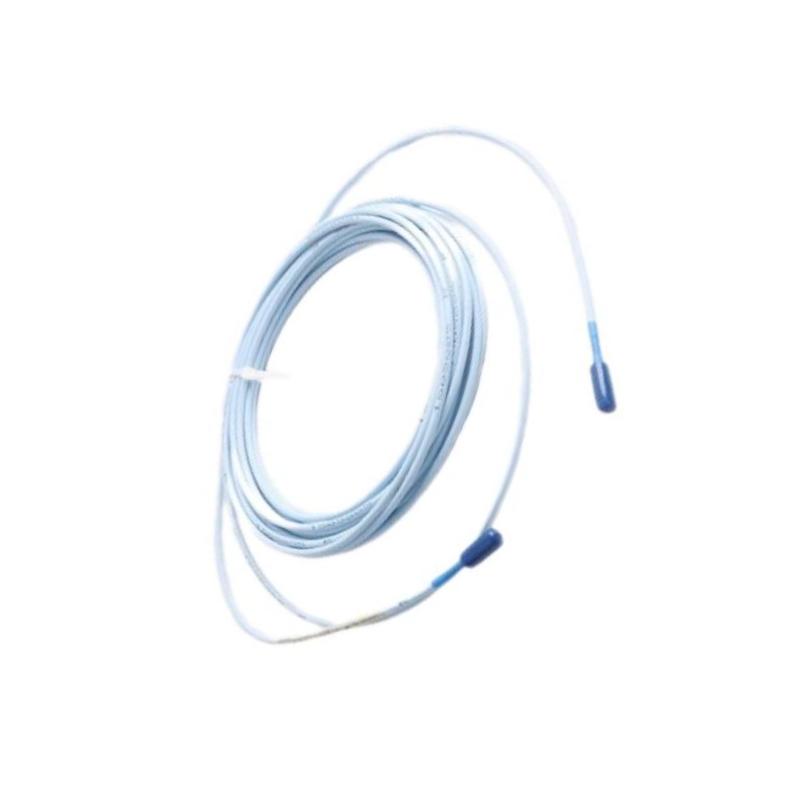

The Bently Nevada 330130-085-10-RU 3300 XL Standard Extension Cord is a specialized extension cable engineered for the 3300 XL 8 mm Proximity Transducer System. It provides a dependable electrical connection between the 3300 XL Proximity Probe and the 3300 XL Proximitor® Sensor, ensuring precise transmission of vibration and shaft position signals while maintaining the calibrated performance of the complete transducer system.
This model features an 8.5-meter FluidLoc® cable, designed to help prevent fluid migration through the cable in applications where oil or other process fluids may be present. Combined with the RU regional configuration, it is well suited for rotating machinery operating in challenging industrial environments, including oil and gas, petrochemical processing, power generation, and heavy manufacturing. The 330130 ordering structure identifies 085 as the 8.5 m cable length and 10 as the FluidLoc cable option.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330130-085-10-RU |
| Product Type | 3300 XL Standard Extension Cord |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Cable Length | 8.5 m (27.9 ft) |
| Cable Option | 10 – FluidLoc® cable |
| Regional Configuration | RU Version |
| Cable Construction | 75 Ω FEP-insulated triaxial cable with FluidLoc technology |
| Compatible Probe | 3300 XL 8 mm Proximity Probe |
| Compatible Sensor | 3300 XL Proximitor® Sensor |
| Primary Function | Probe-to-Proximitor® signal transmission |
| Typical Capacitance | 69.9 pF/m (21.3 pF/ft) |
| Operating Temperature | -52°C to +177°C |
| Approximate Dimensions | 8.5 m cable length |
| Approximate Weight | 0.31 kg |
| Shipping Weight | Approx. 2.0 kg |
Typical Applications
| Industry | Typical Equipment |
|---|
| Oil & Gas | Compressors, pumps, gas turbines |
| Power Generation | Steam turbines, generators |
| Petrochemical | Process compressors and critical pumps |
| Refining | Rotating process equipment |
| Marine | Propulsion systems and auxiliary machinery |
| Industrial Manufacturing | High-speed motors and production equipment |
Typical monitoring applications include:
-
Shaft vibration monitoring
-
Axial position measurement
-
Rotor displacement monitoring
-
Differential expansion measurement
-
Keyphasor® reference systems
-
Key Advantages
FluidLoc Technology for Enhanced Protection
The 10 cable option incorporates FluidLoc® technology, which helps prevent fluid migration inside the cable, making it particularly valuable in applications where oil ingress could affect long-term system reliability.
Flexible 8.5-Meter Installation
The 085 configuration provides an 8.5-meter extension cable, offering installation flexibility while preserving the electrical characteristics required by the 3300 XL monitoring system.
Excellent Signal Integrity
The precision 75 Ω triaxial cable minimizes signal attenuation and electromagnetic interference, supporting accurate vibration and displacement measurements even in electrically noisy industrial environments.
Built for Harsh Industrial Conditions
The rugged cable construction withstands vibration, elevated temperatures, moisture, and industrial contaminants, making it ideal for continuous-duty applications.
Seamless 3300 XL Compatibility
Designed specifically for the 3300 XL 8 mm Proximity Transducer System, this extension cord integrates directly with compatible probes and Proximitor® Sensors to maintain factory-calibrated performance.
Simplified Maintenance
Factory-installed connectors enable quick installation and replacement, helping reduce maintenance time while ensuring dependable electrical connections throughout the monitoring system.
Technical FAQs
1. What is the 330130-085-10-RU used for?
It connects a compatible 3300 XL proximity probe to a 3300 XL Proximitor® Sensor for accurate vibration and shaft position monitoring.
2. What does the "085" option indicate?
It specifies an 8.5-meter (27.9-foot) extension cable.
3. What does the "10" cable option mean?
It identifies the FluidLoc® cable configuration, designed to reduce the risk of fluid migration through the cable.
4. What does the "RU" designation represent?
The RU suffix identifies a regional configuration intended for specific market requirements. Certification requirements should be verified according to the project specification.
5. Which probes are compatible with this extension cord?
It is designed for use with Bently Nevada 3300 XL 8 mm Proximity Probes.
6. Why is the total cable length important?
The combined probe cable and extension cable lengths must match the specified Proximitor® system length to maintain factory calibration and measurement accuracy.
7. What is the benefit of FluidLoc technology?
FluidLoc technology helps prevent oil and other process fluids from migrating through the cable, improving long-term reliability in demanding environments.
8. Is this extension cord suitable for harsh industrial environments?
Yes. It is engineered for continuous operation in demanding industrial applications involving vibration, heat, and exposure to industrial contaminants.
9. Can this cable replace an existing 330130-085-10-RU cable?
Yes. It can be used as a direct replacement when the same cable length and configuration are required.
10. Which machines commonly use this extension cord?
It is commonly installed on turbines, compressors, generators, pumps, and other critical rotating machinery requiring continuous condition monitoring.
