Reliable Signal Extension Cable for 7200 Series Proximity Monitoring Systems

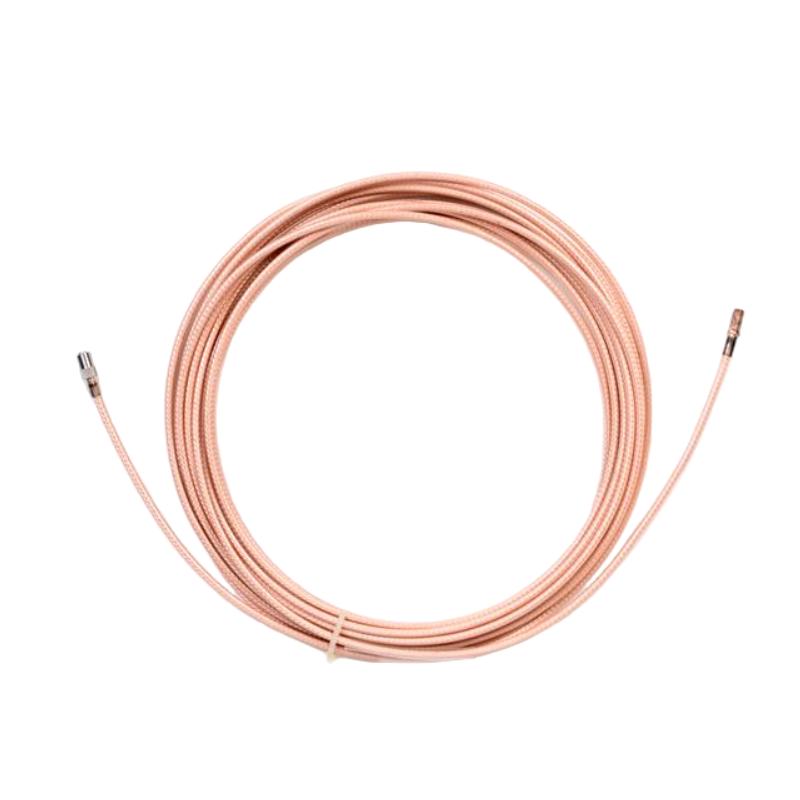

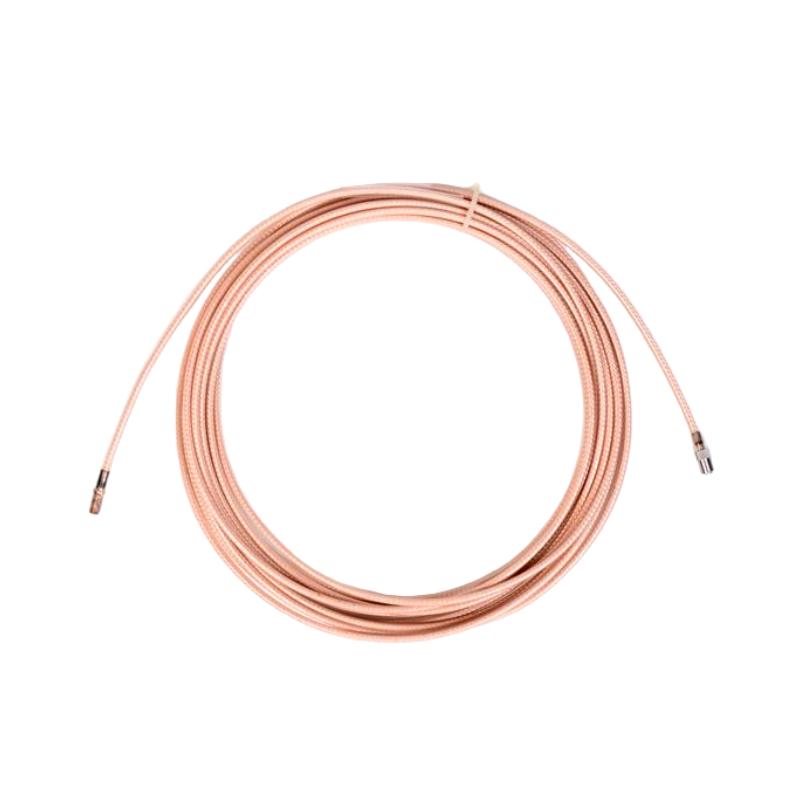

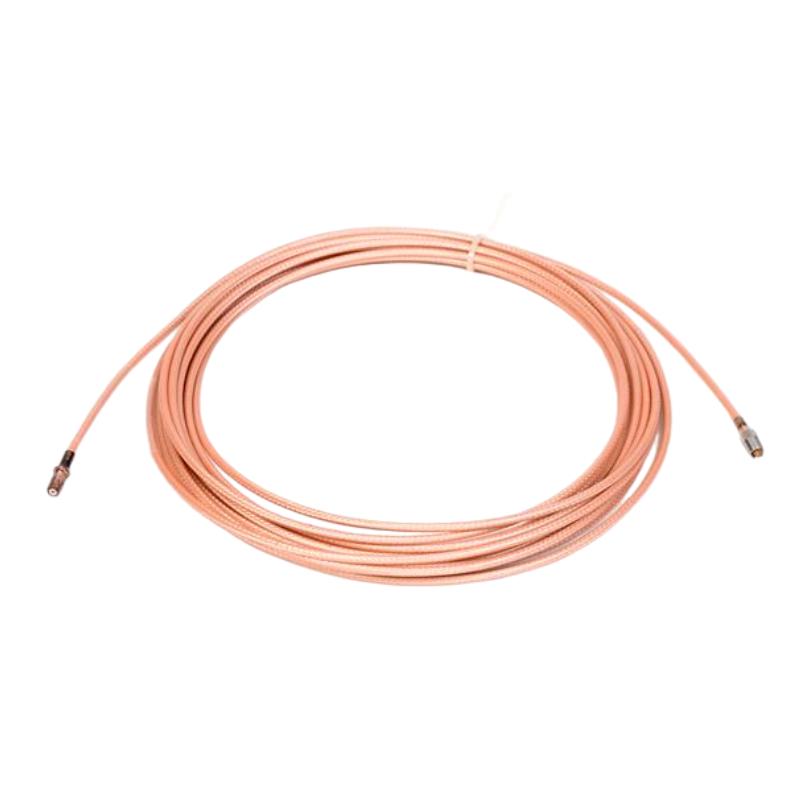

The Bently Nevada 24710-080-00 11 mm Extension Cable is a precision-engineered cable assembly designed for use with the 7200 Series 11 mm Proximity Transducer System. It provides a reliable connection between the 11 mm proximity probe and the Proximitor sensor, ensuring accurate transmission of vibration and shaft position measurement signals in critical rotating equipment applications.

With an 8-meter cable length, straight male/female connector configuration, and optimized electrical characteristics for the 7200 Series system, the 24710-080-00 extension cable helps maintain signal integrity across industrial installations where sensors and monitoring electronics are separated by distance. Its compact design and proven compatibility make it suitable for turbines, compressors, generators, and other machinery requiring continuous condition monitoring.

Technical Specifications

Technical FAQs

1. What is the main function of the Bently Nevada 24710-080-00?

The cable extends the connection distance between an 11 mm proximity probe and its Proximitor sensor while maintaining signal quality for vibration and shaft position monitoring applications.

2. Which system is this extension cable designed for?

The 24710-080-00 is designed for the Bently Nevada 7200 Series 11 mm Proximity Transducer System.

3. What is the cable length of this model?

This model provides an 8-meter (26.2-foot) extension length, suitable for installations where monitoring electronics are located away from the machine casing.

4. Is this cable compatible with 8 mm proximity probes?

No. The 24710-080-00 is designed specifically for 11 mm probe systems and should not be directly substituted for 8 mm probe cables because system calibration characteristics may differ.

5. Does this model include armored cable protection?

No. The 24710-080-00 configuration uses a standard cable design without external armor.

6. What type of connectors are included?

The cable uses a straight male/female connector arrangement designed for connection between compatible 7200 Series components.

7. What measurements are supported by this cable assembly?

When used with the complete 7200 system, it supports non-contact measurement of shaft vibration, radial displacement, and relative position.

8. Why is correct extension cable selection important?

Proximity systems rely on specific electrical characteristics between the probe, extension cable, and Proximitor sensor. Using the correct cable length and model ensures accurate calibration and reliable measurements.

9. What equipment commonly uses the 24710-080-00?

It is commonly installed on turbines, compressors, generators, pumps, and other rotating machinery requiring continuous condition monitoring.

10. Why choose the Bently Nevada 24710-080-00?

Its dedicated compatibility with the 7200 Series 11 mm system, reliable construction, and optimized signal performance make it a dependable choice for industrial machinery protection applications.
