Stainless Steel Housing Assembly Designed for Reliable Probe Installation

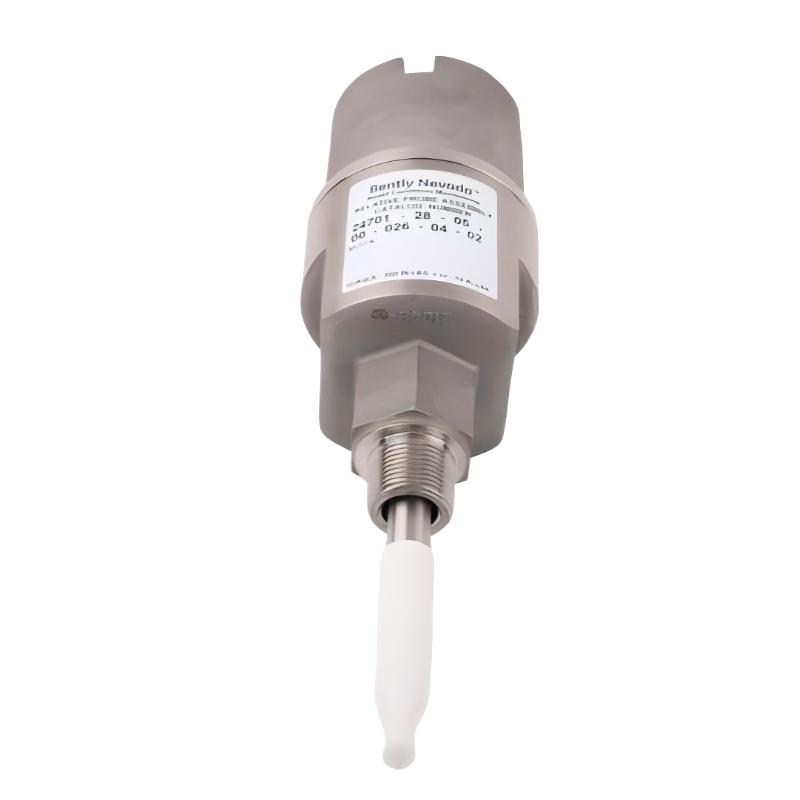

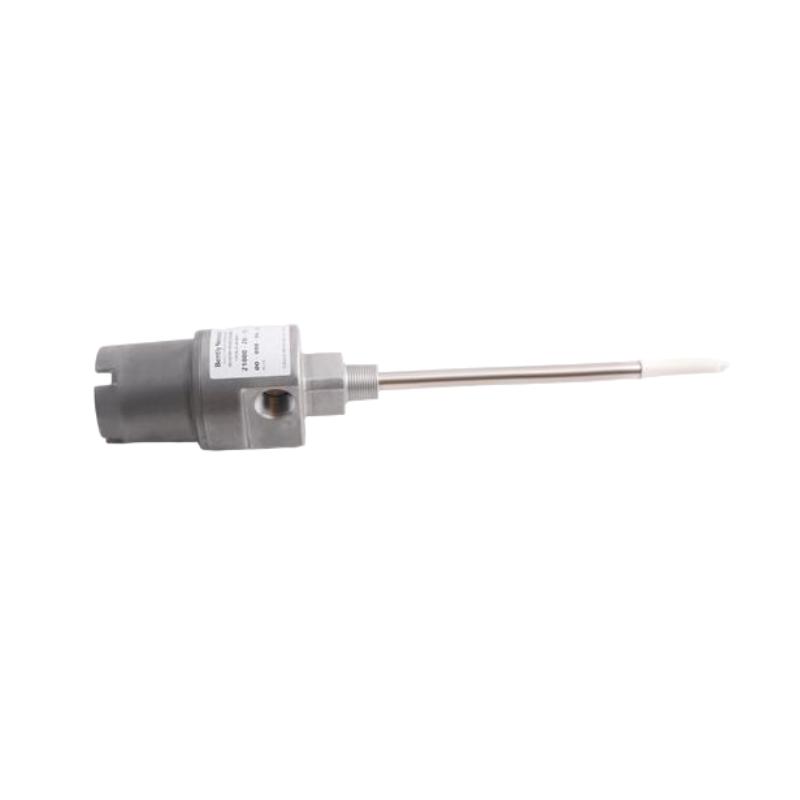

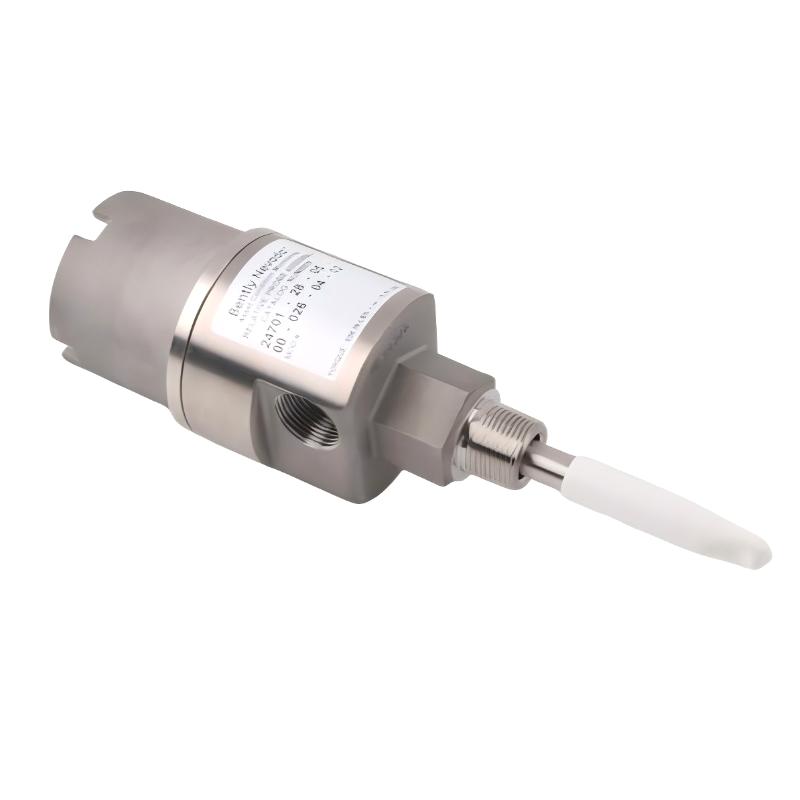

The Bently Nevada 24701-16-10-00-037-00-01 Proximity Probe Housing Assembly is a durable external mounting solution designed to provide secure installation and easy maintenance access for proximity probes used in critical rotating machinery monitoring systems. Built as part of the 24701 Stainless Steel Proximity Probe Housing Assembly Series, this model supports reliable shaft vibration and displacement measurement applications where mechanical protection, installation flexibility, and long-term stability are essential.

Configured with a 3300 XL 8 mm proximity probe, 1.0-meter probe cable, no standoff adapter, 3.7-inch probe penetration, no additional fittings, and a 3/4-14 NPT mounting connection, this assembly provides a practical solution for applications requiring external probe access without dismantling machine components. The stainless steel housing design offers excellent durability in industrial environments and supports demanding applications across power generation, oil and gas, and process industries.

Technical Specifications

Technical FAQs

1. What is the main purpose of the Bently Nevada 24701-16-10-00-037-00-01?

This assembly provides a protected mounting enclosure for proximity probes used to measure shaft vibration, displacement, and position on rotating equipment.

2. Which probe is configured with this housing assembly?

This model includes the 3300 XL 8 mm proximity probe configuration, designed for accurate non-contact shaft measurement.

3. What does the “16” option represent?

The 16 option identifies the housing assembly configuration with a 3300 XL 8 mm probe with connector.

4. What does the “10” option indicate?

The 10 option specifies a 1.0-meter (39-inch) probe cable length, providing additional installation flexibility between the probe and monitoring electronics.

5. What is the meaning of the “037” code?

The 037 option represents a 3.7-inch probe penetration length, defining how far the probe extends into the monitored machine housing.

6. Does this model include a standoff adapter?

No. The 00 standoff adapter option indicates that no additional standoff adapter is included.

7. What material is used for the housing?

The 24701 series uses a 303 stainless steel body with a 304 stainless steel sleeve, providing strong resistance against industrial corrosion and mechanical stress.

8. Why use a proximity probe housing assembly?

A housing assembly allows external access to the proximity probe and extension cable, simplifying gap adjustment, inspection, and probe replacement without removing major machine components.

9. What machines typically use this assembly?

It is commonly installed on turbines, compressors, generators, pumps, motors, and other rotating machinery requiring continuous shaft condition monitoring.

10. Why choose the 24701 series housing?

The 24701 series provides a rugged stainless steel mounting platform designed for reliable proximity probe installation, helping improve equipment protection and reduce maintenance complexity in critical industrial applications.
