High-Performance Probe for Continuous Condition Monitoring

The Bently Nevada 21504-00-16-10-02 7200 8 mm Standard Mount Probe is a precision eddy current proximity probe engineered for accurate, non-contact measurement of shaft vibration, displacement, and axial position in rotating machinery. As a key component of the 7200 Proximity Transducer System, this probe provides stable, repeatable signal output that supports predictive maintenance programs and helps maximize equipment availability. Its rugged design and proven sensing technology make it a dependable choice for continuous operation in demanding industrial environments.

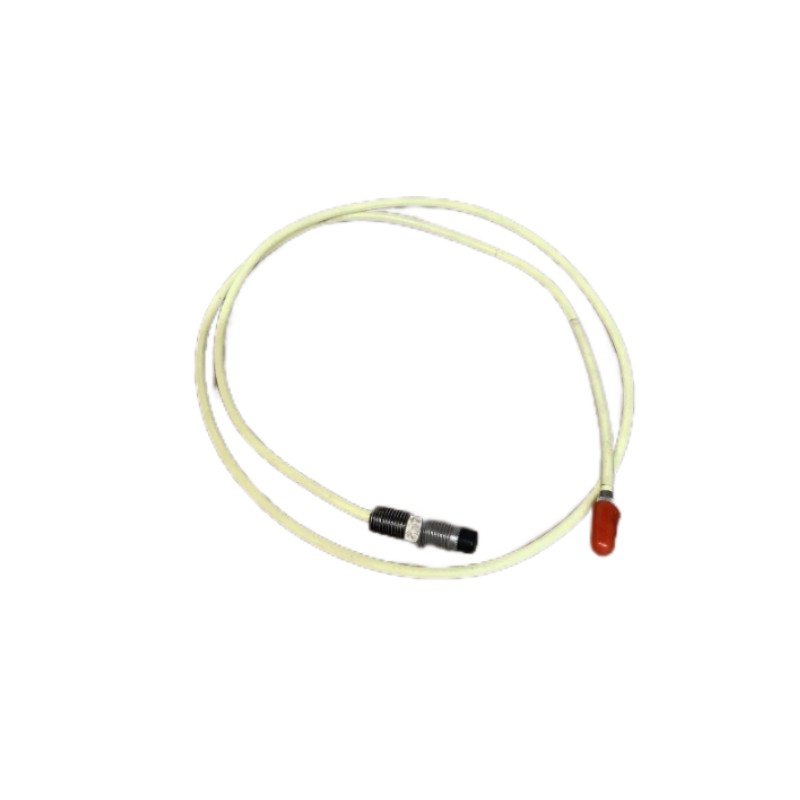

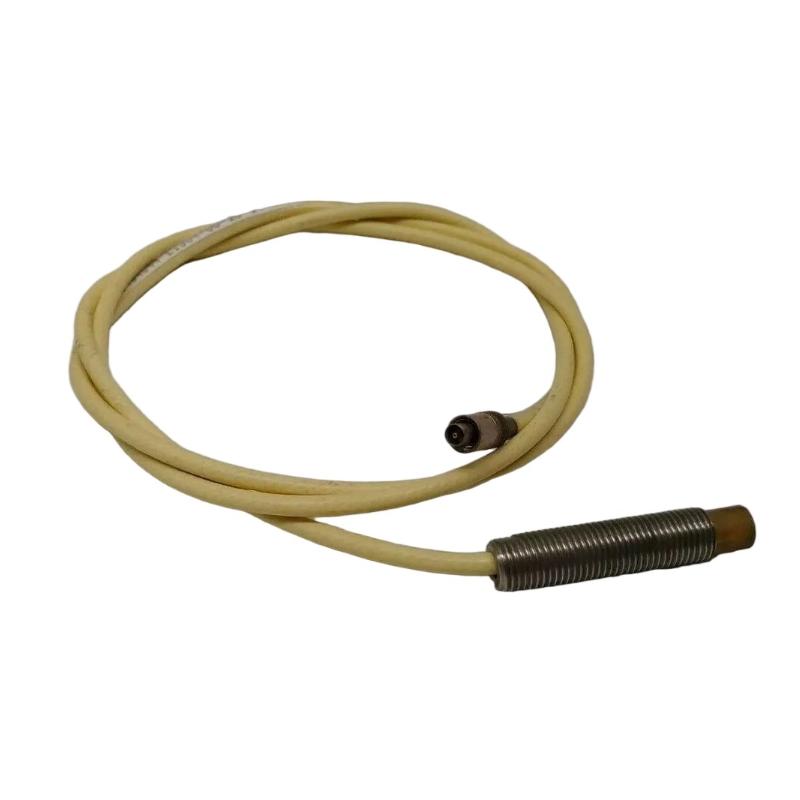

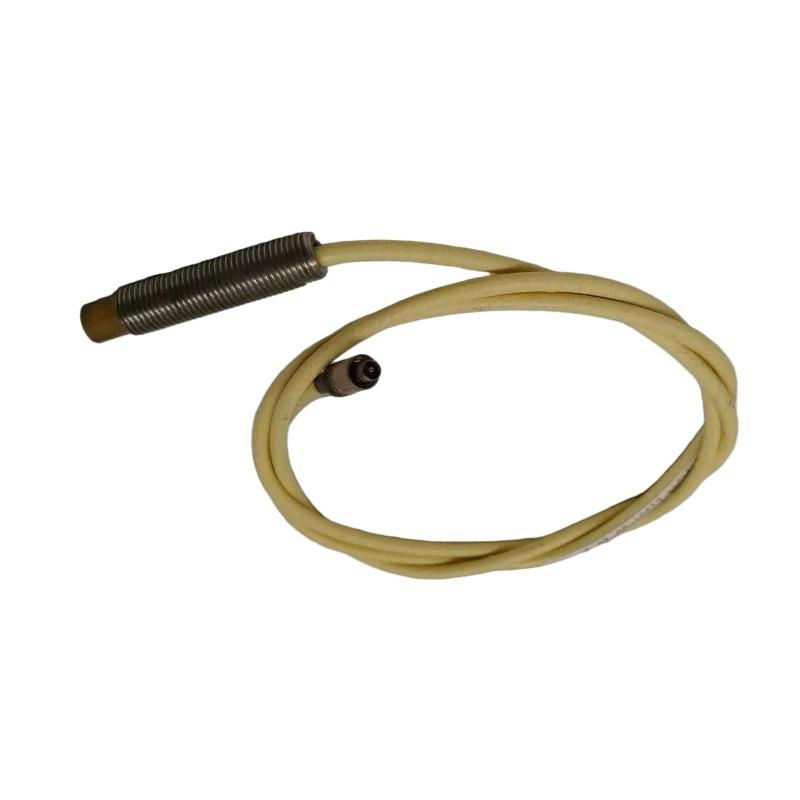

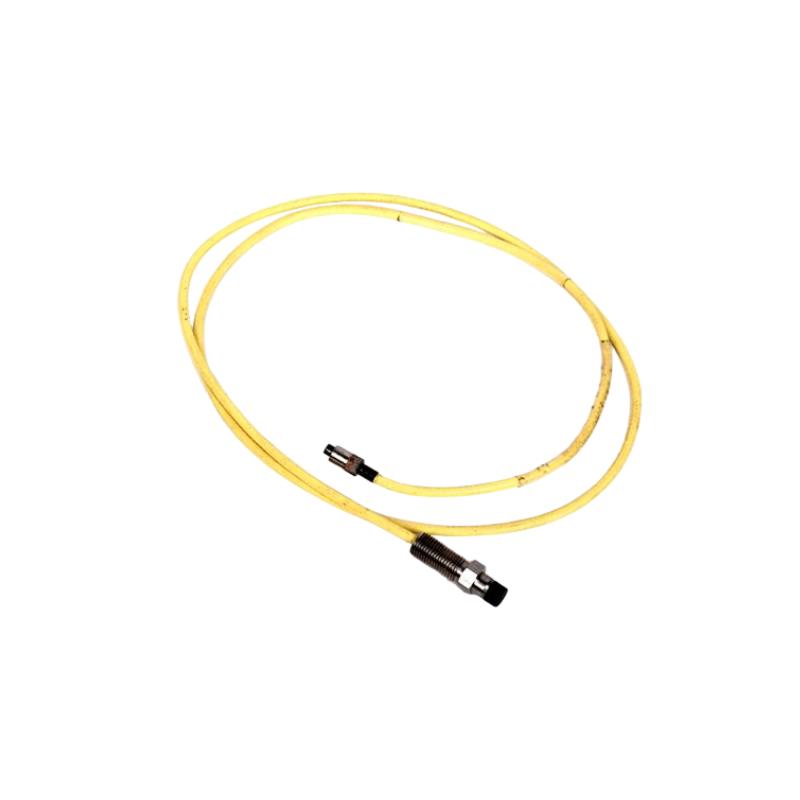

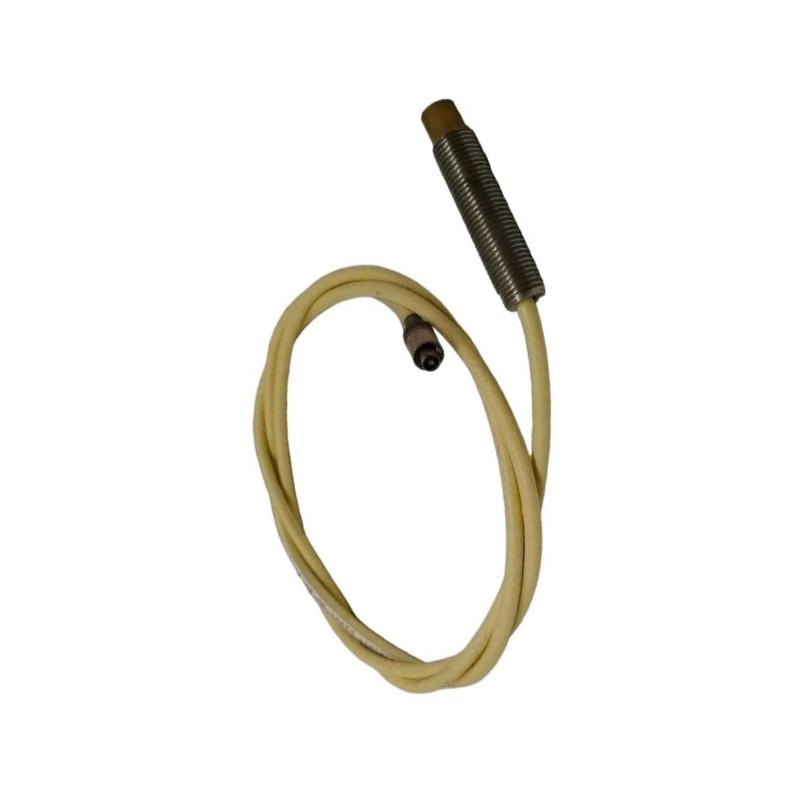

Configured with an 8 mm sensing tip, 160 mm overall case length, 1.0-meter integral cable, and a miniature male coaxial connector, this standard mount probe offers excellent installation flexibility while maintaining high measurement accuracy. It integrates seamlessly with compatible 7200 Series extension cables and Proximitor sensors, delivering reliable performance for critical machinery protection systems.

Technical Specifications

Technical FAQs

1. What is the primary function of this probe?

The probe continuously measures shaft vibration, displacement, and position without contacting the rotating surface, enabling early detection of mechanical issues.

2. Which monitoring system is this probe designed for?

It is designed for use with the Bently Nevada 7200 Proximity Transducer System, including compatible extension cables and Proximitor sensors.

3. What is the probe diameter?

The sensing tip has a diameter of 8 mm, making it suitable for a broad range of industrial vibration monitoring applications.

4. What is the overall case length?

This model features a 160 mm (6.3-inch) overall case length, providing additional installation flexibility for equipment with deeper probe mounting requirements.

5. How long is the integral cable?

The probe is supplied with a 1.0-meter (39-inch) integral cable terminated with a miniature male coaxial connector.

6. Which thread size does this probe use?

It utilizes a 3/8-24 UNF threaded body for secure installation in compatible mounting brackets and probe holders.

7. What measurement technology does the probe use?

The probe operates using eddy current sensing technology, providing accurate non-contact measurement of conductive shaft surfaces with excellent long-term stability.

8. Can this probe operate in demanding industrial environments?

Yes. It is engineered for continuous operation in applications involving vibration, temperature fluctuations, and exposure to industrial contaminants.

9. Which types of machinery commonly use this probe?

It is commonly installed on turbines, compressors, motors, generators, pumps, and other rotating equipment where continuous condition monitoring is critical.

10. Why choose the 21504-00-16-10-02 probe?

Its precise measurement capability, rugged construction, extended case length, and proven compatibility with the 7200 Series make it an excellent solution for industrial machinery protection and predictive maintenance.
